FKZ
CONNECTOR
0.5mm
pitch
Emboss Tape
Connectors for FPC

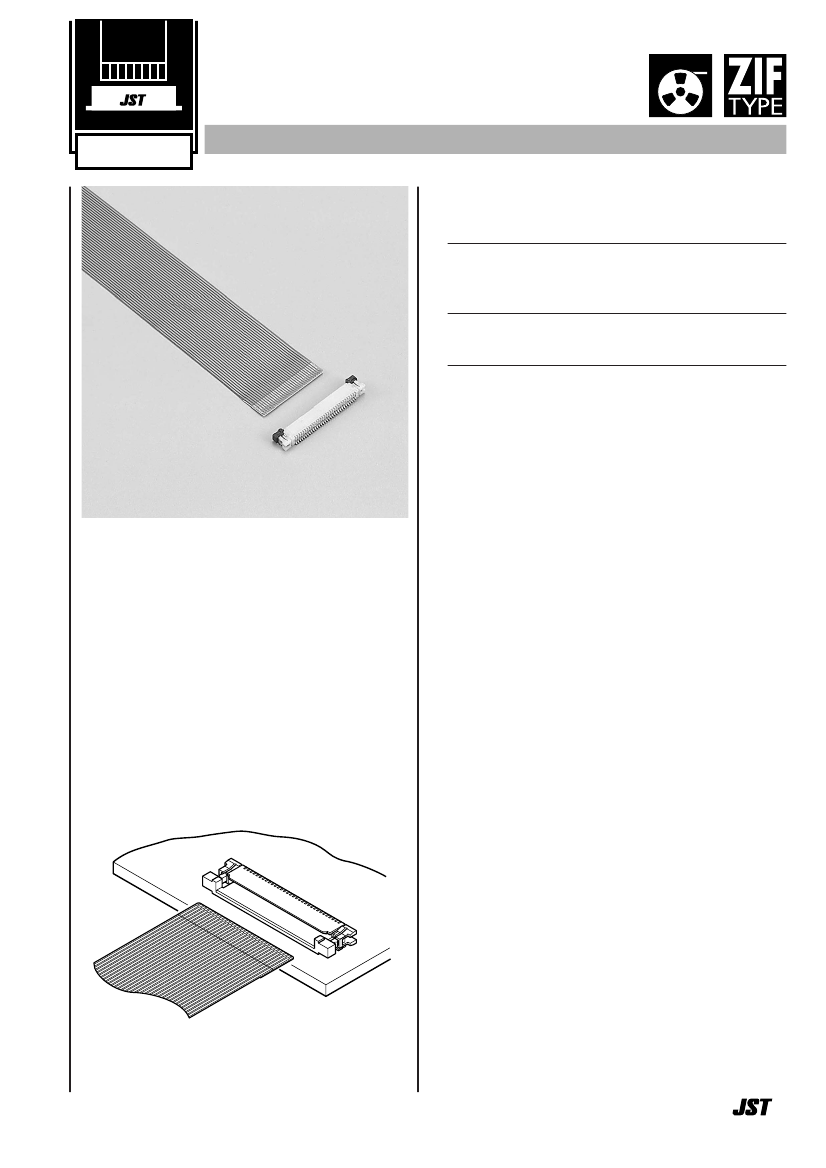

Features––––––––––––––––––––––––
• Space saving
The depth is 3.5mm for the connectors of 25 circuits or less,
and 4.0mm for 26 circuits or more.
• Low profile
Only 1.8mm height after mounted on the PC board.
• Zero insertion force mechanism
A ZIF mechanism increases wear resistance and extends the
connector’s mating life.
Available both in normal type and reverse
type.
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance: 100M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.5mm
Conductor width/0.35mm
Mating part thickness/0.30±0.05mm
<
Note
>
FPC to be actually used should be checked for applicability.
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
1
FKZ
CONNECTOR
Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Normal type
(5 to 25 circuits)
B
A
0.5
(4.4)
Circuits
5
6
8
12
14
16
18
19
3.5
Model No.
05FKZ-SM1-1-TB
06FKZ-SM1-1-TB
08FKZ-SM1-1-TB
12FKZ-SM1-1-TB
14FKZ-SM1-1-TB
16FKZ-SM1-1-TB
18FKZ-SM1-1-TB
19FKZ-SM1-1-TB
20FKZ-SM1-1-TB
22FKZ-SM1-1-TB
23FKZ-SM1-1-TB
24FKZ-SM1-1-TB
26FKZ-SM1-2-TB
27FKZ-SM1-2-TB
30FKZ-SM1-2-TB
32FKZ-SM1-2-TB
A
Dimensions (mm)
B
7.5
8.0
9.0
11.0
12.0
13.0
14.0
14.5
15.0
16.0
16.5
17.0
18.0
18.5
20.0
21.0
Q'ty /
reel
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
2.0
2.5
3.5
5.5
6.5
7.5
8.5
9.0
9.5
10.5
11.0
11.5
12.5
13.0
14.5
15.5
0.25
20
22
23
24
26
27
30
32
(26 to 32 circuits)
B
A
0.5
(4.9)
Material and Finish
Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
Contact: PPS, UL94V-0
Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
Slider: PPS, UL94V-0
4.0
0.25
RoHS compliance
This product displays (LF)(SN) on a label.
Reverse type
(5 to 25 circuits)
B
A
0.5
(4.4)
Circuits
5
6
8
12
13
14
16
18
3.5
Model No.
05FKZ-RSM1-1-TB
06FKZ-RSM1-1-TB
08FKZ-RSM1-1-TB
12FKZ-RSM1-1-TB
13FKZ-RSM1-1-TB
14FKZ-RSM1-1-TB
16FKZ-RSM1-1-TB
18FKZ-RSM1-1-TB
19FKZ-RSM1-1-TB
20FKZ-RSM1-1-TB
22FKZ-RSM1-1-TB
24FKZ-RSM1-1-TB
26FKZ-RSM1-2-TB
27FKZ-RSM1-2-TB
28FKZ-RSM1-2-TB
30FKZ-RSM1-2-TB
32FKZ-RSM1-2-TB
Dimensions (mm)
A
B
2.0
2.5
3.5
5.5
6.0
6.5
7.5
8.5
9.0
9.5
10.5
11.5
12.5
13.0
13.5
14.5
15.5
7.5
8.0
9.0
11.0
11.5
12.0
13.0
14.0
14.5
15.0
16.0
17.0
18.0
18.5
19.0
20.0
21.0
Q'ty /
reel
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
0.25
19
20
22
(26 to 32 circuits)
B
A
0.5
(5.0)
24
26
27
28
30
32
Material and Finish
4.0
Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
Housing: PPS, UL94V-0
Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
Slider: PPS, UL94V-0
0.25
RoHS compliance
This product displays (LF)(SN) on a label.
2
FKZ
CONNECTOR
Lead section dimensions of FPC ––––––––––––––––––––––––––––––––––––––––––––
0.5x(N+1)±0.05
0.5x(N-1)±0.03
0.5±0.03
0.35±0.03
0.3±0.05
0.5±0.1
2.8±0.03
Base layer
Cover layer
Reinforcing layer
Note: N --- Number of circuits
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––––––––––
(5 to 25 circuits)
0.5±0.05
0.3
0.8
0.8
1.45
(26 to 32 circuits)
0.5±0.05
0.3
1.45
1.0
(4.9)
3.3min.
contact point
Normal type
Reverse type
contact point
(4.4)
contact point
Normal type
Reverse type
contact point
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. The dimensions above should serve as a guideline.
Contact JST for details.
0.85
1.0
0.35
3.35
3.35
3
