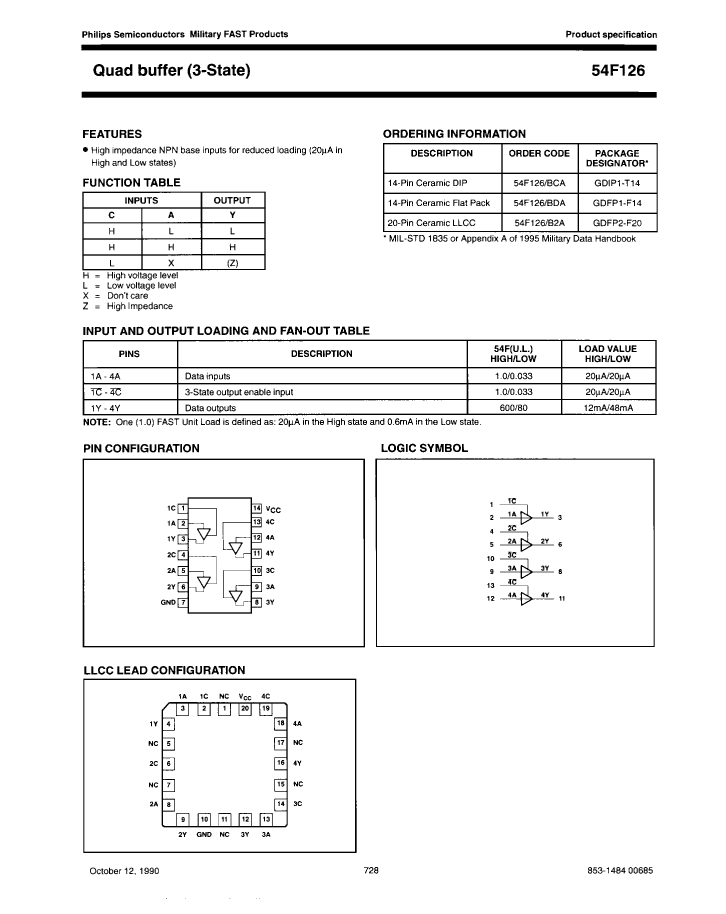

IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver

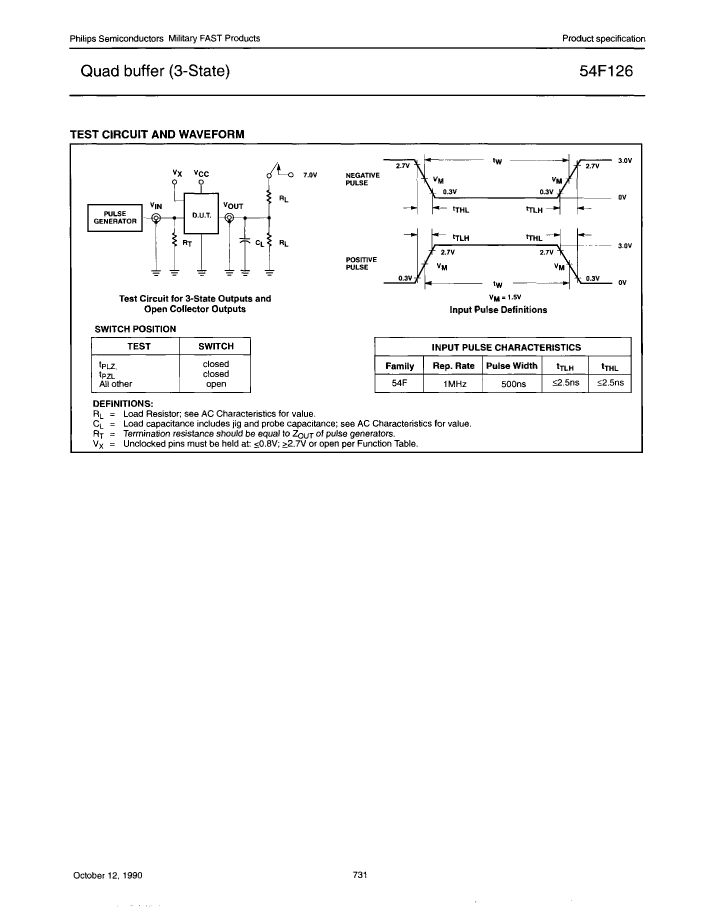

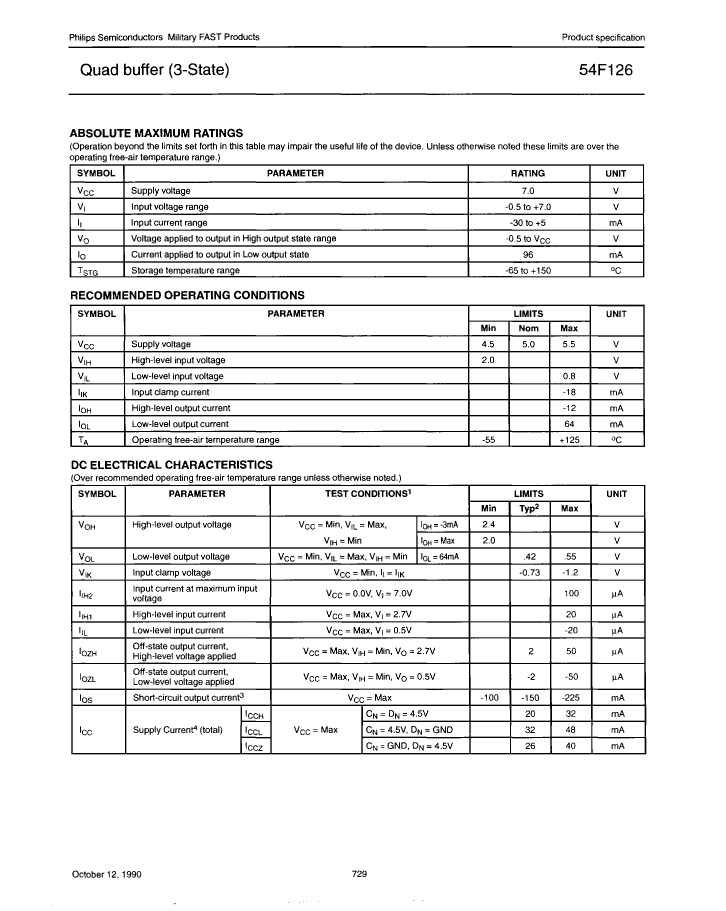

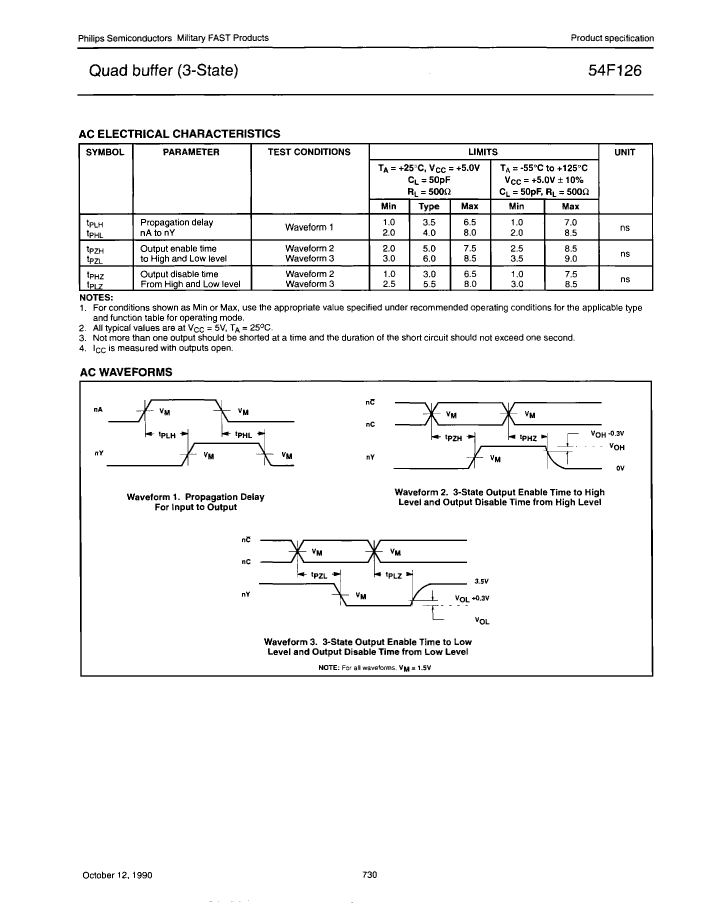

| Parameter Name | Attribute value |
| Parts packaging code | QLCC |
| package instruction | QCCN, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Maximum supply current (ICC) | 48 mA |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 54F126/B2A | 54F126/BCA | N54F126/BDA | 54F126/BDA | N54F126/B2A | |
|---|---|---|---|---|---|
| Description | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDIP14, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver |
| package instruction | QCCN, | DIP, | DFP, | DFP, | QCCN, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N20 | R-GDIP-T14 | R-CDFP-F14 | R-CDFP-F14 | S-CQCC-N20 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 14 | 14 | 14 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | DIP | DFP | DFP | QCCN |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | IN-LINE | FLATPACK | FLATPACK | CHIP CARRIER |
| Maximum supply current (ICC) | 48 mA | 48 mA | 48 mA | 48 mA | 48 mA |
| propagation delay (tpd) | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.905 mm | 5.08 mm | 2.159 mm | 2.159 mm | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE | FLAT | FLAT | NO LEAD |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | DUAL | DUAL | QUAD |
| width | 8.89 mm | 7.62 mm | 6.2865 mm | 6.2865 mm | 8.89 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Parts packaging code | QLCC | - | DFP | DFP | QLCC |
| Contacts | 20 | - | 14 | 14 | 20 |
