707-15-1013 datasheet, PDF - EEWORLD Datasheet

707-15-1013: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size102KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

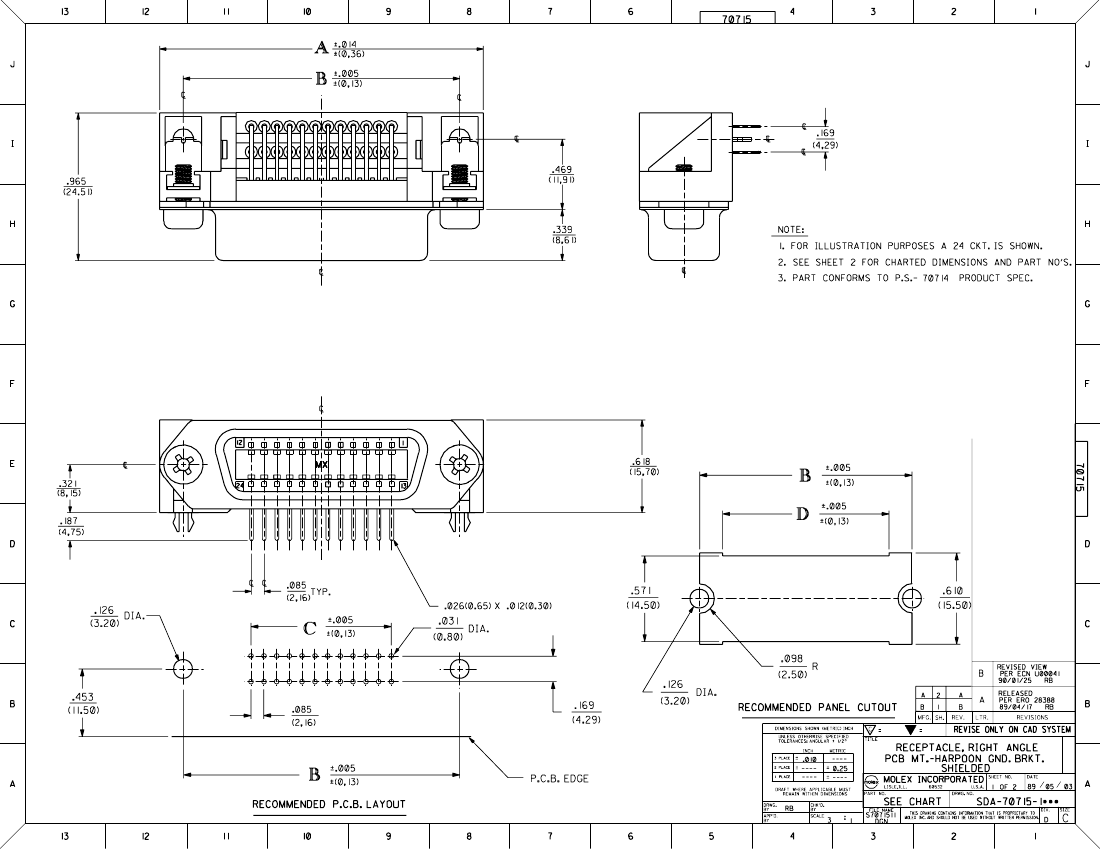

707-15-1013 Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle

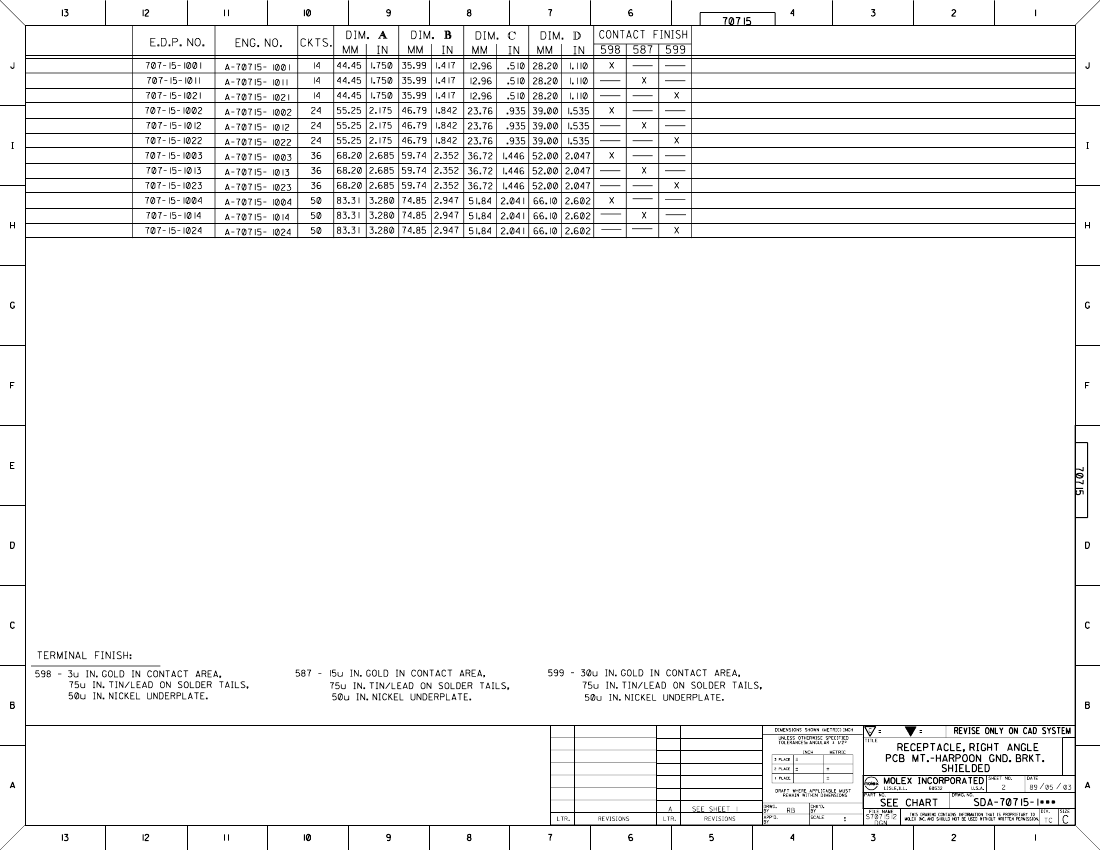

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.618 inch
subject depth	0.626 inch
body length	2.685 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	70715
Plug contact pitch	0.085 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	15u inch
reliability	COMMERCIAL
Terminal length	0.187 inch
Terminal pitch	2.16 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1
