BB025-24-A-365-1-B datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB025-24-A-365-1-B

BB025-24-A-365-1-B: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BB025-24-A-365-1-B Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle

BB025-24-A-365-1-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.161 inch
subject depth	0.144 inch
body length	0.449 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	100VAC V
Durability	500 Cycles
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
Manufacturer's serial number	BB025
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

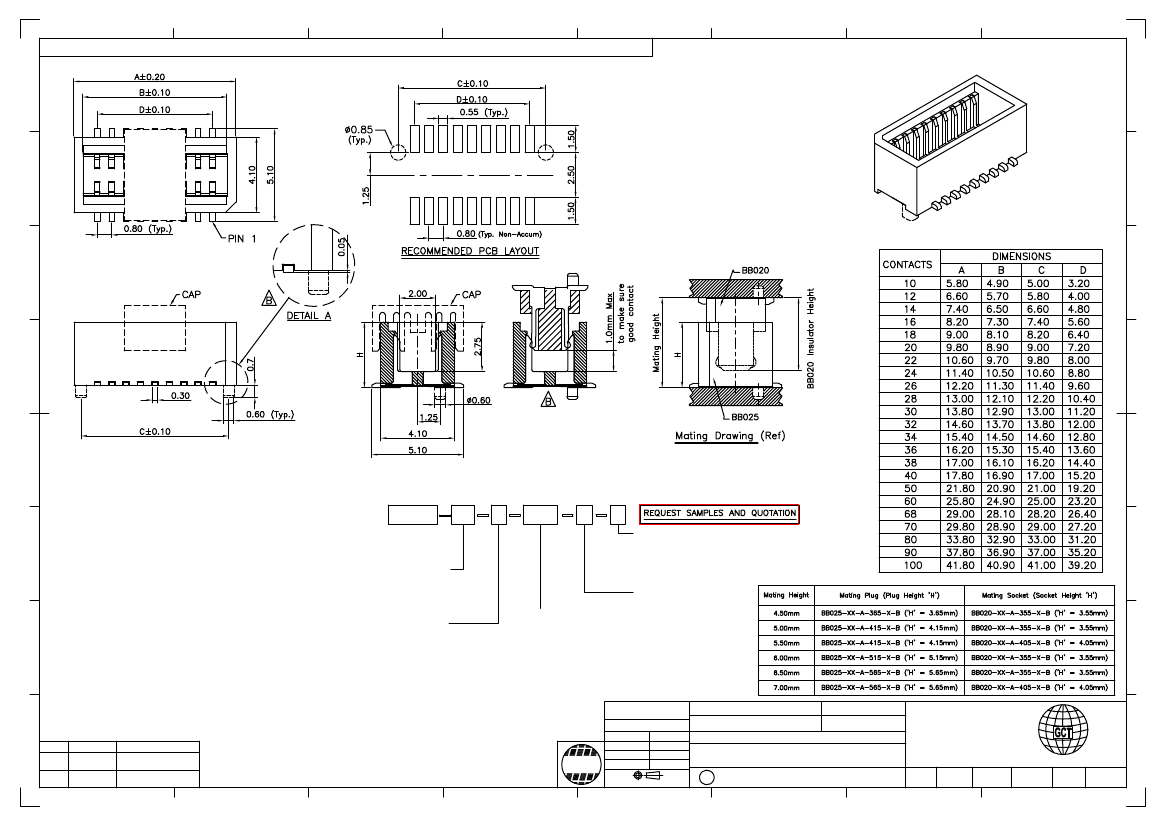

Global Connector Technology Ltd. - BB025: 0.8mm PITCH BOARD TO BOARD SOCKET, DUAL ROW, SURFACE MOUNT, VERTICAL

Ordering Grid

BB025

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 0.5 AMP AC/DC

VOLTAGE RATING

电压额定值

: 100V AC/DC

INSULATOR RESISTANCE

绝缘电阻值

: 100 M

MIN. (100V DC)

DIELECTRIC WITHSTANDING

耐电压

: AC 100 V (1 MIN.)

CONTACT RESISTANCE

接触电阻值

: 40m

Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

PLATING

电镀

: GOLD FLASH OVER 30 - 50u" NICKEL

底层

30 - 50u"

镍,其上镀金箔

INSULATOR MATERIAL

绝缘½物料

POLYAMIDE

聚醯胺

, NYLON 46, UL 94-V0 HI-TEMP PLASTIC, WHITE

SOLDERING PROCESS

可焊性

: 260°C FOR 5 - 10 SECONDS

DURABILITY

耐久力

: 500 MATING CYCLES MIN.

插拨最少

500

次

MATES WITH

配套之母座

BB020

MATING DEPTH VIEW

& 'DETAIL A' ADDED

10/06/09

DRAWING

DETAIL RELEASE

REV

20/01/08

DATE

XXX

Packing Options

B = Tape and Reel with Cap

No. of Contacts

10 to 40, 50, 60,

68, 70, 80, 90, 100

(00 = 100)

Contact Plating

A = Gold Flash

Standard = Gold Flash

Insulator

Height "H"

365 = 3.65mm

415 = 4.15mm

515 = 5.15mm

565 = 5.65mm

Locating Peg

0 = No Peg

1 = With Peg

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

BB025

Description:-

20 JAN 08

RoHS

0.8mm PITCH BOARD TO BOARD SOCKET,

DUAL ROW, SURFACE MOUNT, VERTICAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

E & OE

Sheet No.

1/1
