511-780-0630N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 511-780-0630N

Preview

511-780-0630N: DescriptionRF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

511-780-0630N Overview

RF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack

511-780-0630N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLE: RG-316
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	51
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
voltage standing wave ratio	1.41
Base Number Matches	1

Preview

Download Datasheet

View All

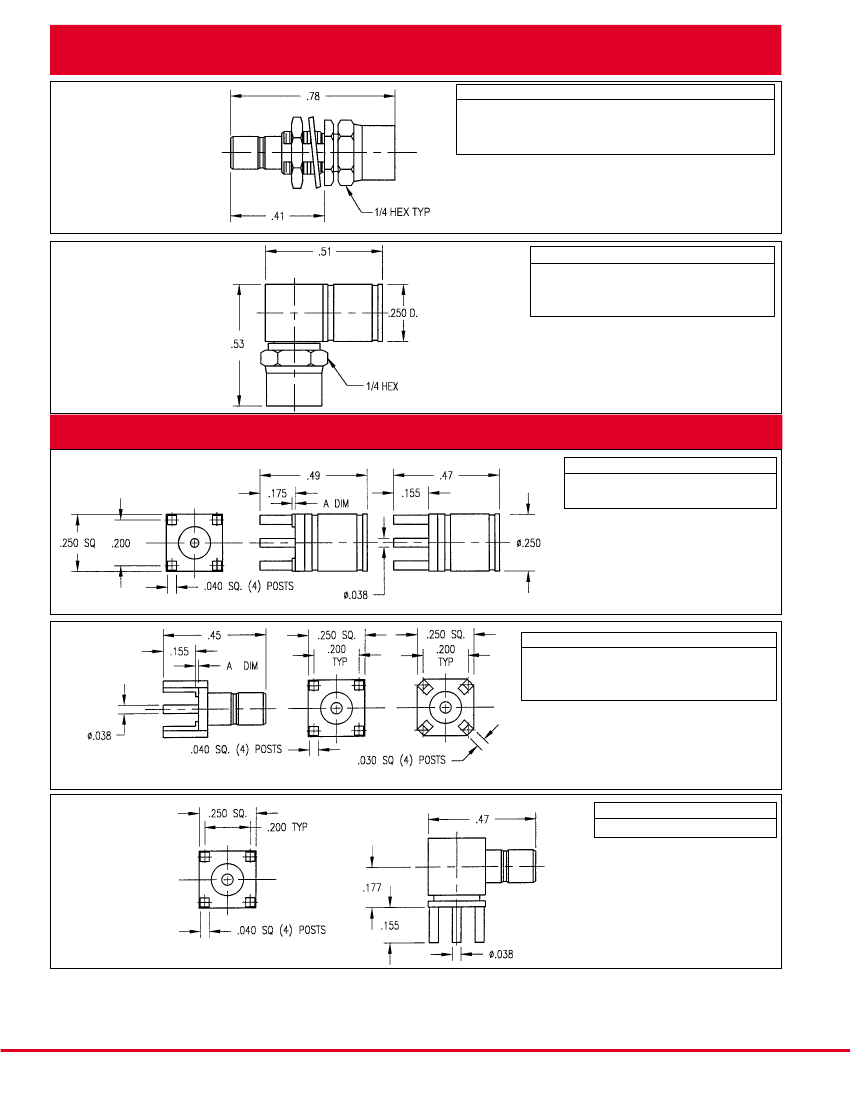

SMB:

Clamp Flexible Cable

Part Number

511-780-0360H

511-780-0630H

511-780-0631H

Cable

Mounting Hole

RG-178

No. 080

RG-316

No. 080

RG-316 double shielded

No. 080

Straight

Bulkhead Jack

Captive

Contact

• See page 99 for cable assembly procedures: No. 7-03

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Part Number

512-700-0360H

512-700-0630H

512-700-0631H

Cable

RG-178

RG-316

RG-316 double shielded

Right Angle

Plug

• See page 100 for cable assembly procedures: No. 7-04

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMB:

Printed Circuit Receptacles

Part Number

510-060-0040H

510-060-0047H

Mounting Hole A

No. 060 B

-

No. 060 B

.020

Straight Plug

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight

Jack

Part Number

511-060-0040H

511-060-0047H

511-060-0048H

Mounting Hole A Figure

No. 060 B

-

1

No. 060 A

-

2

No. 060 A

.020

2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Figure 1

Right Angle

Jack

Figure 2

Part Number

513-060-0040H

Mounting Hole

No. 060 B

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/28

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
