555M-2007

Description
T-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size391KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric Compare View All

555M-2007 Overview

T-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, 2 PIN

555M-2007 Parametric

Parameter NameAttribute value
MakerLEDtronics
package instruction2 PIN
Reach Compliance Codeunknown
colorHIGH EFFICIENCY RED
color@wavelengthRed
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Maximum forward current0.003 A
Maximum forward voltage6 V
Lens typeDIFFUSED
Nominal luminous intensity2 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED
total height6.3 mm
method of packingBULK
peak wavelength655 nm
Maximum reverse voltage6 V
shapeROUND
size2 mm
surface mountNO
T codeT-3/4
Terminal surfaceNOT SPECIFIED
Terminal pitch2.6 mm
perspective40 deg
Base Number Matches1

Preview

Download Datasheet

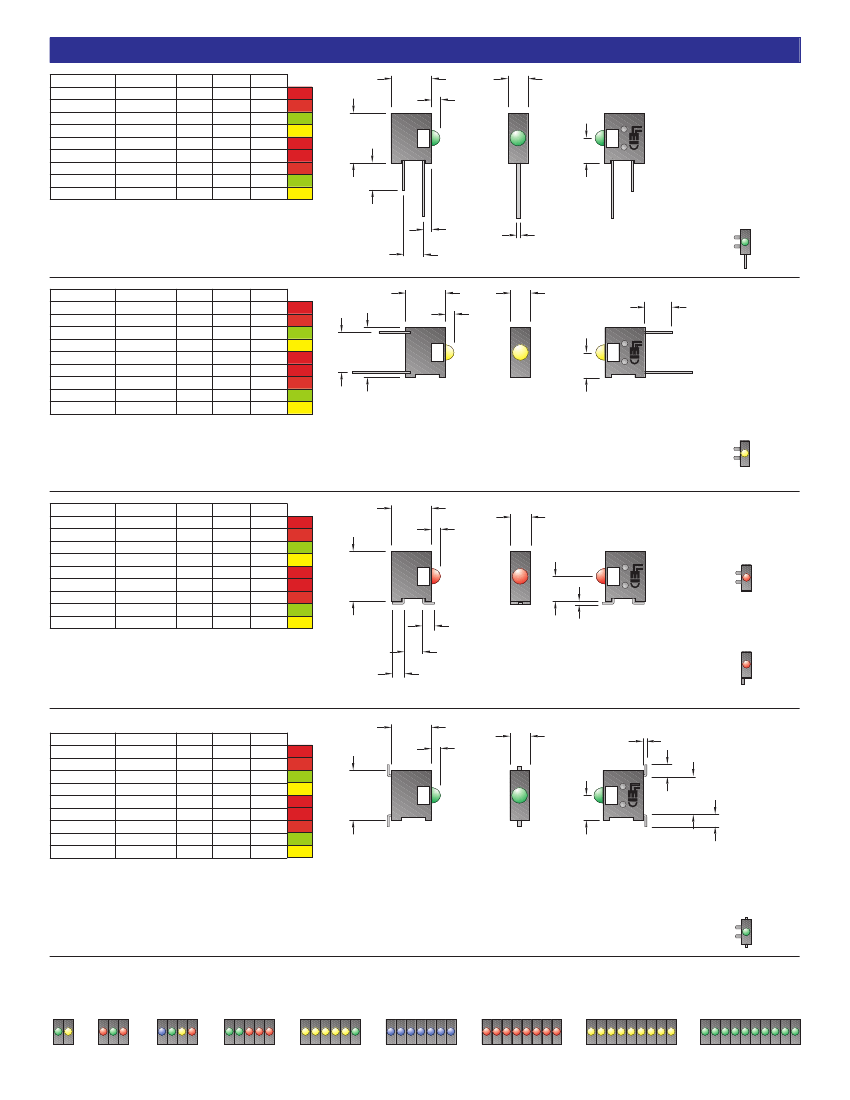

SINGLE LEVEL T
3/4
[2mm] LEDs
PART NO.
555M-2001
555M-2101
555M-2301
555M-2401
555M-2003
555M-2004
555M-2007
555M-2303
555M-2403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
*
*
*
*
*
+
.250
[6.4]
.140 MIN
[3.6]
.125
[3.2]
Options
-SI
SNAP IN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS NYLON 66 (UL 94V-0)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
.040
[1.0]
.100
[2.6]
.027
[0.7]
*
PART NO.
555M-3001
555M-3101
555M-3301
555M-3401
555M-3003
555M-3004
555M-3007
555M-3303
555M-3403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
.140 MIN
[3.6]
*
*
*
*
*
.250
[6.4]
+
.125
[3.2]
.200
[5.1]
Options
-SI
SNAP IN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS NYLON 66 (UL 94V-0)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
*
PART NO.
SM555-2001
SM555-2101
SM555-2301
SM555-2401
SM555-2003
SM555-2004
SM555-2007
SM555-2303
SM555-2403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
Options
-SI
SNAP IN
*
*
*
*
*
+
.250
[6.4]
.060
[1.6]
.090
[2.3]
.060
[1.6]
.028 SQ x .060 TAB
.125
[3.2]
.020
[0.5]
-P
LOCATING PIN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS RYNITE (UL 94HB)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
*
.200
[5.1]
PART NO.
SM555-3001
SM555-3101
SM555-3301
SM555-3401
SM555-3003
SM555-3004
SM555-3007
SM555-3303
SM555-3403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
â
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.045
[1.2]
.100
[2.6]
.020
[0.5]
.190
[4.8]
*
*
*
*
*
+
.250
[6.4]
.125
[3.2]
.060
[1.6]
.060
[1.6]
NOTES:
SCALE 2=1
HOUSING MATERIAL IS RYNITE (UL 94HB)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
Options
-SI
SNAP IN
*
LEADS ARE CUT TO .140 ON ALL ARRAYS
FOR "555M" SERIES
Arrays
-005
-006
-007
-008
-009
-010
-002
-003
-004
LEDTRONICS, INC.
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
1
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com

555M-2007 Related Products

555M-2007 555M-2003 555M-2004 555M-2401 555M-2403 555M-2301
Description T-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, 2 PIN T-3/4 SINGLE COLOR LED, DEEP RED, 2 mm, 2 PIN T-3/4 SINGLE COLOR LED, DEEP RED, 2 mm, 2 PIN T-3/4 SINGLE COLOR LED, YELLOW, 2 mm, 2 PIN T-3/4 SINGLE COLOR LED, YELLOW, 2 mm, 2 PIN T-3/4 SINGLE COLOR LED, GREEN, 2 mm, 2 PIN
package instruction 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN
Reach Compliance Code unknown unknow unknown unknown unknown unknow
color HIGH EFFICIENCY RED DEEP RED DEEP RED YELLOW YELLOW GREEN
color@wavelength Red Red Red Yellow Yellow Gree
Configuration SINGLE WITH BUILT-IN RESISTOR SINGLE WITH BUILT-IN RESISTOR SINGLE WITH BUILT-IN RESISTOR SINGLE SINGLE WITH BUILT-IN RESISTOR SINGLE
Maximum forward current 0.003 A 0.006 A 0.016 A 0.01 A 0.005 A 0.01 A
Maximum forward voltage 6 V 6 V 6 V 3.5 V 6 V 3.5 V
Lens type DIFFUSED DIFFUSED DIFFUSED DIFFUSED DIFFUSED DIFFUSED
Nominal luminous intensity 2 mcd 1.2 mcd 3 mcd 3 mcd 0.6 mcd 3 mcd
Installation features RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT
Number of functions 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 6.3 mm 6.3 mm 6.3 mm 6.3 mm 6.3 mm 6.3 mm
method of packing BULK BULK BULK BULK BULK BULK
peak wavelength 655 nm 655 nm 655 nm 585 nm 585 nm 565 nm
Maximum reverse voltage 6 V 6 V 6 V 3 V 6 V 3 V
shape ROUND ROUND ROUND ROUND ROUND ROUND
size 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
surface mount NO NO NO NO NO NO
T code T-3/4 T-3/4 T-3/4 T-3/4 T-3/4 T-3/4
Terminal surface NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Terminal pitch 2.6 mm 2.6 mm 2.6 mm 2.6 mm 2.6 mm 2.6 mm
perspective 40 deg 40 deg 40 deg 40 deg 40 deg 40 deg
Base Number Matches 1 1 1 1 1 -
