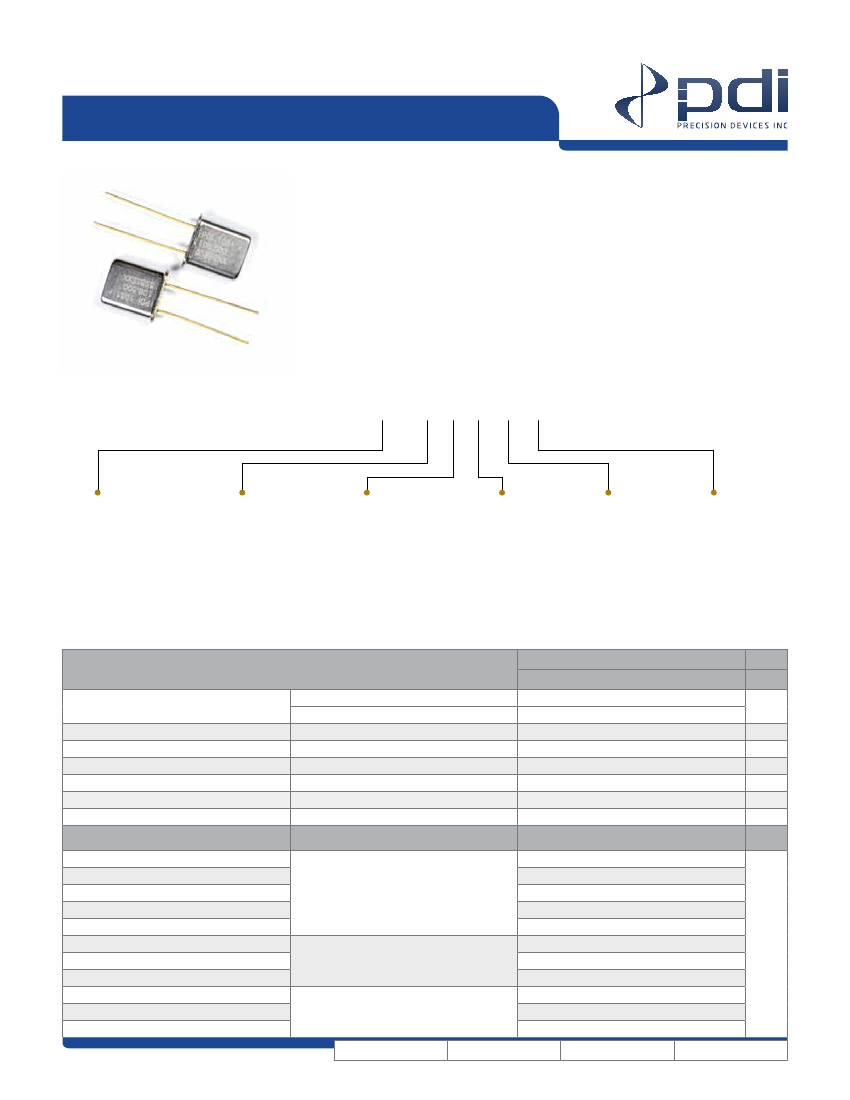

U1-Series Specifications
7.90L x 3.18W x 8.00H
(mm)
PDI
U1-Series
provides a broad rang of frequencies in a small profile, robust, high
reliability UM1 resistance-weld enclosure. The U1 is available in a variety of frequency
stabilities and tolerances, operating temperature ranges, and load capacitances and
has excellent mechanical characteristics. PDI provides quick-turn sampling for your
proto-typing needs, mass production capability, and competitive pricing.
ex)
U1—25000X—F—C—D—08—X—X
*
FREQUENCY
08000X – 99999X
=
8.000MHz – 99.999MHz
C10000 – C20000
=
100.000MHz – 200.000MHz
MODE
F
= Fundamental
3
= 3rd Overtone
5
= 5th Overtone
7
= 7th Overtone
TOTAL
TOLERANCE
B
= +/-25
(Temp A & B)
C
= +/-50
D
= +/-100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
LOAD
08-99
= pF
SE =
Series
PACKAGE
G
= Gull Wing
R
= Tape & Reel
X
= Through Hole
*(X) for standard or assigned for custimization.
Parameter
Temperature Range
Insulation Resistance
Drive Level
Aging
Shunt Capacitance (Co)
Motional Capacitance (C1)
Motional Inductance (L1)
Operating
Storage
@ 100Vcc (Min.)
(Max.)
Per Year
(Max.)
Frequency Range
8.000000 to 200.000000
Per Chart
-55 to +125
500
1
±3.0
7.0
Consult Applications Engineering
Consult Applications Engineering
Units
MHz
°C
MΩ
mW
ppm
pF
Frequency Range – MHz
8.000000 – 10.000000
>10.000000 – 13.000000
>13.000000 – 20.000000
>20.000000 – 30.000000
>25.000000 – 40.000000
>40.000000 – 60.000000
>60.000000 – 80.000000
>80.000000 – 125.000000
>75.000000 – 100.000000
>100.000000 – 150.000000
>125.000000 – 200.000000
Oscillation Mode
Series Resistance – Max.
80
60
40
30
60
50
60
70
80
90
100
SIZE:
A
CAGE:
A
Units
Fundamental
Ohms
3rd Overtone
5th Overtone
REV:
NA
1
of
2
U1-Series
7.90 x 3.18 x 8.00
(mm)
PDI
U1-Series
provides a broad rang of frequencies in a small profile,
robust, high reliability UM1 resistance-weld enclosure. The U1 is available
in a variety of frequency stabilities and tolerances, operating temperature
ranges, and load capacitances and has excellent mechanical characteristics.
PDI provides quick-turn sampling for your proto-typing needs, mass production
capability, and competitive pricing.

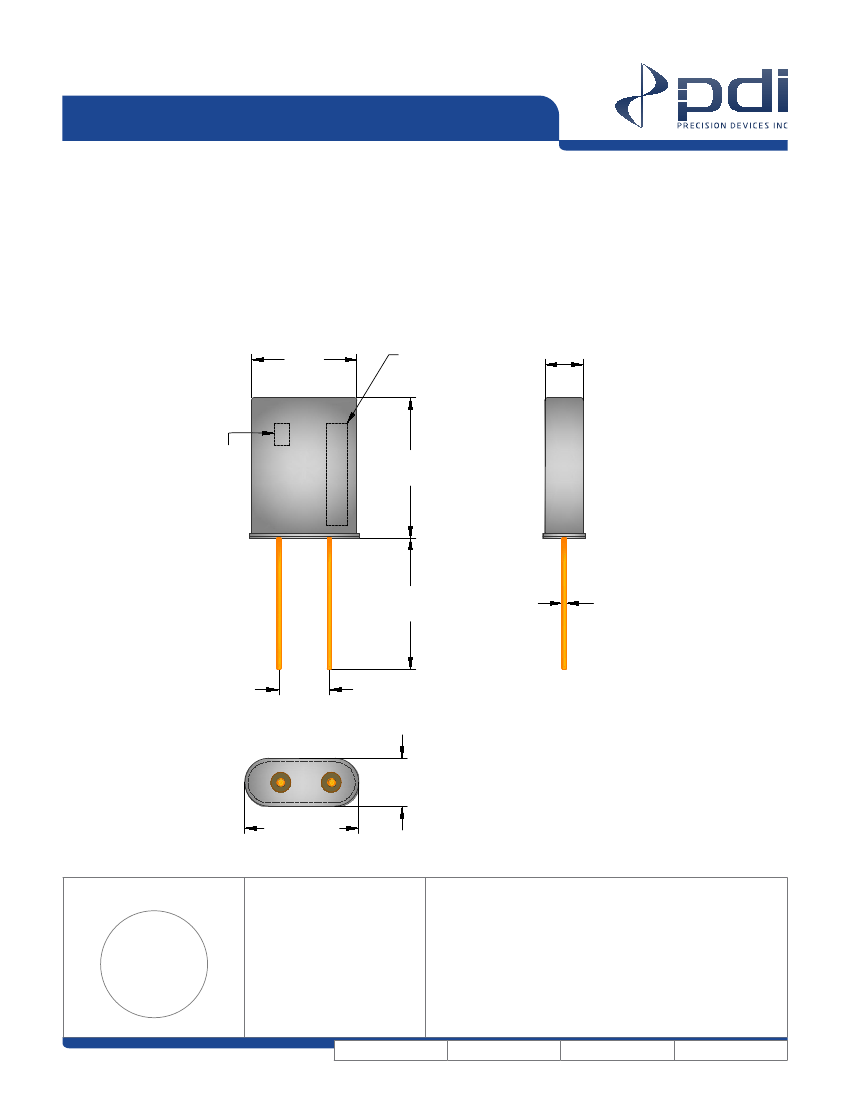

.280
[7.10]
Last 7 digits of
PDI part number
.087
[2.20]
Traceability C
PDI D/C
Frequency
Traceability Code
.315 Max.
[8.00 Max.]
.500 Min.
[12.70 Min.]
Ø.012 ±.002
[Ø.30 ±.05]
.148
[3.76]
.126 Max.
[3.18 Max.]
.311 Max.
[7.90 Max.]
GR
EE
N
P
ROD
U
Mechanical Shock:
MIL-STD-202
Method 213, Condition C
Vibration:
MIL-STD-202,
Method 201, 204, and 214
Hermeticity:
MIL-STD-202,
Method 112
Compliant
EU 2002/95/EC
e
c
,
.078
i
s
i
o
n
D
e
v
i
c
e
s
RoHS
±.012
[1.98 ±.30]
Solderability:
IPC/EIA-STD-002A
REV:
NA
.315 Max.
[8.00 Max.]
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Not all Frequency/Temperature combinations are available.
Decimal
XXX = ± .008, XX = ± .020
Metric
[XXX = ± .20], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/13.
Last 7 digits of
I
n
c
.
CT
Frequency
P
r
PDI part number
SIZE:
A
CAGE:
A
.290
[7.36]
2
of
2
.311 Max.
.148
.120
