Datasheet> All Categories > Discrete semiconductor> The transistor> IRLR120TR

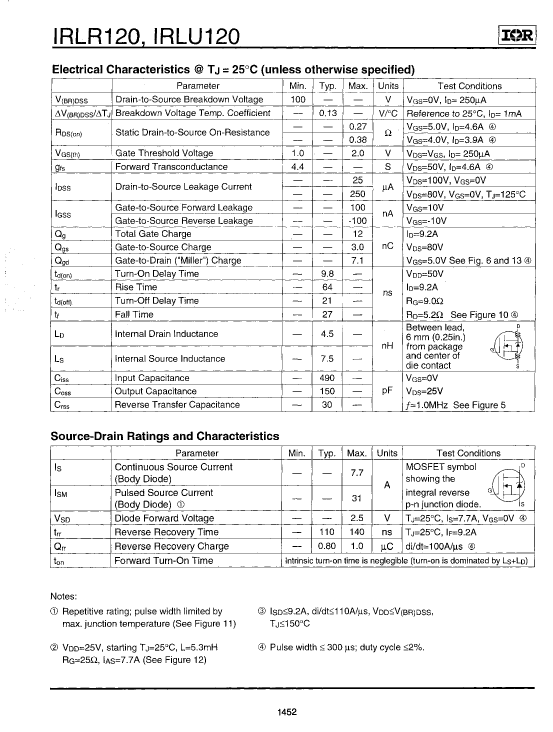

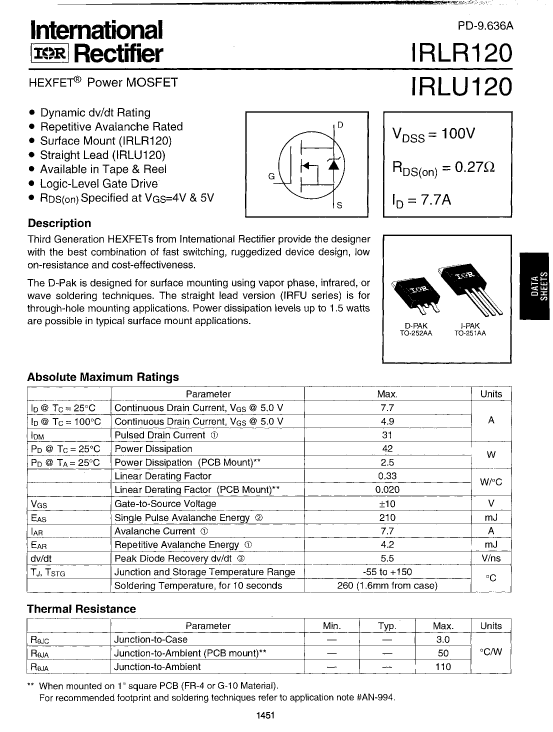

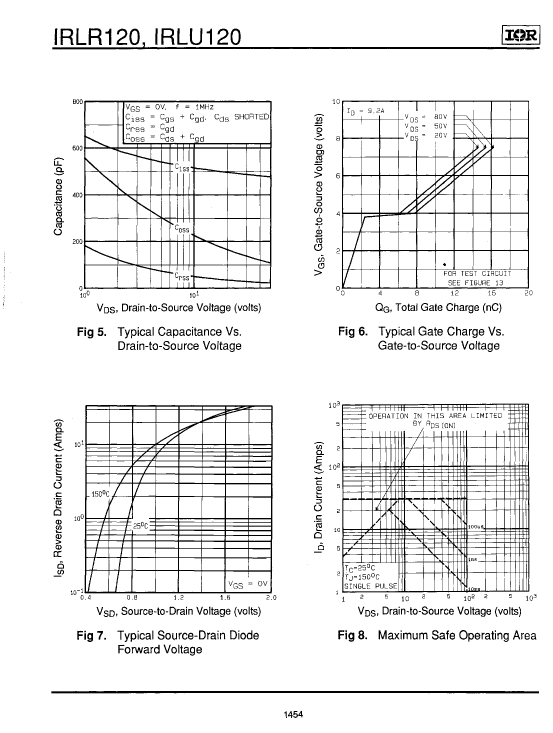

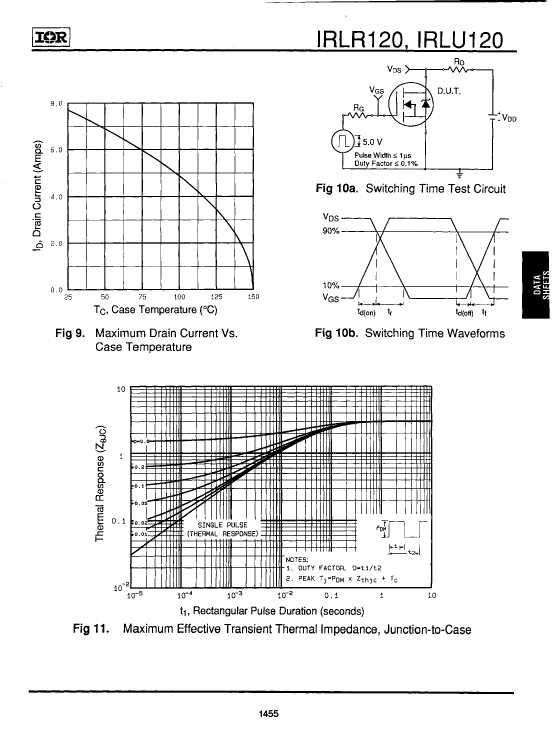

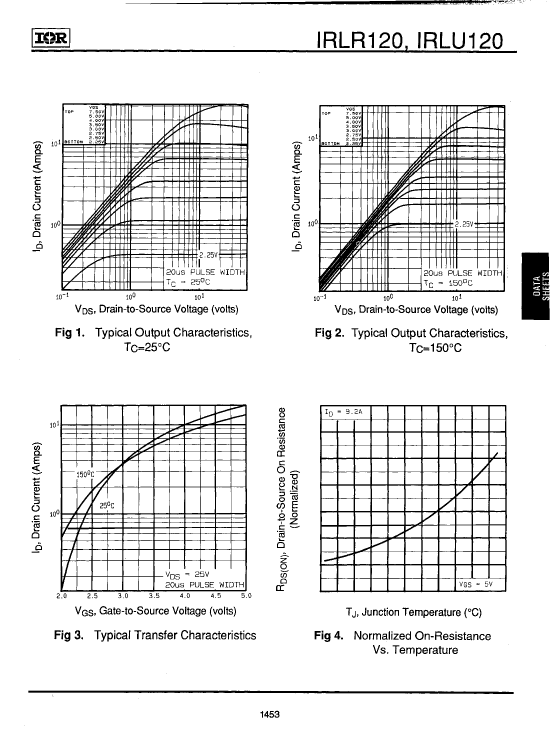

Preview

IRLR120TR: DescriptionPower Field-Effect Transistor, 7.7A I(D), 100V, 0.27ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA; CategoryDiscrete semiconductor The transistor; File Size178KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

IRLR120TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IRLR120TR	-	-	View	Buy Now

IRLR120TR Overview

Power Field-Effect Transistor, 7.7A I(D), 100V, 0.27ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA

IRLR120TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	7.7 A
Maximum drain-source on-resistance	0.27 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	42 W
Maximum pulsed drain current (IDM)	35 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

IRLR120TR Related Products

	IRLR120TR	IRLR120TRL	IRLR120TRR
Description	Power Field-Effect Transistor, 7.7A I(D), 100V, 0.27ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA	Power Field-Effect Transistor, 7.7A I(D), 100V, 0.27ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA	Power Field-Effect Transistor, 7.7A I(D), 100V, 0.27ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN	DRAIN	DRAIN
Configuration	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	100 V	100 V	100 V
Maximum drain current (ID)	7.7 A	7.7 A	7.7 A
Maximum drain-source on-resistance	0.27 Ω	0.27 Ω	0.27 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-252AA	TO-252AA	TO-252AA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	42 W	42 W	42 W
Maximum pulsed drain current (IDM)	35 A	31 A	31 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Base Number Matches	1	1	1
Is it Rohs certified?	incompatible	incompatible	-
JESD-609 code	e0	e0	-
Peak Reflow Temperature (Celsius)	260	245	-
Terminal surface	TIN LEAD	TIN LEAD	-
Maximum time at peak reflow temperature	NOT SPECIFIED	30	-
Avalanche Energy Efficiency Rating (Eas)	-	210 mJ	210 mJ
Maximum operating temperature	-	150 °C	150 °C
