832-00550F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 832-00550F

832-00550F: DescriptionData Line Filter, 2 Function(s), 50V, 5A, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size121KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

832-00550F Overview

Data Line Filter, 2 Function(s), 50V, 5A, ROHS COMPLIANT PACKAGE-4

832-00550F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	10 Ω
filter type	DATA LINE FILTER
high	3.5 mm
Minimum insulation resistance	10 MΩ
length	7.2 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance	300 OHM Ω
method of packing	TAPE AND REEL
physical size	L7.2XB6.2XH3.5 (mm)/L0.283XB0.244XH0.138 (inch)
Rated current	5 A
Rated voltage	50 V
width	6.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

E & E Magnetic Products Limited

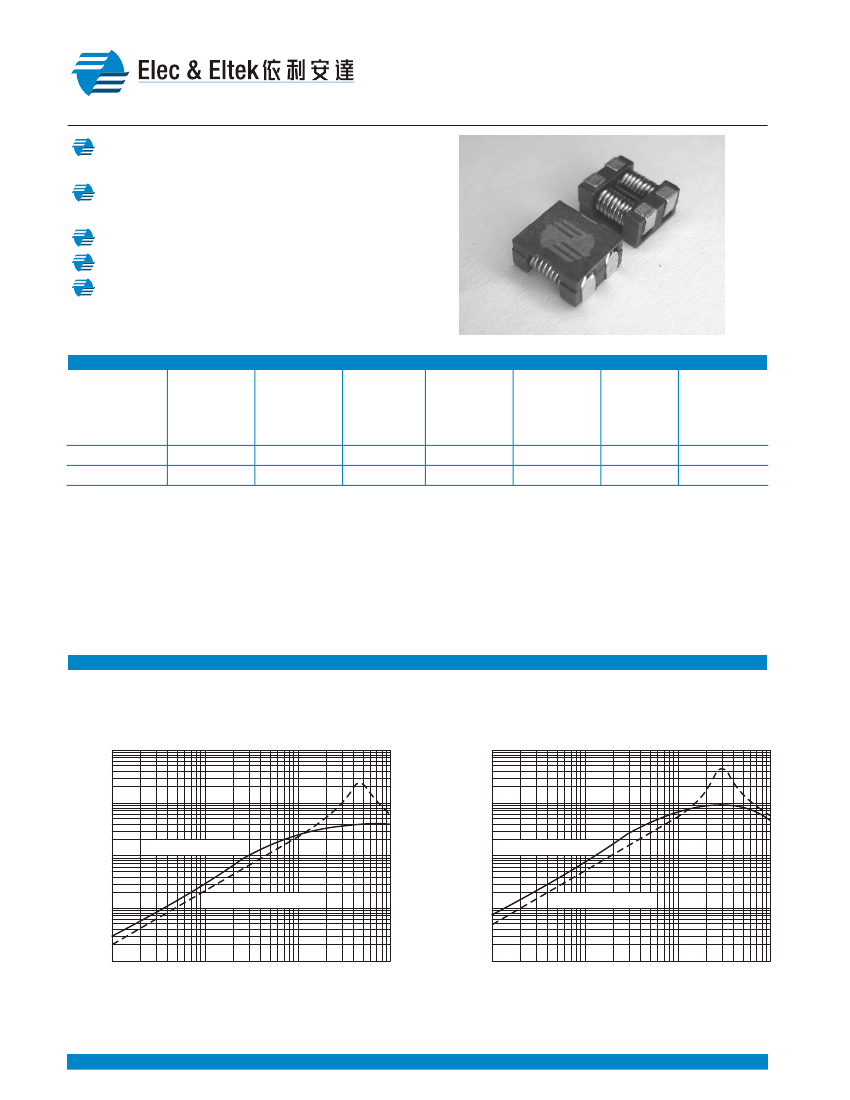

Common Mode Choke

SMT, Low Profile, RoHS

Common mode impedance surpasses 300W and 700W

at 100MHz.

Applicable for the miniaturization required to reduce

the size and weight of portable equipment.

Rated voltage up to: 57V.

Operating temperature: -25°C to +85°C.

RoHS compliant versions are available.

LECTRICAL

PECIFICATION @

25°C

Part

Number

832-00550F

832-00541F

Impedance

at 100MHz

(W Min)

225

500

Impedance

at 100MHz

(W Typ)

300

700

DCR

(mW Max)

Rated Current

Idc

(A Max)

Insulation

Resistance

(MW Min)

Rated Volatge

Edc

(V Max)

Marking

(32-xxx)

32-550

32-541

Notes:

1. Inductance is measured at 100MHz.

2. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating

temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified

in the end application.

YPICAL

MPEDANCE

URVES

832-00550F

10000

832-00541F

1000

Impedance(W)

1000

100

Common Mode

100

Common Mode

Differential Mode

100

1000

Frequency(MHz)

100

1000

Frequency(MHz)

1/F.,Harbour View,No.12 Science Park East Avenue,Phase II,Hong Kong Science Park,Shatin,N.T.,HK . Tel: (852) 2954 3333 . Fax: (852) 2954 3304

PC001(01)

Revised in 12/03
