1N981BE3(DO7) datasheet, PDF - EEWORLD Datasheet

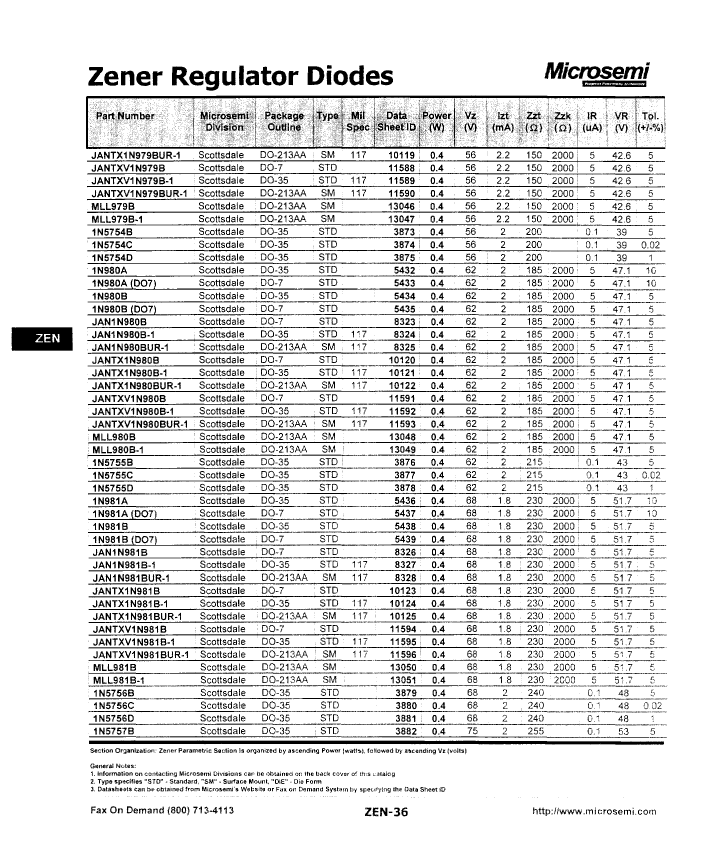

1N981BE3(DO7): DescriptionZener Diode, 68V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN; CategoryDiscrete semiconductor diode; File Size115KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1N981BE3(DO7) Overview

Zener Diode, 68V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-7
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-7
JESD-30 code	O-XALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.4 W
Certification status	Not Qualified
Nominal reference voltage	68 V
surface mount	NO
technology	ZENER
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	1.8 mA
Base Number Matches	1

	1N981BE3(DO7)	1N980BE3(DO7)	1N980B(DO7)	1N981B(DO7)	A72UK1220AA0-K	1206B623K251LQAR	1206B623K251LRAR	2SC3163
Description	Zener Diode, 68V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN	Zener Diode, 62V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN	Zener Diode, 62V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN	Zener Diode, 68V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN	CAPACITOR, FILM/FOIL, POLYPROPYLENE, 2000V, 0.0022uF, THROUGH HOLE MOUNT, AXIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.062uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.062uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Silicon NPN Power Transistor
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	conform to	conform to	conform to	-
Reach Compliance Code	unknow	unknow	unknow	unknow	compliant	compliant	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Number of terminals	2	2	2	2	2	2	2	-
Package shape	ROUND	ROUND	ROUND	ROUND	TUBULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	Axial	-	-	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
