594752: DescriptionBoard Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Locking, Plug,; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

594752 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	594752	-	-	View	Buy Now

594752 Overview

Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Locking, Plug,

594752 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2 TERMINAL PITCH FOR POWER CONTACTS: 10.16 MM
body width	0.583 inch
subject depth	0.398 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S0P15
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	8 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	4000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Match contact row spacing	0.256 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	Z,D
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	10.16 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.236 inch
Terminal pitch	10.16 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-1
Base Number Matches	1

Preview

Download Datasheet

View All

84,9

12,4

-0,1

2,9

-0,3

4,2

10,16

15 x 5,08 = 76,2

0,3

±0,05

14,8

-0,2

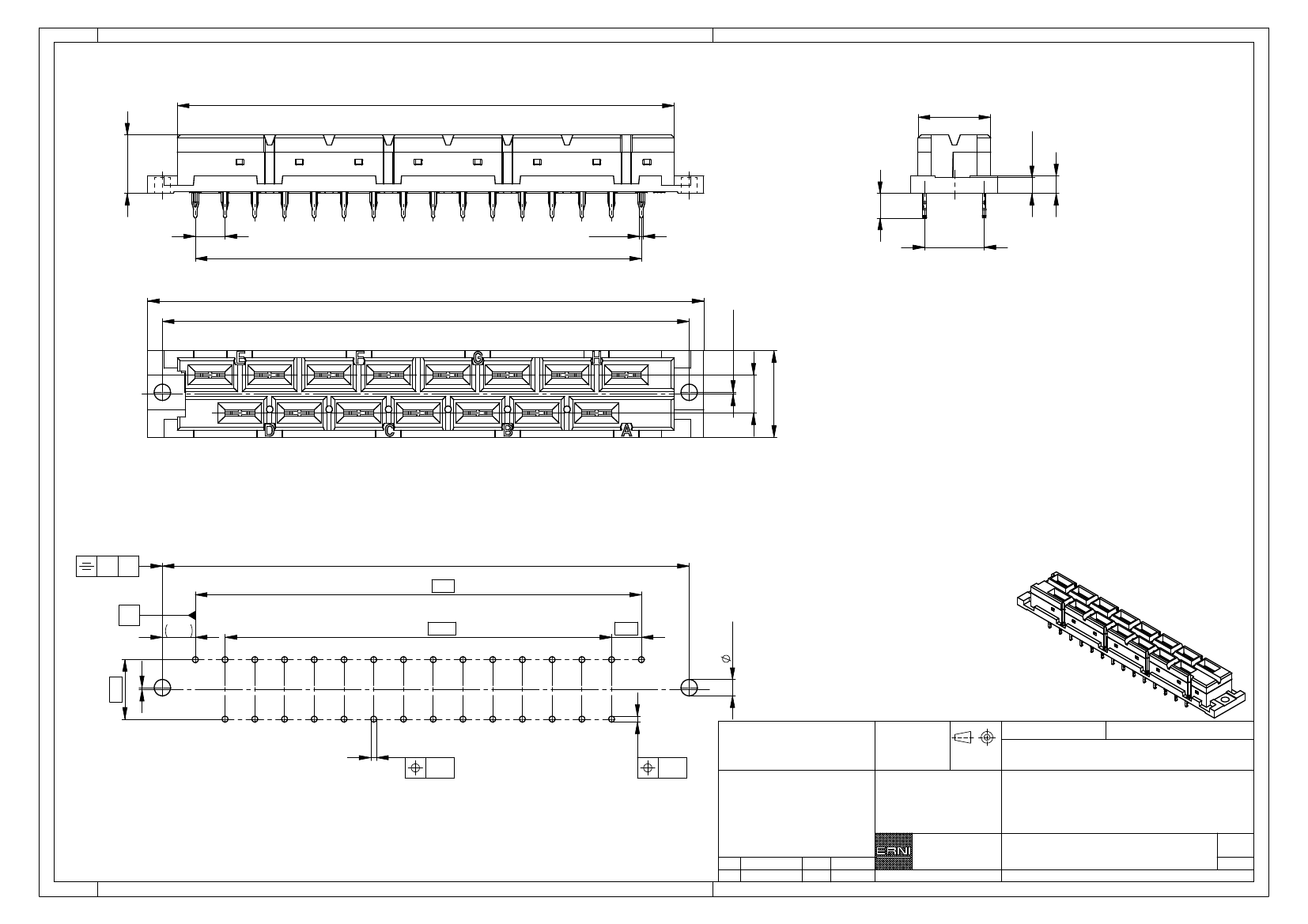

z

6,5

Elastische Einpresszone 2,5 mm

/ compliant pressfit zone 2,5 mm

Isolierwerkstoff

/housing material : PCB GF 30

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Bauart 2

/ type 2

Fehlende Masse und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

+0,1

10

XXXX

ERNI

RC1

5,08

0,6

95

-0,4

90

±0,1

31

27

23

19

15

11

7

3

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Schichtaufbau im metalisiertem Loch siehe Zeichnung 164062 Nr.:6

d

29

25

21

17

13

9

5

hole design see ERNI-specification 164062 No.:6

1 ) 1,0

+0,09 -0,06

Durchmesser des metallisierten Loches

1,0

+0,09 -0,06

Diameter of finisched plated- through hole

Leiterplatten-Layout Vorschag

PCB-Layout Proposal

0,1

A

90

±0,05

15 x 5,08 = 76,2

A

5,63

0,3

13 x 5,08 = 66,04

5,08

z

2,8

+0,1

3

1:1

10,16

d

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

32

30

28

26

24

22

20

18

16

0,05

14

12

10

8

6

4

2

1)

0,05

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

1) alle Löcher

/ all holes

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

d

Index

07.05.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste H15 EE

Fem. Connector H15 Pressfit

www.ERNI.com

Class

594752

STVH15

I

A3
