5962R9660601VXC: DescriptionD Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16; Categorylogic logic; File Size275KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9660601VXC Overview

D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16

5962R9660601VXC Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DFP,
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	540 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
minfmax	1.48 MHz
Base Number Matches	1

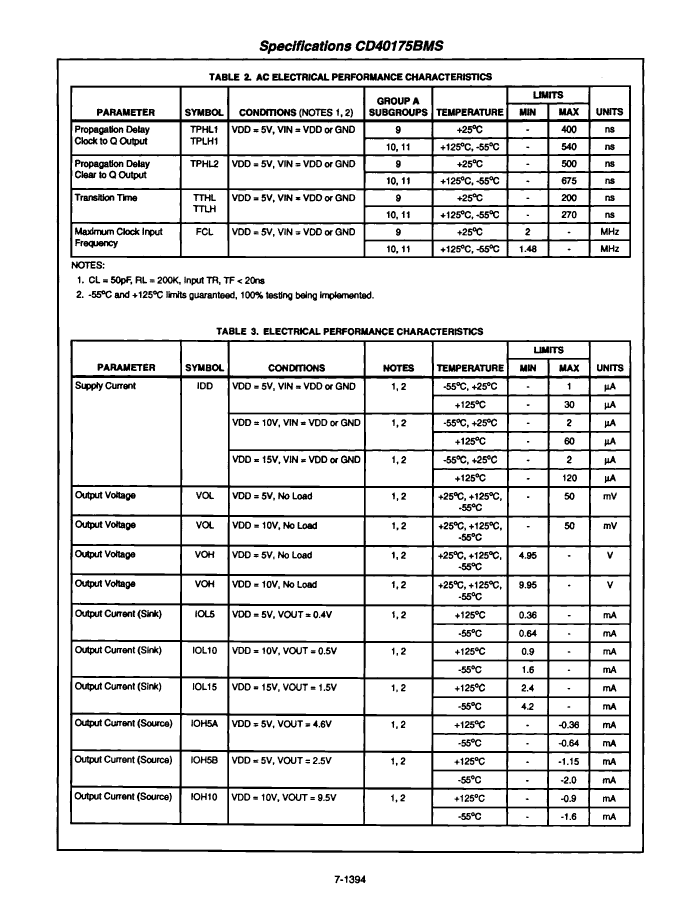

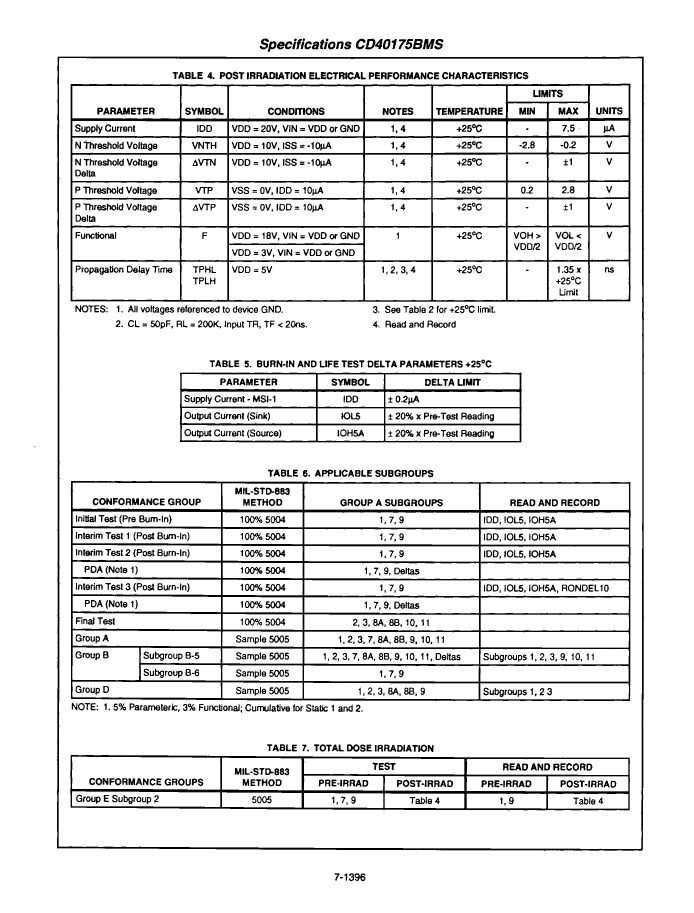

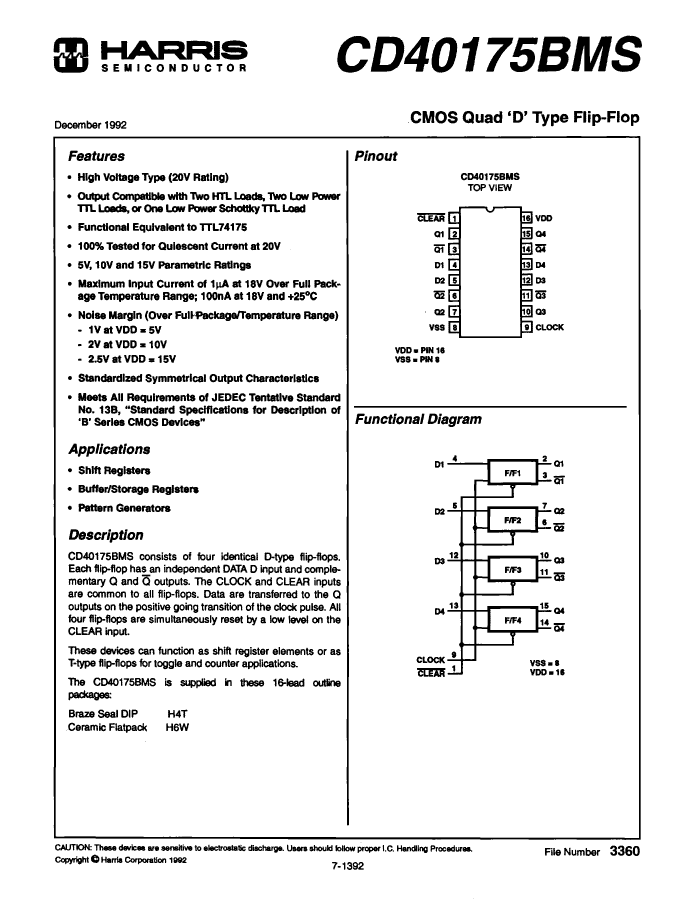

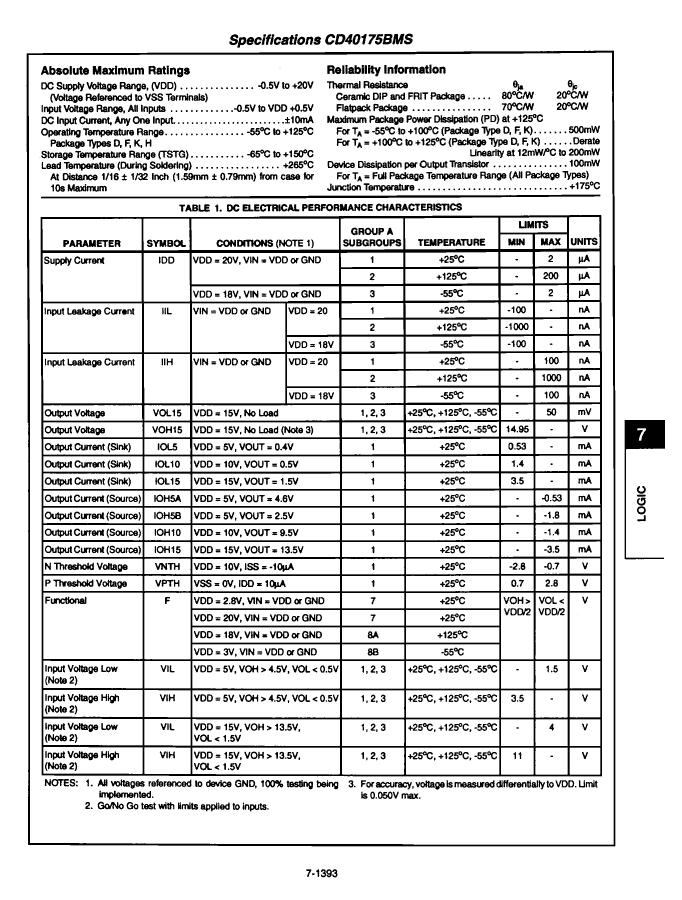

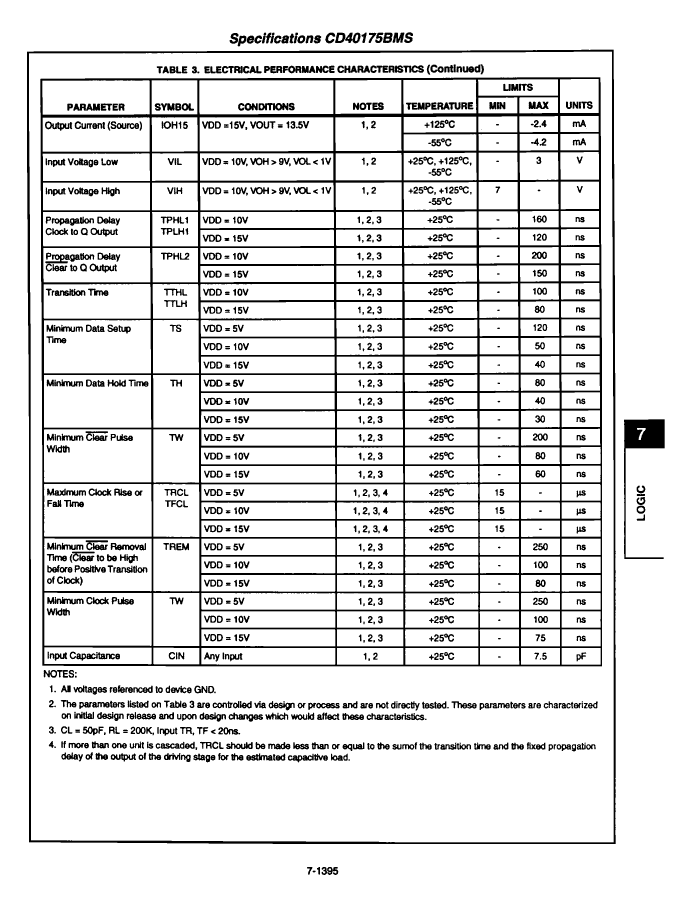

Preview

Download Datasheet

View All

5962R9660601VXC Related Products

	5962R9660601VXC	5962R9660601VEC	CD40175BDMSR	CD40175BDMSH	5962R9660601VEX	CD40175BKMSH	CD40175BKMSR
Description	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDIP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16	D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, CMOS, CDFP16
Maker	Harris	Harris	Harris	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	DIP	DIP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
propagation delay (tpd)	540 ns	540 ns	540 ns	540 ns	540 ns	540 ns	540 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	1.48 MHz	1.48 MHz	1.48 MHz	1.48 MHz	1.48 MHz	1.48 MHz	1.48 MHz
Base Number Matches	1	1	1	1	1	1	1
package instruction	DFP,	DIP,	DIP, DIP16,.3	-	DIP,	-	DFP, FL16,.3
JESD-609 code	e4	e4	e0	e0	-	e0	e0
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Is it Rohs certified?	-	-	incompatible	incompatible	-	incompatible	incompatible
Other features	-	-	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT	-	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT
Load capacitance (CL)	-	-	50 pF	50 pF	-	50 pF	50 pF
Maximum Frequency@Nom-Sup	-	-	2000000 Hz	2000000 Hz	-	2000000 Hz	2000000 Hz
MaximumI(ol)	-	-	0.00036 A	0.00036 A	-	0.00036 A	0.00036 A
Encapsulate equivalent code	-	-	DIP16,.3	DIP16,.3	-	FL16,.3	FL16,.3
power supply	-	-	5/15 V	5/15 V	-	5/15 V	5/15 V
Prop。Delay @ Nom-Sup	-	-	675 ns	675 ns	-	675 ns	675 ns
Filter level	-	-	38535V;38534K;883S	38535V;38534K;883S	-	38535V;38534K;883S	38535V;38534K;883S
Terminal pitch	-	-	2.54 mm	2.54 mm	-	1.27 mm	1.27 mm
