5962-8865801XX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-8865801XX

5962-8865801XX: DescriptionIC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size278KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-8865801XX Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter

5962-8865801XX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T32
length	41.15 mm
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	7.112 mm
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

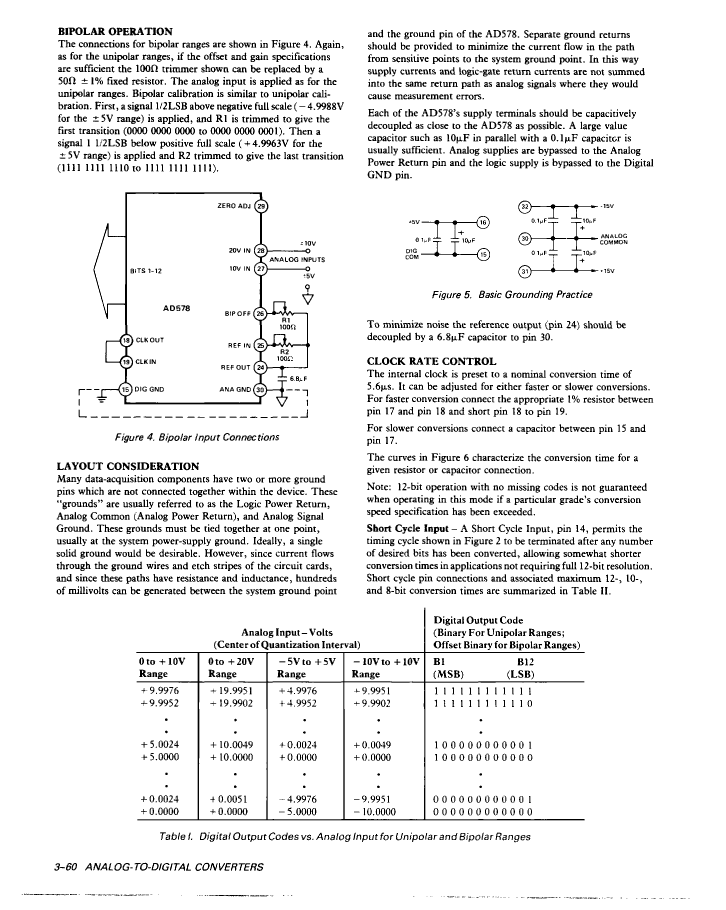

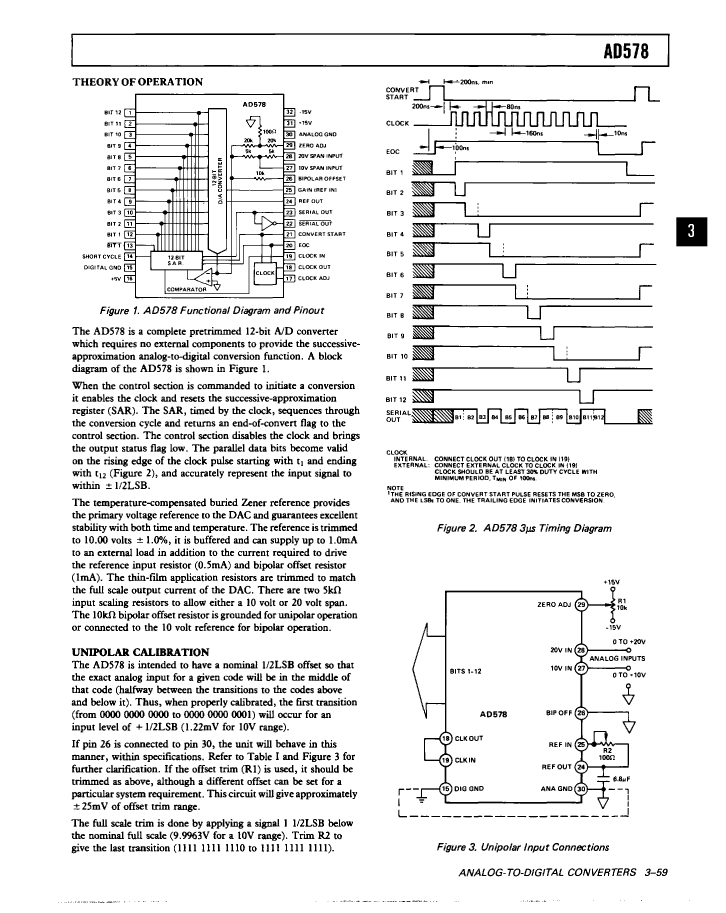

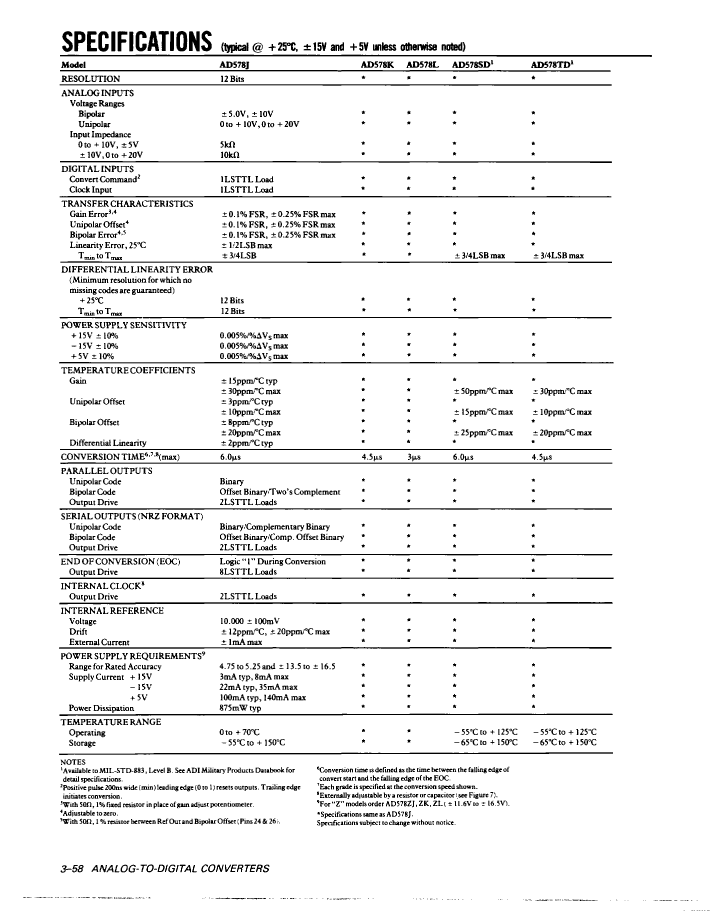

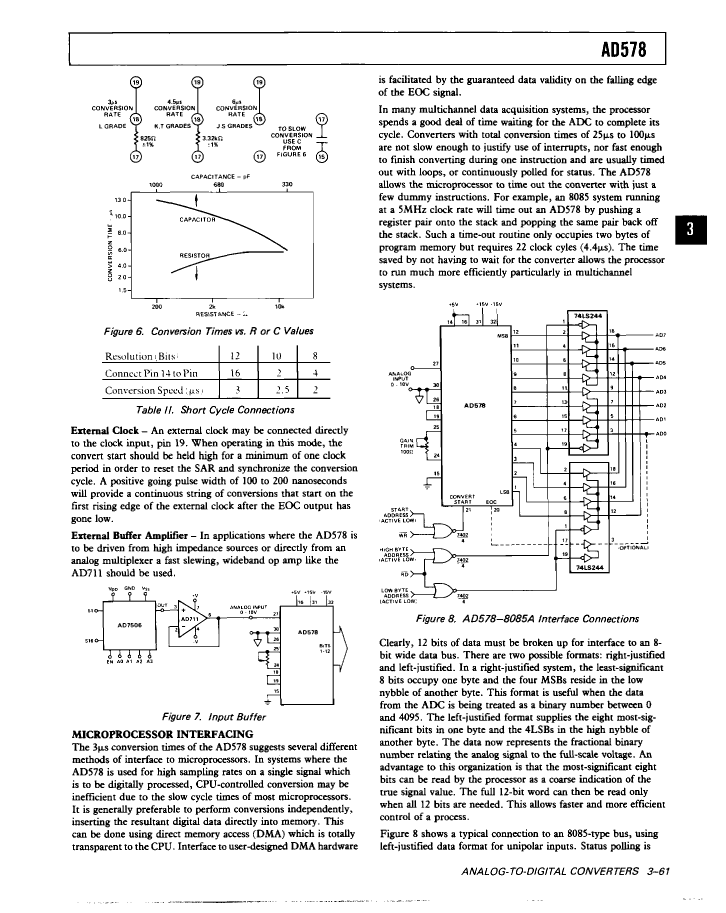

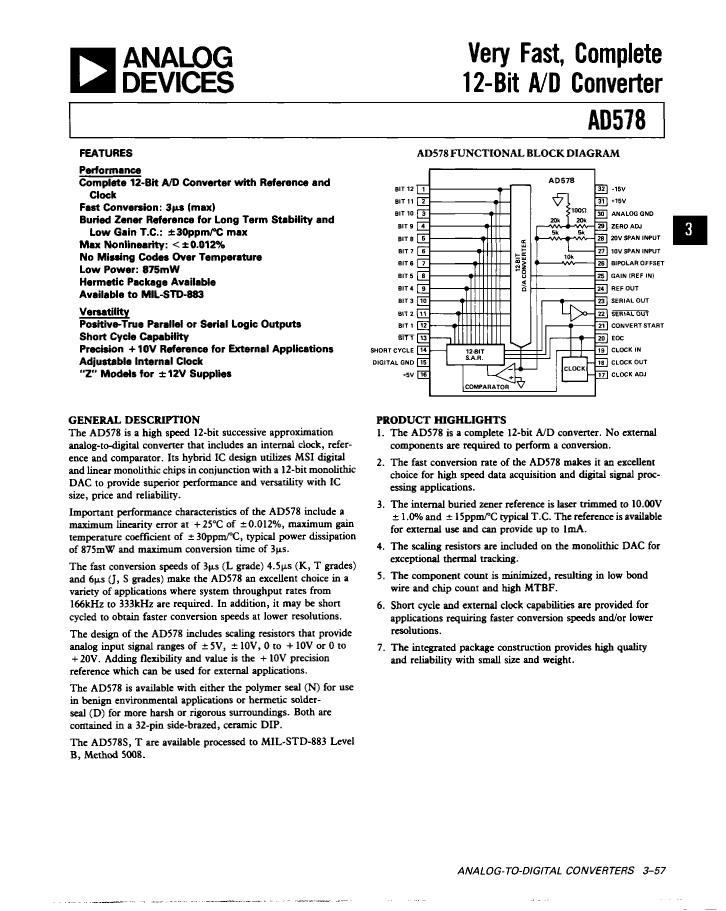

Preview

Download Datasheet

View All

5962-8865801XX Related Products

	5962-8865801XX	5962-8865802XX	5962-8865804XX	5962-8865803XX
Description	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32	DIP,	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-32
Contacts	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	10 V	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32
length	41.15 mm	41.15 mm	41.15 mm	41.15 mm
Number of analog input channels	1	1	1	1
Number of digits	12	12	12	12
Number of functions	1	1	1	1
Number of terminals	32	32	32	32
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.112 mm	7.112 mm	7.112 mm	7.112 mm
surface mount	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1
Maker	-	ADI	ADI	ADI
