4436-6-18-0: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size345KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

4436-6-18-0 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

4436-6-18-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.217 inch
subject depth	0.189 inch
body length	0.945 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	4436
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

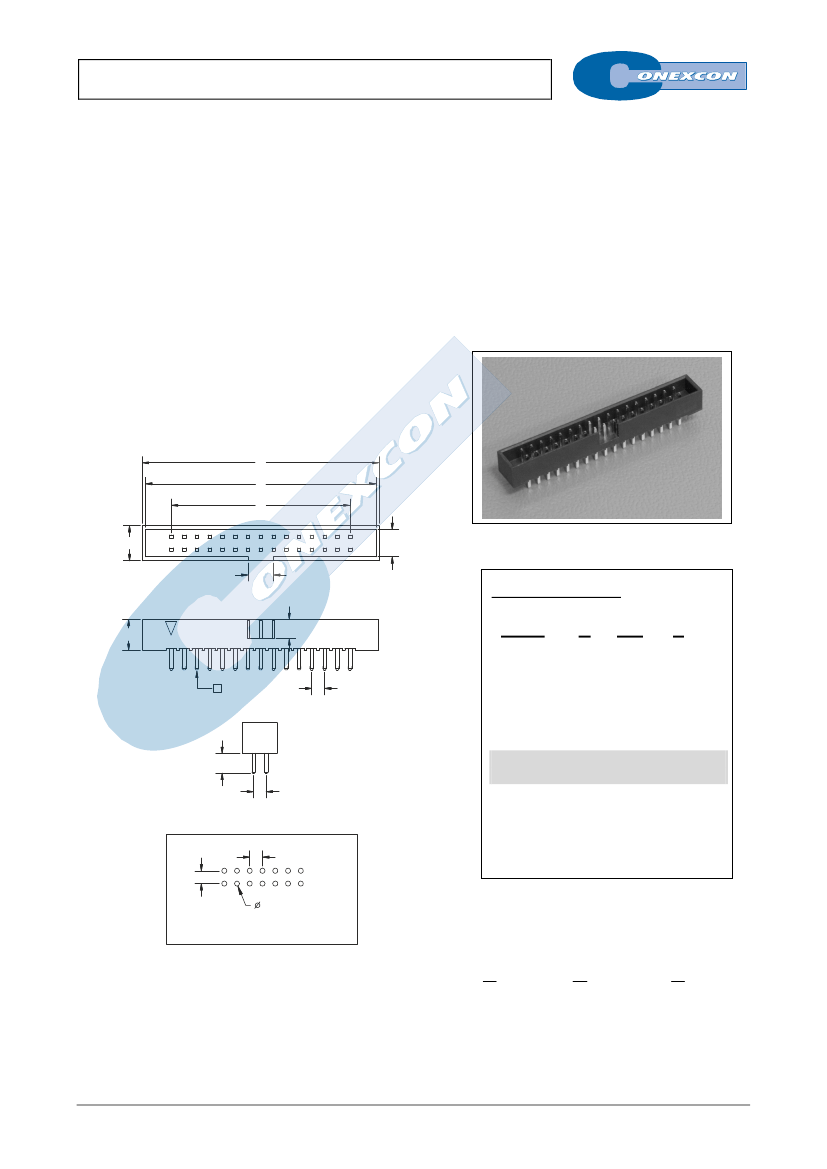

DUAL ROW TOP ENTRY BOX HEADER

4436 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 40,

44, and 50 circuits

Mates with 2.00 mm. IDC connectors 2051 series

Gold plated 0.50 mm square pin

Fully shrouded with polarized slot.

Low profile: 4.80 mm. high



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

C

B

A

5.5

4.0

4.3

Ordering Information:

4.8

3.05

4436 -

1

2.0

T-

2

XX-

3

0

4

0.5x0.5

1. Connector Series

2. (T) Contact Plating

3.1

2.0



T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

3. (XX) Number of circuits

2.0

0.81±0.05

RECOMMENDED HOLE PATTERN

Available in 6 through 50 circuits

Dimensions:

(In mm.)



XX





A

½

2.00



2



1









XX





B

½

2.00



2

 

4.60







XX





C

½

2.00



2

 

6.00





(XX) = Number of circuits

A-XX

FULL LINE CATALOGUE

Recommended Resources

Plastic sealing machine circuit composed of unidirectional thyristor

Three-phase motor phase failure transistor protection circuit

Battery DC panel uninterrupted power supply conversion circuit

One-way operation reverse braking circuit three

Switching regulated power supply circuit diagram composed of NE555

555 remote control bell circuit
