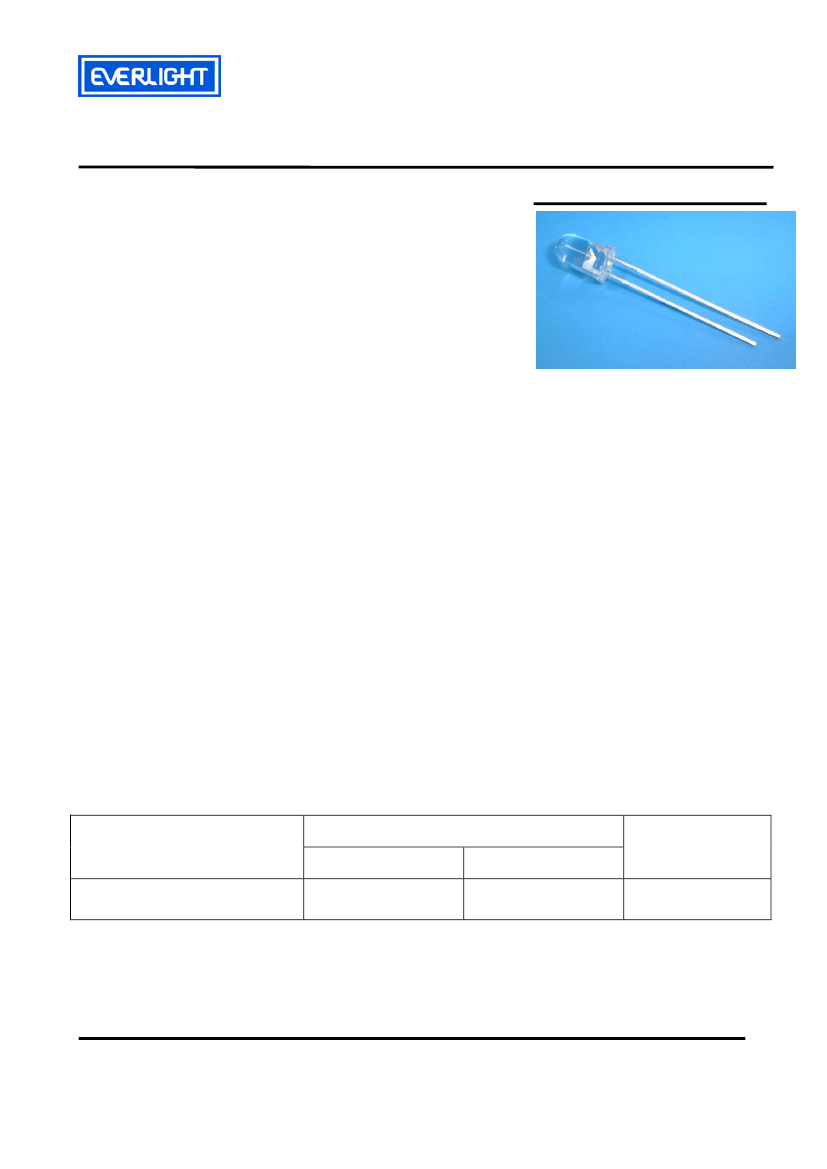

Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/T8C1-1TVB
Features
․Popular
T-1 3/4 colorless package.
․High
luminous power.
․Typical
chromaticity coordinates x=0.29, y=0.28
according to CIE1931.
․Bulk,
available taped on reel.
․The
product itself will remain within RoHS compliant ersion.
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of GaN chip to ideal white.
Applications
․Message
panels
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
Chip
PART NO.
Material
334-15/T8C1-1TVB
GaN/SiC
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number: DLE-033-C16
http\\:www.everlight.com
Established date:05-31-2007
Rev
1
Page: 1 of 9
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/T8C1-1TVB
Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Everlight Electronics Co., Ltd.
Device Number: DLE-033-C16
http\\:www.everlight.com
Established date:05-31-2007
Rev
1
Page: 2 of 9
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/T8C1-1TVB
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
ESD
Rating
30
100
5
-40 ~ +85
-40 ~ +100
260 ± 5
130
1K
Unit
mA
mA
V
℃
℃
℃
mW
V
Production Designation
334-15/T8C1-□
□ □ □
Voltage Group
Luminous Intensity Bins
Color Group
Everlight Electronics Co., Ltd.
Device Number: DLE-033-C16
http\\:www.everlight.com
Established date:05-31-2007
Rev
1
Page: 3 of 9
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/T8C1-1TVB
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Symbol
V
F
I
R
I
V
2θ1/2
x
Chromaticity Coordinates
y
I
F
=20mA
----
0.28
----
----
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Min.
3.0
----
Typ.
----
----
----
15
0.29
Max.
4.0
50
Units
V
uA
mcd
deg
----
Luminous Intensity
Viewing Angle
7150
----
----
14250
----
----
Everlight Electronics Co., Ltd.
Device Number: DLE-033-C16
http\\:www.everlight.com
Established date:05-31-2007
Rev
1
Page: 4 of 9
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/T8C1-1TVB
Luminous Intensity Combination (
mcd at 20mA)
Rank
T
U
Min
7150
9000
Max
9000
11250
14250
V
11250
*Measurement Uncertainty of Luminous Intensity:
±15%
Forward Voltage Combination (
V at 20mA)
Group
Rank
Min.
Max.
1
3.00
3.20
2
3.20
3.40
B
3
3.40
3.60
4
3.60
3.80
5
3.80
4.00
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
1
Bins
A1+A0+B3+B4+B5+B6+C0
Everlight Electronics Co., Ltd.
Device Number: DLE-033-C16
http\\:www.everlight.com
Established date:05-31-2007
Rev
1
Page: 5 of 9
Established by: Amy Ma
