5962-85016023X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-85016023X

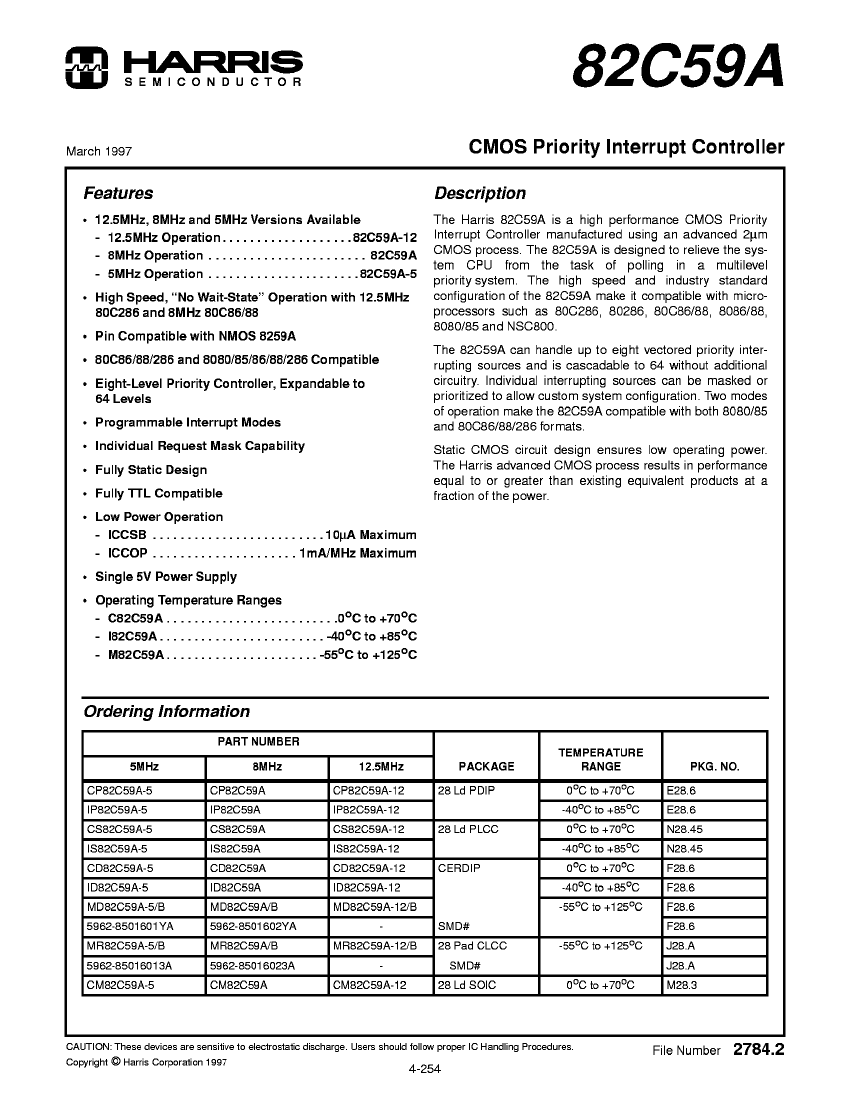

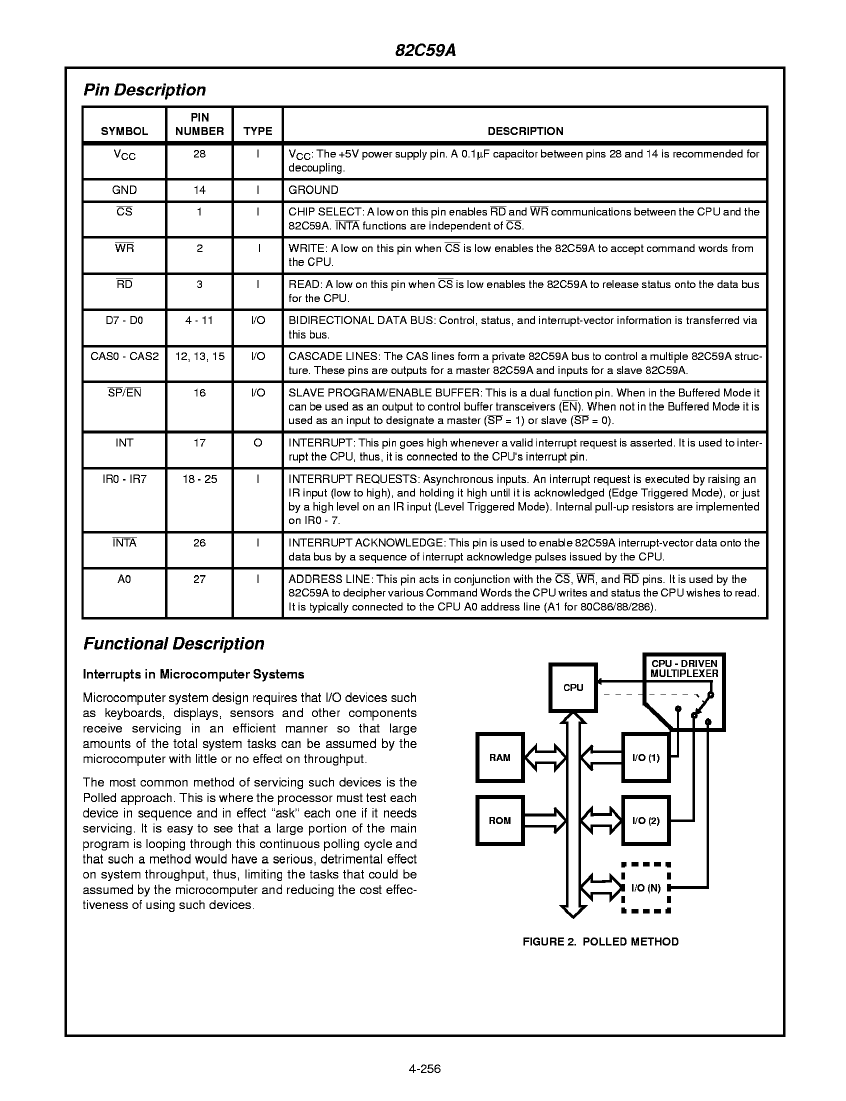

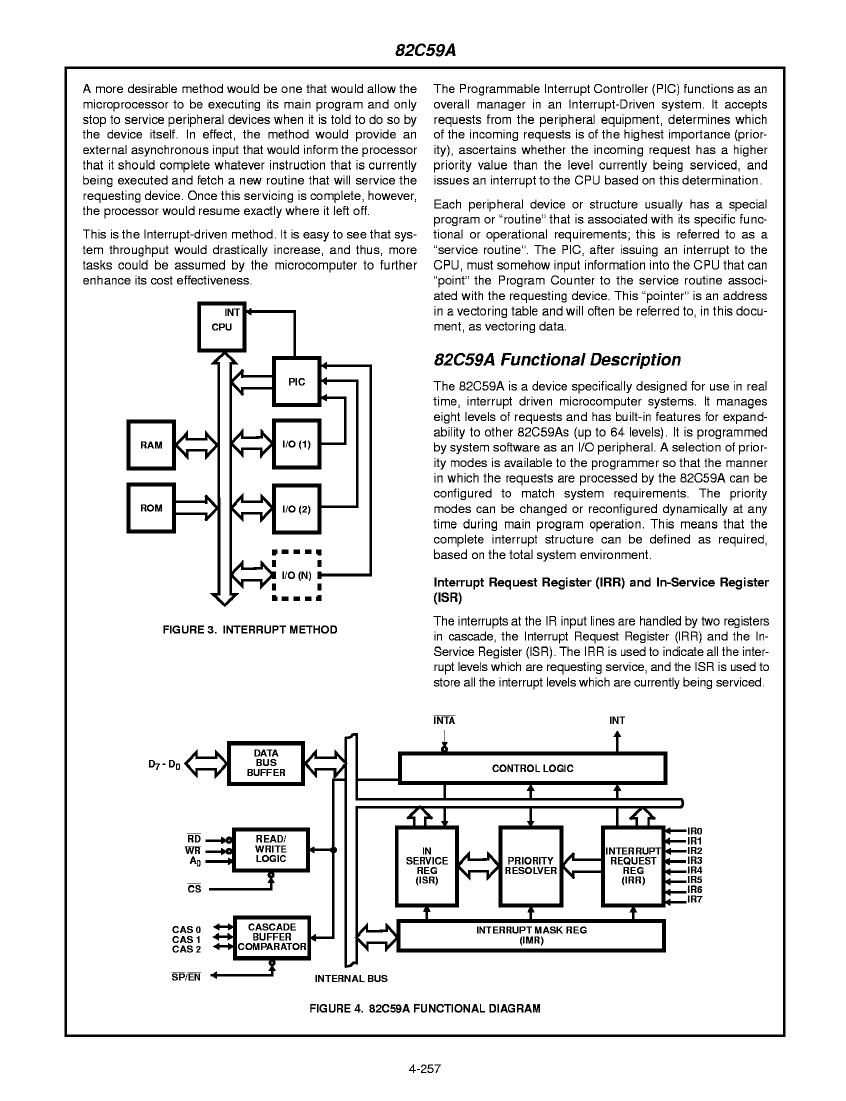

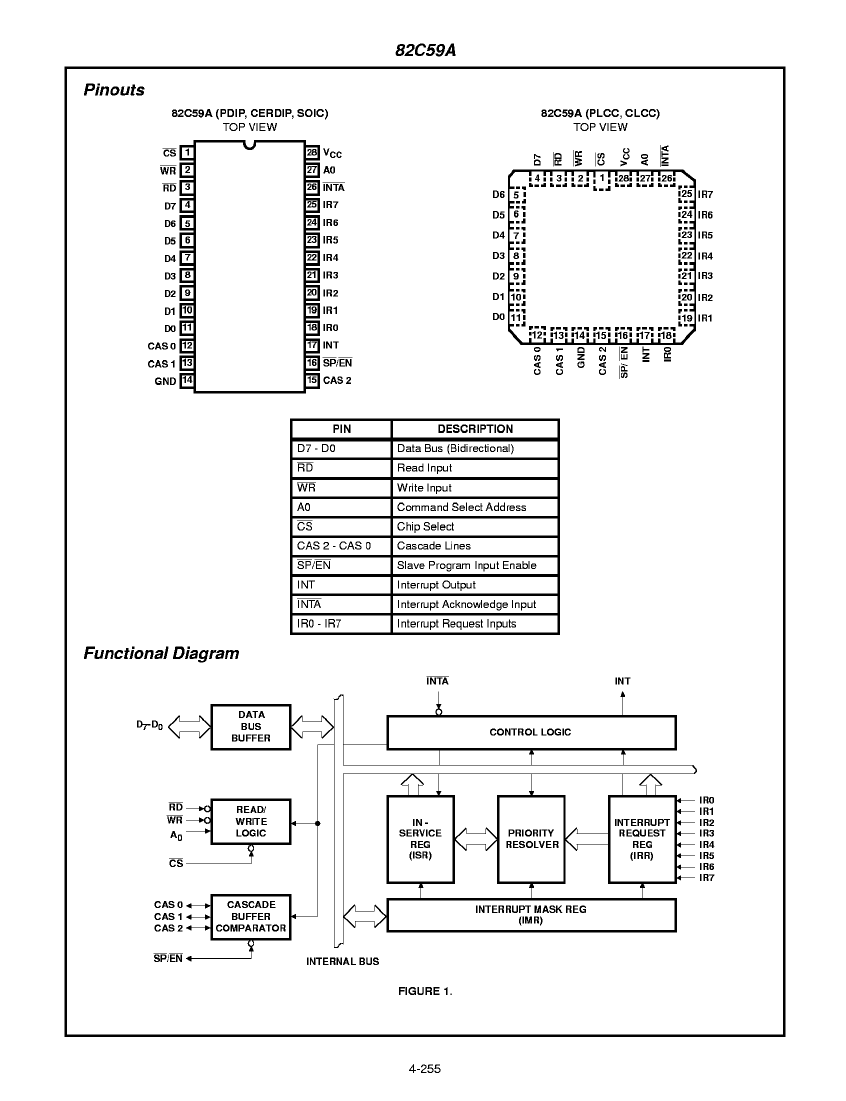

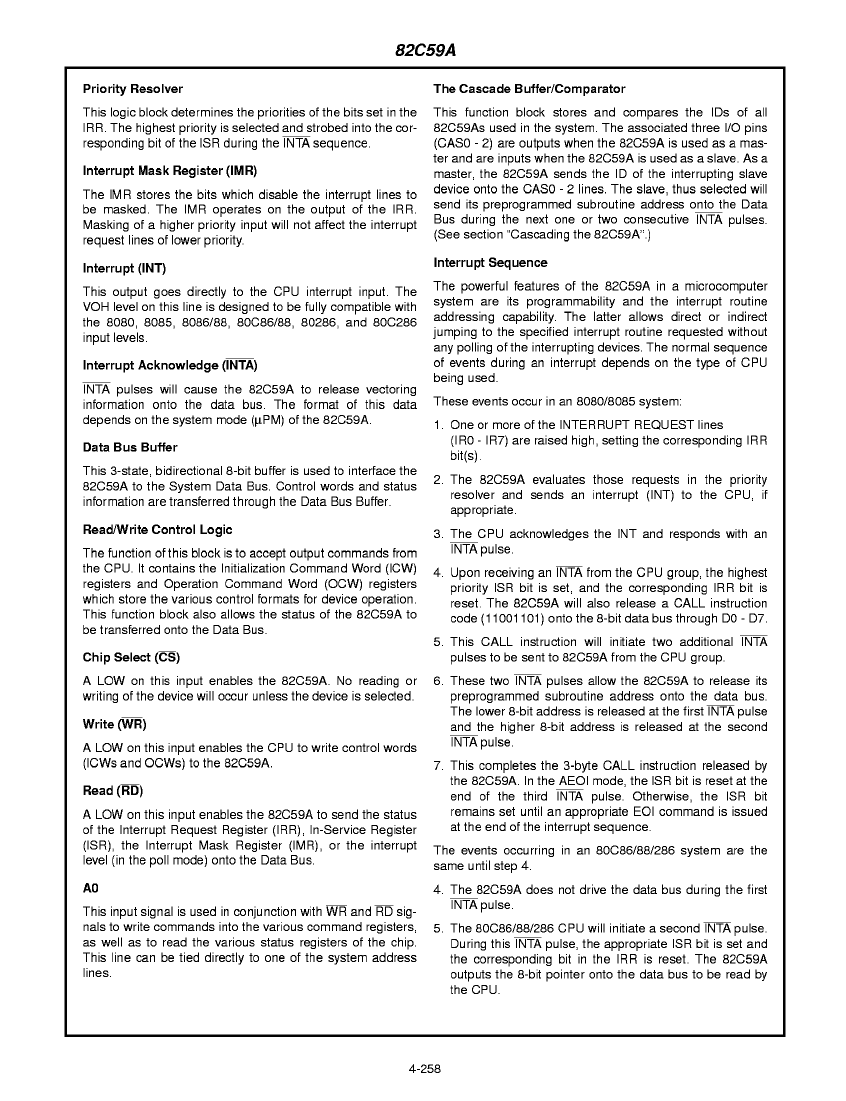

5962-85016023X: DescriptionInterrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CQCC28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size587KB，20 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-85016023X Overview

Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CQCC28

5962-85016023X Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Bus compatibility	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800
External data bus width	8
JESD-30 code	S-CQCC-N28
length	11.455 mm
Number of external interrupt devices	8
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.455 mm
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

5962-85016023X Related Products

	5962-85016023X	5962-8501602YX	5962-85016013X	5962-8501601YX	CS82C59A96	CS82C59A-1296
Description	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CQCC28	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CDIP28	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CQCC28	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, CDIP28	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, PQCC28	Interrupt Controller, 80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800 Compatible, CMOS, PQCC28
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Bus compatibility	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800	80C86; 80C88; 80C286; 8080; 8085; 8086; 8088; 80286; NSC800
External data bus width	8	8	8	8	8	8
JESD-30 code	S-CQCC-N28	R-GDIP-T28	S-CQCC-N28	R-GDIP-T28	S-PQCC-J28	S-PQCC-J28
Number of external interrupt devices	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	J BEND	J BEND
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	-
Base Number Matches	1	1	1	1	-	-
