Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

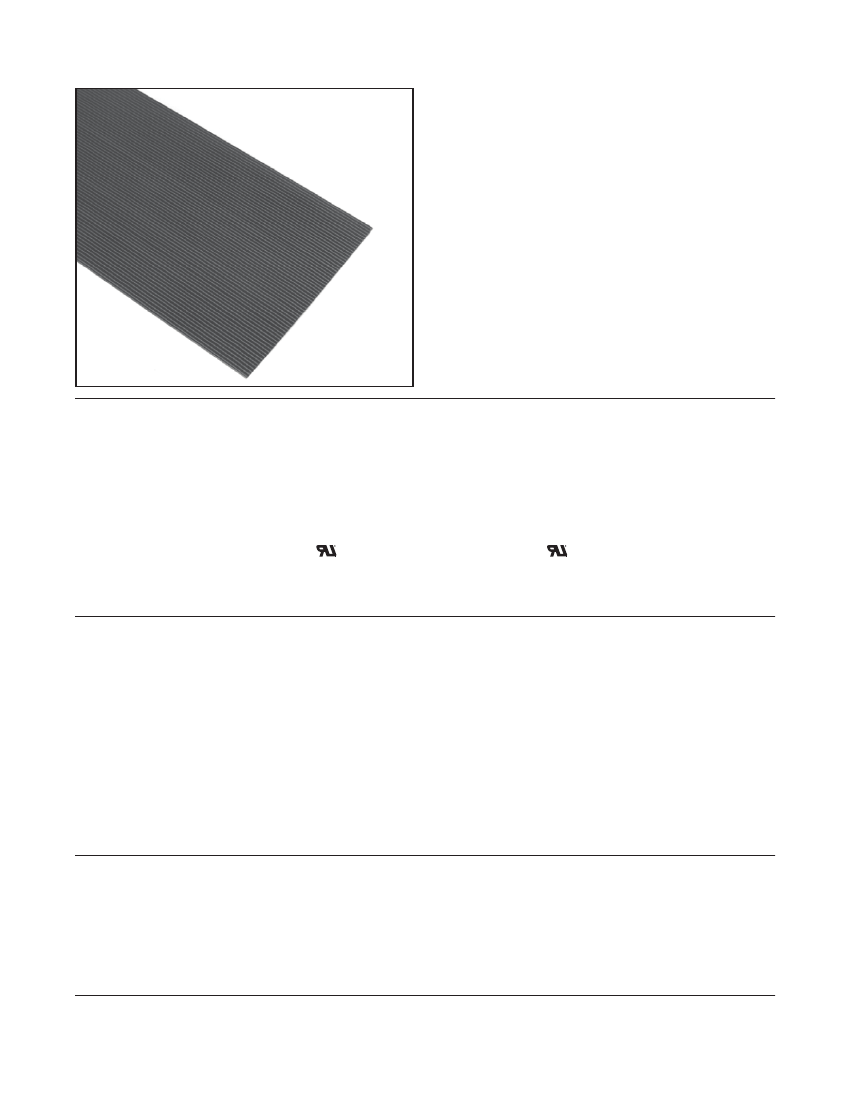

High Flex Life Cable
.050" 28 AWG Stranded, PVC
C
Number of
Conductors
06
09
10
14
15
16
20
24
25
26
30
34
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
36
37
40
50
60
64
3M Part
Number
3319/06
3319/09
3319/10
3319/14
3319/15
3319/16
3319/20
3319/24
3319/25
3319/26
3319/30
3319/34
3319/36
3319/37
3319/40
3319/50
3319/60
3319/64
Dimension A
0.300 ± .010 [ 7.62 ]
0.450 ± .010 [ 11.43 ]
0.500 ± .010 [ 12.70 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.800 ± .015 [ 20.32 ]
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
3319 Series
Dimension B
0.250 ± .007 [ 6.35 ]
0.400 ± .007 [ 10.18 ]
0.450 ± .007 [ 11.43 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
[ ] Dimensions for Reference Only
A
.025
±
.007
[ 0.64 ]
B
.050
±
.002 Typ
[ 1.27 ]
.035
±
.003
[ 0.89 ]
28 AWG, 19 x 40 AWG [ 19x
Copper Alloy Conductors
ø
0.79 ] Silver Plated, Stranded
PVC Insulation
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
3319 / XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0059-B
