HLMP-Nxxx
T-1 (3 mm) Auto Insertable LED Lamps
Data Sheet
HLMP-N305, HLMP-N405, HLMP-NG0x,
HLMP-NL06, HLMP-NH04
Description
This family of 3 mm LED Lamps is capable of withstand-
ing automatic insertion and wave soldering processes.
Designed with a thick epoxy flange and soft leadframe
material, it is ideal for clinch and cut operations.
Features
•
T-1 (3 mm) auto insertable package
•
AlInGaP SunPower intensity
•
High light output
•
Tinted diffused and tinted non-diffused lens options
•
Wide viewing angle
•
Variety of colors
•
Available with straight or formed lead tape and reel
options
Applications
•
General purpose
•
High volume manufacturing
Device Selection Guides
High Brightness Lamps
Color
Red
Amber
Red Orange
Package
Tinted
µ
µ
µ
Luminous Intensity,
Diffused
Viewing Angle,
2θ
1
/
2
45
60
60
60
Package
Outline
A
B
B
B
Part Number
HLMP-NG05
HLMP-NG07
HLMP-NL06
HLMP-NH04
Min. Iv @ 20 mA
90.2
90.2
96.2
90.2
High Efficiency Lamps
Color
GaP Yellow
GaP Orange
Note:
Package
Tinted
X
X
Luminous Intensity,
Diffused
Viewing Angle,
2θ
1
/
2
45
45
Package
Outline
A
A
Part Number
HLMP-N305
HLMP-N405
Min. Iv @ 10 mA
14.7
13.8
1. 2θ
1
/
2
is the off axis angle where the luminous intensity is
1
/
2
the on axis intensity.
Package Dimensions
Package Outline “A”
SEATING PLANE
5.9
±
0.5
(0.23
±
0.02)
3.5
±
0.3
(0.14
±
0.01)
0.65 (0.03) MAX.
23.0
(0.91)
1.0
±
0.5
(0.04
±
0.02)
CATHODE MARKS
0.4
±
0.2
(0.02
±
0.01)
2.5
±
0.3
(0.10
±
0.01)
4.4
±
0.3
3.1
±
0.2
(0.17
±
0.01) (0.12
±
0.01)
0.4
±
0.2
(0.01
±
0.01)
2.0 (0.08) REF.
0.45
±
0.10
(0.02
±
0.007)
+ 0.1
0
+ 0.00
(0.2 - 0.00 )
0.4
3.4
±
0.2
(0.13
±
0.01)
Package Outline “B”
5.70
±
0.5
3.50
±
0.30
0.65 MAX.
23.0 MIN.
1.0 MIN.
CATHODE FLAT
CATHODE LEAD
0.44
±
0.2
3.80
±
0.30
3.10
±
0.20
2.54
±
0.3
0.8 MAX. EPOXY MENISCUS
2.0
3.60
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. LEADS ARE MILD STEEL. SOLDER COATED.
3. EPOXY MENISCUS OF 0.8 mm (0.03 in.) MAXIMUM
MAY EXTEND TO THE LEADS.
+ 0.1
0.4 – 0
2
Part Numbering System
HLMP - N x xx # xxx
Mechanical Option
002: Tape & Reel, Straight Leads
Viewing Angle Options
01: 45 Degree
05: 45 Degree
04, 06, 07: 60 Degree
Color Options
3: GaP Yellow
4: GaP Orange
G: AlInGaP Red
L: AlInGaP Amber
H: AlInGaP Red Orange
Absolute Maximum Ratings at T
A
= 25 ºC
Parameter
DC Forward Current
[1]
Reverse Voltage (Ir = 100 µA)
Junction Temperature, T
jmax
Storage Temperature Range
Operating Temperature Range
Orange
30
Yellow
20
5
110
-40 to +85
-20 to +85
AlIºnGaP
Red Orange, Amber & Red
30
[2,3]
-40 to +85
Units
mA
V
°C
°C
°C
Notes:
1. See Figure 4 for maximum current derating vs. ambient temperature.
2. Suggested minimum DC current: 10 mA.
3. Maximum Peak Pulsed Forward Current: 50 mA, 30 mA average.
3
Electrical Characteristics at T
A
= 25ºC
Capacitance
C (pF) ,
Vf = 0, f = 1 MHz
If (mA)
10
10
20
20
20
Forward Voltage Vf (Volts)
Part Number
HLMP-N30x
HLMP-N40x
HLMP-NL06
[1]
HLMP-NG0x
[1]
HLMP-NH04
Thermal
Resistance
Rθ
J-PIN
(°C/W)
290
290
240
240
250
Speed of Response
τ
s
(ns)
Time Constant e
-t
/τ
s
Typ.
90
280
20
20
20
Typ.
2.00
1.90
2.02
1.90
1.94
Max.
2.6
2.6
2.4
2.4
2.4
Typ.
15
4
40
40
40
Note:
1. Please contact your Avago Sales Representative about operating currents below 10 mA.
Optical Characteristics at T
A
= 25 ºC
Typ. Dominant
Wavelength
(nm)
626
626
590
585
602
615
Luminous Intensity
Part Number
HLMP-NG05
HLMP-NG07
HLMP-NL06
HLMP-N305
HLMP-N405
HLMP-NH04
Typ. Peak
Wavelength (nm)
635
635
592
583
600
621
Typ. Spectral
Half Width
17
17
17
36
37
17
Luminous
Efficacy
Width
(lm/W)
150
150
480
500
380
235
Min.
90.2
90.2
96.2
14.7
13.8
90.2
If (mA)
20
20
20
10
10
20
Notes:
1. The luminous intensity, lv, is measured at the mechanical axis of the lamp package. The actual peak of the spatial radiation pattern may not be
aligned with this axis.
2. The dominant wavelength, ld, is derived from the CIE Chromaticity Diagram and represents the color of the device.
3. The radiant intensity, le, in watts per steradian, may be found from the equation le = lv/h
v
, where lv is the luminous intensity in candelas and h
v
is the luminous efficacy in lumens/watt.
4
HIGH BRIGHTNESS LAMPS
1.0
AMBER
ORANGE
AlInGaP RED
DH AlGaAs RED
RED-ORANGE
RELATIVE INTENSITY
0.5
0
550
600
WAVELENGTH – nm
650
700
HIGH EFFICIENCY LAMPS
1.0
EMERALD GREEN
HIGH
PERFORMANCE
GREEN
ORANGE
HLMP-N20X fig 1a
RELATIVE INTENSITY
HIGH
EFFICIENCY
RED
0.5
YELLOW
0
500
550
600
WAVELENGTH – nm
650
700

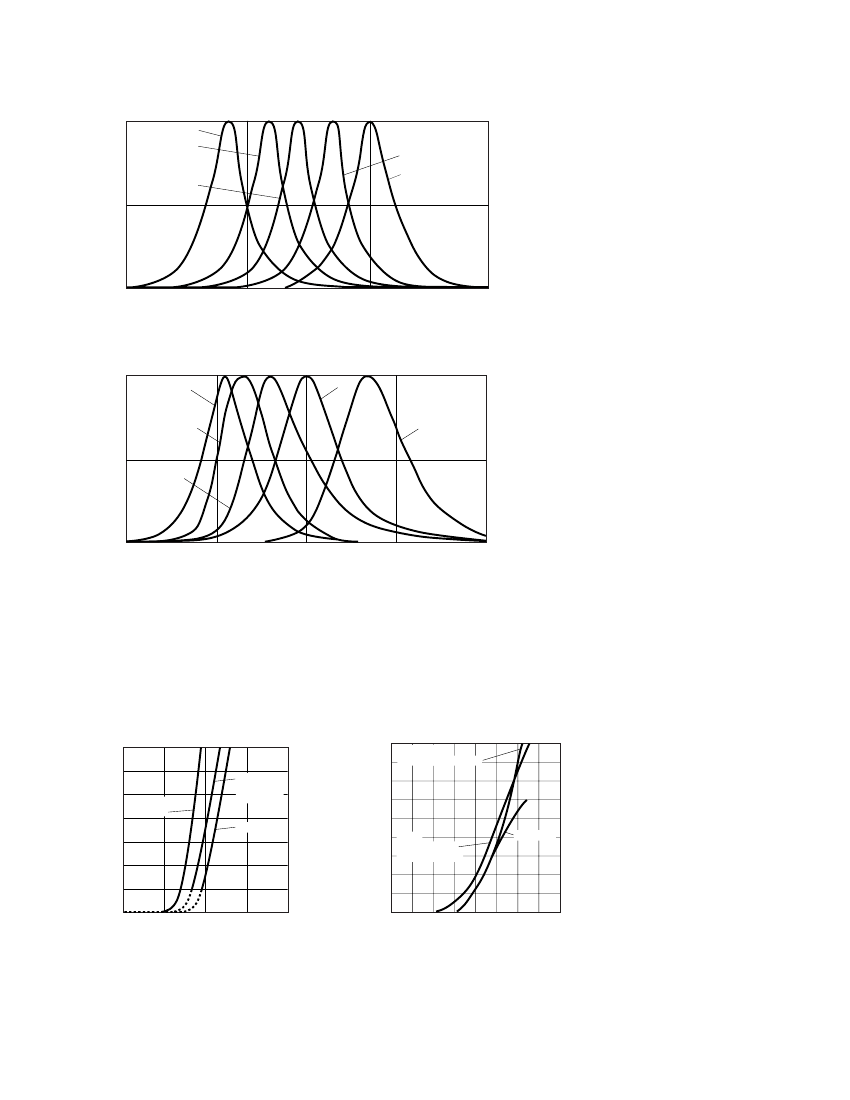

Figure 1. Relative intensity vs. peak wavelength.
HLMP-N20X fig 1b
HIGH BRIGHTNESS LAMPS
70
I
F
– FORWARD CURRENT – mA
HIGH EFFICIENCY LAMPS
90
60
50
40
30
20
10
0
1.0
1.5
2.0
DH AsAlGaAs
RED
AlInGaP
RED/RED-
ORANGE
AMBER
I
F
– FORWARD CURRENT – mA
80
70
60
50
40
30
20
10
0
0
GREEN,
EMERALD GREEN
HIGH
EFFICIENCY
RED/ORANGE
YELLOW
2.5
3.0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
V
F
– FORWARD VOLTAGE – V
V
F
– FORWARD VOLTAGE – V
Figure 2. Forward current vs. forward voltage.
HLMP-N20X fig 2a
HLMP-N20X fig 2b
5
