HJL36090 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> HJL36090

HJL36090: DescriptionThermal Magnetic Circuit Breaker,; CategoryCircuit protection Circuit protection; File Size153KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

HJL36090 Overview

Thermal Magnetic Circuit Breaker,

HJL36090 Parametric

Parameter Name	Attribute value
Maker	SCHNEIDER ELECTRIC
Reach Compliance Code	unknown
Circuit protection type	THERMAL MAGNETIC
Base Number Matches	1

Preview

Download Datasheet

View All

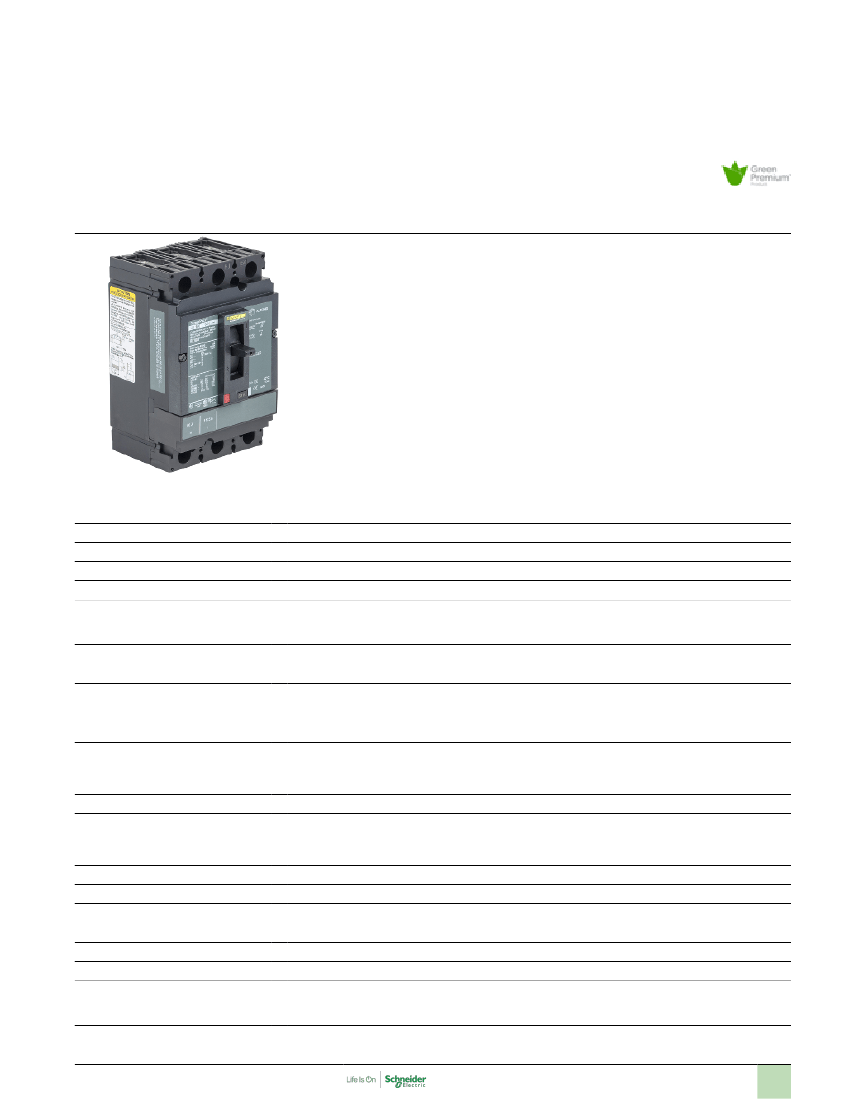

Product datasheet

Characteristics

HJL36090

PowerPact H Circuit

Breaker,ThermMagn,90A,3P,600V,25kA

Main

Product or component type

Range of product

Trip Unit Type

Breaking capacity code

Circuit breaker

PowerPact H

Thermal-magnetic

Complementary

[In] rated current

Number of Poles

Interrupt Rating

90 A

100 kA at 240 V AC

65 kA at 480 V AC

25 kA at 600 V AC

20 kA at 250 V DC

250 V DC

600 V AC

80 %

Unit mount

Lugs load

Lugs line

AWG 14...AWG 3/0 aluminium/copper

800 A

1450 A

6.4 in

4.12 in

4.36 in

5 N.m for 2.5…95 mm² (AWG 14...AWG 3/0)

[Ue] rated operational voltage

Continuous current rating

Mounting mode

Electrical connection

Wire Gauge

Magnetic hold current

Magnetic tripping current

Height

Width

Depth

Tightening torque

Environment

Product certifications

Aug 16, 2019

UL listed

CSA

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
