34K501-200H3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34K501-200H3

34K501-200H3: DescriptionRF 1.0/2.3 DIN Connector, Female, Panel Mount, Solder Terminal, Jack,; CategoryThe connector The connector; File Size132KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

34K501-200H3 Overview

RF 1.0/2.3 DIN Connector, Female, Panel Mount, Solder Terminal, Jack,

34K501-200H3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	VSWR AND INSERTION LOSS MAX AT 4 GHZ, CAPTIVE CENTER CONTACT
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF 1.0/2.3 DIN CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	34K501-200H3
Plug information	NO
Installation method	STRAIGHT
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.58
Base Number Matches	1

Preview

Download Datasheet

View All

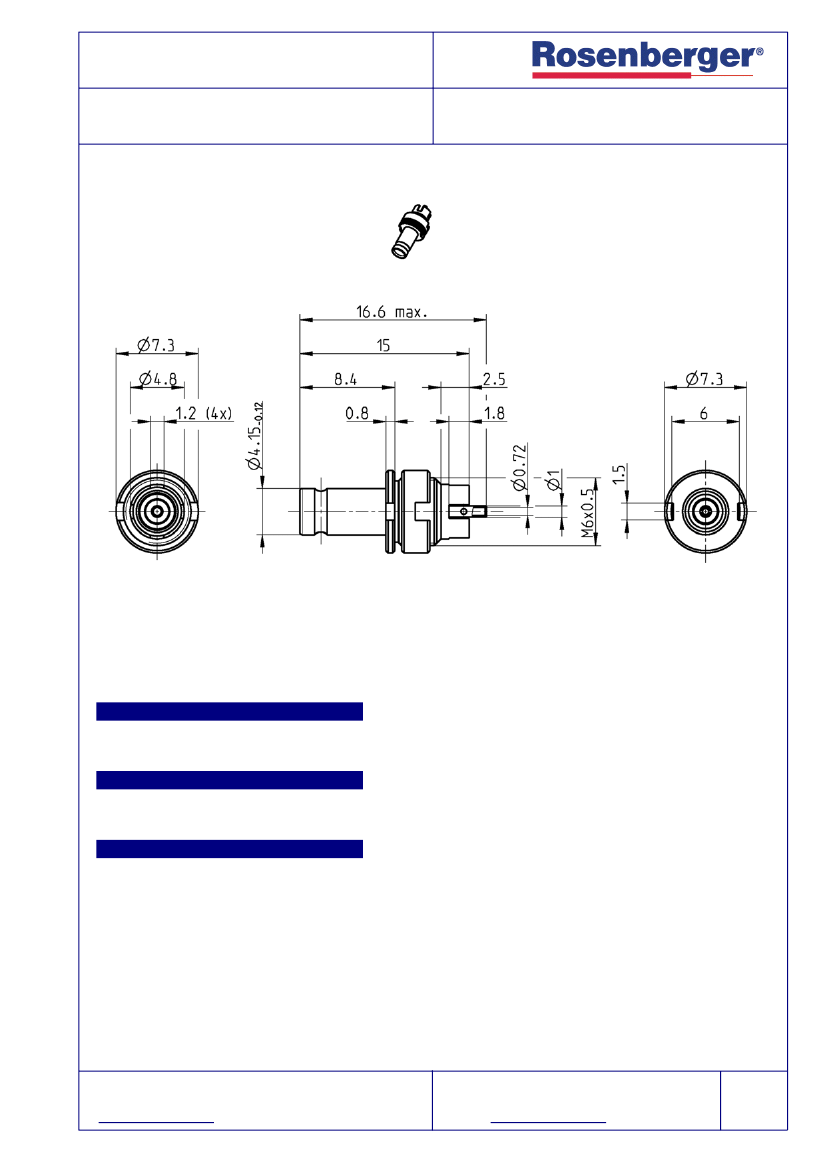

TECHNICAL DATA SHEET

1.0/2.3

BULKHEAD JACK

34K501-200H3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

CECC 22 230, DIN 47297

Documents

Panel piercing

B 24

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Material

Beryllium copper

Brass

PTFE

Plating

Gold, min. 1.27 µm, over chemical nickel

Gold, min. 1.0 µm, over chemical nickel

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
