6.0 AMPS. Glass Passivated Rectifiers
R-6
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
6A05G - 6A100G

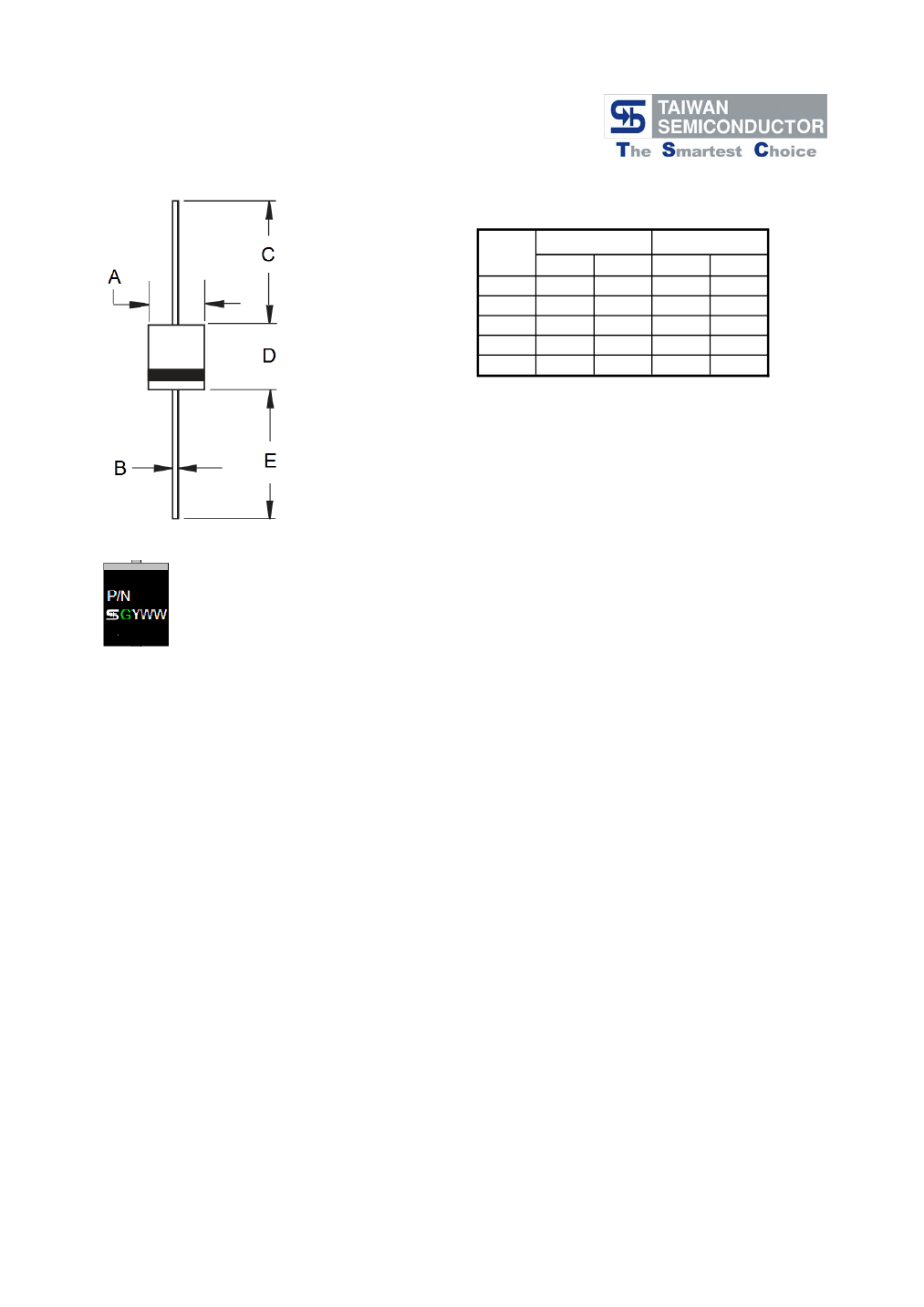

Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed: 260℃/10s
/.375", (9.5mm) lead lengths at 5 lbs, (2.3kg) tension
Weight: 1.65 grams
Ordering Information (example)
Part No.
6A05G
Package
R-6

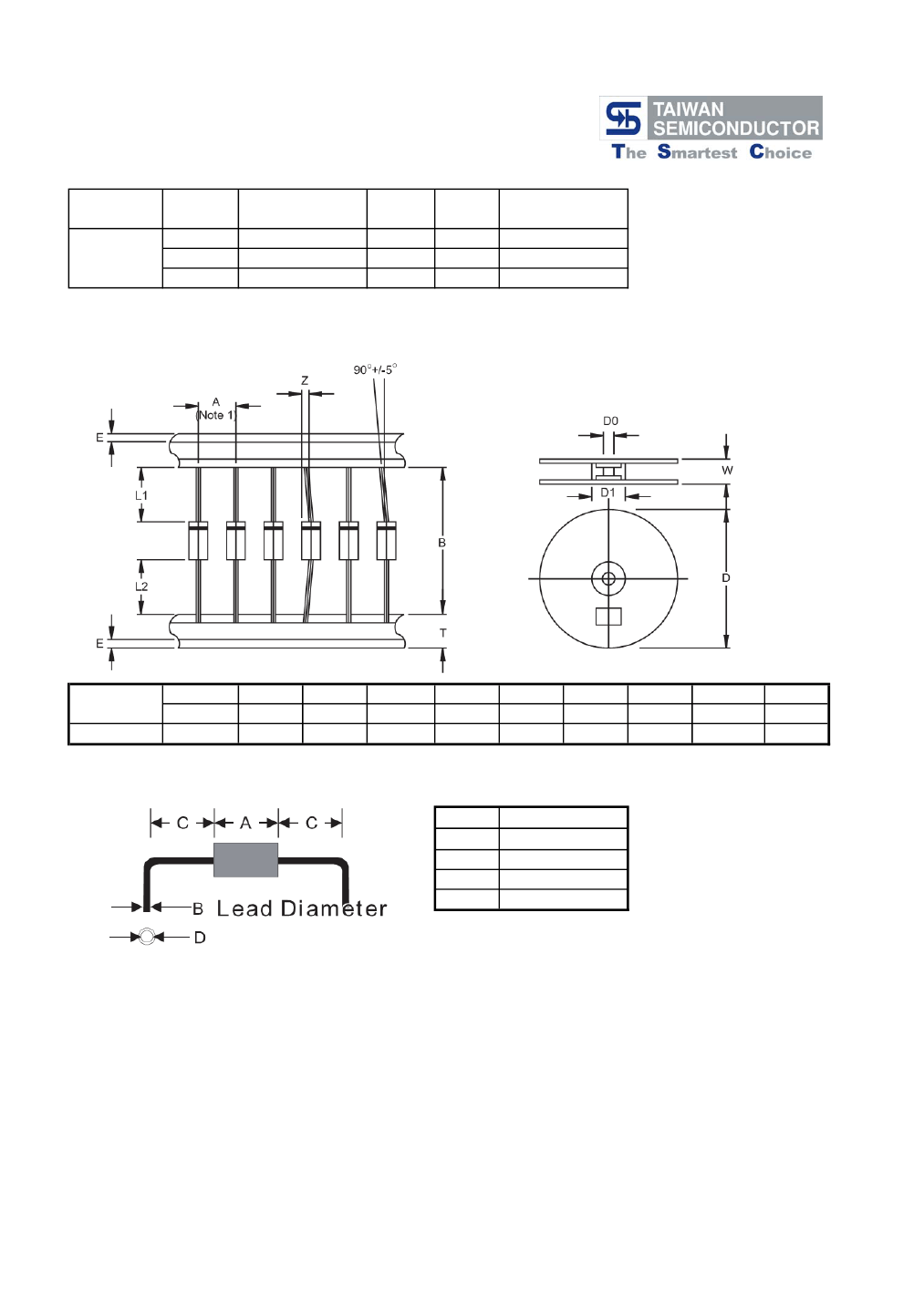

Packing
700 / AMMO box
INNER
TAPE
52mm
Packing
code
A0
Green Compound
Packing code
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@6A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Typical Thermal Resistance
Operating and Storage Temperature Range
Note1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=125℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJA
TJ, T
STG
6A
05G
50
35
50
6A
10G
100
70
100
6A
20G
200
140
200
6A
40G
400
280
400
6
250
6A
60G
600
420
600
6A
80G
800
560
800
6A
100G
1000
700
1000
Units
V
V
V
A
A
1.1
10
100
60
35
1.0
V
uA
uA
pF
O
Typical Junction Capacitance (Note 2)
C/W
O
- 65 to + 150
C
Note2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:D12

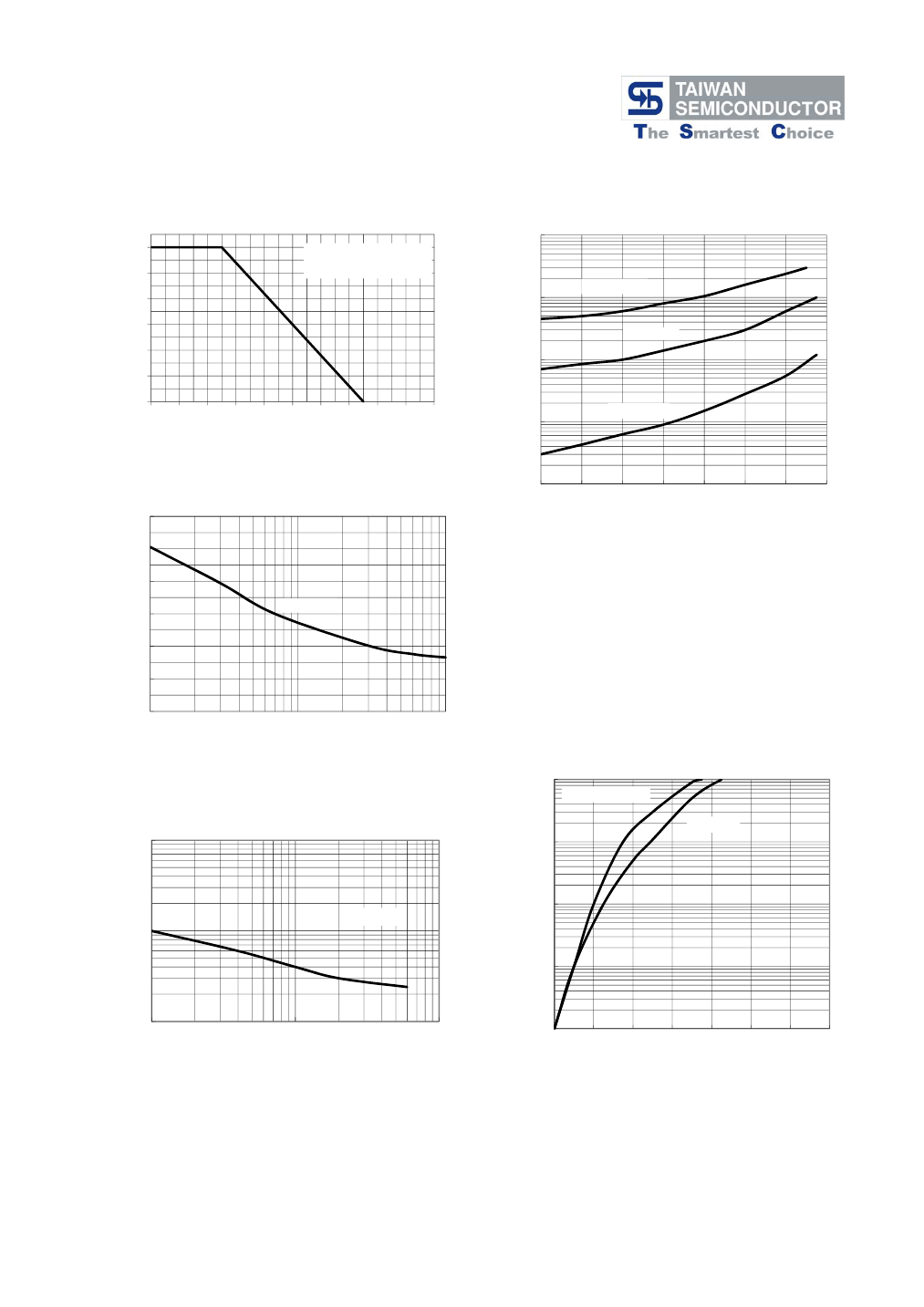

RATINGS AND CHARACTERISTIC CURVES (6A05G THRU 6A100G)
FIG.1- MAXMUM FORWARD CURRENT DERATING
CURVE
6
AVERAGE FORWARD
CURRENT(A)
5
4
3
2
1
0
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE(
o
C)
100
INSTANTANEOUS REVERSE CURRENT (uA)
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
10
TA=125℃
TA=75℃
1
0.1
TA=25℃
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
300
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE CURRENT(A)
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
TA=25℃
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
100
6A10G-6A100G
FIG. 4- TYPICAL JUNCTION CAPACITANCE
INSTANTANEOUS FORWARD CURRENT (A)
6A05G
10
1000
JUNCTION CAPACITANCE (pF)
1
100
TA=25℃
0.1
10
1
10
REVERSE VOLTAGE (V)
100
0.01
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
Version:D12
