1.8V CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASE3 SERIES
FEATURES:
• IR reflow capable
• Compact and low in height
• Tight stability option available
• Tri state
• Seam sealed package
• Low supply voltage
• Suitable for high density SMT
Pb
RoHS
Compliant
3.2 x 2.5 x 1.25mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• CCD clock for VTR camera
• Equipment connected to
PC or PC cards
• Laptop
• Mobile communication
• Bluetooth
• Wireless LAN
• Flat TV
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Input Current
Symmetry
Rise and Fall Time (Tr/Tf)
Output Load
Output Voltage
Tristate Function
Peak to Peak Jitter
RMS Jitter
Stand-by current:
ASE3 Series
0.625 ~ 133 MHz
-10°C to + 70°C (See Options)
-55°C to + 125°C
± 100 ppm max. (See Options)
1.8 Vdc ± 5%
See Table 1
45/55% @ 50%Vdd
See Table 1
15 pF (max)
VOH = 0.9* Vdd min.
VOL = 0.1* Vdd max.
"1" (VIH ≥ 0.7*Vdd) or open: Oscillation
"0" (VIL < 0.3*Vdd) : Hi Z
32ps (Typical)
4.5ps (Typical)
10μA max.
TABLE 1 - Input Current
Idd max.
Freq.
Tr/Tf max
(max. mA)
(MHz)
(nSec)
~ 30 MHz
4
10 max.
~ 75 MHz
6
10 max.
~ 133 MHz
12
10 max.
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASE3 - Frequency -
-
-
Packaging
T
Tape and
Reel
Operating Temp.
Range
I
D
E
F
N
L
0°C to +50°C
-10°C to +60°C
-20°C to +70°C
-30°C to +70°C
-30°C to +85°C
-40°C to +85°C
Overall Frequency Stability
±20ppm
J(*)
±25ppm
R
±30ppm
K
±35ppm
H
B
±40ppm
±50ppm
C
Temp option I, D, E, and -10 to +70C only.
Contact ABRACON for
wider temperature range.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 12.21.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale

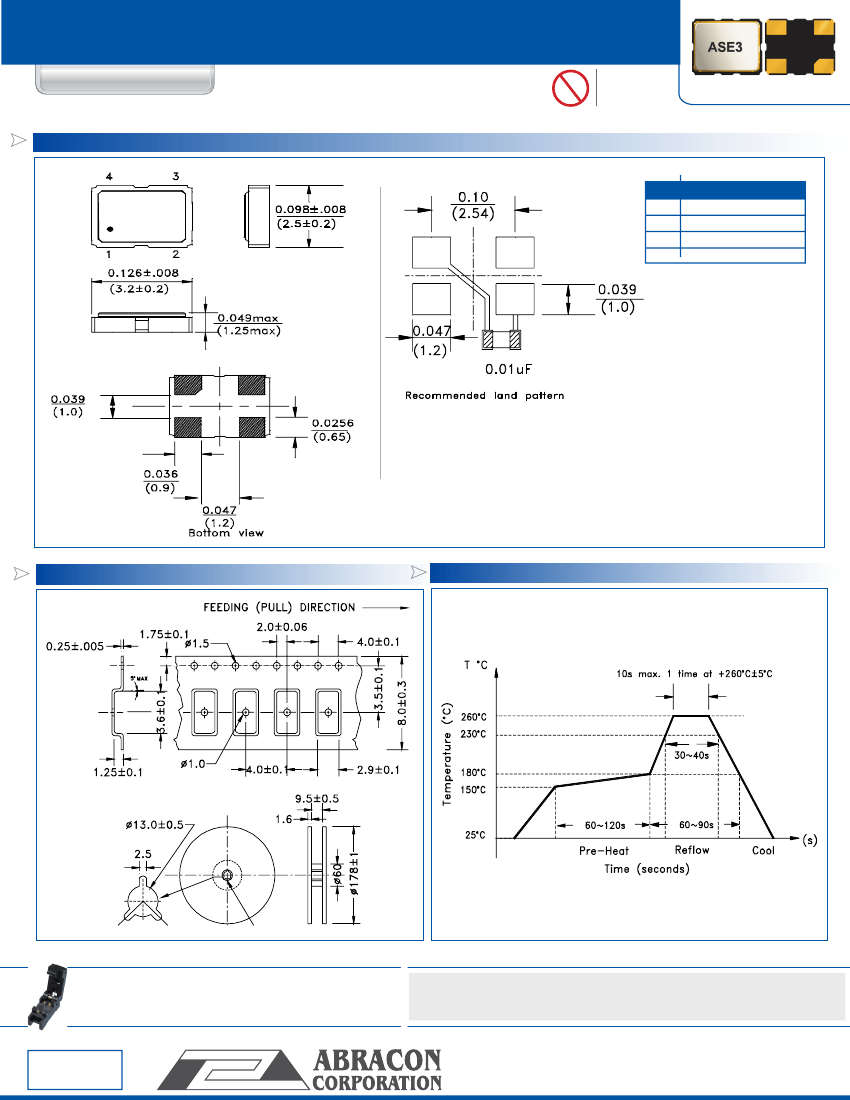

1.8V CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASE3 SERIES
OUTLINE DRAWING:
Pb
RoHS
Compliant
3.2 x 2.5 x 1.25mm
| | | | | | | | | | | | | | |
PIN
1
2
3
4
FUNCTION
Tri-state
GND/Case
Output
Vdd
It is recommended to use
an approximately 0.01uF
bypass capacitor between
PIN 2 and PIN 4.
Dimensions: Inches (mm)
Note:
The outline package configuration varies with
frequency range. Electrical properties, pin configuration,
and land pattern are the same.
TAPE & REEL:
Dimensions: mm
REFLOW PROFILE
Need a test socket for the ASE3 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
NOTE:
Abracon manufactured products are intended for general commercial and
industrial use. For applications requiring high reliability and/or presenting extreme
operating environment, written consent & authorization from Abracon is required.
Revised: 12.21.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
