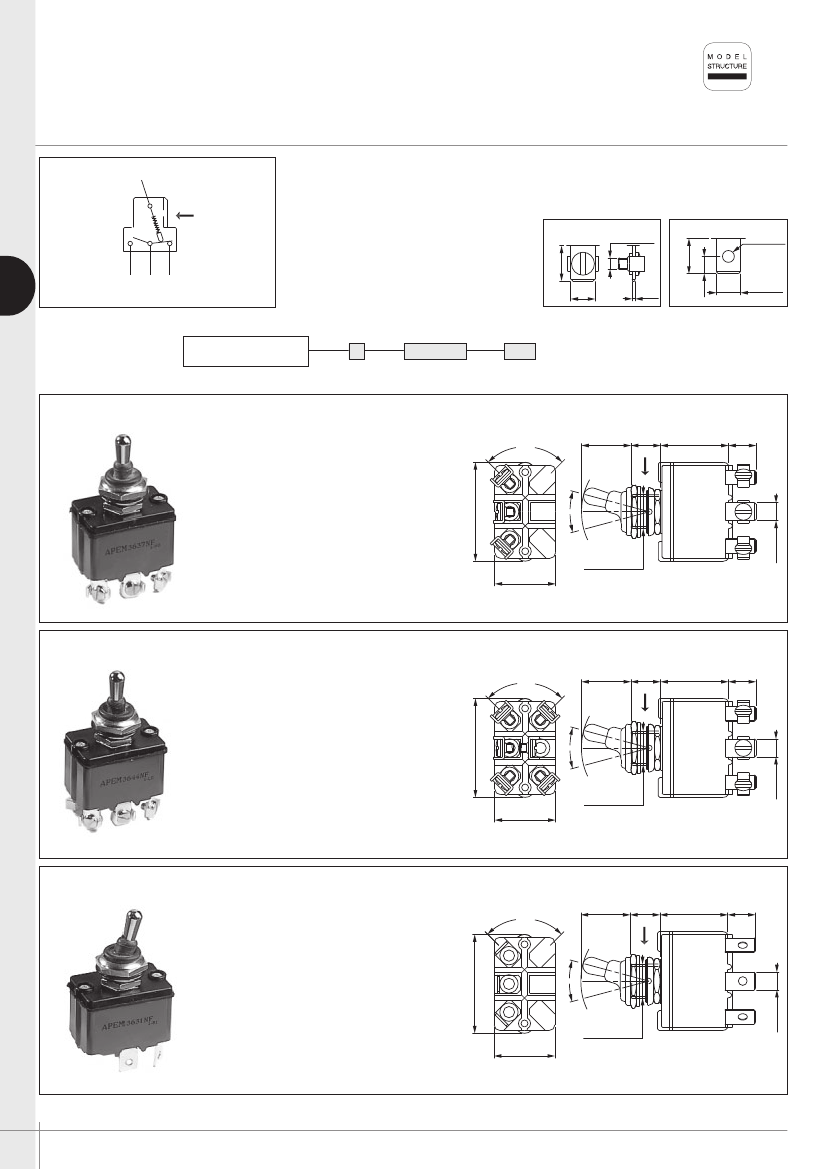

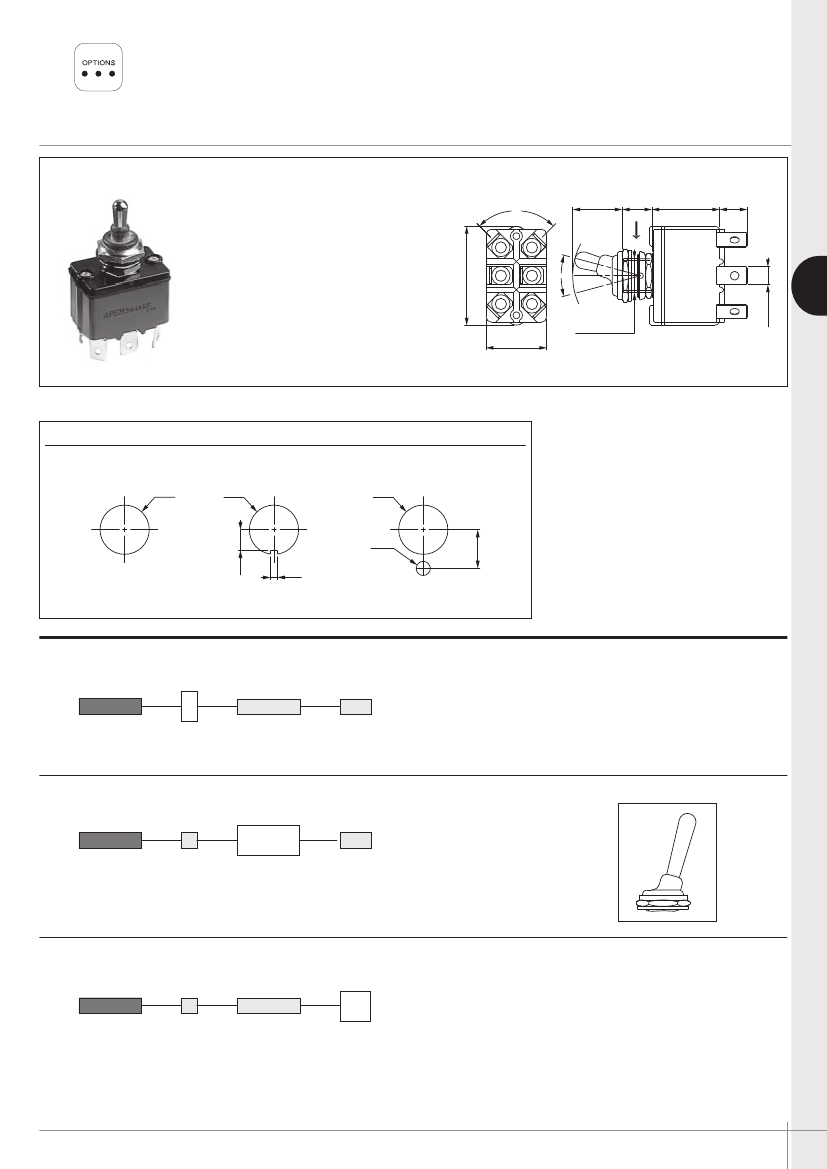

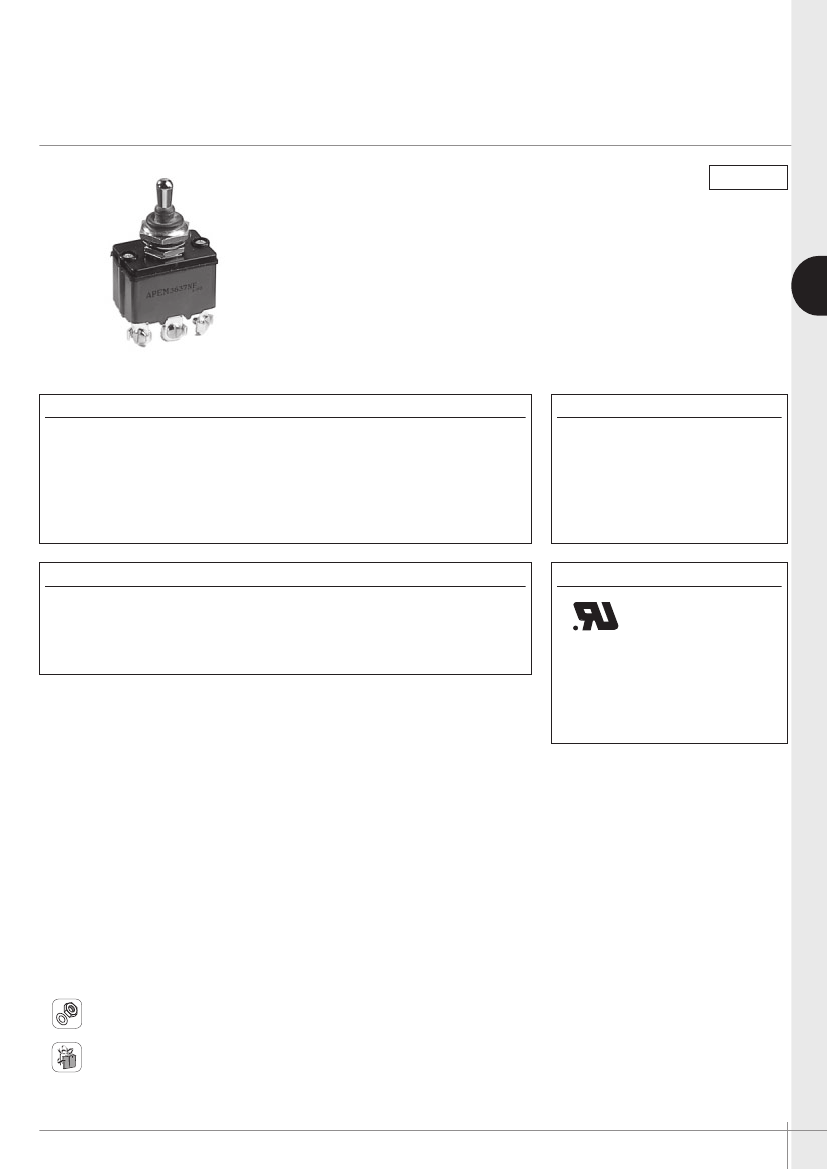

3600NF series
Sealed toggle switches for outdoor applications
Distinctive features and specifications
❑
Sealing obtained by :
UG1006-A
- O-ring between lever and bushing
- half-length boot and nylon washer (supplied mounted)
- elastomer gasket between cover and case
- molded-in terminal inserts
- sealing washer U60
A
❑
Solid silver contacts
❑
UL approved
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load : 12A 28VDC - 6A 250VAC
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
2.500 Vrms 50 Hz min. between terminals
3.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
• Case : phenolic resin
• Actuator : brass, nickel plated
• Bushing : brass, nickel plated
• Contacts : solid silver
GENERAL SPECIFICATIONS
AGENCY APPROVAL
• Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 2 mm (.079) max. with all accessories
• Operating temperature : -40°C to +85°C
Availability
: consult factory for
details or approved models.
Marking
: to order switches
marked UL, complete last box of
ordering format.
ABOUT THIS SERIES
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
Mounting accessories
: 1 sealing boot U1151, 1 hex nut U166, 1 nylon washer U21 and 1 sealing washer U60. See section I.
Packaging unit
: 25 pieces per type and colour.
APEM
www.apem.com
A-113
3600NF series
Sealed toggle switches for outdoor applications
Screw terminals - solder lug/quick-connect terminals
➞
Keyway
•
1 and 2 pole configurations
Ø3.00x0.50 SI
(.118DIAx0.50 IS)
9.20
(.362)
9.20
(.362)
Ø3.10
(.122DIA)
MODEL
STRUCTURE
Screw terminals - single pole
III
2-1
II
I
2-3
➞
Keyway
17.50
(.689)
90˚
1
10.50
(.413)
24.60
(.968)
9.20
(.362)
4
I
3631NF
3635NF
3636NF
3637NF
3638NF
3639NF
ON
-
OFF
MOM -
ON
ON
-
ON
MOM OFF MOM
ON OFF MOM
ON OFF ON
35.00
(1.378)
30˚
2
5
II
4.50
(.177)
A
3
2
1
6.35
(.25)
0.80
(.031)
6.35x0.80
(.25x.031)
III
3
21.50
(.846)
6
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
Screw terminals - double pole
III
2-1
5-4
3641NF
3644NF*
3645NF
3646NF
3647NF
3648NF
3649NF
ON
ON
MOM
ON
MOM
ON
ON
II
I
2-3
5-6
➞
Keyway
17.50
(.689)
90˚
1
10.50
(.413)
24.60
(.968)
9.20
(.362)
4
I
-
OFF
ON ON
-
ON
-
ON
OFF MOM
OFF MOM
OFF ON
35.00
(1.378)
30˚
2
5
II
III
3
21.50
(.846)
6
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
* Function 4 : SP in DP case, see end of catalogue.
Solder lug/quick-connect terminals - single pole
III
2-1
3631NF/2
3635NF/2
3636NF/2
3637NF/2
3638NF/2
3639NF/2
II
I
2-3
➞
Keyway
17.50
(.689)
90˚
1
10.50
(.413)
24.60
(.968)
9.20
(.362)
III
3
21.50
(.846)
6
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
A-114
www.apem.com
APEM
6.35x0.80
(.25x.031)
ON
-
OFF
MOM -
ON
ON
-
ON
MOM OFF MOM
ON OFF MOM
ON OFF ON
4
I
35.00
(1.378)
30˚
2
5
II
6.35x0.80
(.25x.031)
6.35x0.80
(.25x.031)
3600NF series
Sealed toggle switches for outdoor applications
Solder lug/quick-connect terminals
Solder lug and quick-connect terminals - double pole
III
2-1
5-4
3641NF/2
3644NF/2*
3645NF/2
3646NF/2
3647NF/2
3648NF/2
3649NF/2
ON
ON
MOM
ON
MOM
ON
ON
II
I
2-3
5-6
1
17.50
(.689)
90˚
10.50
(.413)
24.60
(.968)
9.20
(.362)
4
I
-
OFF
ON ON
-
ON
-
ON
OFF MOM
OFF MOM
OFF ON
35.00
(1.378)
30˚
2
5
II
A
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
6.35x0.80
(.25x.031)
III
3
21.50
(.846)
6
* Function 4 : DP in 4P case, see end of catalogue.
PANEL CUT
-
OUT
Ø12.20
(.48DIA)
Ø12.20
(.48DIA)
Ø12.50
(.492DIA)
FINISH
G
Matt black finish on lever and nut of sealing boot
SPECIAL LEVER
X1052
30 mm (1.181) long lever
AGENCY APPROVAL
UL
Marking
: to order switches marked UL, complete above box with ”UL”.
