54LS113DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS113DM

54LS113DM: DescriptionJbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14,; Categorylogic logic; File Size60KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS113DM Overview

Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14,

54LS113DM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP
Humidity sensitivity level	2A
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	NEGATIVE EDGE
Base Number Matches	1

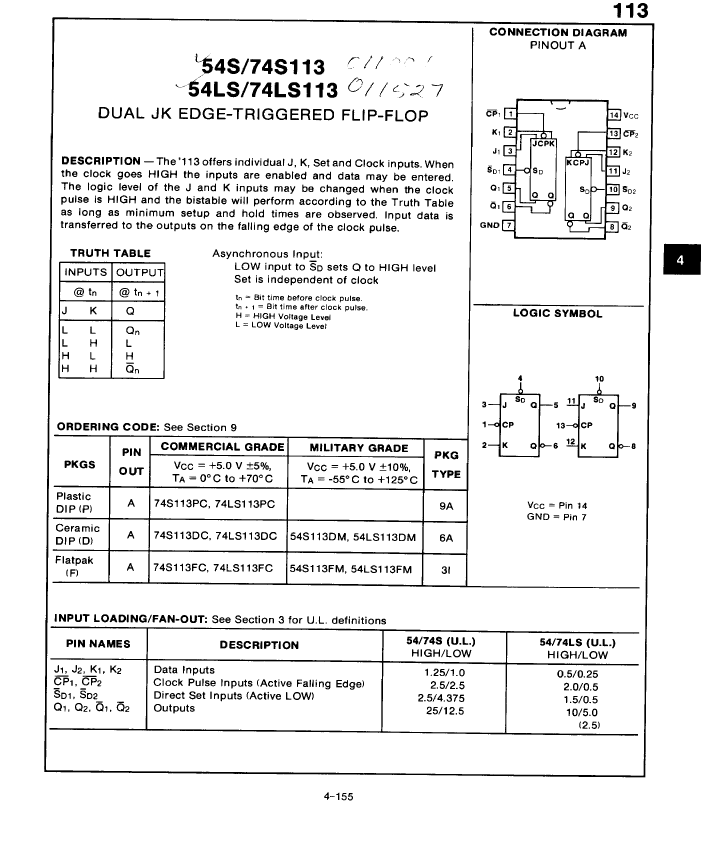

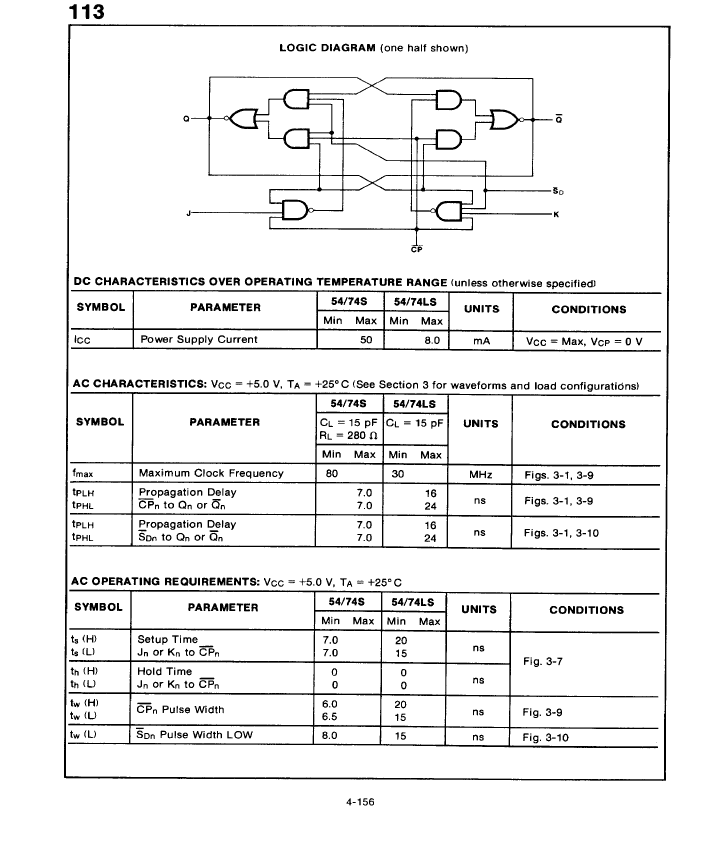

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS113DM Related Products

	54LS113DM	54LS113FM	74S113DC	74S113FC	74S113PC	74LS113FC	54S113DMQB
Description	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,	J-K Flip-Flop, S Series, 2-Func, Negative Edge Triggered, 4-Bit, Complementary Output, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
JESD-30 code	R-XDIP-T14	R-XDFP-F14	R-XDIP-T14	-	R-PDIP-T14	R-XDFP-F14	R-CDIP-T14
JESD-609 code	e0	e0	e0	-	e0	e0	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	-	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	J-K FLIP-FLOP
Humidity sensitivity level	2A	2A	2A	-	2A	2A	-
Number of functions	2	2	2	-	2	2	2
Number of terminals	14	14	14	-	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	-	70 °C	70 °C	125 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	-	PLASTIC/EPOXY	CERAMIC	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	-	DIP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	-	DIP14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	-	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	-	250	250	-
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	YES	NO	-	NO	YES	NO
technology	TTL	TTL	TTL	-	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	-	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	-	30	30	-
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	-	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
package instruction	-	-	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3
