IPT 00 M
Front Panel Mount Square Flange Receptacle
with Backshell
for EMI Shield Termination and Shrink Boot
IPT Series
Bayonet Lock
Connectors
IPT 00 M 18-11 S Z C XX
MIL-C-26482
Series l Type
00 - Front Panel Mount
Square Flange Receptacle
Connector/Backshell Class
M - Environmental with Backshell for
EMI Shield Termination and Shrink
Boot
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
M
H
C
B
D
G
APPLICATION NOTES
1. Front panel wall mount receptacle with backshell for terminating shielded cable, suitable for heat shrink boots; through mounting holes.
2. Connector/Backshell Class “M” (environmental)––Wire sealing grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-34
with Backshell
for EMI Shield Termination and Shrink Boot

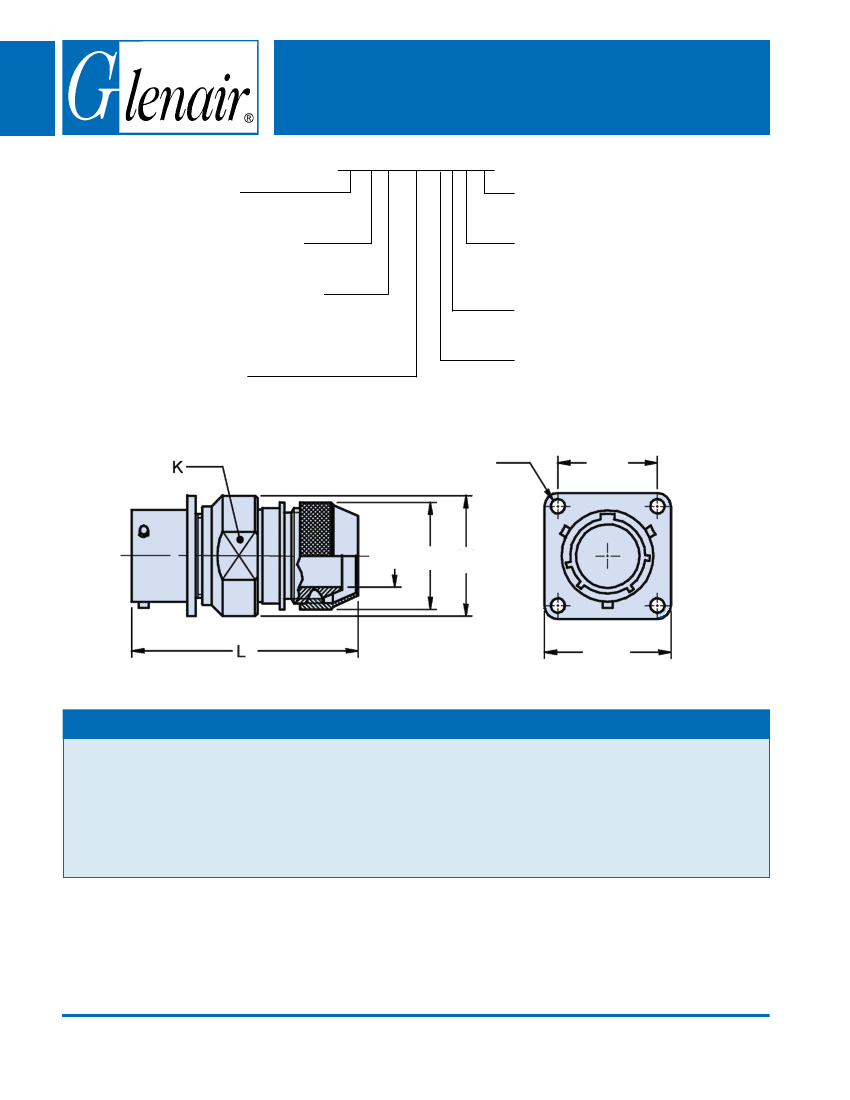

TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
A
Max.
19.80
22.50
26.90
29.90
32.85
35.80
39.60
42.90
45.90
B
Max.
16.3
18.4
22.4
25.4
28.4
32.4
34.4
38.4
41.3
C
min.
6.70
9.30
12.25
15.40
18.50
20.20
23.20
26.05
30.00
G
±0.4
20.6
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
H
±0.1
15.10
18.25
20.60
23.00
24.60
27.00
29.35
31.75
39.40
L
Max.
52.0
52.0
52.0
53.0
53.0
53.0
57.0
57.0
58.5
M
±0.12
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.73
K
Key
18
21
24
28
31
34
37
41
44
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
GXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-35
IPT Series
Bayonet Lock
Connectors
IPT 00 M
Front Panel Mount Square Flange Receptacle
