RF Coax Connectors

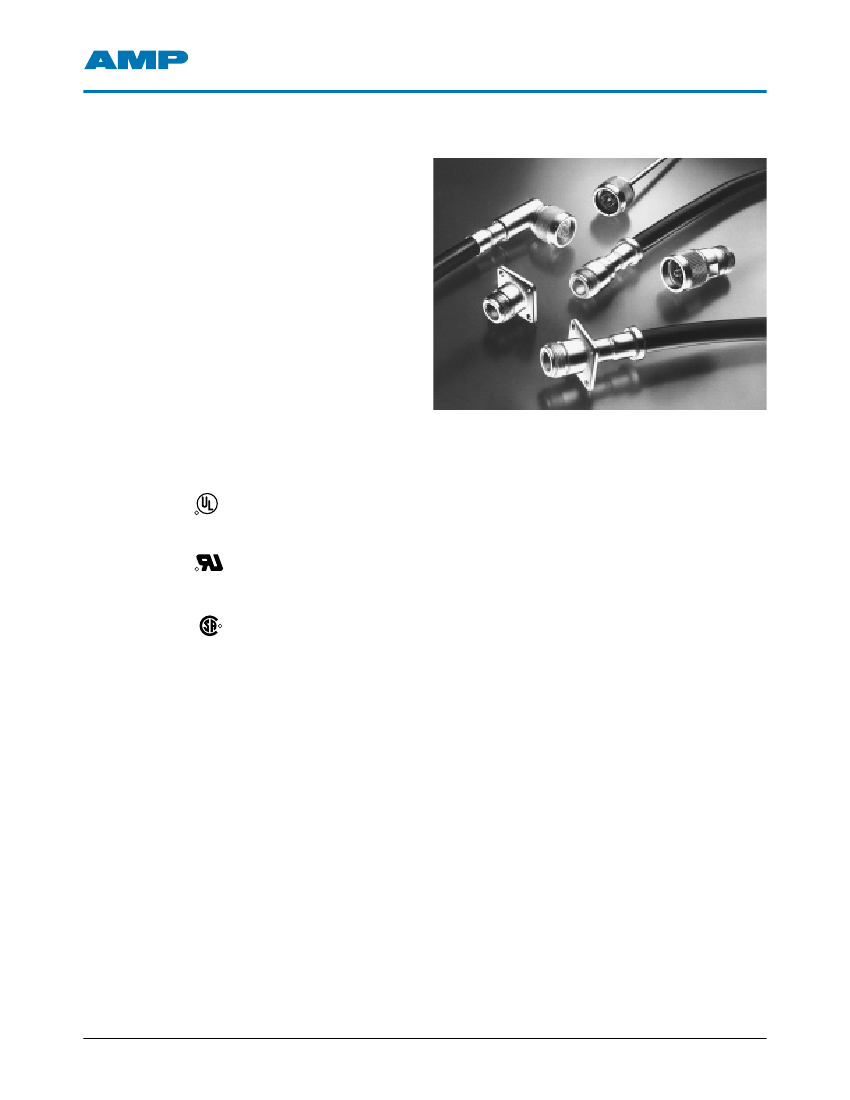

N Series Connectors
Product Facts
s
Designated connectors are
MIL-C-39012, Class II,
Category B qualified
Captive center contacts
Completely crimpable
application – one hand tool
crimps all cables with
single or double braided
shields of a given size
Impedance matching crimps
Broad band performance –
low VSWR
Superior cable retention
TEFLON dielectric
Silver or nickel finish
Fully intermateable with
MIL-C-39012 connectors
Listed under the Component
Program of Underwriters
Laboratories Inc.,
File No. E81956
R
s
s
s
s
s
s
s
s
s
The AMP N Connector, fea-
turing a 15.88 [5/8] - 24
threaded coupling for opti-
mum stability, is highly suit-
ed for critical applications
and environments. This
medium sized connector
can withstand shock and
vibration to assure a low
noise level and has a con-
stant impedance of 50
ohms. It also features a
captive center contact and
provides excellent perfor-
mance at frequencies up to
11 GHz, with voltages to
1000 volts rms.
This AMP connector offers
the added benefits of low
overall applied cost with a
labor-saving two-crimp
assembly. The contact is
simply crimped to the cable’s
center conductor, then both
braid and cable support are
simultaneously crimped to
complete the termination.
N Series Connectors are
available in standard plug,
jack, panel jack, bulkhead
jack and right-angle plug
configurations. Those
connectors with a military
designation (M39012) are
furnished in accordance with
all requirements of specifica-
tion MIL-C-39012, Class II,
Category B.
Materials
Brass
— QQ-B-626
Beryllium Copper
— QQ-C-530
Dielectric
— TEFLON
TEFLON
— MIL-P-19468
Copper, Annealed
— QQ-C-576
Phosphor Bronze
— QQ-B-750
Silicone Rubber
— ZZ-R-765
Electrical Characteristics
Nominal Impedance
— 50 ohms
Working Voltage
— 1000 volts, rms
at sea level
Frequency Range
— 0 to 11 GHz
Voltage Standing Wave Ratio
(VSWR)
— Straight Plug or Jack-
1.3:1 max.
Right-Angle Plug—
1.35 max. at 0 to 9.0 GHz
1.50 max. at 9.0 to 11.0 GHz
Contact Resistance
—
Outer Contact — 0.2 milliohms
Center Contact — 1.0 milliohms
Right-Angle — 2.5 milliohms
Insulation Resistance
— 5000
megohms min.
Dielectric Withstanding Voltage
—
2500 Volts, rms at sea level
RF Leakage
— Mil Type, -90 dB min.
at 2 to 3 GHz
RF Insertion Loss
— Mil Type, 0.15
dB max. at 10 GHz
Right-Angle Plug, 0.3 dB max. at
10 GHz
Corona Level
— Mil Type, 500 volts
min. at 21 336 m [70,000 ft.]
Terminator
—
Resistance — 50 ohms ±1%
Power Rating — 1.0 watt max.
Mechanical Characteristics
Mating/Unmating
— Threaded coupling
Cable Attachment
— Crimp type -
center contact and braid
Coupling Nut Retention
— 445 N
[100 lbs.] min.
Cable Retention
— 400 N [90 lbs.]
min. RG 214/U Cable
Durability
— 500 cycles per MIL-C-
39012
Captive Contact
— 27 N [6 lbs.] min.
axial retention, either direction
s
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E81956
R
s
Certified by Canadian
Standards
Association
File No. LR 7189
R
Environmental Characteristics
Temperature Range
—
Mil Type, -65°C to +165°C
Commercial, -55°C to +85°C
Vibration
— MIL-STD-202, Method
204, Test Cond. B
Shock
— MIL-STD-202, Method 213,
Test Cond. I
Moisture Resistance
— MIL-STD-
202 Method 106
Salt Spray
— MIL-STD-202, Method
101, Test Cond B
Temperature Cycling
— MIL-STD-
202, Method 107, Test Cond. B
(except high temperature is +85°C)
Note:
All data pertains to use with MIL-C-
39012 specified cables only.
Between Series Adapters
For N Series Between Series Adapters,
see Pages 255-264.
Plating
Body
—
Silver per QQ-S-365
Nickel per QQ-N-290
Center Contact
—
Gold per MIL-B-45204
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
17
Catalog 1307191
Revised 10-00

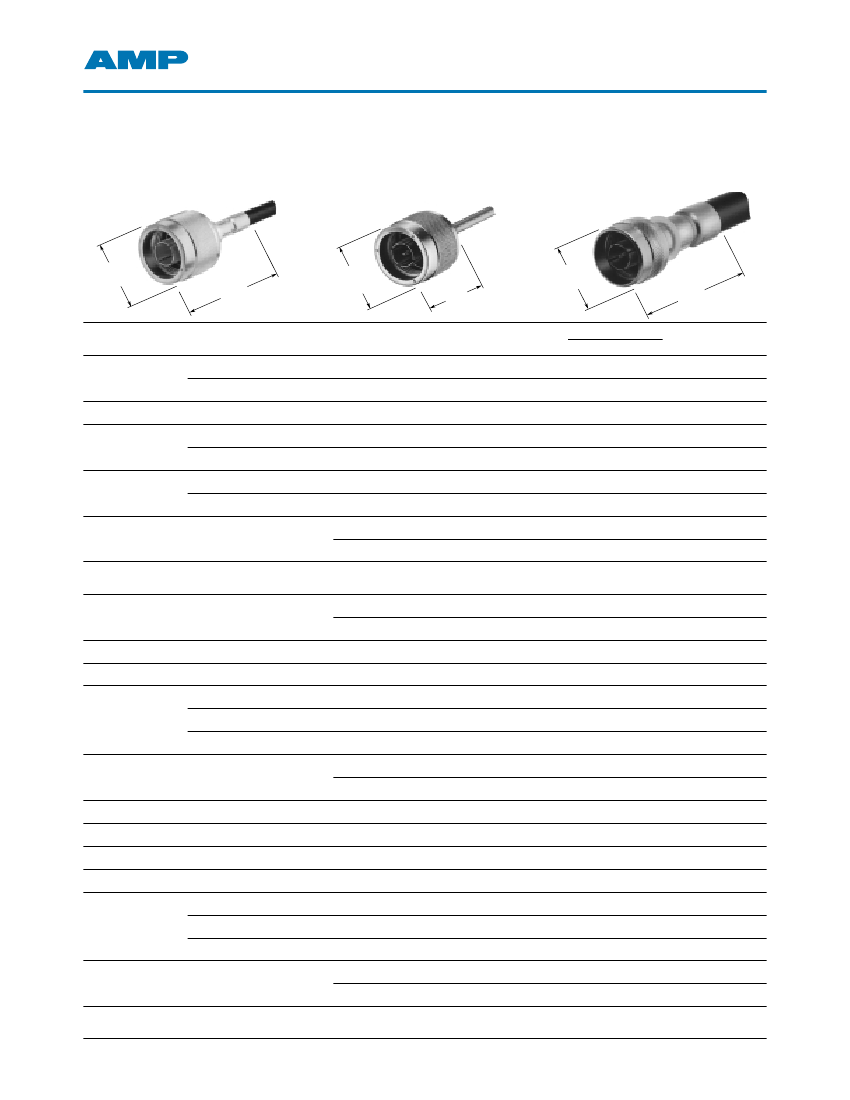

RF Coax Connectors
N Series Connectors, 50 Ohm
(Continued)
35.86
Max.
[1.412]

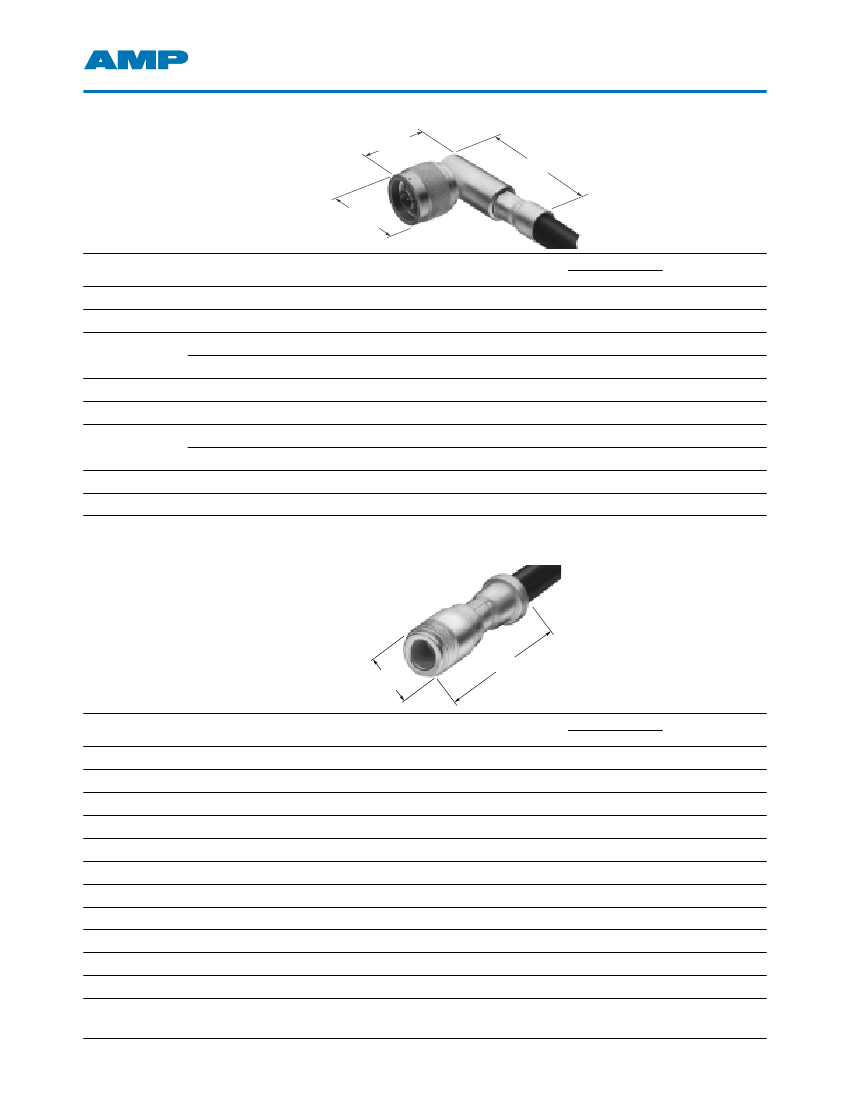

Right Angle Plugs,
Crimp
21.01
Dia.
[.827] Max.
L
Max.
RG/U
Cable
58A, 58C
142, 142A,
142B
8, 8A, 213
Termination
Type
Hex Crimp
Hex Crimp
O Crimp
O Crimp
Body
Plating
Nickel
Nickel
Nickel
Silver
Nickel
Nickel
Nickel
Silver
Nickel
Nickel
M39012/
Military No. and/
or Comments
Hex Collar
Hex Collar
Knurl Collar
05B0002
Knurl Collar
Hex Collar
Hex Collar
Knurl Collar
05B0003
Knurl Collar
Hex Collar
Hex Collar
Dim.
L
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
57.79
2.275
Integral Die
Hand Tool
58436-1*
58436-1*
220015-1
220015-1
58485-1*
58485-1*
220015-1
220015-1
58485-1*
58485-1*
Hex Across Flats
Center
Braid
1.73
.068
1.73
.068
—
—
2.54
.100
2.54
.100
—
—
2.54
.100
2.54
.100
5.41
.213
5.41
.213
—
—
10.90
.429
10.90
.429
—
—
10.90
.429
10.90
.429
Part No.
415255-1
415255-2
225669-2
225014-2
415255-3
415255-6
225669-1
225014-3
415255-4
415255-5
8, 213
393
9, 9A, 9B
214
9, 214
Belden 9880
Hex Crimp
Hex Crimp
O Crimp
O Crimp
Hex Crimp
Hex Crimp
*Crimp Tool — Pro Crimper II Hand Tool, P/N 354940-1 or 626 Series Pneumatic Tool with 679304-1.
Jacks
L
Max.
15.93
Dia.
[.627] Max.
RG/U
Cable
58A, 58C
142, 142A,
142B, 400
142, 142A,
142B
8, 8A,
213
8, 213
9, 9A, 9B,
214
9, 214
Belden 9880
393
402 Semi
Rigid (.141)
405 Semi
Rigid (.085)
Termination
Type
Hex Crimp
O Crimp
Hex Crimp
O Crimp
Hex Crimp
O Crimp
Hex Crimp
Hex Crimp
Hex Crimp
Solder
Solder
Body
Plating
Nickel
Nickel
Nickel
Silver
Nickel
Silver
Nickel
Nickel
Nickel
Nickel
Nickel
M39012/
Military No. and/
or Comments
—
—
—
02B0008
—
02B0009
—
—
—
—
—
Dim.
L
41.28
1.625
44.84
1.765
41.28
1.625
49.2
1.937
41.28
1.625
49.2
1.937
41.28
1.625
41.28
1.625
41.28
1.05
26.7
1.625
26.7
1.05
Integral Die
Hand Tool
58436-1**
220045-2**
58436-1**
220015-1
58485-1**
220015-1
58485-1**
58485-1**
58485-1**
—
—
Hex Across Flats
Center
Braid
1.73
.068
—
1.73
.068
—
2.54
.100
—
2.54
.100
2.54
.100
2.54
.100
—
—
5.41
.213
—
5.41
.213
—
10.90
.429
—
10.90
.429
10.90
.429
10.90
.429
—
—
Part No.
415242-1
1-225663-5*
415242-2
225093-2
415242-3
225093-1
415242-4
415242-5
415242-6
1057116-1
1057119-1
*Hand Tool 69710-1, with Die Insert 220062-1, is available to terminate these connectors. The 626 Pneumatic tool system can also be used.
**Die Set Crimp Tool — Pro Crimper II Hand Tool, P/N 354940-1 or 626 Series Pneumatic Tool with 679304-1.
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
19
Catalog 1307191
Revised 10-00
RF Coax Connectors
N Series Connectors, 50 Ohm
(Continued)

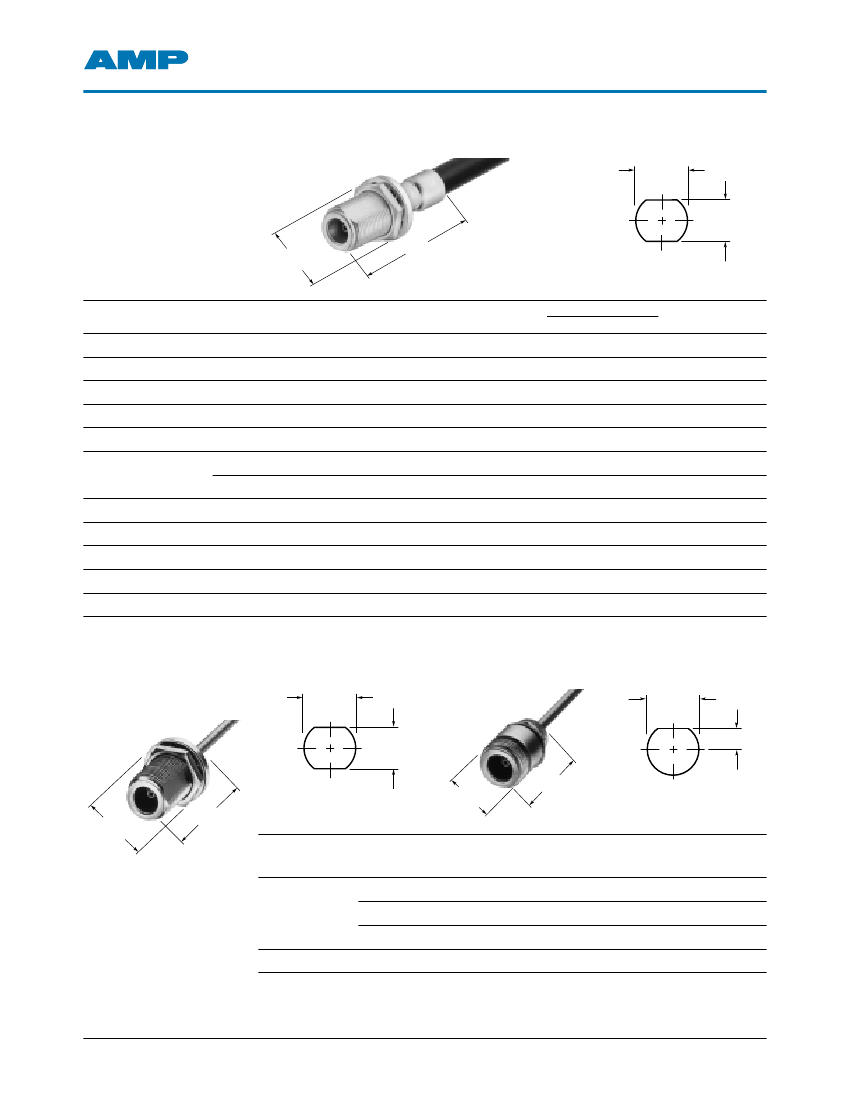

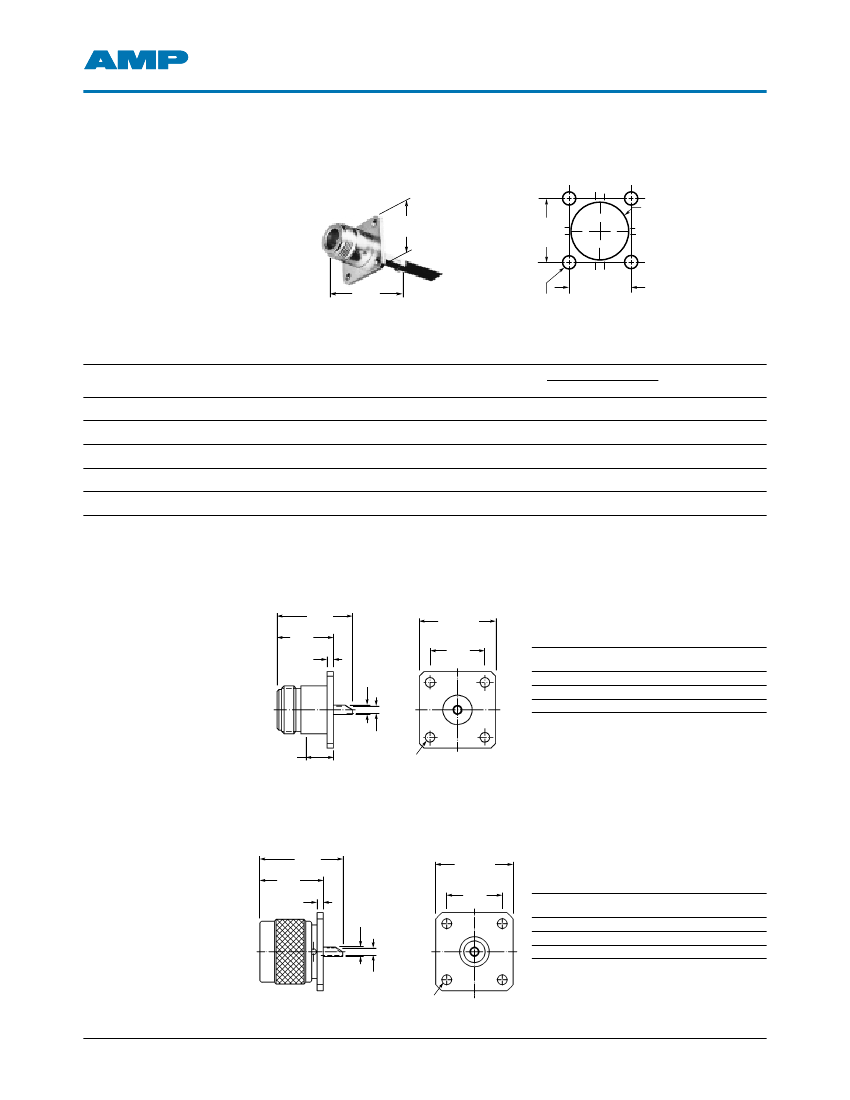

Bulkhead Jacks,
Crimp
16/16.38
[.630/.645]
Dia.
13.51/13.79
[.532/.543]
L
Max.
Maximum Panel Thickness
6.35
[.250]
22.48
Dia.
[.885] Max.
Recommended Panel Cutout
RG/U
Cable
58, 58A,
58B, 58C
58A, 58C
223,
55, 55A, 55B
142, 142A,
142B, 400
142, 142A,
142B
124, 140, 210, 62,
62A, 62B, 59, 59A,
59B, Belden 9291,
9209, 9269, 89269
Belden 9880
8, 213
393
9, 214
9, 9A, 9B
214
Termination
Type
O Crimp
Hex Crimp
O Crimp
O Crimp
Hex Crimp
O Crimp
O Crimp
Hex Crimp
Hex Crimp
Hex Crimp
Hex Crimp
O Crimp
Body
Plating
Silver
Nickel
Silver
Silver
Nickel
Silver
Nickel
Nickel
Nickel
Nickel
Nickel
Nickel
Dim.
L
49.6
1.953
45.72
1.800
49.6
1.953
49.6
1.953
45.72
1.800
45.21
1.780
49.61
1.953
45.72
1.800
45.72
1.800
45.72
1.800
45.72
1.800
49.61
1.953
Integral Die
Hand Tool
220045-2
58436-1**
220045-2
220045-2
58436-1**
220045-3
220045-3
58485-1**
58485-1**
58485-1**
58485-1**
220015-1
Hex Across Flats
Center
Braid
—
1.73
.068
—
—
1.73
.068
—
—
2.54
.100
2.54
.100
2.54
.100
2.54
.100
—
—
5.41
.213
—
—
5.41
.213
—
—
10.90
.429
10.90
.429
10.90
.429
10.90
.429
—
Part No.
225363-1*
415248-1
225363-2*
225363-4*
415248-2
225363-6
1-225667-6
415248-5
415248-3
415248-6
415248-4
225667-1
*Hand Tool 69710-1, with Die Insert 220062-1, is available to terminate these connectors. The 626 Pneumatic tool system can also be used.
**Crimp Tool — Pro Crimper II Hand Tool, P/N 354940-1 or 626 Series Pneumatic Tool with 679304-1.
Bulkhead Jacks for
Semi-Rigid Cable
Rear Mount
16.26
+0.13
-0.25
Dia.
[.640
+.005
]
-.010
Front Mount
12.88
+0.08
-0.05
Dia.
[.507
+.003
]
-.002
13.72
+0.08
-0.2
[.540
+.003
]
-.008
L
Max.
5.59
+0.03
-0.05
[.220
+.001
]
-.002
Maximum Panel Thickness
6.35
[.250]
22.86
Dia.
[.900] Max.
L
Max.
16.1
Dia.
[.630] Max.
Maximum Panel Thickness
6.35
[.250]
Recommended Panel Cutout
M39012/
Military No.
and/or
Comments
Rear Mount
Front Mount
Rear Mount
Rear Mount
Recommended Panel Cutout
RG/U
Cable
Termination
Type
Crimp
Body
Plating
Nickel
Nickel
Nickel
Nickel
Dim.
L
29.37
1.156
29.37
1.156
25.4
1.00
33.9
1.335
Integral Die
Hand Tool
*
*
—
—
Part No.
228658-1
228448-1
1057176-1
1057165-1
402
Semi-Rigid/.141
Crimp
Solder
405
Semi-Rigid/.085
Solder
*Tooling—Hand Tool No. 59980-1, Requires (2) Crimping Dies No. 312253-1 and (1) Locator No. 220220-2.
