L-53ID-TNB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-53ID-TNB

L-53ID-TNB: DescriptionSingle Color LED, Super Red, Red Diffused, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size141KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-53ID-TNB Overview

Single Color LED, Super Red, Red Diffused, 5mm,

L-53ID-TNB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
color	SUPER RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	RED DIFFUSED
Nominal luminous intensity	50 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	TAPE AND BOX
peak wavelength	625 nm
shape	ROUND
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

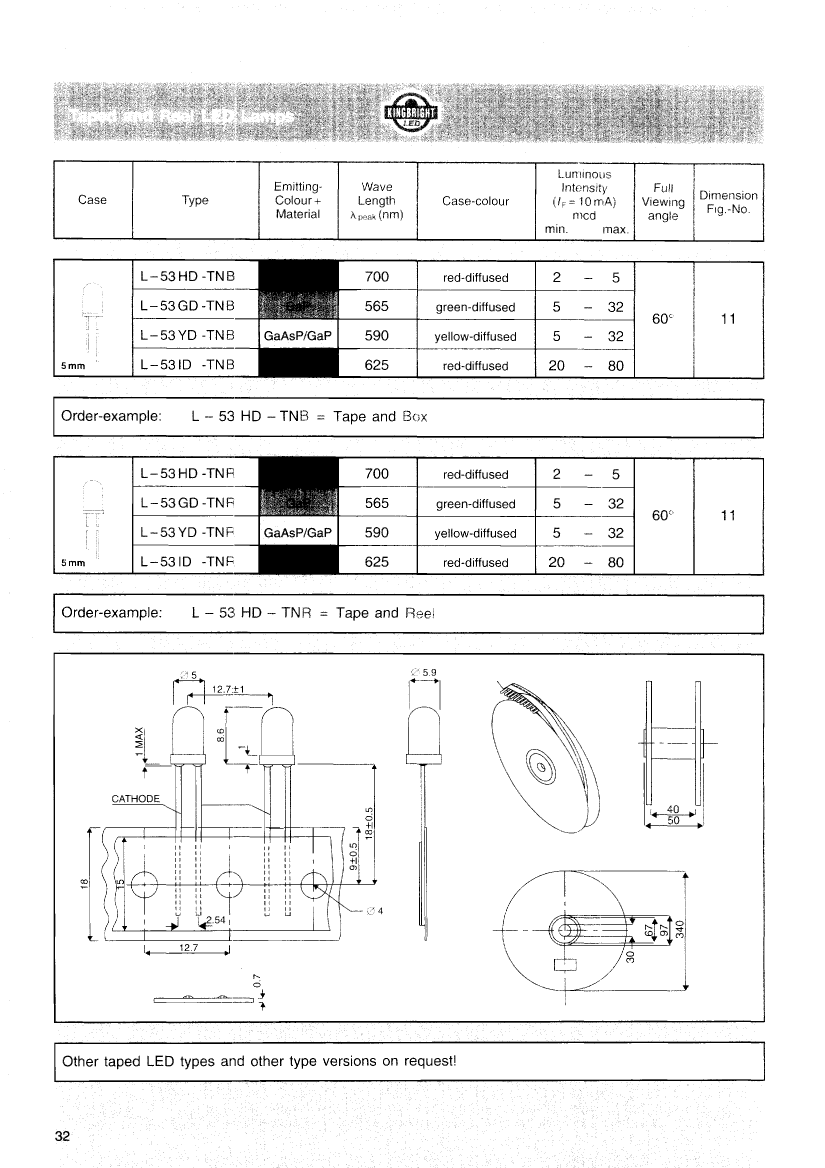

Preview

Download Datasheet

View All

L-53ID-TNB Related Products

	L-53ID-TNB	L-53GD-TNB	L-53YD-TNR	L-53ID-TNR	L-53YD-TNB	L-53GD-TNR	L-53HD-TNB	L-53HD-TNR
Description	Single Color LED, Super Red, Red Diffused, 5mm,	Single Color LED, Green, Diffused, 5mm,	Single Color LED, Yellow, Diffused, 5mm,	Single Color LED, Super Red, Red Diffused, 5mm,	Single Color LED, Yellow, Diffused, 5mm,	Single Color LED, Green, Diffused, 5mm,	Single Color LED, Red, Diffused, 5mm,	Single Color LED, Red, Diffused, 5mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	SUPER RED	GREEN	YELLOW	SUPER RED	YELLOW	GREEN	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.025 A	0.03 A	0.03 A	0.03 A	0.025 A	0.025 A	0.025 A
Lens type	RED DIFFUSED	DIFFUSED	DIFFUSED	RED DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	50 mcd	18.5 mcd	18.5 mcd	50 mcd	18.5 mcd	18.5 mcd	3.5 mcd	3.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	TAPE AND BOX	TAPE AND BOX	TAPE AND REEL	TAPE AND REEL	TAPE AND BOX	TAPE AND REEL	TAPE AND BOX	TAPE AND REEL
peak wavelength	625 nm	565 nm	590 nm	625 nm	590 nm	565 nm	700 nm	700 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	-	-
