M74HCT161B1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HCT161B1R

M74HCT161B1R: DescriptionSYNCHRONOUS PRESETTABLE 4-BIT COUNTER; Categorylogic logic; File Size309KB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

M74HCT161B1R Overview

SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

M74HCT161B1R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compli
Other features	TCO OUTPUT
Counting direction	UP
series	HCT
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	21000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
method of packing	TUBE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	54 ns
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	21 MHz

Preview

Download Datasheet

View All

M54/74HCT160/161

M54/74HCT162/163

SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

HIGH SPEED

MAX

= 50 MHz (TYP.) AT V

= 5 V

LOW POWER DISSIPATION

= 4

µA

(MAX.) AT 25

°C

OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

BALANCED PROPAGATION DELAYS

PLH

= t

PHL

SYMMETRICAL OUTPUT IMPEDANCE

= I

= 4 mA (MIN.)

COMPATIBLE WITH TTL OUTPUTS

= 2V (MIN.); V

= 0.8V (MAX.)

PIN AND FUNCTION COMPATIBLE

WITH 54/74LS160

∼

163

B1R

(Plastic Package)

F1R

(Ceramic Package)

M1R

(Micro Package)

C1R

(Chip Carrier)

DESCRIPTION

M54/74HCT160 Decade, Asynchronous Clear

M54/74HCT161 Binary, Asynchronous Clear

M54/74HCT162 Decade, Synchronous Clear

M54/74HCT163 Binary, Synchronous Clear

The M54/74HCT160, 161, 162 and 163 are high

speed CMOS SYNCHRONOUS PRESETTABLE

COUNTERS fabricated with silicon gate C

MOS

technology. They have the same high speed oper-

ation similar to equivalent LSTTL while maintaining

the CMOS low power dissipation.

The M54/74HCT160/162 are BCD Decade counter-

s and the M54/74HCT161/163 are 4 bit binary

counters. The CLOCK input is active on the rising

edge. Both LOAD and CLEAR inputs are active

Low.

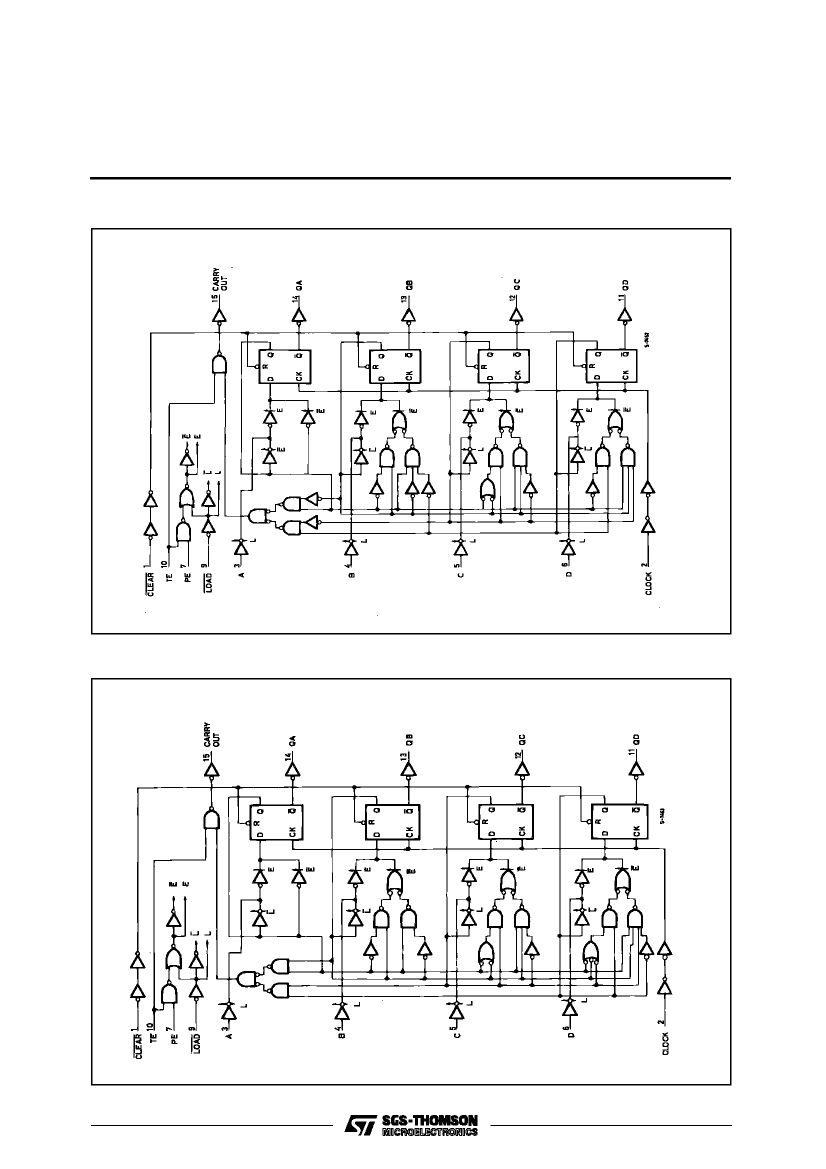

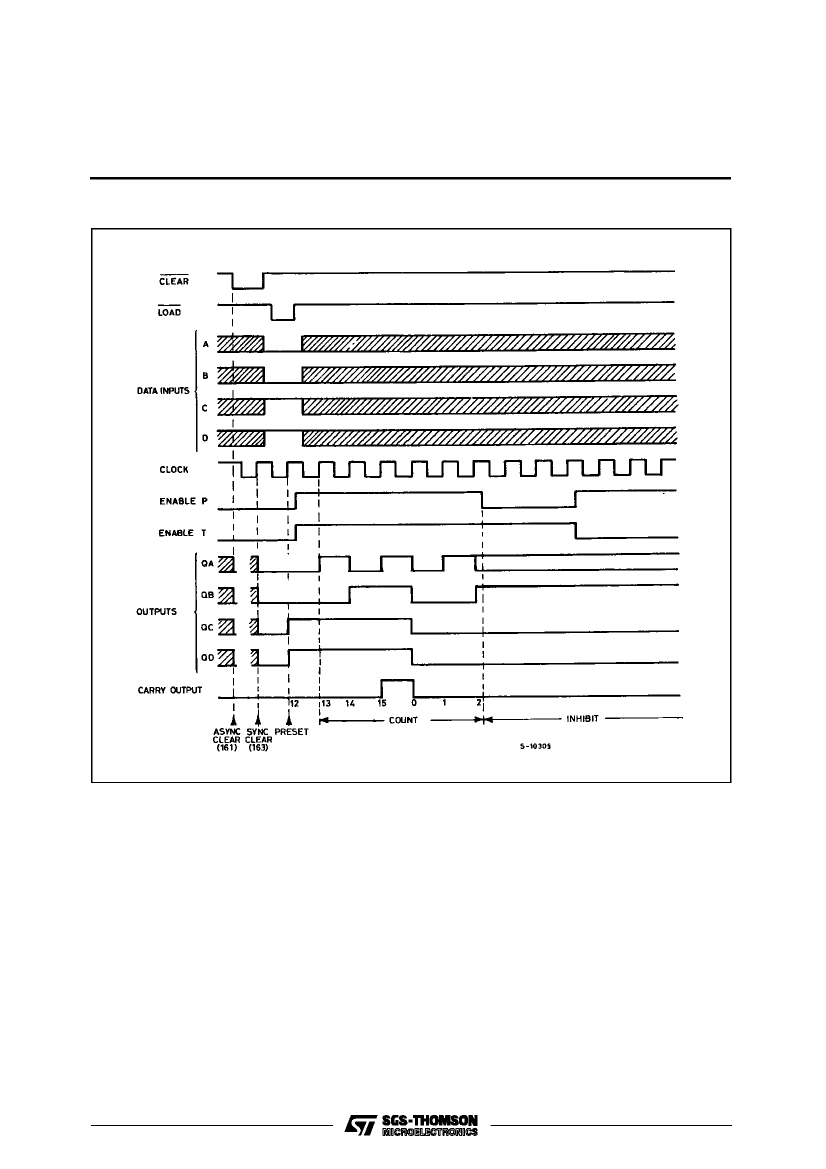

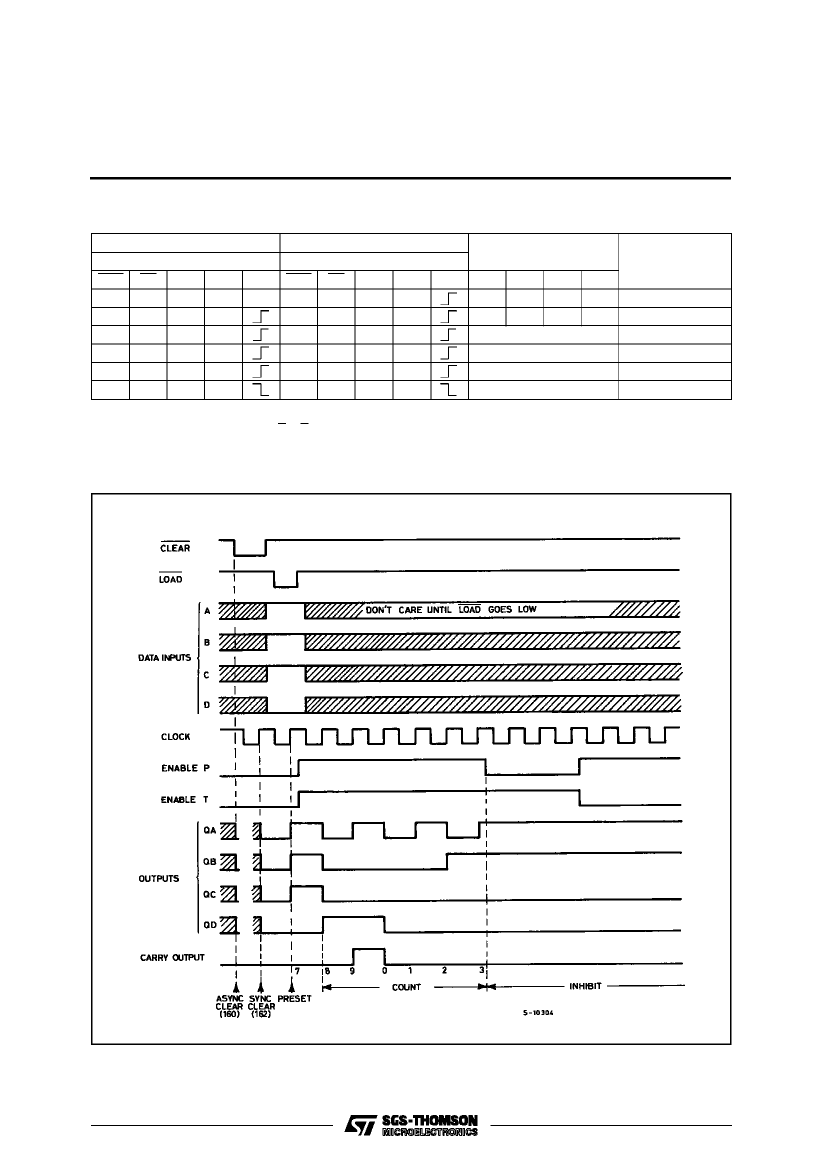

Presetting of all four IC’s is synchronous on the ris-

ing edge of the CLOCK. The function on the

M54/74HCT162/163 is synchronous to CLOCK,

while the M54/74HCT160/161 counters are cleared

asynchronously. Two enable inputs (TE and PE)

and CARRY output are provided to enable easycas-

cading of counters, which facilities easy implemen-

tation of N-bit counters without using external gates.

This integrated circuit has input and output charac-

teristics that are fully compatible with 54/74 LSTTL

logic families. M54/74HCT devices are designed to

directly interface HSC

MOS systems with TTL and

NMOS components. They are also plug in replace-

ments for LSTTL devices giving a reduction of

power consumption. All inputs are equipped with

ORDER CODES :

M54HCTXXXF1R

M74HCTXXXM1R

M74HCTXXXB1R

M74HCTXXXC1R

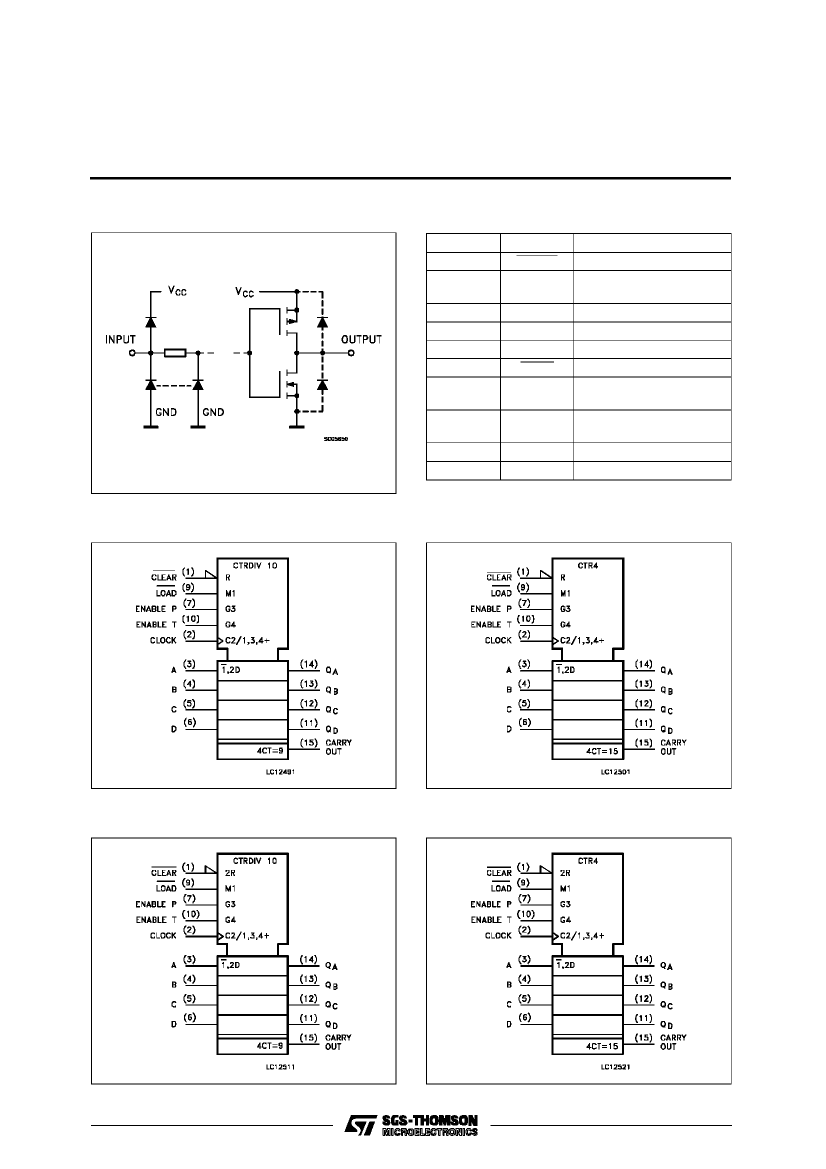

PIN CONNECTIONS

(top view)

NC =

No Inter-

nal Con-

October 1993

1/16
