5361M1/5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5361M1/5

Preview

5361M1/5: DescriptionDual Color LED, Red/green, Diffused, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size65KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

5361M1/5 Overview

Dual Color LED, Red/green, Diffused, 3 PIN

5361M1/5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3 PIN
Reach Compliance Code	unknown
color	RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Optoelectronic device types	DUAL COLOR LED
total height	7.112 mm
method of packing	BULK
peak wavelength	650/562 nm
shape	ROUND
surface mount	NO
Terminal pitch	1.905 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

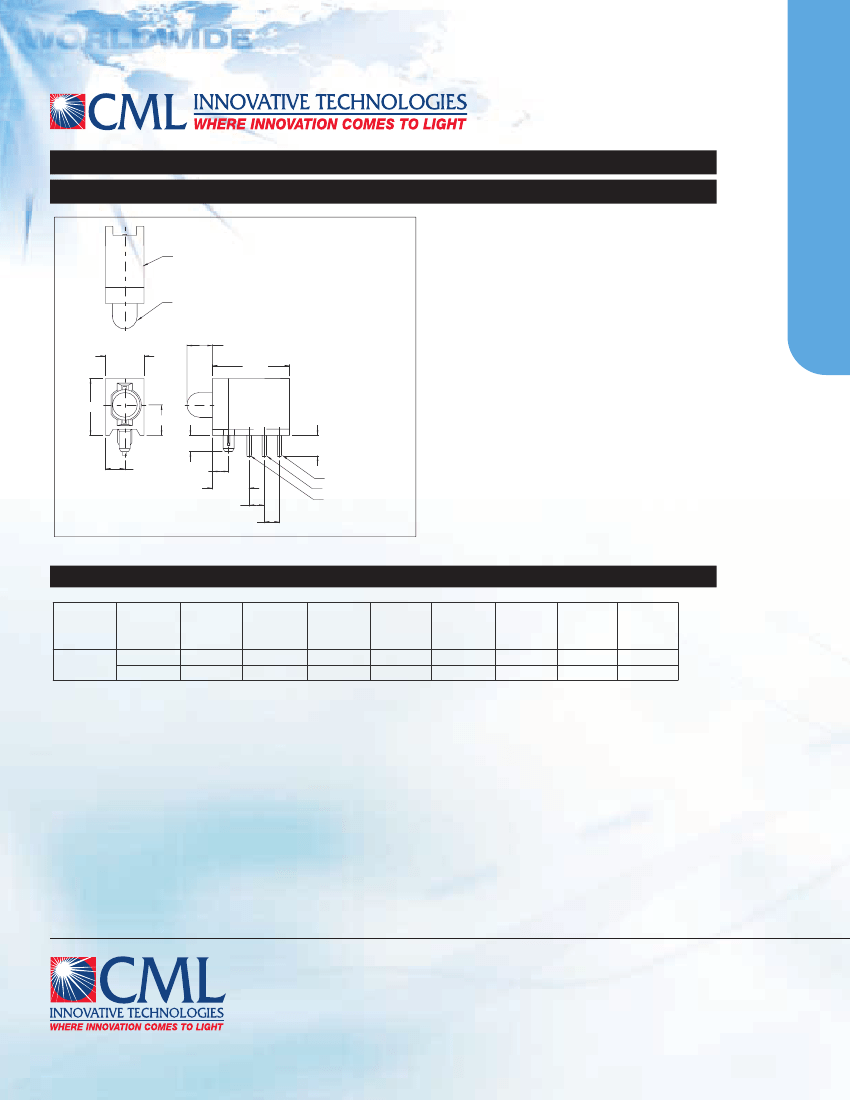

5361 Series Tri-Color Right Angle LED Assembly

DESCRIPTION AND FEATURES

All dimensions in inches.

HOUS ING : B LAC K

T HE R MOP LAS T IC

LE D: R E D/G R E E N B IC OLOR

Features

• 3 lead, dual-chip LEDwith common cathode

• Lights red or green.

• Brightness-matched chips for even

illumination.

• Flat lens styles.

• Provides multiple indications in a single

compact package.

.180±.015

.190

.380

.280

.150

.080

(.095)

.080

.180

.075±. 010

.075±.010

.100±.015

ANODE (G R E E N)

C AT HODE (C OMMON)

ANODE (R E D)

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Continuous

Forward

Voltage Typ. Voltage Max.

Current Max.

(V)

(mA)

30

2.0

2.5

30

2.1

2.5

Part

Number

5361M1/5

Color

Red

Green

Package

Type

Diffused

Package

Color

White

Rated

Current

(mA)

20

Min. Lum.

Intensity

(mcd)

650

562

Typ. Lum.

Intensity

(mcd)

5

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5361 Series Tri-Color Right Angle LED Assembly
