EN80C196KC20SF12 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> EN80C196KC20SF12

EN80C196KC20SF12: DescriptionMicrocontroller, 16-Bit, 20MHz, CMOS, PQCC68, ROHS COMPLIANT, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，27 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

EN80C196KC20SF12 Overview

Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, ROHS COMPLIANT, PLASTIC, LCC-68

EN80C196KC20SF12 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	68
Reach Compliance Code	unknown
Has ADC	YES
Other features	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING
Address bus width	16
bit size	16
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	S-PQCC-J68
length	24.2 mm
Number of I/O lines	40
Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.83 mm
speed	20 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.2 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

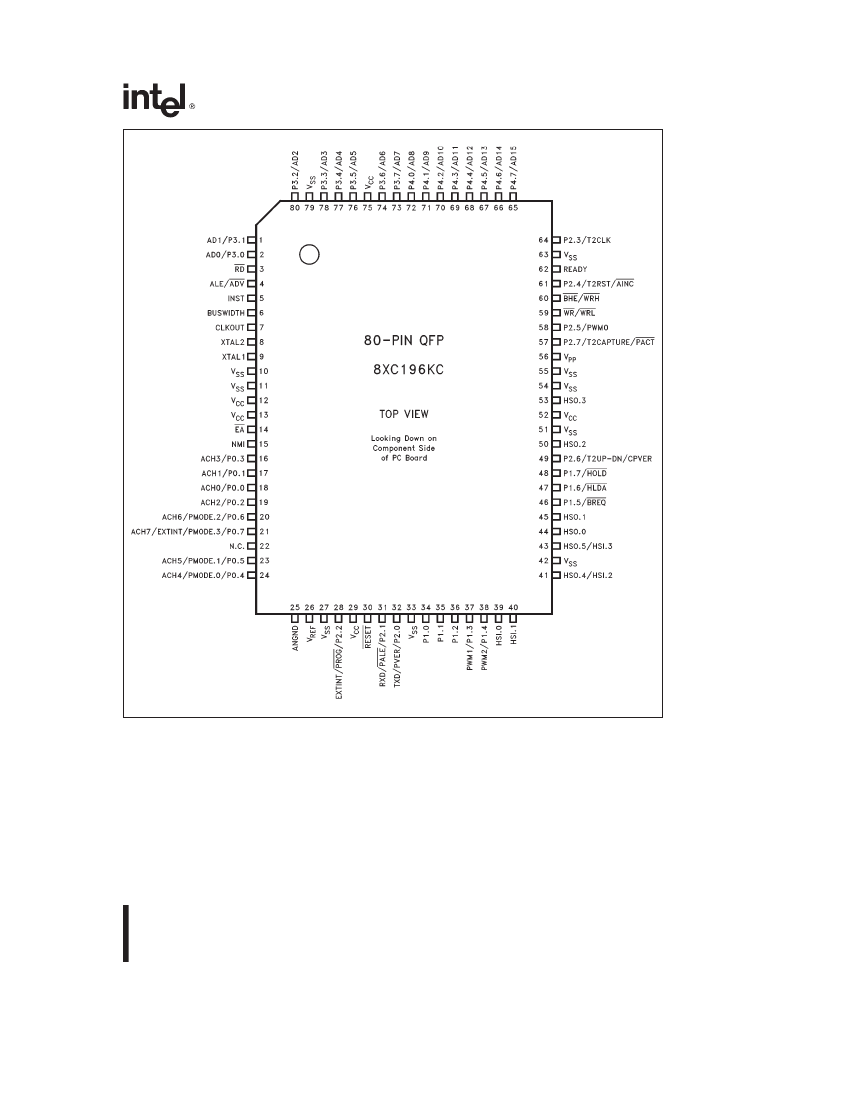

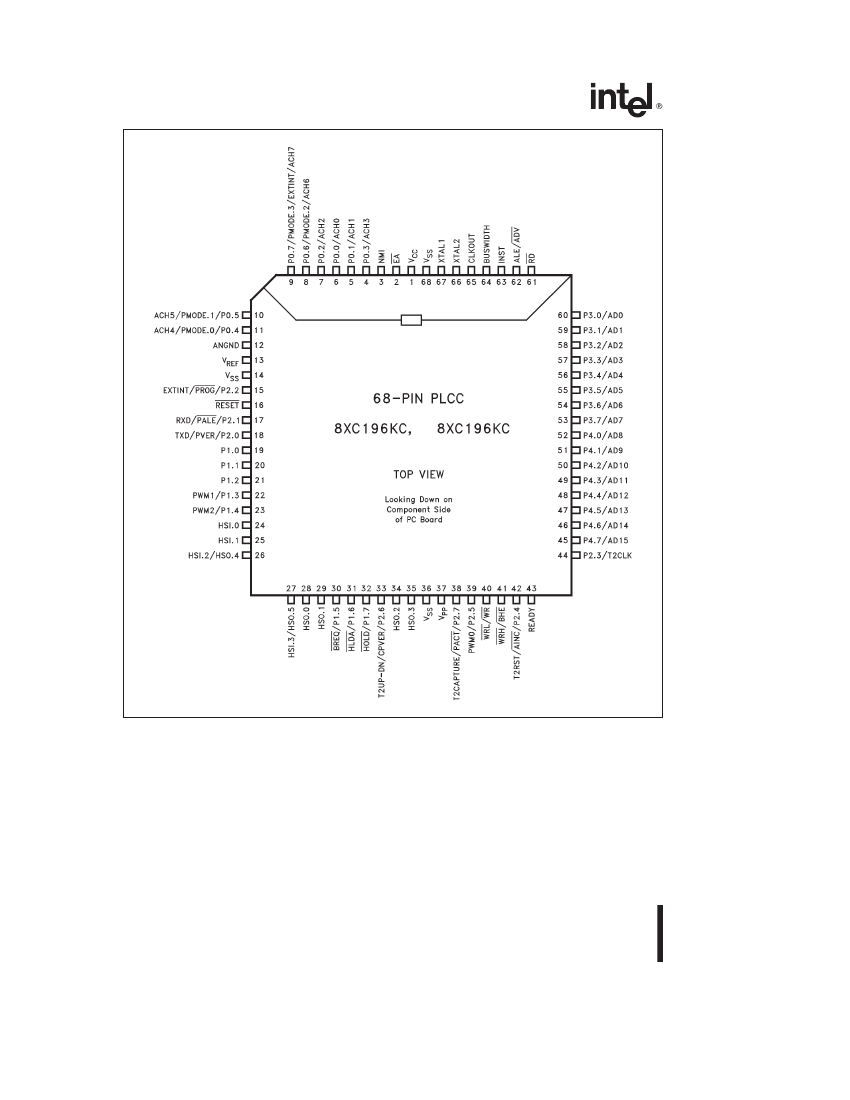

8XC196KC/8XC196KC20

COMMERCIAL/EXPRESS CHMOS

MICROCONTROLLER

87C196KC-16 Kbytes of On-Chip OTPROM

83C196KC-16 Kbytes ROM

80C196KC-ROMless

Dynamically Configurable 8-Bit or

16 and 20 MHz Available

16-Bit Buswidth

488 Byte Register RAM

Architecture

Full Duplex Serial Port

High Speed I/O Subsystem

16-Bit Timer

16-Bit Up/Down Counter with Capture

3 Pulse-Width-Modulated

Outputs

Four 16-Bit Software Timers

8- or 10-Bit A/D Converter with

Sample/Hold

HOLD/HLDA Bus Protocol

OTPROM One-Time Programmable

Version

28 Interrupt Sources/16 Vectors

Peripheral Transaction Server

1.4

16 x 16 Multiply (20 MHz)

2.4

32/16 Divide (20 MHz)

Powerdown and Idle Modes

Five 8-Bit I/O Ports

16-Bit Watchdog Timer

Extended Temperature Available

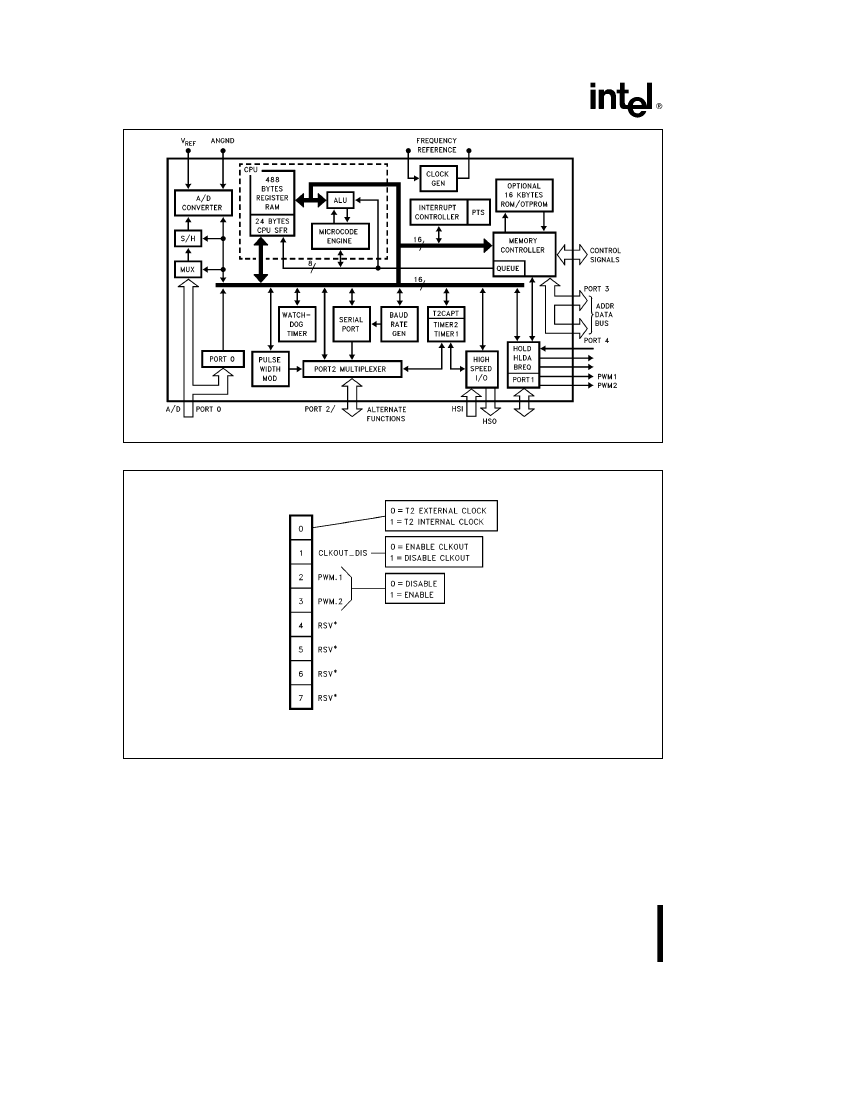

The 80C196KC 16-bit microcontroller is a high performance member of the MCS 96 microcontroller family.

The 80C196KC is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an

optional 16 Kbytes of ROM/OTPR OM. Intel's CHMOS III process provides a high performance processor

along with low power consumption.

The 87C196KC is an 80C196KC with 16 Kbytes on-chip OTPROM. The 83C196KC is an 80C196KC with 16

Kbytes factory programmed ROM. In this document, the 80C196KC will refer to all products unless otherwise

stated.

Four high-speed capture inputs are provided to record times when events occur. Six high-speed outputs are

available for pulse or waveform generation. The high-speed output can also generate four software timers or

start an A/D conversion. Events can be based on the timer or up/down counter.

With the commercial (standard) temperature option, operational characteristics are guaranteed over the tem-

perature range of 0 C to

70 C. With the extended (Express) temperature range option, operational charac-

teristics are guaranteed over the temperature range of

40 C to

85 C. Unless otherwise noted, the specifi-

cations are the same for both options.

See the Packaging information for extended temperature designators.

Other brands and names are the property of their respective owners.

Information in this document is provided in connection with Intel products. Intel assumes no liability whatsoever, including infringement of any patent or

copyright, for sale and use of Intel products except as provided in Intel's Terms and Conditions of Sale for such products. Intel retains the right to make

changes to these specifications at any time, without notice. Microcomputer Products may have minor variations to this specification known as errata.

Order Number:270942-006

July 2004

EN80C196KC20SF12 Related Products

	EN80C196KC20SF12	EN80C196KC20	TN80C196KC20SF12	N80C196KC20SF12	EE80C196KC20SF12	EG80C196KC20
Description	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, ROHS COMPLIANT, PLASTIC, LCC-68	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, ROHS COMPLIANT, PLASTIC, LCC-68	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC68, ROHS COMPLIANT, PLASTIC, LCC-68	Microcontroller, 16-Bit, 20MHz, CMOS, PQFP80, ROHS COMPLIANT, PLASTIC, MQFP-80
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	LCC	LCC	LCC	LCC	LCC	QFP
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QFP,
Contacts	68	68	68	68	68	80
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant	compliant
Has ADC	YES	YES	YES	YES	YES	YES
Other features	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING
Address bus width	16	16	16	16	16	16
bit size	16	16	16	16	16	16
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
External data bus width	16	16	16	16	16	16
JESD-30 code	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQFP-G80
length	24.2 mm	24.2 mm	24.2 mm	24.2 mm	24.2 mm	20 mm
Number of I/O lines	40	40	40	40	40	40
Number of terminals	68	68	68	68	68	80
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C
PWM channel	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	3.15 mm
speed	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	24.2 mm	24.2 mm	24.2 mm	24.2 mm	24.2 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	1
