32S151-K00E3: DescriptionRF Connector Adapter, SMA-BNC, Male-Female, Plug-jack,; CategoryThe connector The connector; File Size243KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

32S151-K00E3 Overview

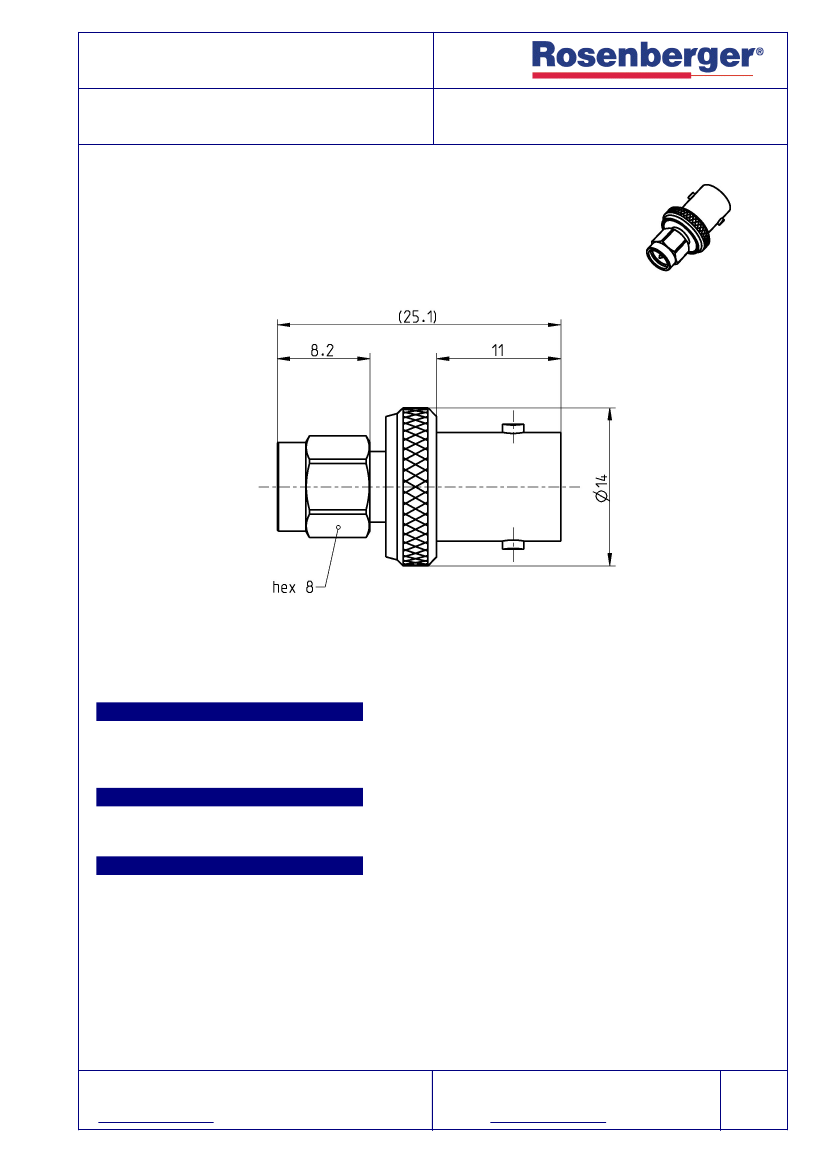

RF Connector Adapter, SMA-BNC, Male-Female, Plug-jack,

32S151-K00E3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	SMA-BNC
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE-FEMALE
Coupling type	BAYONET-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	32S151-K00E3
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.08
Base Number Matches	1
