54ABT373W-QML datasheet, PDF - EEWORLD Datasheet

54ABT373W-QML: DescriptionD Latch, 1-Func, 8-Bit, CDFP20; Categorylogic logic; File Size448KB，11 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

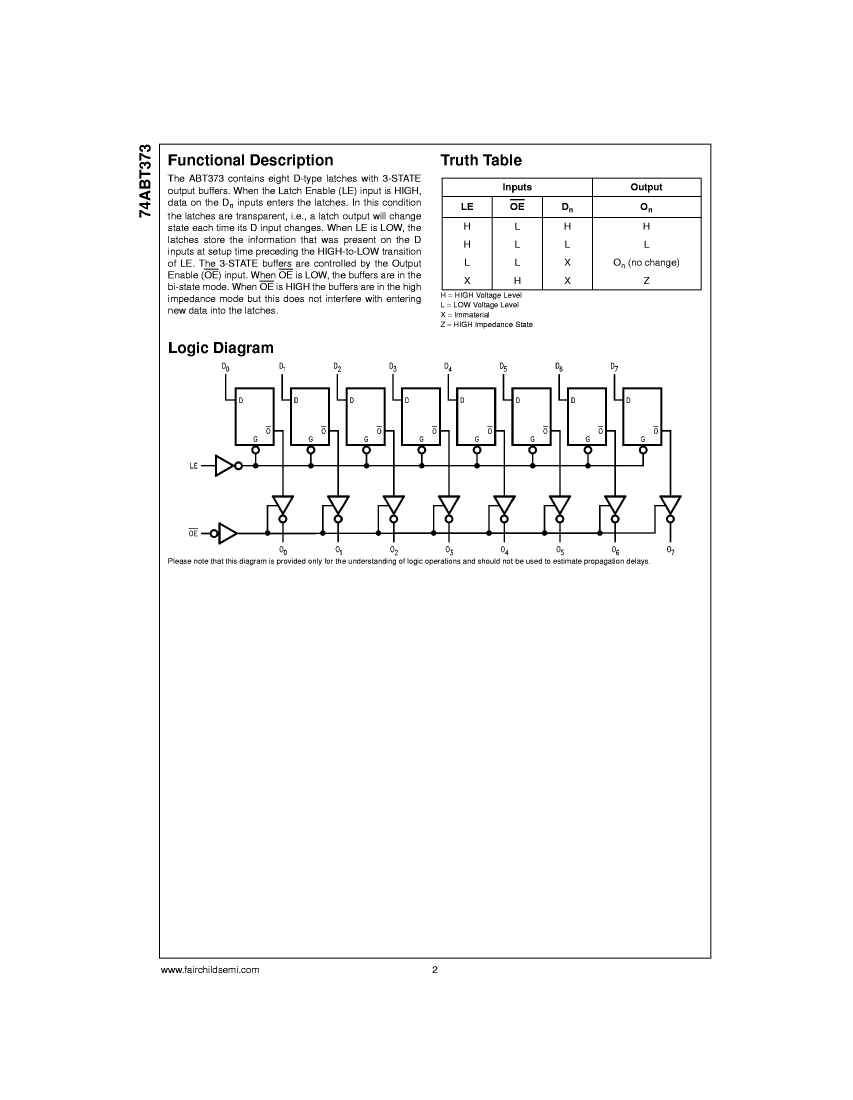

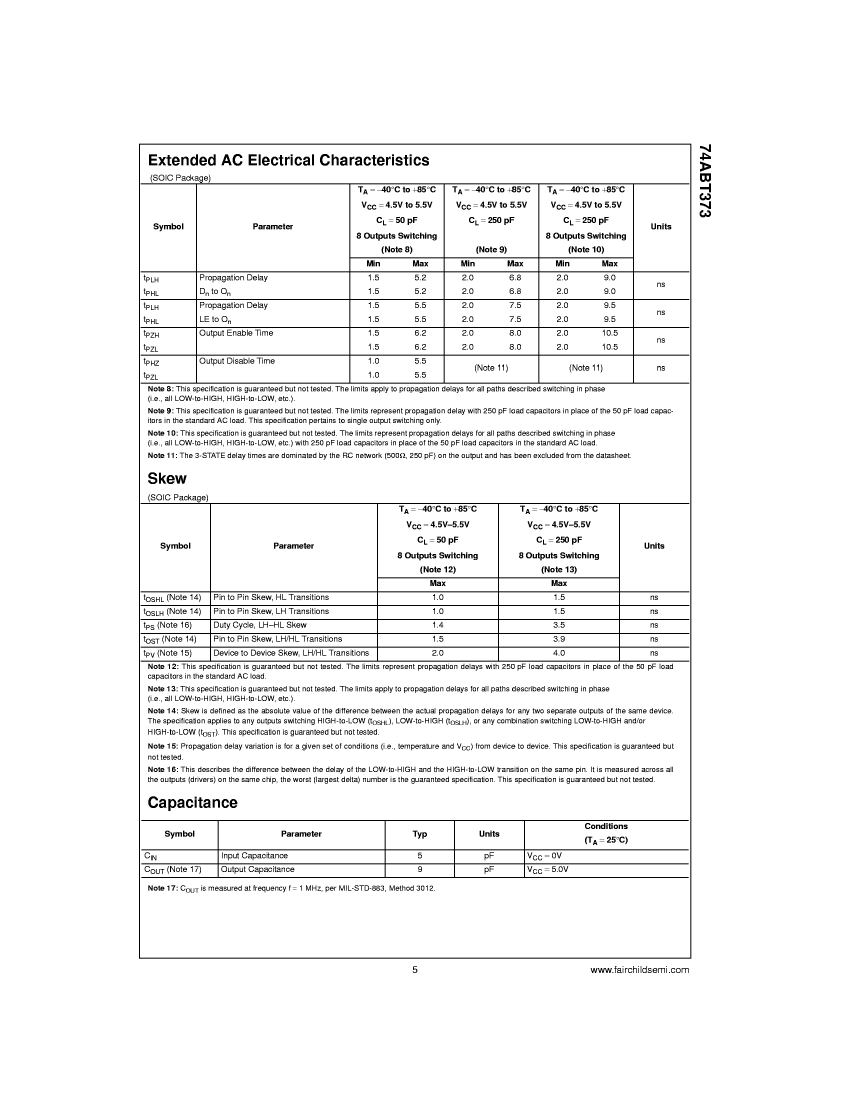

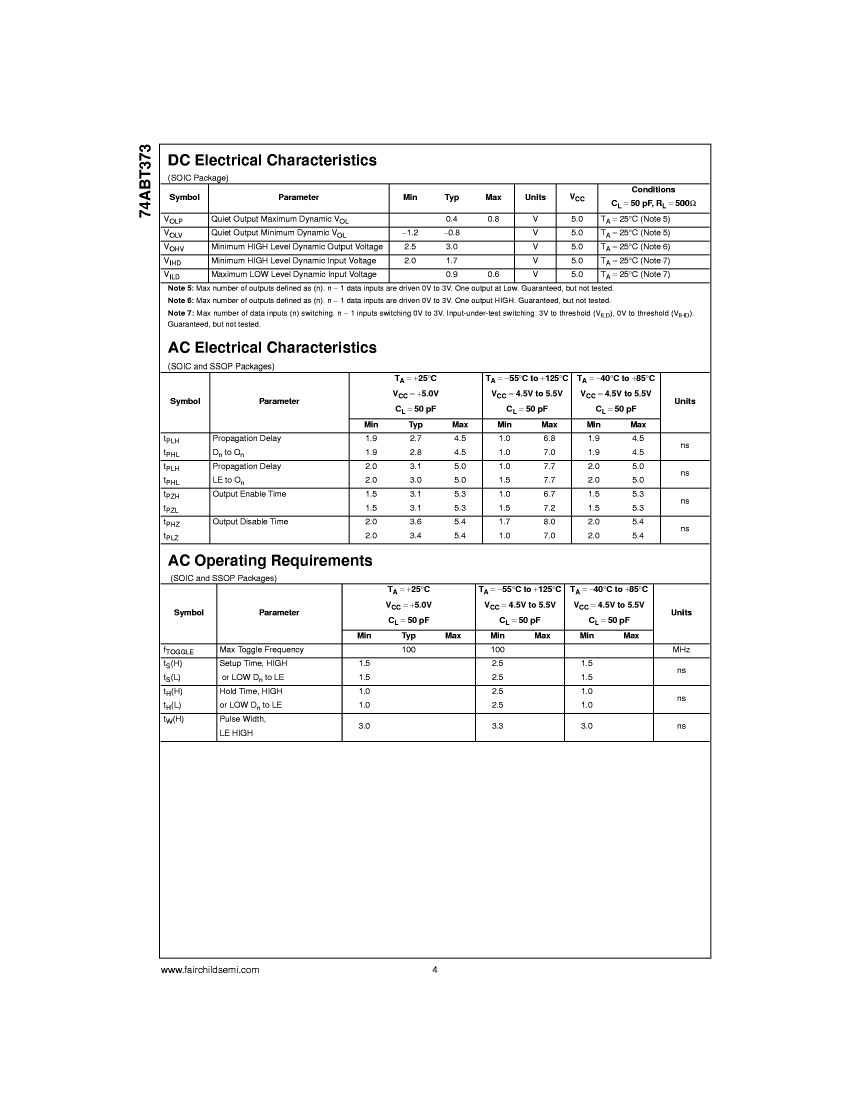

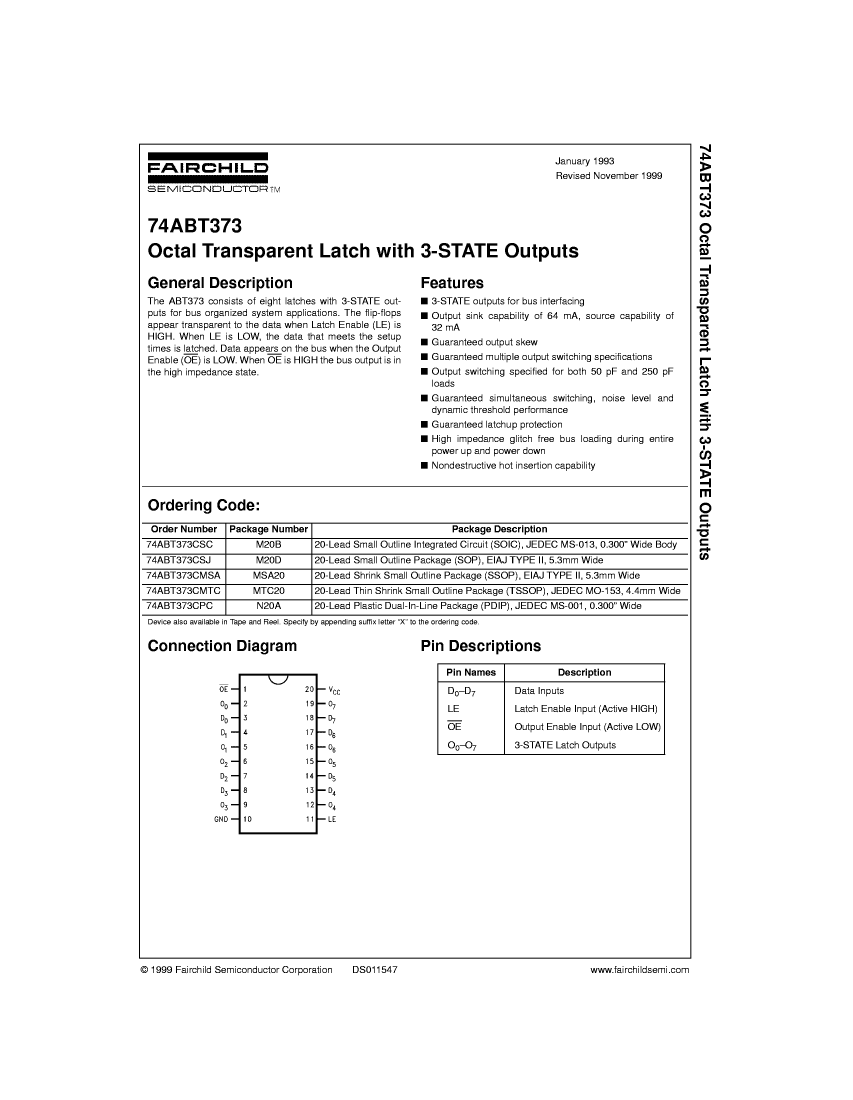

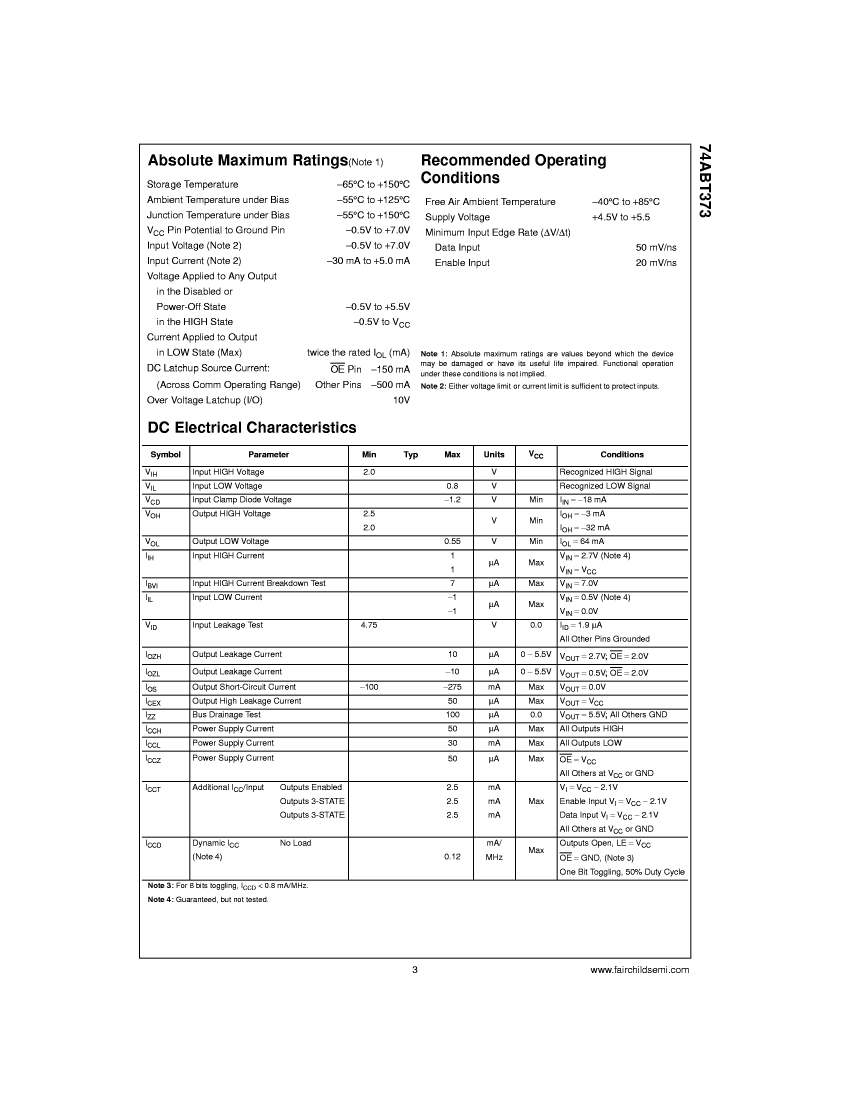

54ABT373W-QML Overview

D Latch, 1-Func, 8-Bit, CDFP20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	54ABT373W-QML	54ABT373E-QML
Description	D Latch, 1-Func, 8-Bit, CDFP20	D Latch, 1-Func, 8-Bit, CQCC20
Is it Rohs certified?	incompatible	incompatible
package instruction	DFP, FL20,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDFP-F20	S-XQCC-N20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH
MaximumI(ol)	0.048 A	0.048 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC
encapsulated code	DFP	QCCN
Encapsulate equivalent code	FL20,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	7 ns	7 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD
Base Number Matches	1	1
