5962-8973002KA |
5962-8973001KA |
| Description |
CPACK-24, Tube |
CPACK-24, Tube |
| Brand Name |
Integrated Device Technology |
Integrated Device Technology |
| Is it lead-free? |
Contains lead |
Contains lead |
| Is it Rohs certified? |
incompatible |
incompatible |
| Parts packaging code |
CPACK |
CPACK |
| package instruction |
DFP, DIP24,.3 |
CERPACK-24 |

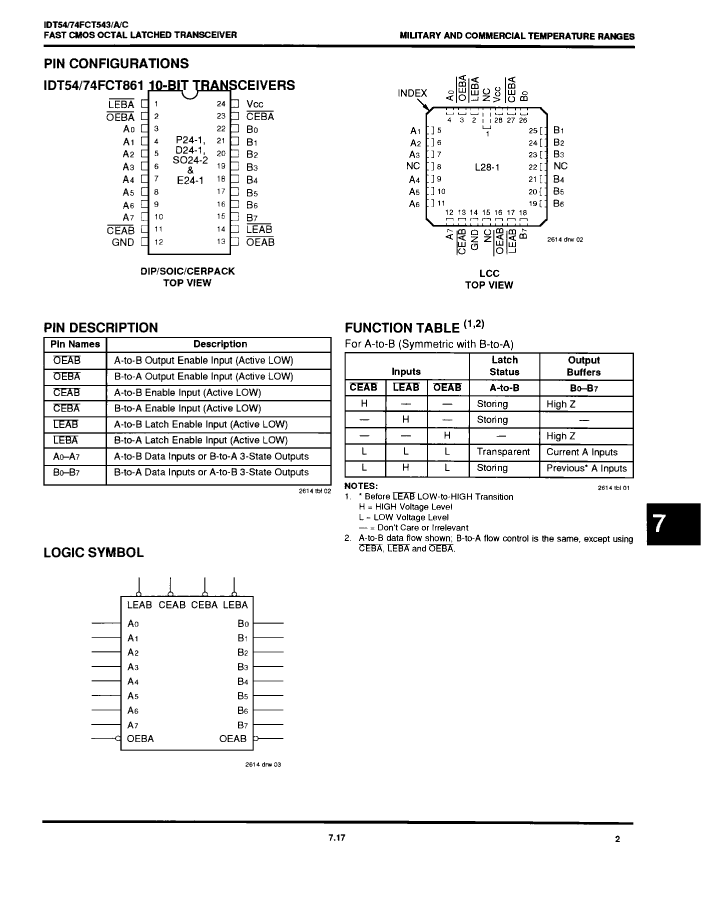

| Contacts |
24 |
24 |
| Manufacturer packaging code |
CP24 |
CP24 |
| Reach Compliance Code |
not_compliant |
not_compliant |

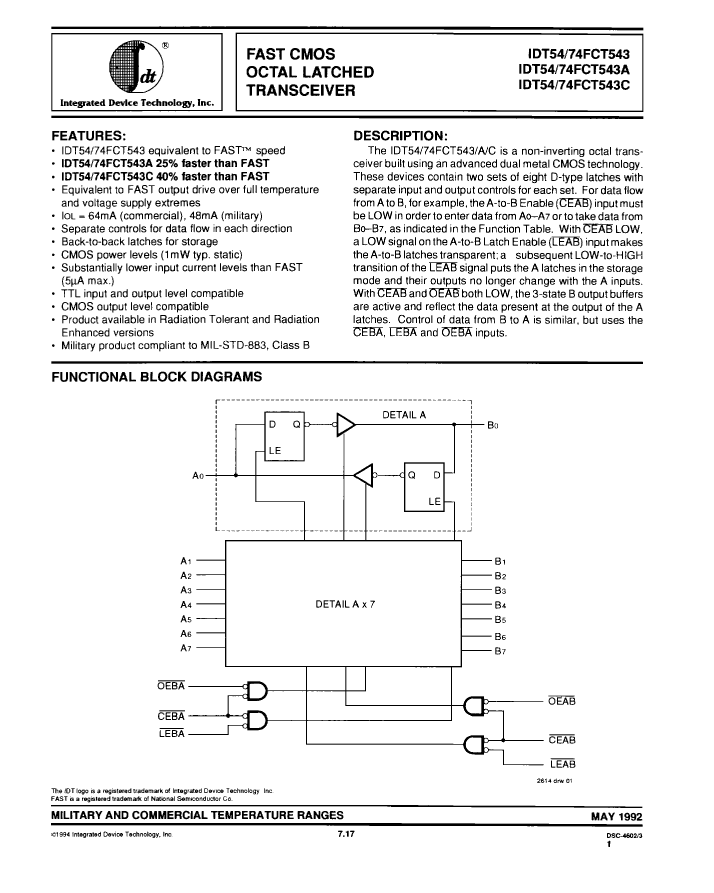

| Other features |
MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION |
MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION |
| Control type |
INDEPENDENT CONTROL |
INDEPENDENT CONTROL |
| Counting direction |
BIDIRECTIONAL |
BIDIRECTIONAL |
| series |
FCT |
FCT |
| JESD-30 code |
R-GDFP-F24 |
R-GDFP-F24 |
| JESD-609 code |
e0 |
e0 |
| length |
15.748 mm |
15.748 mm |
| Load capacitance (CL) |
50 pF |
50 pF |
| Logic integrated circuit type |
REGISTERED BUS TRANSCEIVER |
REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) |
0.048 A |
0.048 A |
| Humidity sensitivity level |
1 |
1 |
| Number of digits |
8 |
8 |
| Number of functions |
1 |
1 |
| Number of ports |
2 |
2 |
| Number of terminals |
24 |
24 |

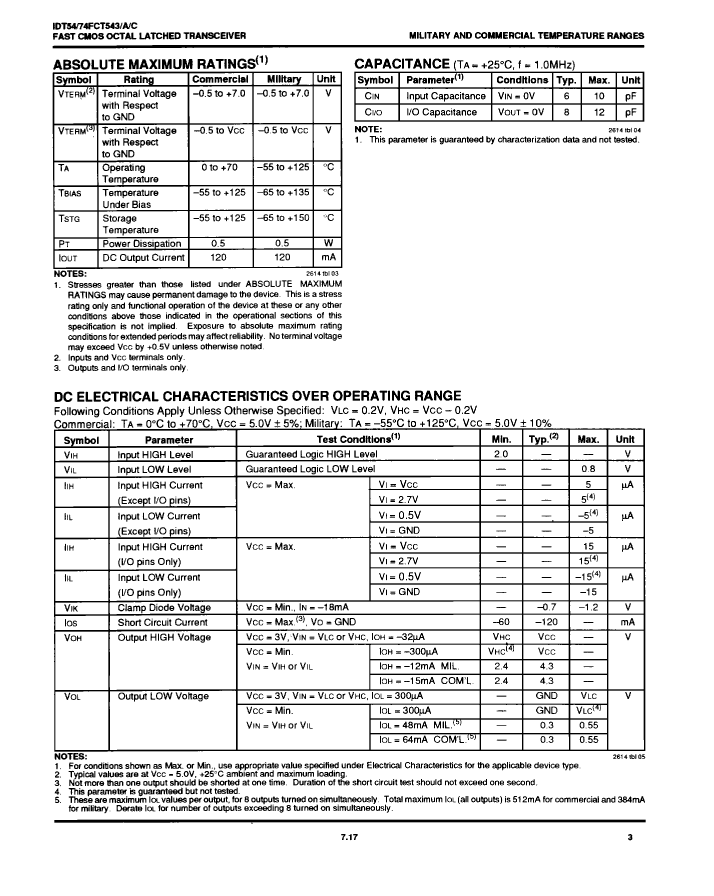

| Maximum operating temperature |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Output characteristics |
3-STATE |
3-STATE |
| Output polarity |
TRUE |
TRUE |
| Package body material |
CERAMIC, GLASS-SEALED |
CERAMIC, GLASS-SEALED |
| encapsulated code |
DFP |
DFP |
| Encapsulate equivalent code |
DIP24,.3 |
DIP24,.3 |
| Package shape |
RECTANGULAR |
RECTANGULAR |
| Package form |
FLATPACK |
FLATPACK |
| Peak Reflow Temperature (Celsius) |
260 |
260 |

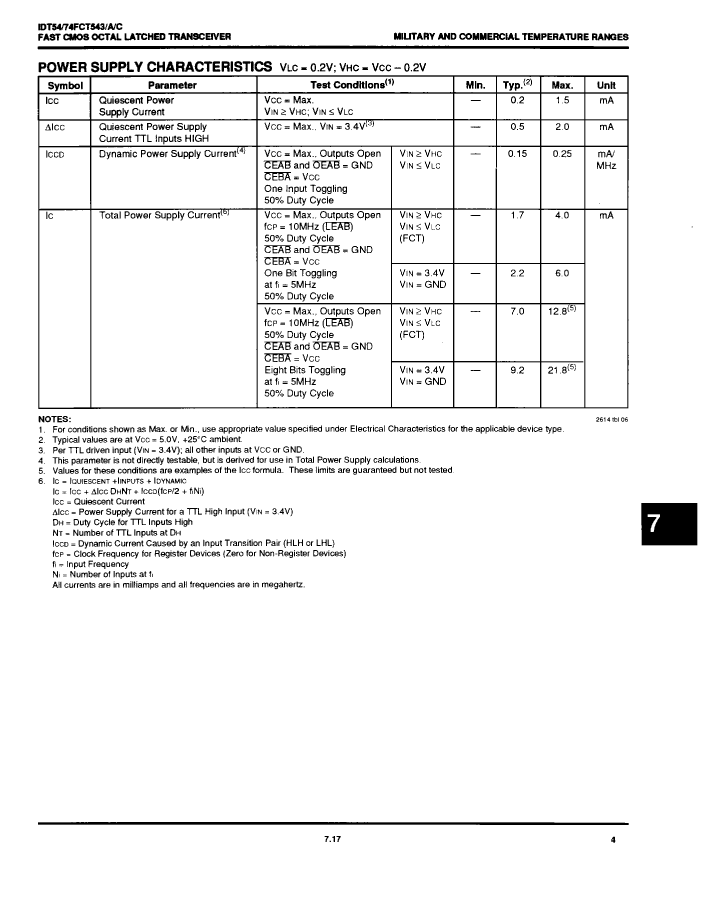

| power supply |
5 V |
5 V |

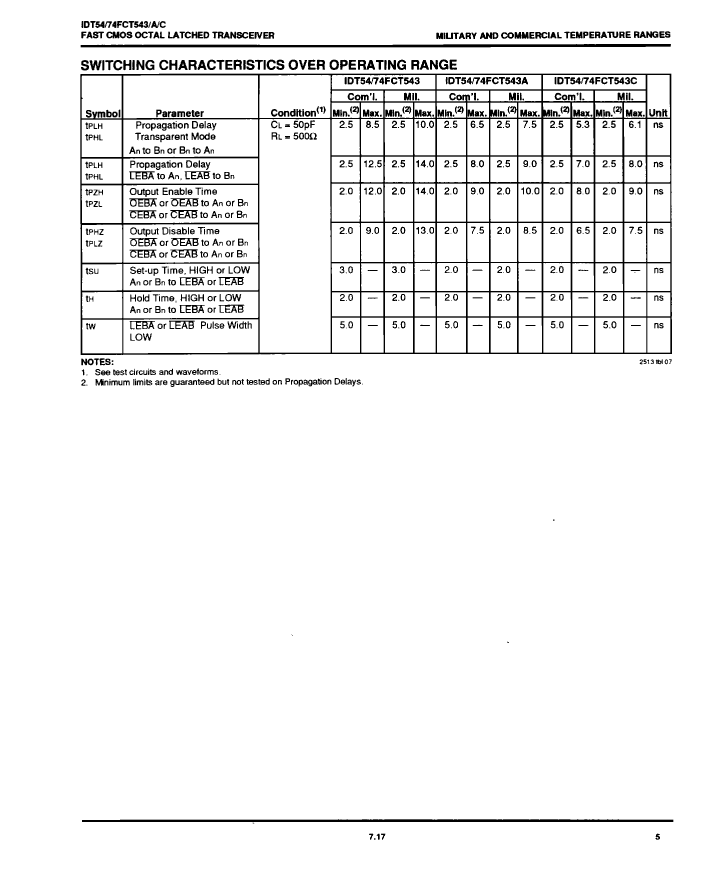

| Prop。Delay @ Nom-Sup |
7.5 ns |
10 ns |
| propagation delay (tpd) |
9 ns |
14 ns |
| Certification status |
Not Qualified |
Not Qualified |
| Filter level |
38535Q/M;38534H;883B |
38535Q/M;38534H;883B |
| Maximum seat height |
2.286 mm |
2.286 mm |
| Maximum supply voltage (Vsup) |
5.5 V |
5.5 V |
| Minimum supply voltage (Vsup) |
4.5 V |
4.5 V |
| Nominal supply voltage (Vsup) |
5 V |
5 V |
| surface mount |
YES |
YES |
| technology |
CMOS |
CMOS |
| Temperature level |
MILITARY |
MILITARY |
| Terminal surface |
TIN LEAD |
TIN LEAD |
| Terminal form |
FLAT |
FLAT |
| Terminal pitch |
1.27 mm |
1.27 mm |
| Terminal location |
DUAL |
DUAL |
| Maximum time at peak reflow temperature |
NOT SPECIFIED |
NOT SPECIFIED |
| translate |
N/A |
N/A |
| width |
9.144 mm |
9.144 mm |
| Base Number Matches |
1 |
1 |
