5962-87702042A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-87702042A

5962-87702042A: DescriptionPARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC converter; File Size106KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-87702042A Overview

PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20

5962-87702042A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Maximum linear error (EL)	0.0488%
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220
power supply	5/15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum slew rate	2 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	8.89 mm
Base Number Matches	1

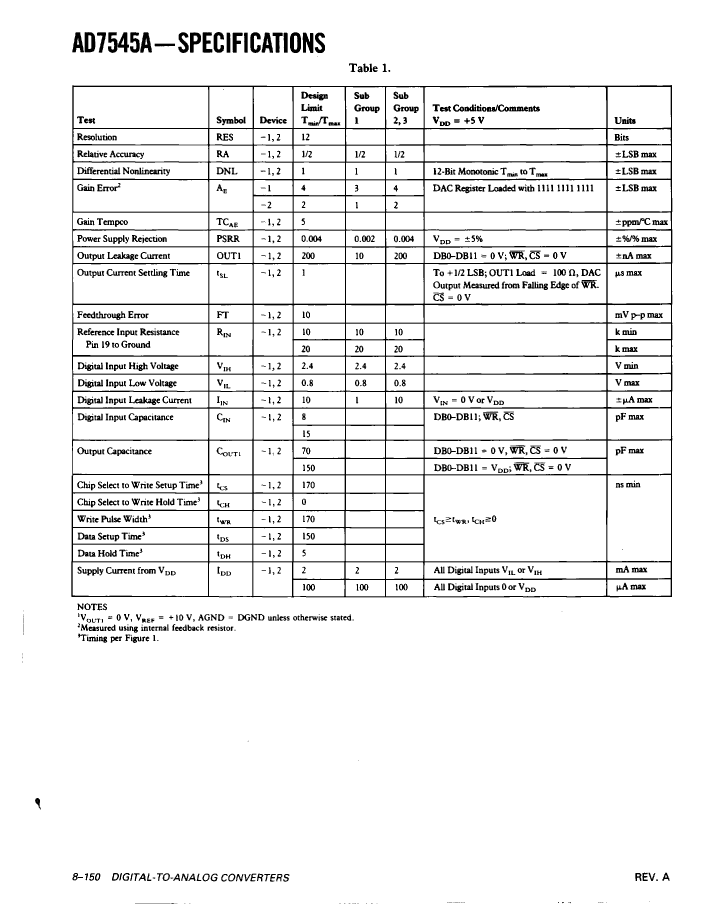

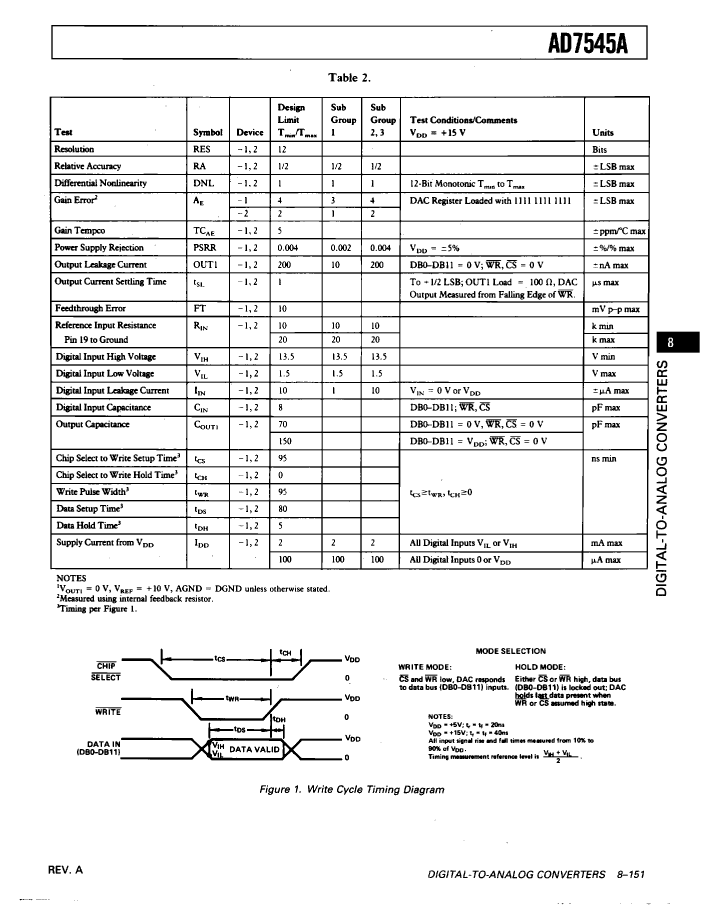

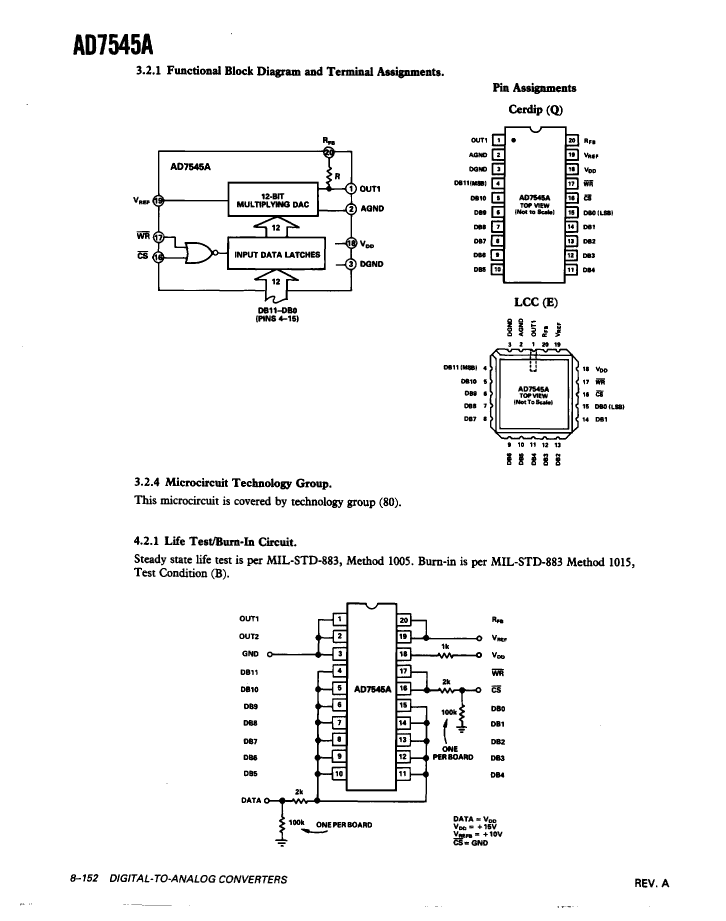

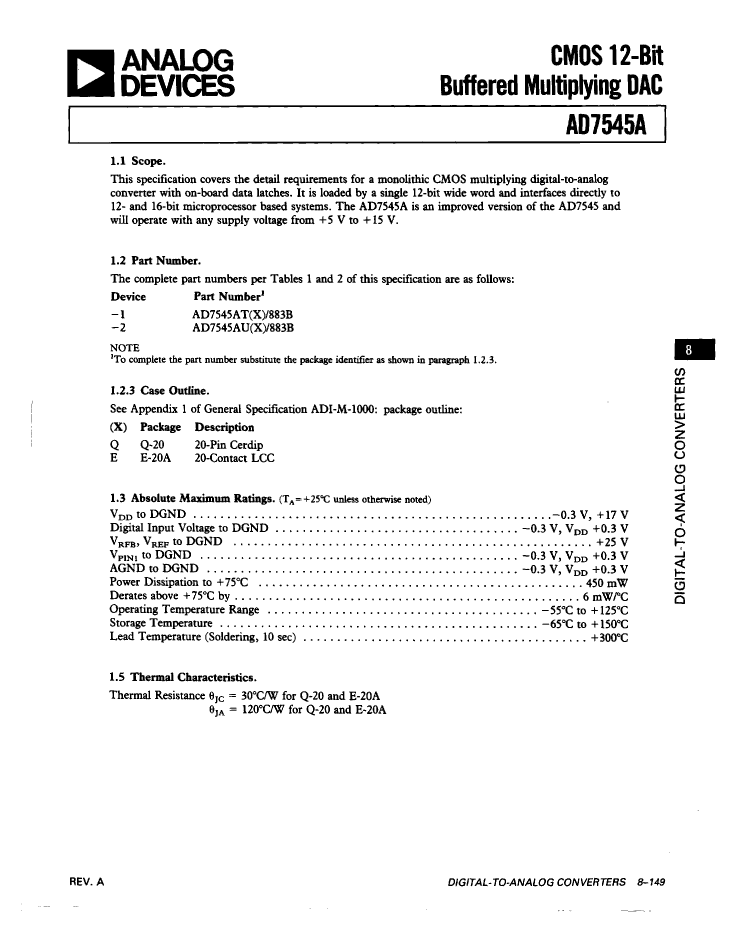

Preview

Download Datasheet

View All

5962-87702042A Related Products

	5962-87702042A	5962-87702042C	5962-8770204RC	5962-8770204RB	5962-87702042B
Description	PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20	PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP20, 1.060 X 0.310 INCH, CERDIP-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP20, 1.060 X 0.310 INCH, CERDIP-20, Digital to Analog Converter	PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	QLCC	DIP	DIP	QLCC
package instruction	CERAMIC, LCC-20	CERAMIC, LCC-20	1.060 X 0.310 INCH, CERDIP-20	1.060 X 0.310 INCH, CERDIP-20	CERAMIC, LCC-20
Contacts	20	20	20	20	20
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T20	R-GDIP-T20	S-CQCC-N20
Number of digits	12	12	12	12	12
Number of functions	1	1	1	1	1
Number of terminals	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	DIP	DIP	QCCN
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm	5.08 mm	5.08 mm	2.54 mm
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	8.89 mm	7.62 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	1	1	1
Maker	ADI	ADI	-	-	ADI
length	8.89 mm	8.89 mm	-	-	8.89 mm
