2N1547

Description
Power Bipolar Transistor, 1-Element, PNP, Germanium, TO-3, Metal, 2 Pin, TO-3, 2 PIN
CategoryDiscrete semiconductor    The transistor
File Size759KB,6 Pages
ManufacturerSMSC
Websitehttp://www.smsc.com/
Download Datasheet Parametric View All

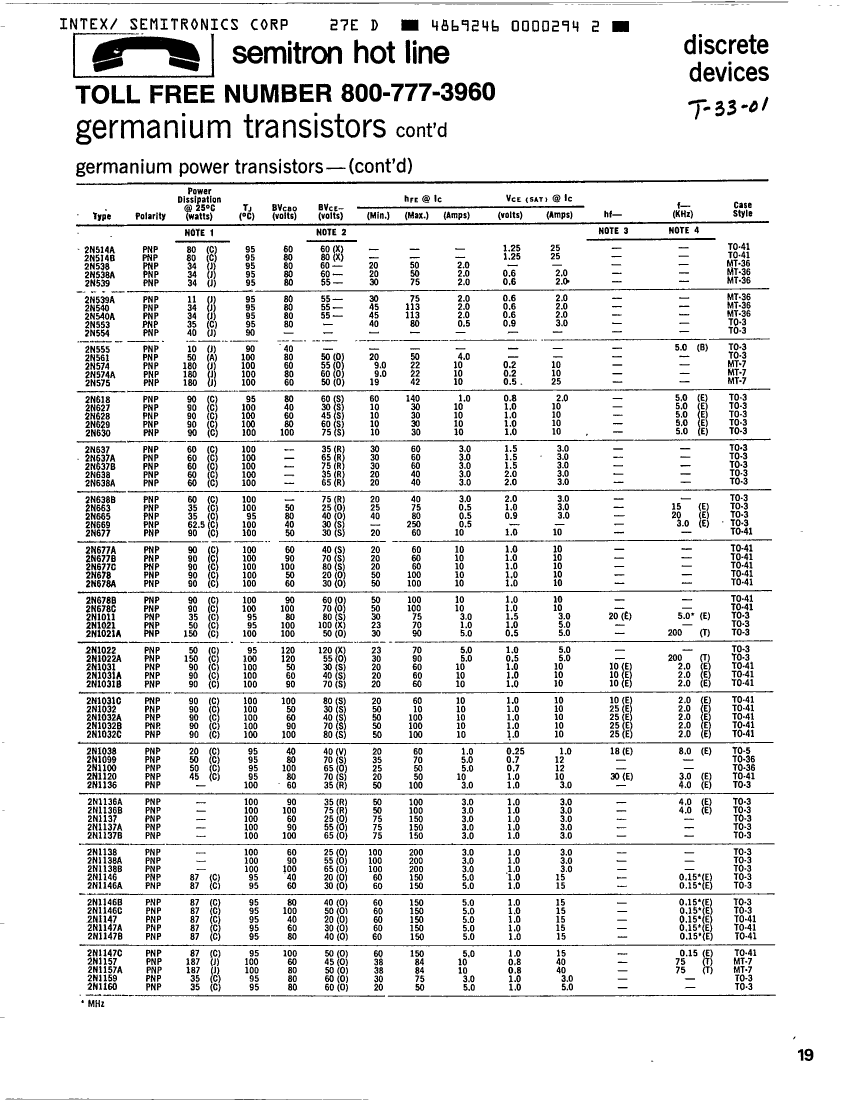

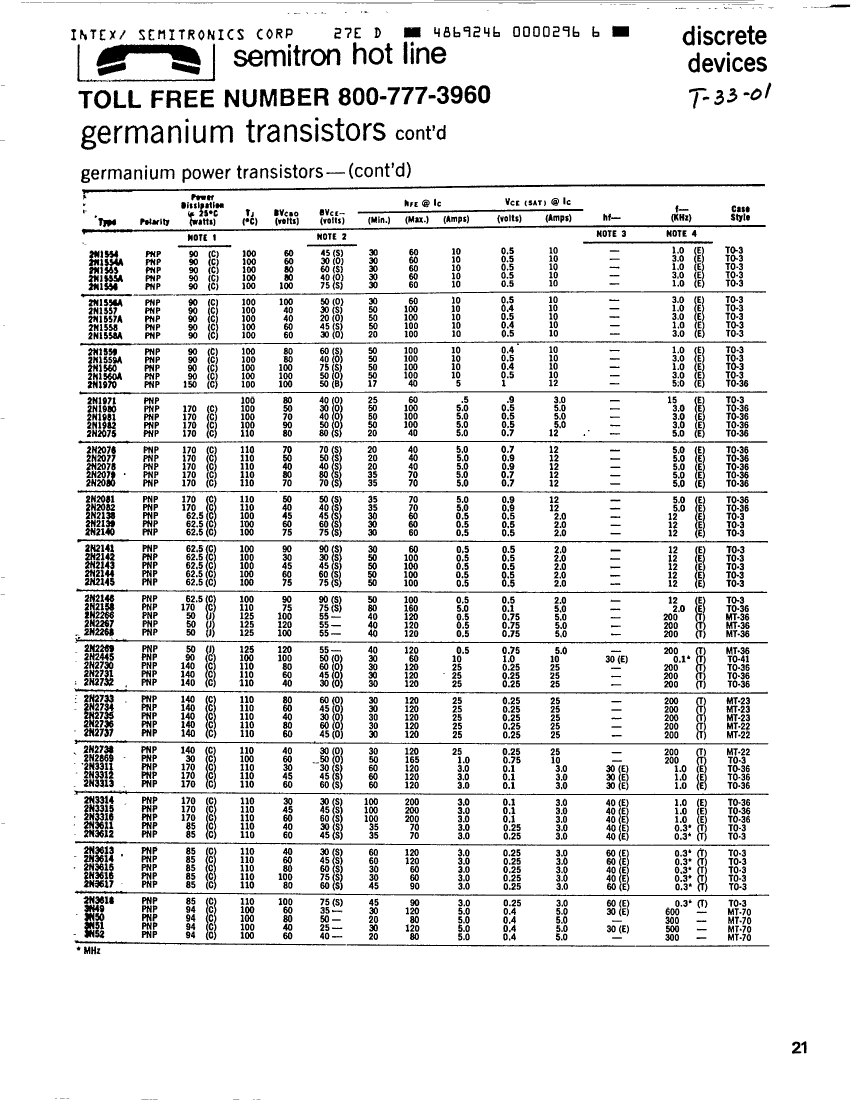

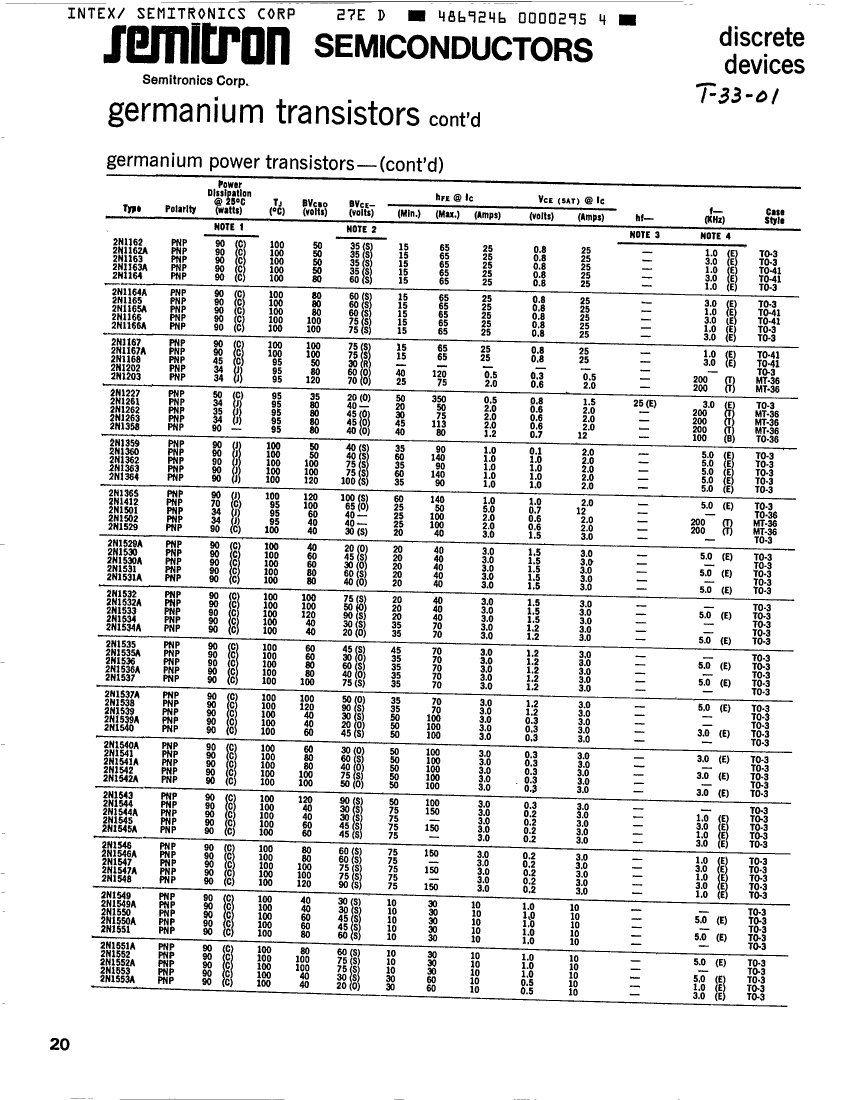

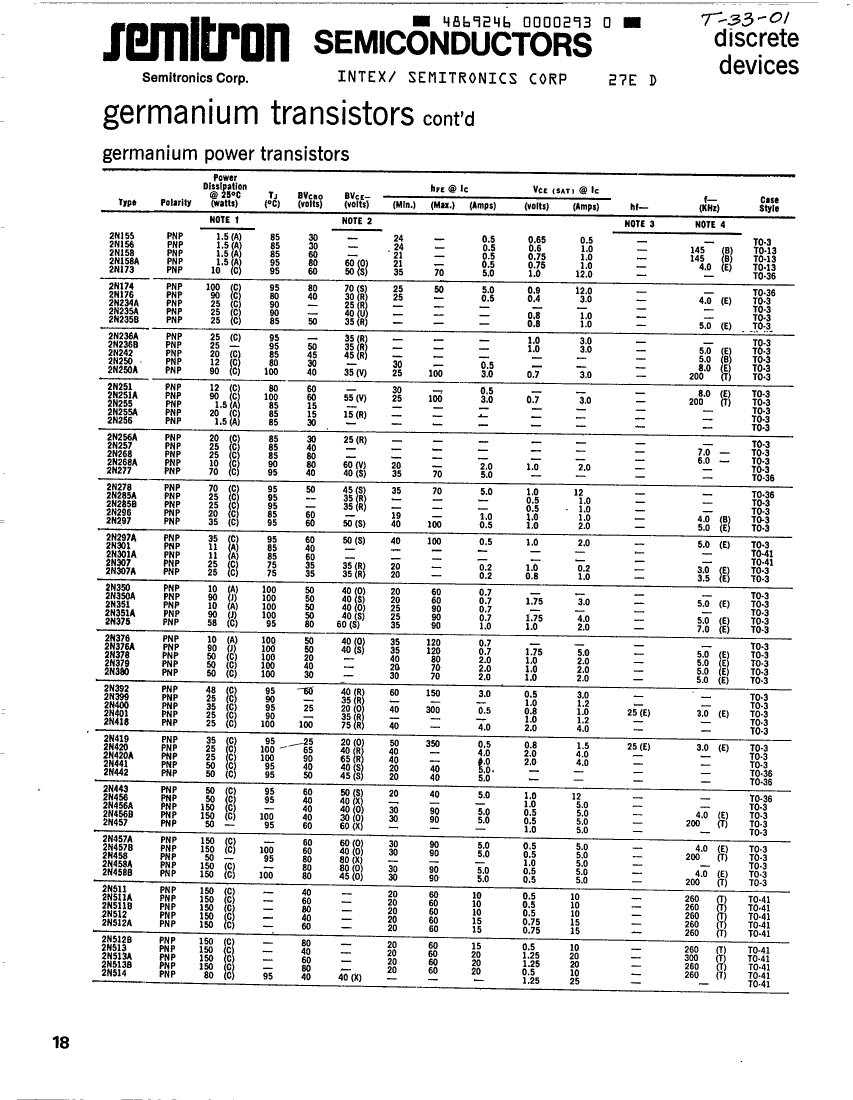

2N1547 Overview

Power Bipolar Transistor, 1-Element, PNP, Germanium, TO-3, Metal, 2 Pin, TO-3, 2 PIN

2N1547 Parametric

Parameter NameAttribute value

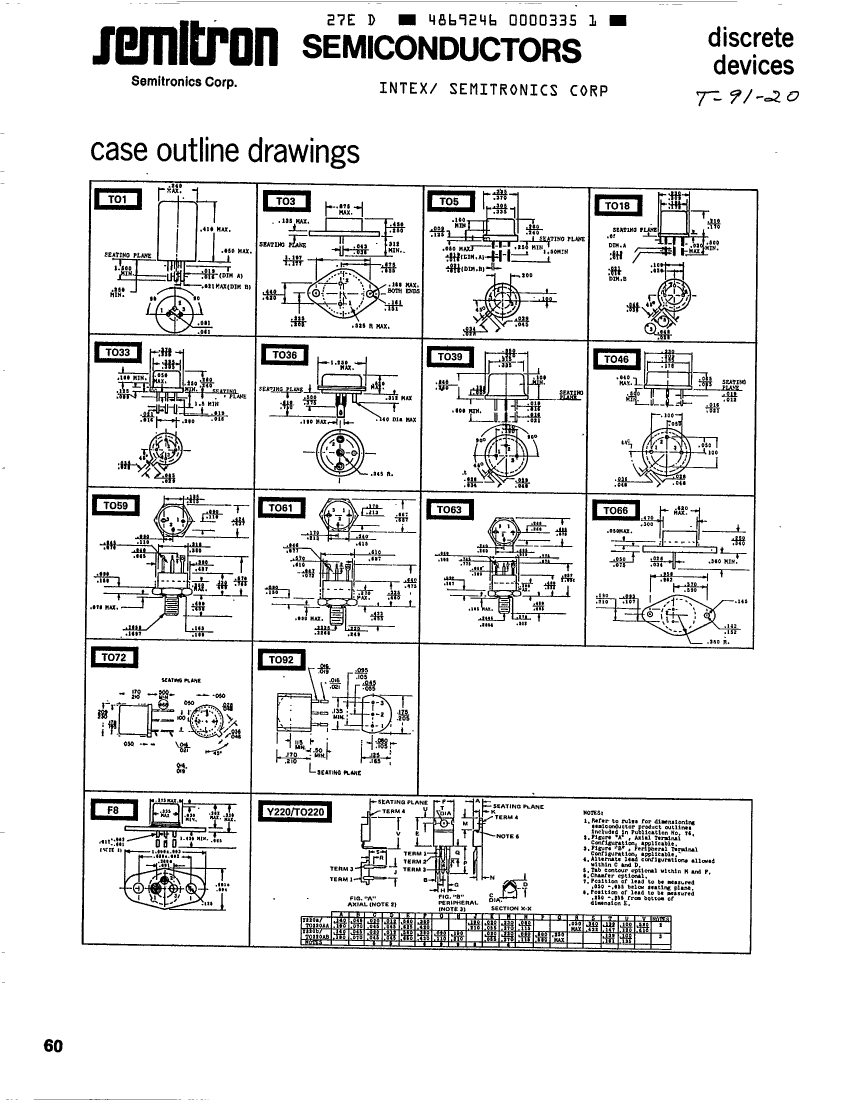

Parts packaging codeTO-204AA
package instructionFLANGE MOUNT, O-MBFM-P2
Contacts2
Reach Compliance Codecompliant
ConfigurationSINGLE
Minimum DC current gain (hFE)75
JEDEC-95 codeTO-3
JESD-30 codeO-MBFM-P2
Number of components1
Number of terminals2
Maximum operating temperature100 °C
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Polarity/channel typePNP
Certification statusNot Qualified
surface mountNO
Terminal formPIN/PEG
Terminal locationBOTTOM
Transistor component materialsGERMANIUM
Nominal transition frequency (fT)1 MHz
Base Number Matches1
