543202 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 543202

543202: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size585KB，11 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

543202 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,

543202 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.417 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

Preview

Download Datasheet

View All

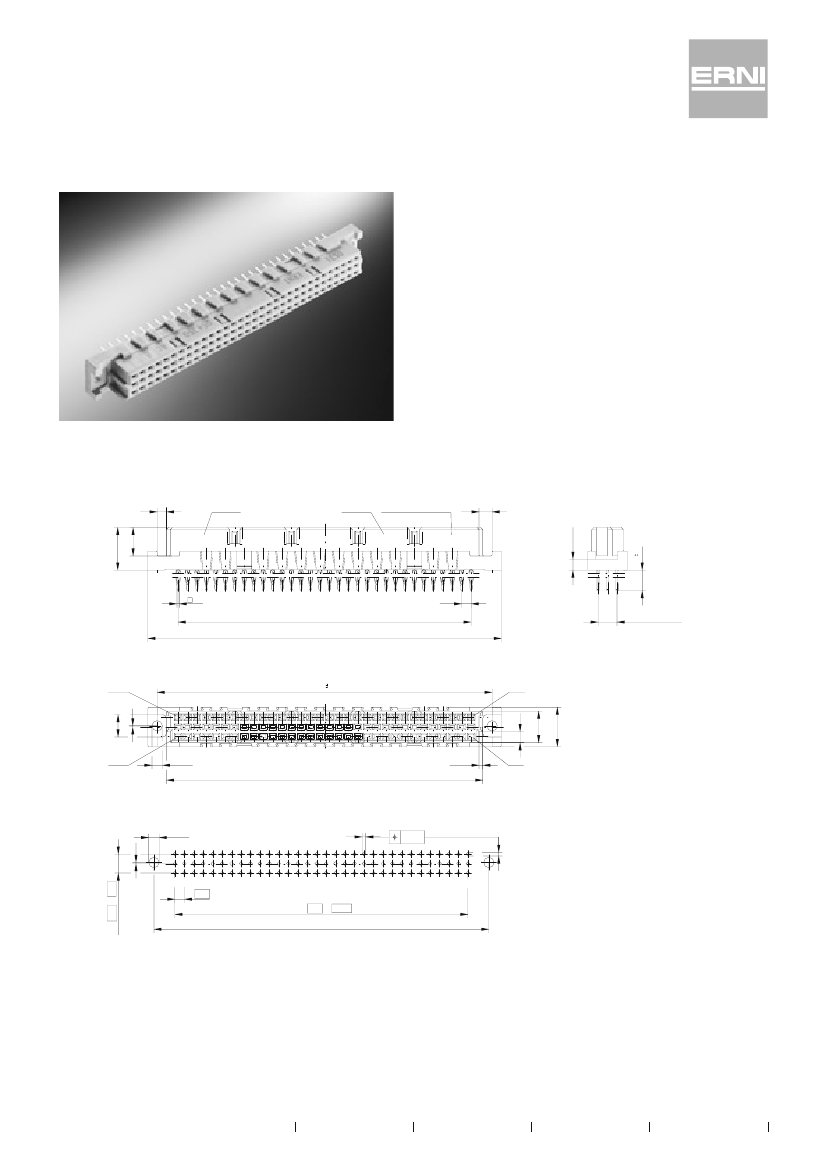

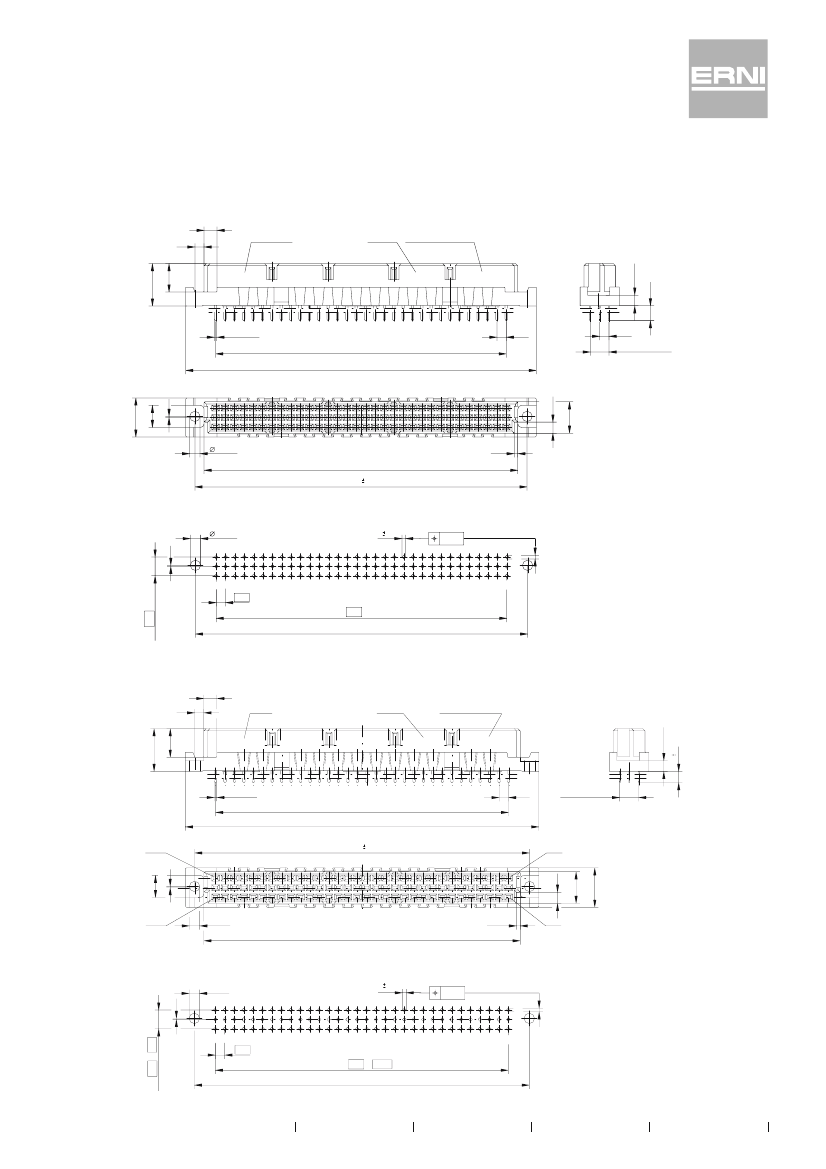

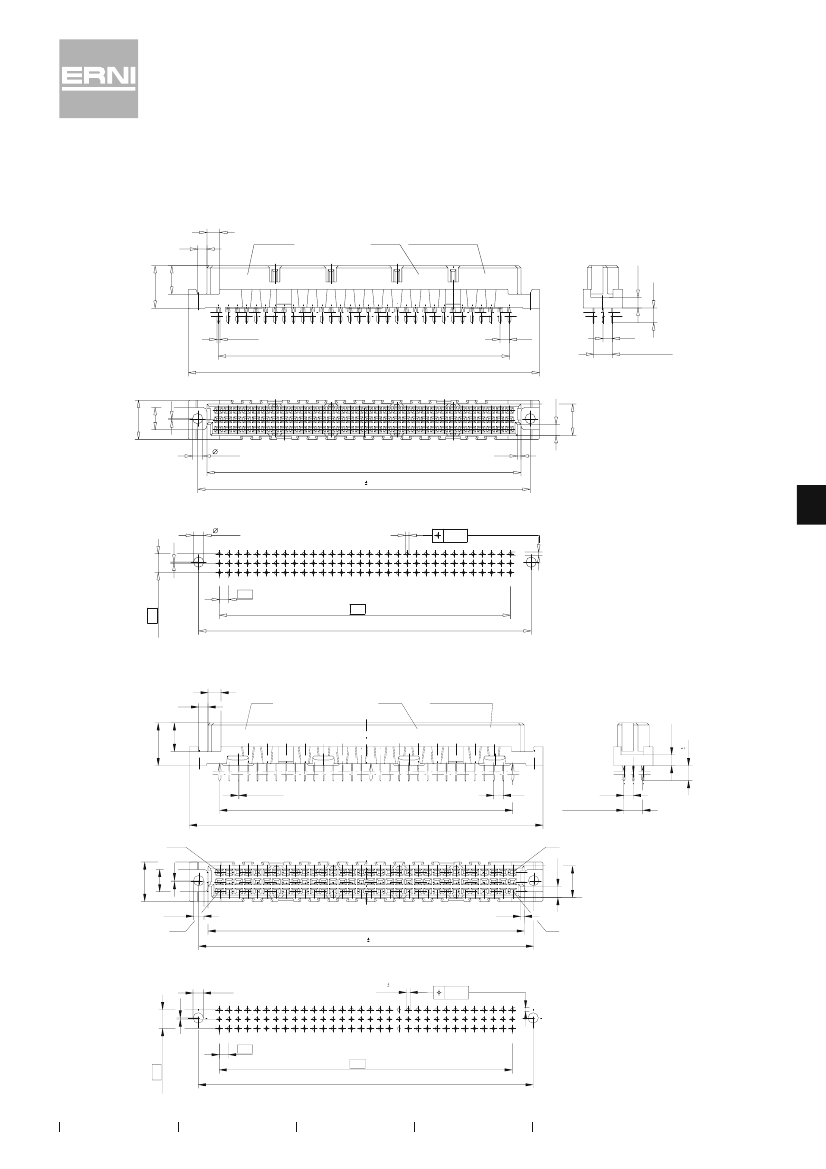

DIN 41612 / IEC 60603-2 Connectors

Type C Female

Dimensional Drawing Pressfit

2,5

Datum

date

Id.-Nr.

Anforderungsstufe

class

-0,5

3,5

11,6 max.

7,7

XXXX

ERNI

XXXXXX

2,9

0,6

31 x 2.54 = 78,74

95 max.

2,54

2 x 2,54 = 5,08

a32

0,1

0,3

+0,2

+0,1

c32

2,8

-0,2

+0,1

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,05

all holes

2,8

alle Löcher/

ø 1,0

ø 1,15

10,6

-0,2

8,5

-0,1

0,3

+ 0,09

- 0,06

Durchmesser

+ 0,09

- 0,06

Diameter

0,025

des metallisierten Loches

of finished plated-through hole

Bohrungsdurchmesser des Loches

Diameter of drilled hole

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

2,54 = 5,08

2,54

31 x 2,54 = 78,74

356

Catalog E 074484

04/06

Edition 7

0,2

www.erni.com
