32PC3.5-716-50-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 32PC3.5-716-50-1

32PC3.5-716-50-1: DescriptionRF Connector Adapter, PC3.5-7/16, Male-Male; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

32PC3.5-716-50-1 Overview

RF Connector Adapter, PC3.5-7/16, Male-Male

32PC3.5-716-50-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	PC3.5-7/16
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	32PC3.5
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

SUHNER

TEST+MEASUREMENT

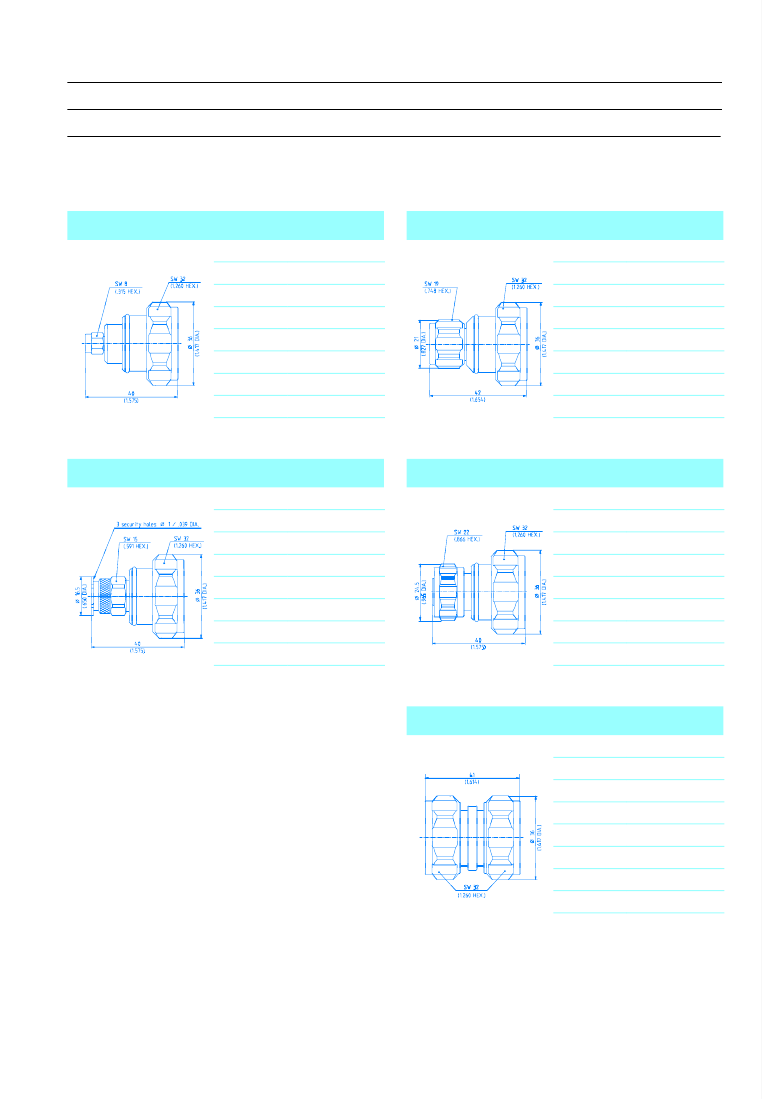

LOW PIM ADAPTORS

Male – male

279

Type

Item

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

32 PC3.5-716-50-1

22658143

PC3.5mm(m)

DIN 7/16(m)

-165 dBc

2.5 GHz

500

Brass / CuBe

99.5 g

281

Type

Item

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

32 N-716-50-2

22658140

N(m)

DIN 7/16(m)

-165 dBc

2.5 GHz

500

Brass / CuBe

105.8 g

280

Type

Item

32 TNC-716-50-1

22658142

TNC(m)

DIN 7/16(m)

-165 dBc

2.5 GHz

500

Brass / CuBe

92.8 g

282

Type

Item

32 4195-716-50-1

22658131

DIN 4.1/9.5(m)

DIN 7/16(m)

-165 dBc

2.5 GHz

500

Brass / CuBe

104.1 g

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

283

Item

Type

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

32 716-50-0-2

22658141

DIN 7/16(m)

-165 dBc

2.5 GHz

500

Brass / CuBe

119.7 g

SUHNER

Test+Measurement

32PC3.5-716-50-1 Related Products

	32PC3.5-716-50-1	22658141	32N-716-50-2	22658131	22658143	22658142	32716-50-0-2	22658140	32TNC-716-50-1	324195-716-50-1
Description	RF Connector Adapter, PC3.5-7/16, Male-Male	RF Connector Adapter, 7/16-7/16, Male-Male	RF Connector Adapter, N-7/16, Male-Male	RF Connector Adapter, 4.1/9.5-7/16, Male-Male	RF Connector Adapter, PC3.5-7/16, Male-Male	RF Connector Adapter, TNC-7/16, Male-Male	RF Connector Adapter, 7/16-7/16, Male-Female	RF Connector Adapter, N-7/16, Male-Male	RF Connector Adapter, TNC-7/16, Male-Male	RF Connector Adapter, 4.1/9.5-7/16, Male-Female, Plug-jack
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant	compliant	compliant	compliant
Adapter type	PC3.5-7/16	7/16-7/16	N-7/16	4.1/9.5-7/16	PC3.5-7/16	TNC-7/16	7/16-7/16	N-7/16	TNC-7/16	4.1/9.5-7/16
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-FEMALE	MALE-MALE	MALE-MALE	MALE-FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	32PC3.5	32716	32N	324195	32PC3.5	32TNC	32716	32N	32TNC	324195
Maximum operating frequency	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1	1	1
