M74HC193B1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HC193B1R

M74HC193B1R: DescriptionSYNCHRONOUS UP/DOWN DECADE(,BINARY) COUNTER; Categorylogic logic; File Size290KB，15 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

M74HC193B1R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M74HC193B1R	-	-	View	Buy Now

M74HC193B1R Overview

SYNCHRONOUS UP/DOWN DECADE(,BINARY) COUNTER

M74HC193B1R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compli
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	17000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
propagation delay (tpd)	285 ns
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	20 MHz

Preview

Download Datasheet

View All

M54/M74HC192

M54/M74HC193

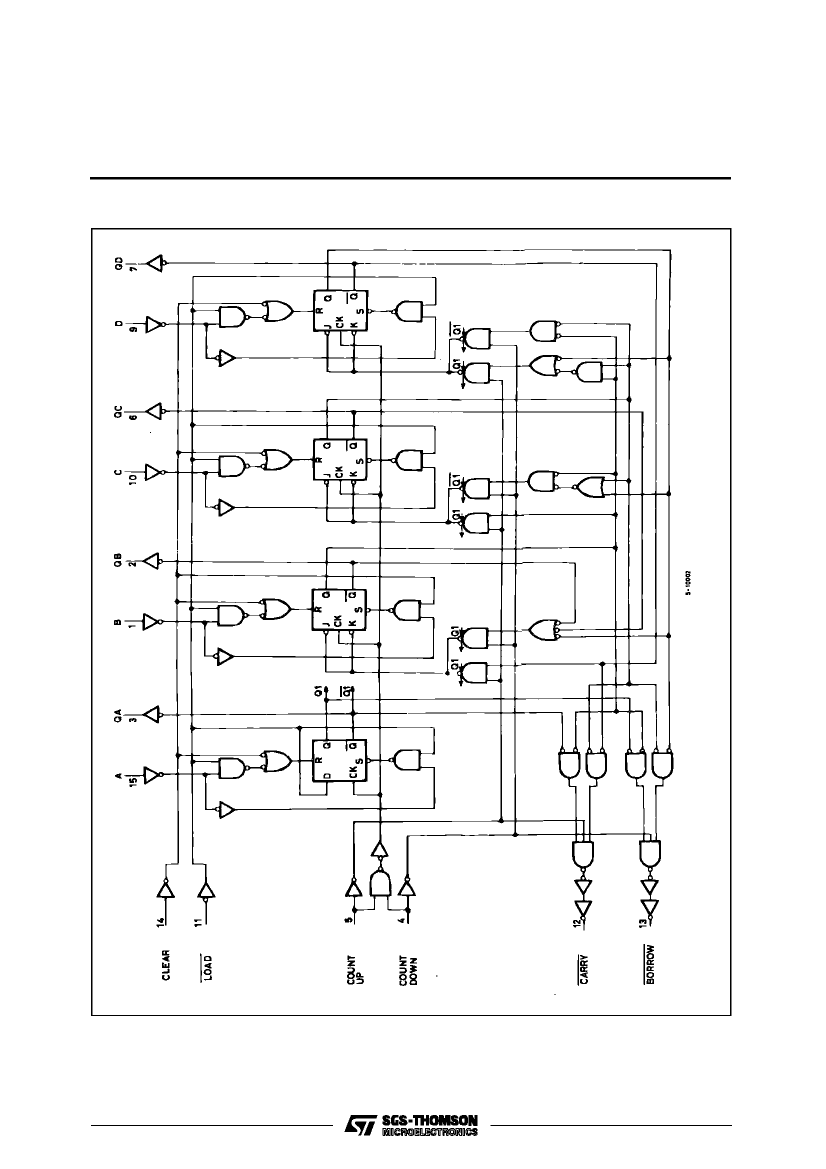

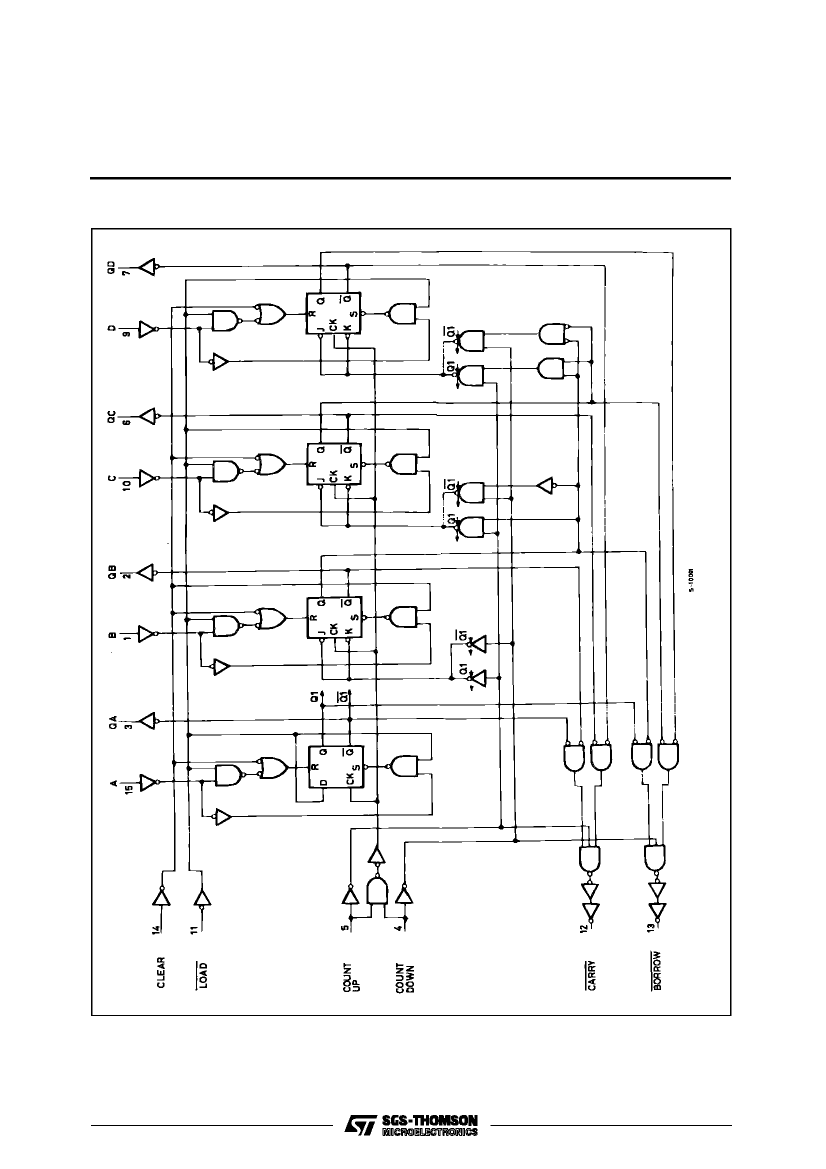

HC192 - SYNCHRONOUS UP/DOWN DECADE COUNTER

HC193 - SYNCHRONOUS UP/DOWN BINARY COUNTER

HIGH SPEED

MAX

= 54 MHz (TYP.) AT V

= 5 V

LOW POWER DISSIPATION

= 4

µA

(MAX.) AT T

= 25

°C

HIGH NOISE IMMUNITY

NIH

= V

NIL

= 28 % V

(MIN.)

OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

SYMMETRICAL OUTPUT IMPEDANCE

| = I

= 4 mA (MIN.)

BALANCED PROPAGATION DELAYS

PLH

= t

PHL

WIDE OPERATING VOLTAGE RANGE

(OPR) = 2 V TO 6 V

PIN AND FUNCTION COMPATIBLE WITH

54/74LS192-193

B1R

(Plastic Package)

F1R

(Ceramic Package)

M1R

(Micro Package)

C1R

(Chip Carrier)

DESCRIPTION

The M54/74HC192/193 are ahigh speed CMOSSYN-

CHRONOUS UP/DOWN DECADE COUNTERS fab-

ricated in silicon gate C

MOS technology. They have

the same high speed performance of LSTTL combined

with true CMOS low power consumption. The counter

has two separate clock inputs, an UP COUNT input

and a DOWN COUNT input. All outputs of the flip-flop

are simultaneously triggered on the low to high transi-

tion of either clock while the other input isheld high. The

direction of counting is determined by which input is

clocked. This counter may be preset by entering the

desired data on the DATA A, DATA B, DATA C, and

DATA D input. When the LOAD input is taken low the

data is loaded independently of either clock input. This

feature allows the counters to be used as divide-by-n

counters by modifying the count length with the preset

inputs. In addition the counter can also be cleared. This

is accomplished by inputting a high on the CLEAR

input. All 4 internal stages are set to low independently

of either COUNT input. Both a BORROW and CARRY

output are provided to enable cascading of both up and

down counting functions. The BORROW output pro-

duces a negative going pulse when the counter under-

flows and the CARRY outputs a pulse when the

counter overflows. The counter can be cascaded by

connecting the CARRY and BORROW outputs of one

device to the COUNT UP and COUNT DOWN inputs,

respectively, of the next device. All inputs are equipped

with protection circuits against static discharge and

transient excess voltage.

October 1992

ORDER CODES :

M54HCXXXF1R

M74HCXXXM1R

M74HCXXXB1R

M74HCXXXC1R

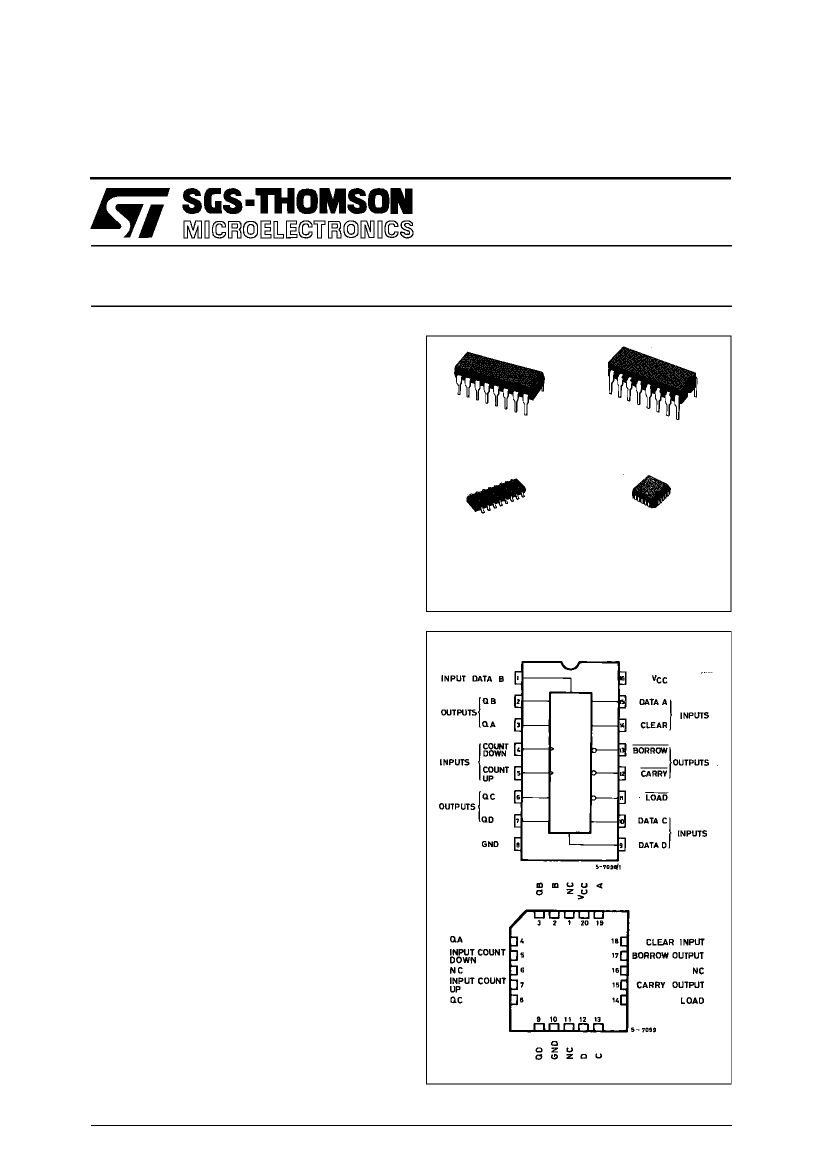

PIN CONNECTIONS

(top view)

NC =

No Internal

Connection

1/15
