M74HC163C1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HC163C1R

M74HC163C1R: DescriptionSYNCHRONOUS PRESETTABLE 4-BIT COUNTER; Categorylogic logic; File Size311KB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

M74HC163C1R Overview

SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

M74HC163C1R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	QLCC
package instruction	PLASTIC, LCC-20
Contacts	20
Reach Compliance Code	compli
Other features	TCO OUTPUT
Counting direction	UP
series	HC/UH
JESD-30 code	S-PQCC-J20
JESD-609 code	e3
length	8.965 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	25000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.965 mm
minfmax	25 MHz

Preview

Download Datasheet

View All

M54/74HC160/161

M54/74HC162/163

SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

HIGH SPEED

MAX

= 63 MHz (TYP.) AT V

= 5 V

LOW POWER DISSIPATION

= 4

µA

(MAX.) AT 25

°C

OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

BALANCED PROPAGATION DELAYS

PLH

= t

PHL

HIGH NOISE IMMUNITY

NIH

= V

NIL

= 28 % V

(MIN.)

WIDE OPERATING VOLTAGE RANGE

(OPR) = 2 V TO 6 V

PIN AND FUNCTION COMPATIBLE

WITH 54/74LS160

∼

163

B1R

(Plastic Package)

F1R

(Ceramic Package)

M1R

(Micro Package)

C1R

(Chip Carrier)

DESCRIPTION

M54/74HC160 Decade, Asynchronous Clear

M54/74HC161 Binary, Asynchronous Clear

M54/74HC162 Decade, Synchronous Clear

M54/74HC163 Binary, Synchronous Clear

The M54/74HC160, 161, 162 and 163 are high

speed CMOS SYNCHRONOUS PRESETTABLE

COUNTERS fabricated with silicon gate C

MOS

technology.

They have the same the high speed operation simi-

lar to equivalent LSTTL while maintaining the

CMOS low power dissipation.

The M54/74HC160/162 are BCD Decade counters

and the M54/74HC161/163 are 4 bit binary counter-

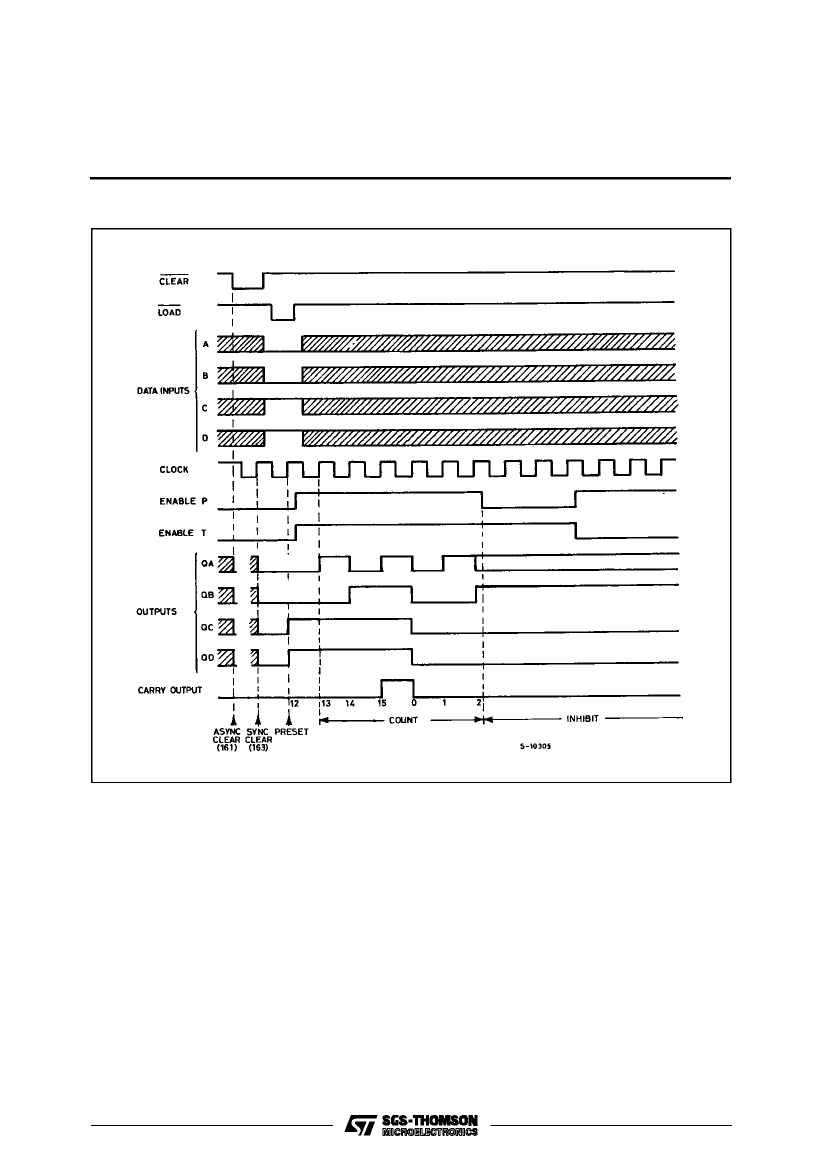

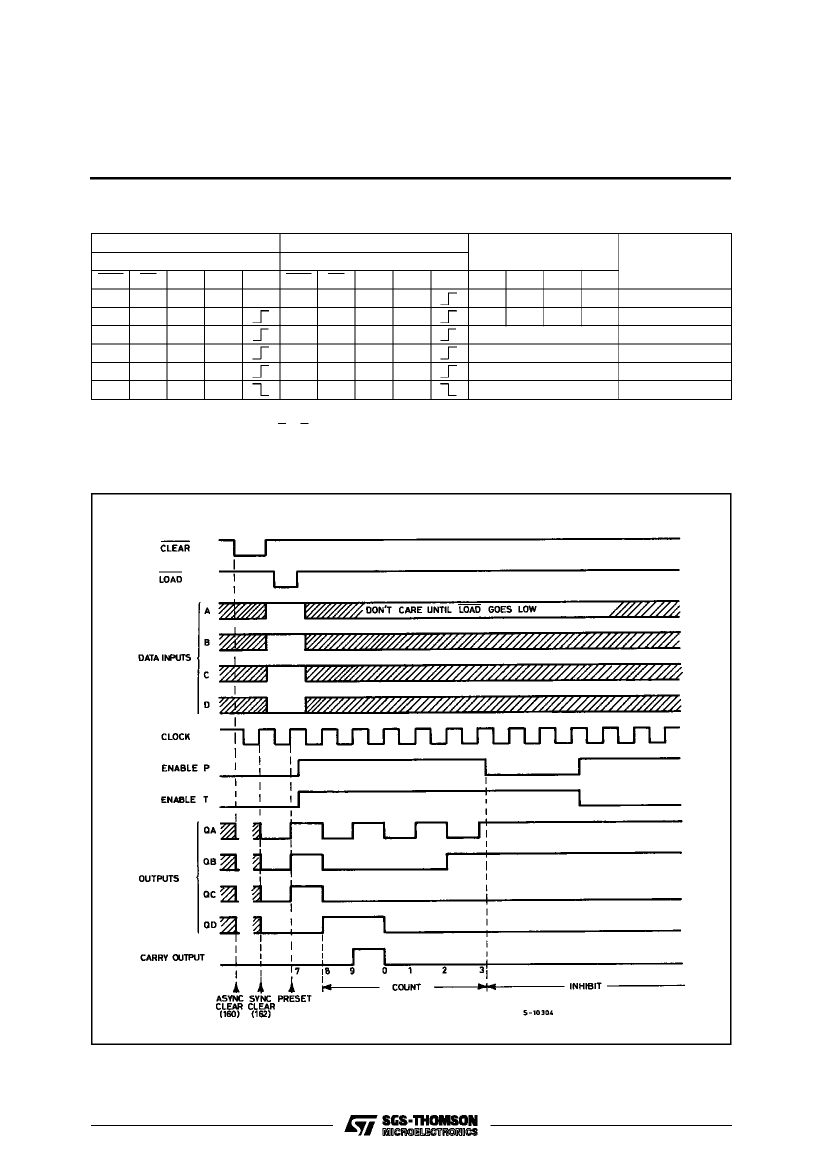

The CLOCK input is active on the rising edge. Both

LOAD and CLEAR inputs are active Low.

Presetting of all four IC’s is synchronous on the ris-

ing edge of the CLOCK.

The function on the M54/74HC162/163 is syn-

chronous to CLOCK, while the M54/74HC160/161

counters are cleared asynchronously.

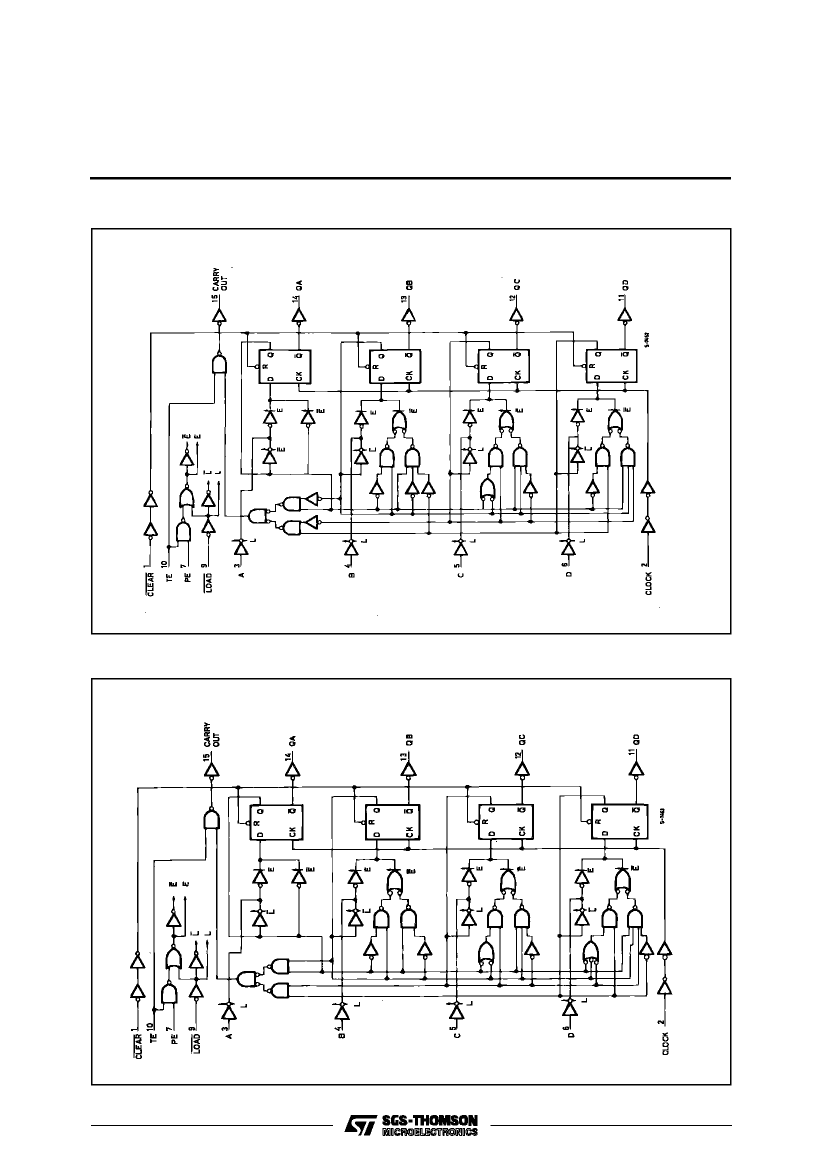

Two enable inputs (TE and PE) and CARRY output

are provided to enable easy cascading of counters,

which facilities easy implementation of N-bit

counters without using external gates.

All inputs are equipped with protection circuits

against static discharge and transient excess volt-

age.

April 1993

ORDER CODES :

M54HCXXXF1R

M74HCXXXM1R

M74HCXXXB1R

M74HCXXXC1R

PIN CONNECTIONS

(top view)

NC =

No Inter-

nal Con-

1/16
