5STF06D1825

Description
Silicon Controlled Rectifier, 875A I(T)RMS, 1800V V(DRM), 1800V V(RRM), 1 Element
CategoryAnalog mixed-signal IC    Trigger device
File Size200KB，15 Pages
ManufacturerABB
Websitehttp://www.abb.com/
Download Datasheet Parametric Compare View All

5STF06D1825 Overview

Silicon Controlled Rectifier, 875A I(T)RMS, 1800V V(DRM), 1800V V(RRM), 1 Element

5STF06D1825 Parametric

Parameter NameAttribute value
MakerABB
package instructionDISK BUTTON, O-CXDB-X4
Reach Compliance Codecompliant
ConfigurationSINGLE
Maximum DC gate trigger current500 mA
JESD-30 codeO-CXDB-X4
Number of components1
Number of terminals4
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeROUND
Package formDISK BUTTON
Certification statusNot Qualified
Maximum rms on-state current875 A
Off-state repetitive peak voltage1800 V
Repeated peak reverse voltage1800 V
surface mountYES
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Trigger device typeSCR
Base Number Matches1

5STF06D1825 Preview

5STF 06D2020
5STF 06D2020
Old part no. TR 907F-560-20
Medium Frequency Thyristor
Properties
§
§
§
§
§
Amplifying gate
High operational capability
Optimized turn-on and turn-off parameters
High operating frequency
Applications
Power switching applications
Key Parameters
V
DRM
, V
RRM
= 2 000
I
TAV
= 557
I
TSM
= 8.0
V
TO
= 2.348
r
T
= 0.386
t
q
= 20.0
V
A
kA
V
mΩ
µs
Types
V
RRM
, V
DRM
5STF 06D2020..2025
5STF 06D1820..1825
2 000 V
1 800 V
Conditions:
T
j
= -40 ÷ 125 °C, half sine waveform,
f = 50 Hz, note 1
Mechanical Data
F
m
m
D
S
Mounting force
Weight
Surface
creepage
distance
Air strike
distance
10 ± 2 kN
0.26 kg
25 mm
D
a
14 mm

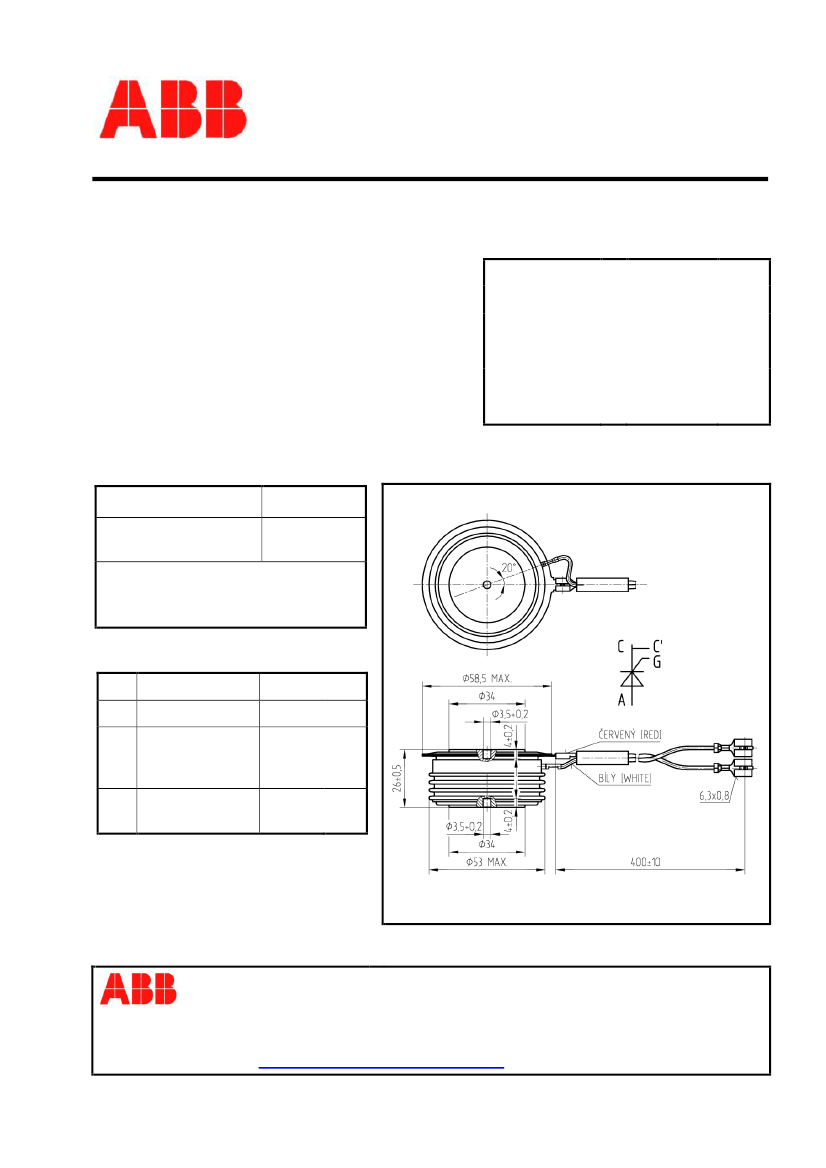

Fig. 1 Case
ABB s.r.o.
Novodvorska 1768/138a, 142 21 Praha 4, Czech Republic
tel.: +420 261 306 250,
http://www.abb.com/semiconductors
TS - TR/246/07 Jul-10
1 of 15
5STF 06D2020
Maximum Ratings
V
RRM
V
DRM
I
TRMS
I
TAVm
I
TSM
I
2
t
(di
T
/dt)
cr
Repetitive peak reverse
and off-state voltage
T
j
= -40
÷
125 °C, note 1
Maximum Limits
5STF 06D2020..2025
5STF 06D1820..1825
2 000
1 800
875
557
t
p
= 10 ms
t
p
= 8.3 ms
t
p
= 10 ms
t
p
= 8.3 ms
Unit
V
RMS on-state current
T
c
= 70 °C, half sine waveform, f = 50 Hz
A
A
A
A
2
s
A/µs
Average on-state current
T
c
= 70 °C, half sine waveform, f = 50 Hz
Peak non-repetitive surge
half sine pulse, V
R
= 0 V
8 000
8 550
320 000
303 000
800
Limiting load integral
half sine pulse, V
R
= 0 V
Critical rate of rise of on-state current
I
T
= I
TAVm
, half sine waveform, f = 50 Hz,
V
D
= 2/3 V
DRM
, t
r
= 0.3 µs, I
GT
= 2 A
(dv
D
/dt)
cr
P
GAVm
I
FGM
V
FGM
V
RGM
T
jmin
- T
jmax
T
stgmin
-
T
stgmax
Critical rate of rise of off-state voltage
V
D
= 2/3 V
DRM
1 000
3
10
12
10
-40 ÷ 125
-40 ÷ 125
V/µs
W
A
V
V
°C
°C
Maximum average gate power losses
Peak gate current
Peak gate voltage
Reverse peak gate voltage
Operating temperature range
Storage temperature range
Unless otherwise specified T
j
= 125 °C
Note 1: De-rating factor of 0.13% V
RRM
or V
DRM
per °C is applicable for T
j
below 25 °C
ABB s.r.o., Novodvorska 1768/138a, 142 21 Praha 4, Czech Republic
ABB s.r.o. reserves the right to change the data contained herein at any time without notice
TS - TR/246/07 Jul-10
2 of 15
5STF 06D2020
Characteristics
min.
V
TM
V
T0
r
T
I
DM
I
RM
t
gd
Maximum peak on-state voltage
I
TM
= 1 500 A
Value
typ.
max.
2.930
2.348
0.386
70
70
2.0
Unit
V
V
mΩ
mA
mA
µs
Threshold voltage
Slope resistance
I
T1
= 880 A, I
T2
= 2 639 A
Peak off-state current
V
D
= V
DRM
Peak reverse current
V
R
= V
RRM
Delay time
T
j
= 25 °C, V
D
= 0.4 V
DRM
, I
TM
= I
TAVm
,
t
r
= 0.3 µs, I
GT
= 2 A
t
q1
Turn-off time
I
T
= 500 A, di
T
/dt = -50 A/µs,
V
R
= 100 V, V
D
= 2/3 V
DRM
,
dv
D
/dt = 50 V/µs
group of
t
q
5STF 06D2020
5STF 06D1820
5STF 06D2025
5STF 06D1825
20.0
µs
25.0
240
80
µC
A
mA
mA
4
3
2
1000
500
300
V
Q
rr
I
rrM
I
H
I
L
V
GT
Recovery charge
the same conditions as at t
q1
Reverse recovery current
the same conditions as at t
q1
Holding current
Latching current
Gate trigger voltage
V
D
= 12V, I
T
= 4 A
T
j
= 25 °C
T
j
= 125 °C
T
j
= 25 °C
T
j
= 125 °C
T
j
= - 40 °C
T
j
= 25 °C
T
j
= 125 °C
T
j
= - 40 °C
T
j
= 25 °C
T
j
= 125 °C
250
150
1 500
1 000
0.25
I
GT
Gate trigger current
V
D
= 12V, I
T
= 4 A
mA
10
Unless otherwise specified T
j
= 125 °C
ABB s.r.o., Novodvorska 1768/138a, 142 21 Praha 4, Czech Republic
ABB s.r.o. reserves the right to change the data contained herein at any time without notice
TS - TR/246/07 Jul-10
3 of 15
5STF 06D2020
Thermal Parameters
R
thjc
Thermal resistance junction to case
double side cooling
anode side cooling
cathode side cooling
Value
32.0
52.0
83.0
10.0
20.0
Unit
K/kW
R
thch
Thermal resistance case to heatsink
double side cooling
single side cooling
K/kW
Transient Thermal Impedance
Analytical function for transient
thermal impedance
i
τ
i
( s )
R
i
( K/kW )
35
Transient thermal impedance junction
to case Z
thjc
( K/kW )
30
25
20
15
10
5
0
0.001
1
0.4857
13.07
2
0.2162
8.03
3
0.0762
8.20
4
0.0043
2.57
5
0.0006
0.13
Z
thjc
=
∑
R
i
(1
−
exp(
−
t
/
τ
i
))
i
=
1
5
Conditions:
F
m
= 10 ± 2 kN, Double side cooled
Correction for periodic waveforms
180° sine:
add 2.3 K/kW
180° rectangular: add 3.1 K/kW
120° rectangular: add 5.2 K/kW
60° rectangular: add 8.7 K/kW
0.01
0.1
1
10
Square wave pulse duration t
d
( s )
Fig. 2 Dependence transient thermal impedance junction
to case on square pulse
ABB s.r.o., Novodvorska 1768/138a, 142 21 Praha 4, Czech Republic
ABB s.r.o. reserves the right to change the data contained herein at any time without notice
TS - TR/246/07 Jul-10
4 of 15
5STF 06D2020
On-State Characteristics
I
T
( A )
5000
T
j
= 25 °C
125 °C
4000
3000
2000
1000
0
0
1
2
3
4
V
( V
5
)
T

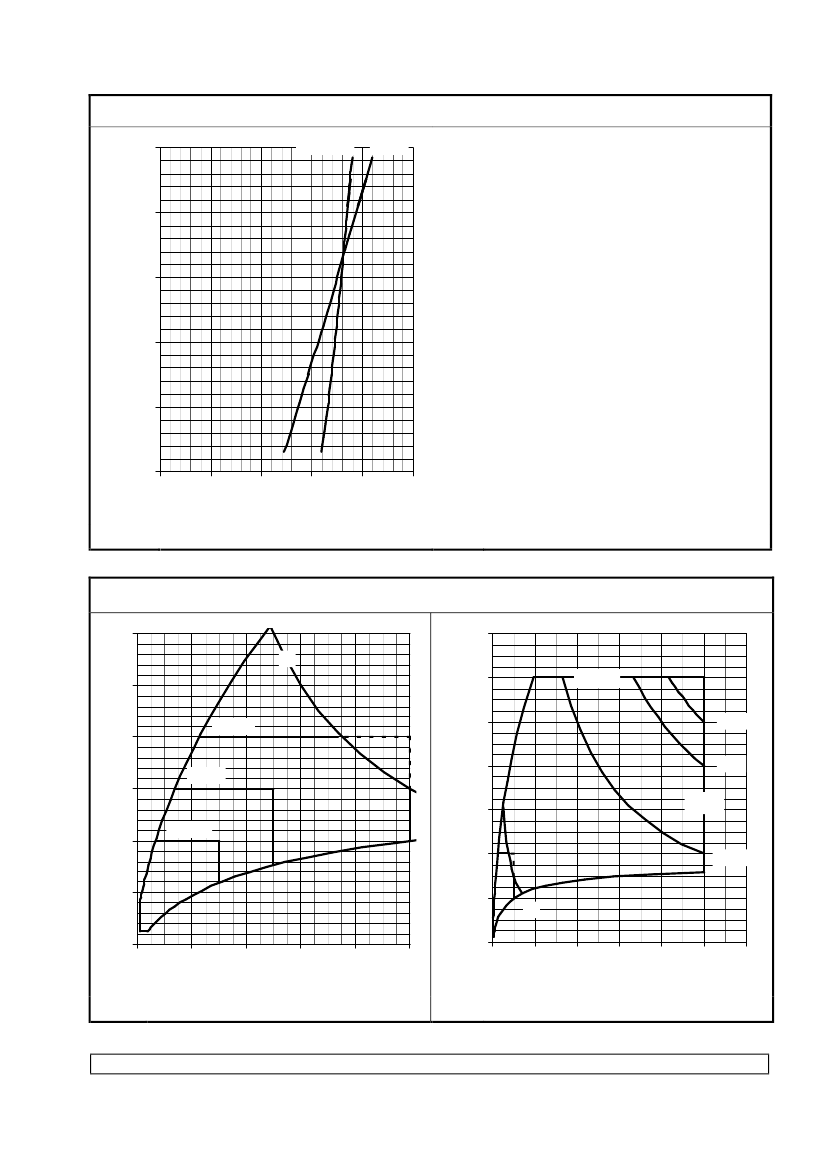

Fig. 3 Maximum on-state characteristics
Gate Trigger Characteristics
V
G
( V )
V
G
( V )
6
DC
5
-40 °C
14
12
V
GTmax
50 µs
1 ms
I
GTmax
10
4
+25 °C
3
8
6
2
+125 °C
4
1
V
GTmin
10 ms
2
DC
0
0
I
GTmin
0.2
0.4
0.6
0.8
1
I
G
( A )
0
0
2
4
6
8
10
12
I
G
( A )
Fig. 4 Gate trigger characteristics
Fig. 5 Maximum peak gate power loss
ABB s.r.o., Novodvorska 1768/138a, 142 21 Praha 4, Czech Republic
ABB s.r.o. reserves the right to change the data contained herein at any time without notice
TS - TR/246/07 Jul-10
5 of 15
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

5STF06D1825 Related Products

5STF06D1825 5STF06D2025
Description Silicon Controlled Rectifier, 875A I(T)RMS, 1800V V(DRM), 1800V V(RRM), 1 Element Silicon Controlled Rectifier, 875A I(T)RMS, 2000V V(DRM), 2000V V(RRM), 1 Element
Maker ABB ABB
package instruction DISK BUTTON, O-CXDB-X4 DISK BUTTON, O-CXDB-X4
Reach Compliance Code compliant compliant
Configuration SINGLE SINGLE
Maximum DC gate trigger current 500 mA 500 mA
JESD-30 code O-CXDB-X4 O-CXDB-X4
Number of components 1 1
Number of terminals 4 4
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape ROUND ROUND
Package form DISK BUTTON DISK BUTTON
Certification status Not Qualified Not Qualified
Maximum rms on-state current 875 A 875 A
Off-state repetitive peak voltage 1800 V 2000 V
Repeated peak reverse voltage 1800 V 2000 V
surface mount YES YES
Terminal form UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED
Trigger device type SCR SCR
Base Number Matches 1 1

Recommended Resources

Ordinary optocoupler isolation circuit

Digital tube lighting circuit

CF1 (CF2) relay control circuit

The 8031 ​​system expands the circuit of 16 external interrupt sources

Color TV remote control 16

Female college student marries into the mountains to raise wild boars with illiterate husband
Female college student marries into the mountains to raise wild boars with illiterate husband (Photo)Download (19.9 KB) 2011-4-10 23:54Mao Rong and her husband Wang Tianfu feed wild boars together (Ph...
张无忌1987 Talking
String Analysis
I have defined a string of type CString, and I need to analyze it to find a section of Arabic data inside it, and then replace it with a new one. Does anyone have a good algorithm?...
kk02157882 Embedded System
New Products Review: CES 2006 Consumer Electronics Show Closes
...
aifang
About the problem of calling COM components in JS in HTML under PPC 2003 simulator environment
Oh, it's a headache. I'm not familiar with WinCE, COM, or JS. I just read the tutorial and examples to come up with a piece of code. I've been struggling for two days but it still doesn't work. I don'...
森林898 Embedded System
What is the positioning of smart home products? Luxury or popular?
Guangdong Future House Digital Technology Co., Ltd. launched the sales slogan "Buy a house and get a digital house for free, enjoy smart home for 1999 yuan" at the investment promotion conference held...
xyh_521 Industrial Control Electronics
A question about jumping after EBOOT startup
The development platform is the mx27 wince5.0 system with bootloader. After power on, it starts from START.S, goes through a series of hardware initialization, goes to the main of eboot (actually blco...
bbslee888 Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. FST-53.25HN-20
  2. GS816118AGT-225IT
  3. 2734-109/037-000
  4. H25D-F2-530-A-28V/V-EM16-NI
  5. SIT3521AC-1C32825L340.000000T
  6. D55342H07B46E4PBS
  7. CFKJ3W24B29LSDP
  8. ABM8AIG-39.999MHZ-S-D2-T3
  9. A2005HWV-S-16P-A
  10. A2007WR-12P-BL
  11. A3501WVE-F-8P-NAT-G15
  12. SMBJ33CA

Popular Articles

  1. S3c2440 code relocation details 2---Introduction and simple test of link script
  2. Light up the LED using pure assembly and C language
  3. 8-channel automatic temperature detection system simulation
  4. Assembly language design of digital voltage meter digital tube based on 51 single chip microcomputer and ADC0808
  5. Application of FTS-300 Optical Cable Tester
  6. Intel's Oregon plant introduces High NA EUV lithography machine
  7. Causes and solutions for howling during video calls
  8. Google Pixel 7 latest renderings exposed, using the previous generation design
  9. How to use a pointer multimeter to detect synchronous motor faults?
  10. Focusing on the intelligent construction of buildings, Xingzong IoT appeared in multiple IoT industry events

Technical ResourceMore

  1. Design of front-end DC-DC converter for fuel cell power generation system
  2. KMP string matching algorithm source code and detailed explanation
  3. A lossless snubber circuit for flyback converter
  4. python telnetlib
  5. DPI virtualization deployment
  6. Texas Instruments High-Performance Analog Devices Efficient Application Guide
  7. Protues simulation example (8051)-LCD1602.rar
  8. Protues simulation example (8051) - PWM control method of motor.rar
  9. Freescale MQX Real-Time Operating System User Manual
  10. IGBT power semiconductor device aging and the necessity of evaluation test

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2028  1700  1963  2639  1712  41  35  40  54  10
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
