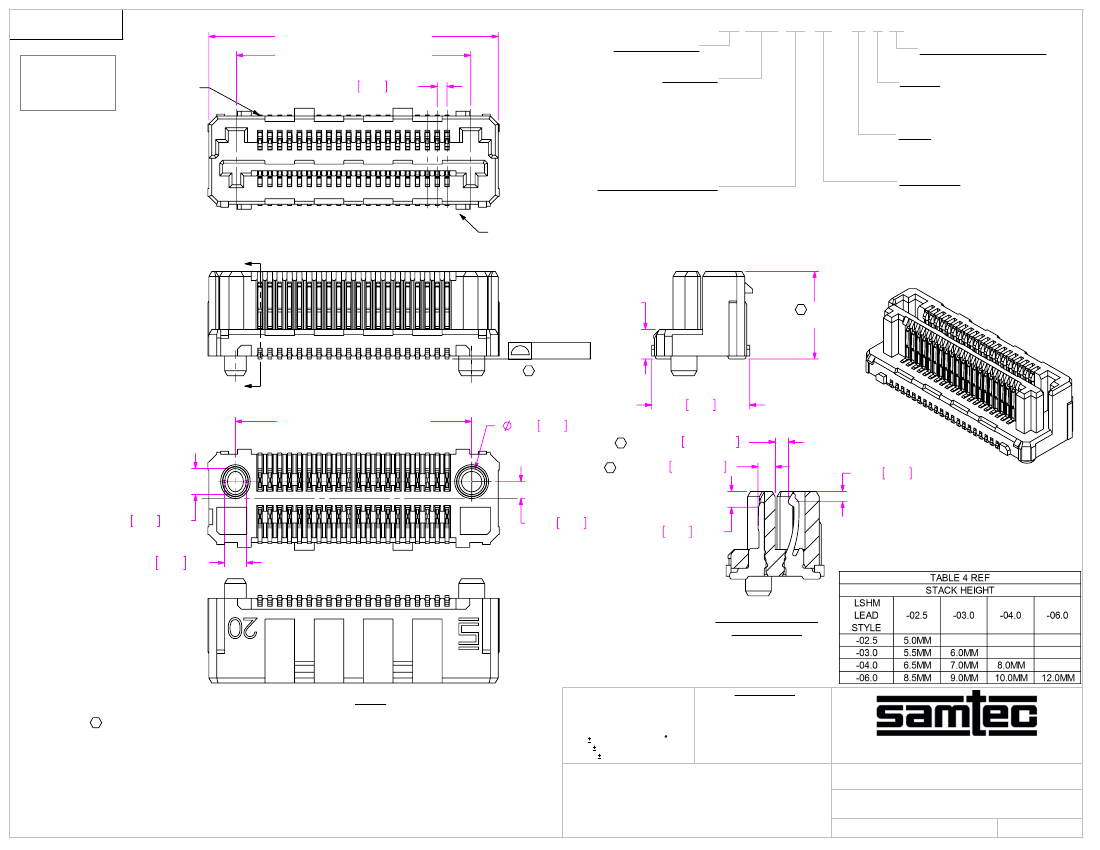

REVISION S
DO NOT
SCALE FROM
THIS PRINT
"D" REF (SEE TABLE 2, SHT 3)
"C" REF (SEE TABLE 2, SHT 3)
PIN N
(SEE NOTE 2)
0.50 .020 TYP
02
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
No OF POSITIONS
05, 10, 20, 30, 40, 50
LEAD STYLE
-02.5
-03.0
-04.0
-06.0
-L2.5: LUBRICATED
-L3.0: LUBRICATED
-L4.0: LUBRICATED
-L6.0: LUBRICATED
PLATING SPECIFICATION
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
PACKAGING(SEE NOTE 6)
-TR: TAPE & REEL
OPTION
-K: POLYIMIDE FILM
(USE K-DOT-.138-.250-.005)
(SEE FIG 3, SHT 3)
SHIELD
S: WITH SHIELD
N: NO SHIELD
TAIL OPTION
DV:VERTICAL
01
SEE NOTE 4
"A"
"B"
(SEE TABLE 1, SHT 3)
0.10[.004]
C
C
"A"
(SEE TABLE 1, SHT 3)
"A"
"E" REF (SEE TABLE 2, SHT 3)
1.32 .052 REF
C
C
4.98 .196 REF
0.67±0.10 .026±.004
0.50 .020 REF
0.87±0.10 .034±.004
1.32 .052 REF
1.10 .043 REF
0.85 .033 REF
0.80 .031 REF
SECTION "A"-"A"
SCALE 5 : 1
NOTES:
C
(LSHM-1XX-XX.X-DV-A-N-X-TR SHOWN)
1.
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .038 [.0015].
3. MINIMUM PUSHOUT FORCE; TERMINALS: 2.22 N [.5 LBS], CONTACTS: 2.22 N [.5 LBS].
4. WHEN MATING WITH ANOTHER LSHM-DV, PIN 01 WILL MATE WITH CONTACT 02 ON
MATING CONNECTOR. WHEN MATING WITH A LSHM-DH, PIN 01 WILL MATE WITH PIN N,
WHERE N=TOTAL NUMBER OF POSITIONS.
5. MEASURE FROM TOP OF VERTICAL WALL.
6. FOR QUANTITIES UP TO 49 PCS., NO LEADER , TRAILER OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PCS., NO LEADER OR TRAILER WILL BE SUPPLIED.
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS[INCHES].
TOLERANCES ARE:
DECIMALS
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR: LCP, UL 94 V0; COLOR: BLACK
CONTACT OR TERMINAL: PHOS BRONZE
SHIELD: STAINLESS STEEL
DO NOT SCALE DRAWING
SHEET SCALE: 2:1

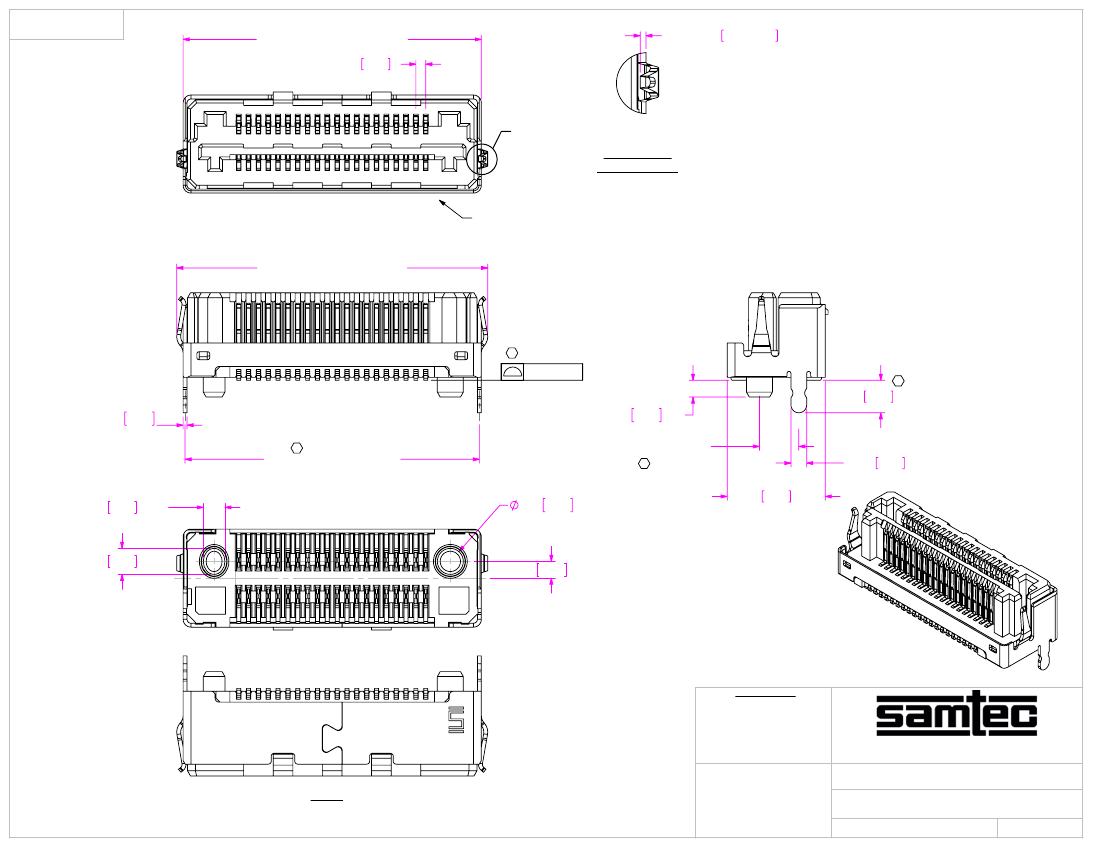

0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
1
OF
4
BY:
AGEN H
REVISION S
"K" REF (SEE TABLE 2, SHT 3)
0.50 .020
02
0.15±0.05 .006±.002 (TYP)
'C'
DETAIL 'C'
SCALE 10 : 1
01
SEE NOTE 4
"L" REF (SEE TABLE 2, SHT 3)
C
0.10[.004]
C
1.65 .065 (TYP)
0.20 .008
REF
"G" (SEE TABLE 2, SHT 3)
C
0.85 .033 REF
2.00[0.079]
C
0.80 .031 REF
4.98 .196 REF
1.10 .043 REF
1.32 .052 REF
1.32 .052 REF
C
L
0.85 .033 REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
(LSHM-1XX-XX.X-DV-A-S-X-TR SHOWN)
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
FIG 2
SHEET SCALE: 1:0.2
0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
2
OF
4
BY:
AGEN H

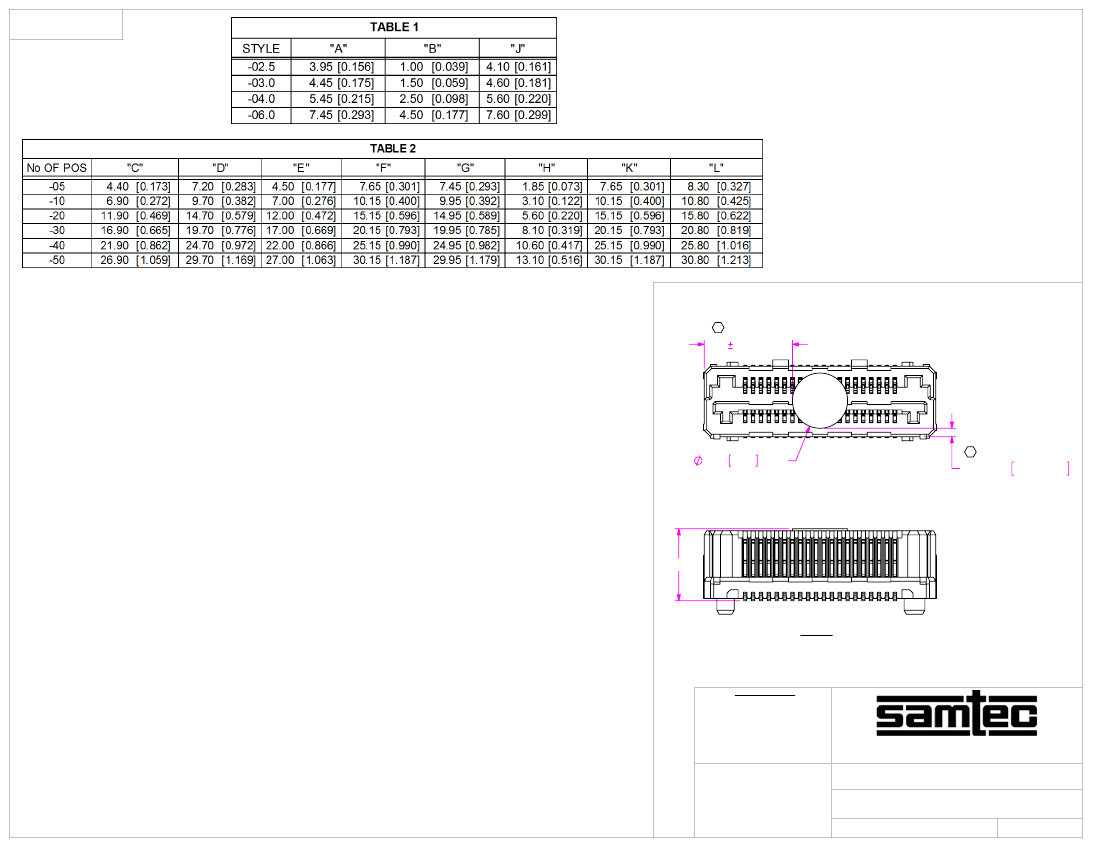

REVISION S
C
"H" 0.51[.020]
3.50 .138 REF
C
0.54±0.51 .021±.020
"J"
(LSHM-120-XX.X-DV-A-N-K SHOWN)
PROPRIETARY NOTE
FIG 3
-K OPTION
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
3
OF
4
BY:
AGEN H
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW

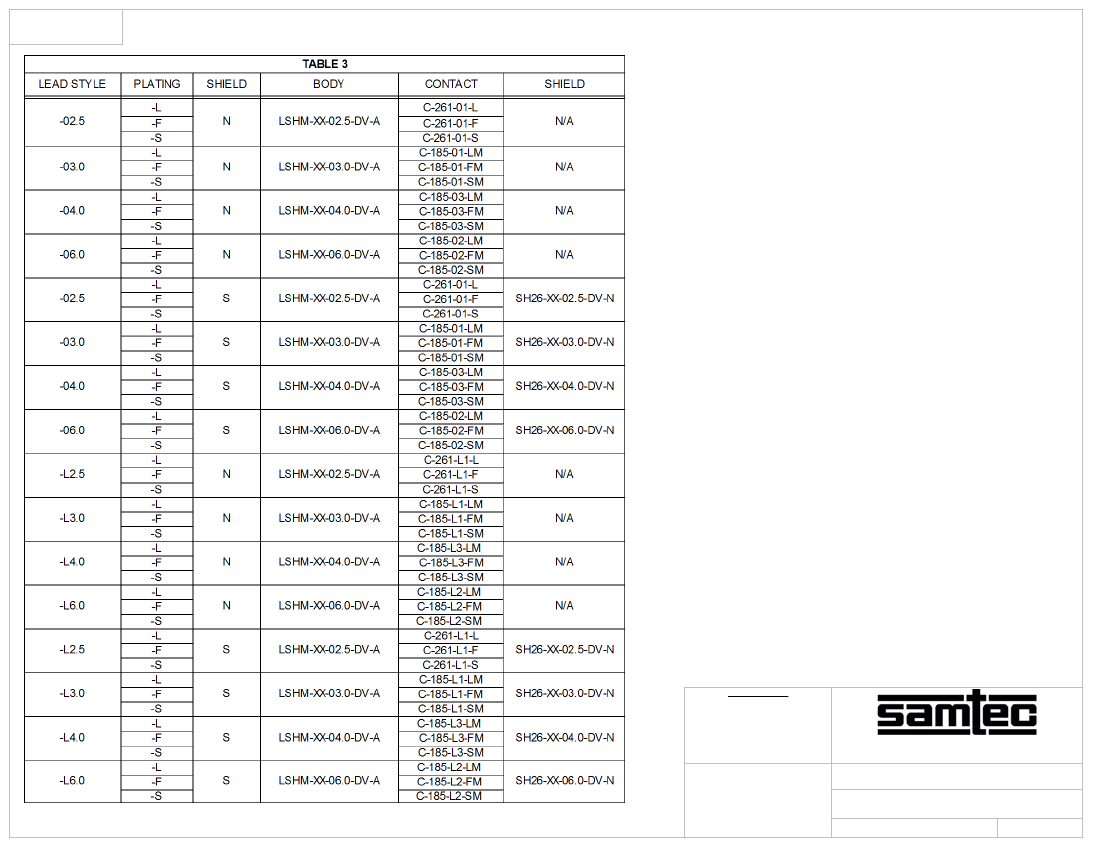

REVISION S
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.50mm TERMINAL/SOCKET COMBO
SHEET
4
OF
4
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
BY:
AGEN H
