54F158ADM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F158ADM

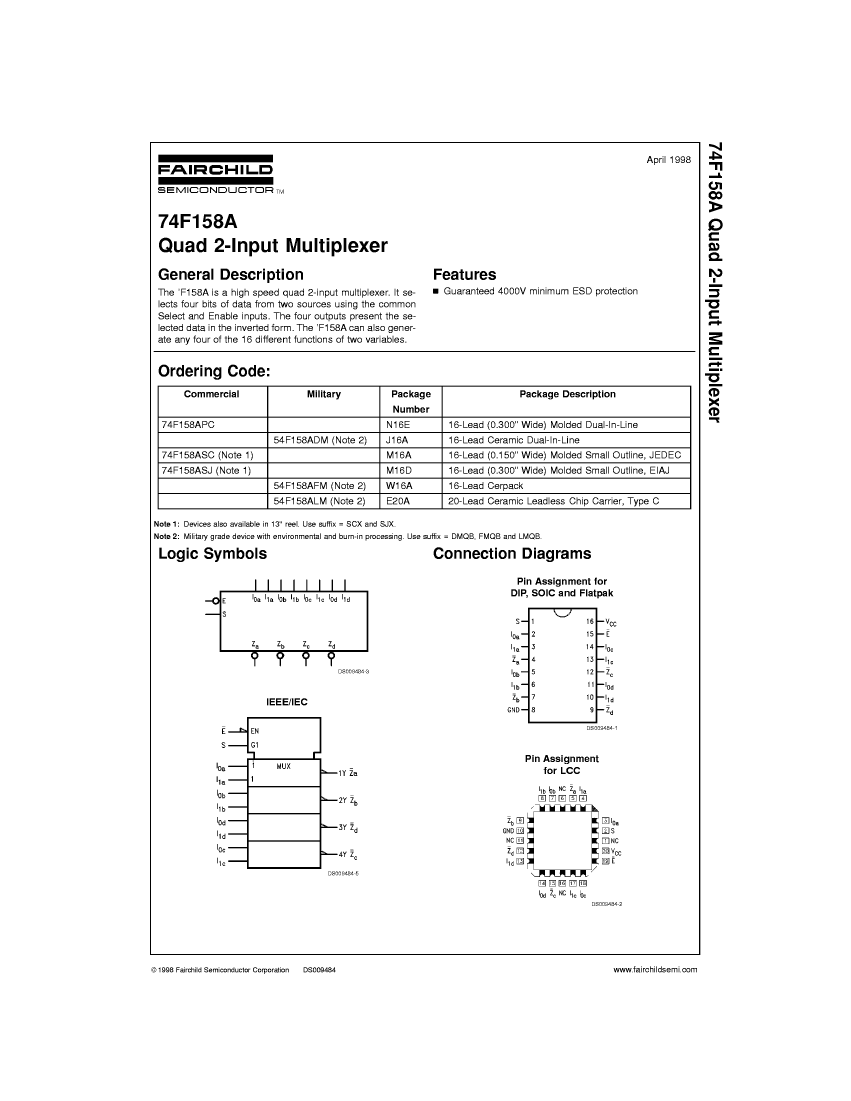

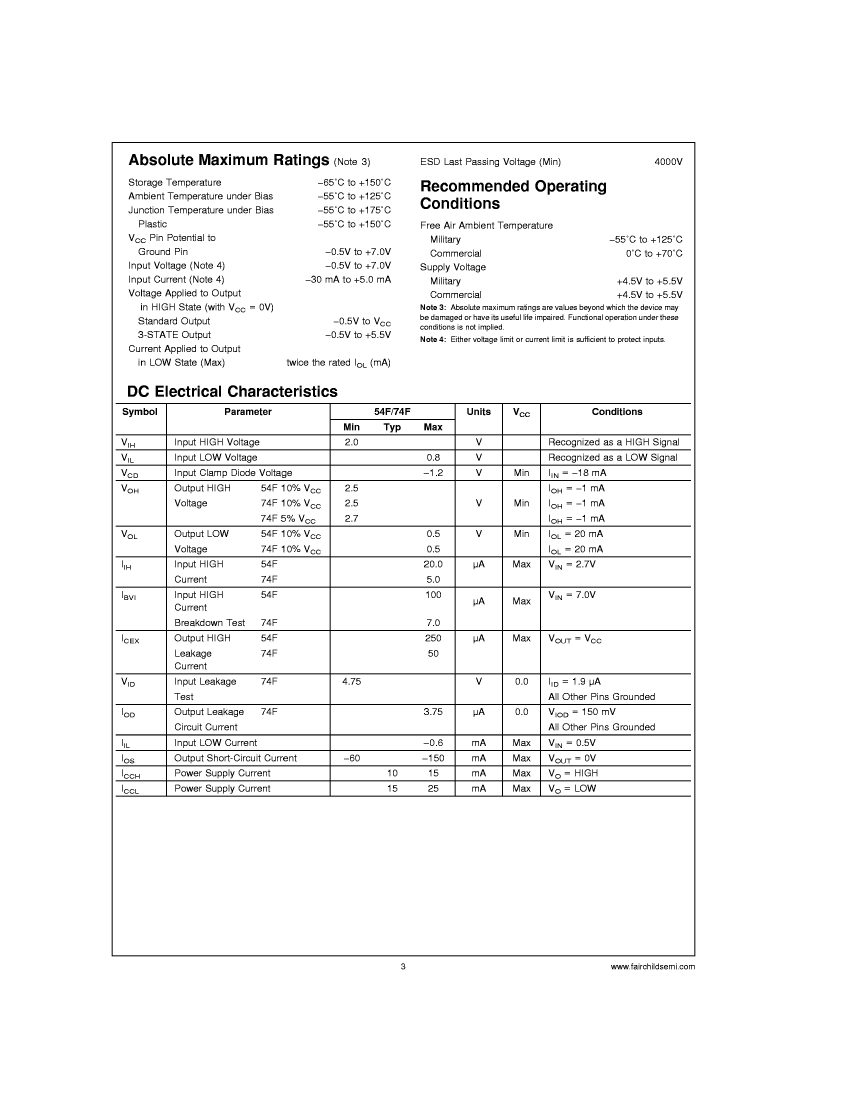

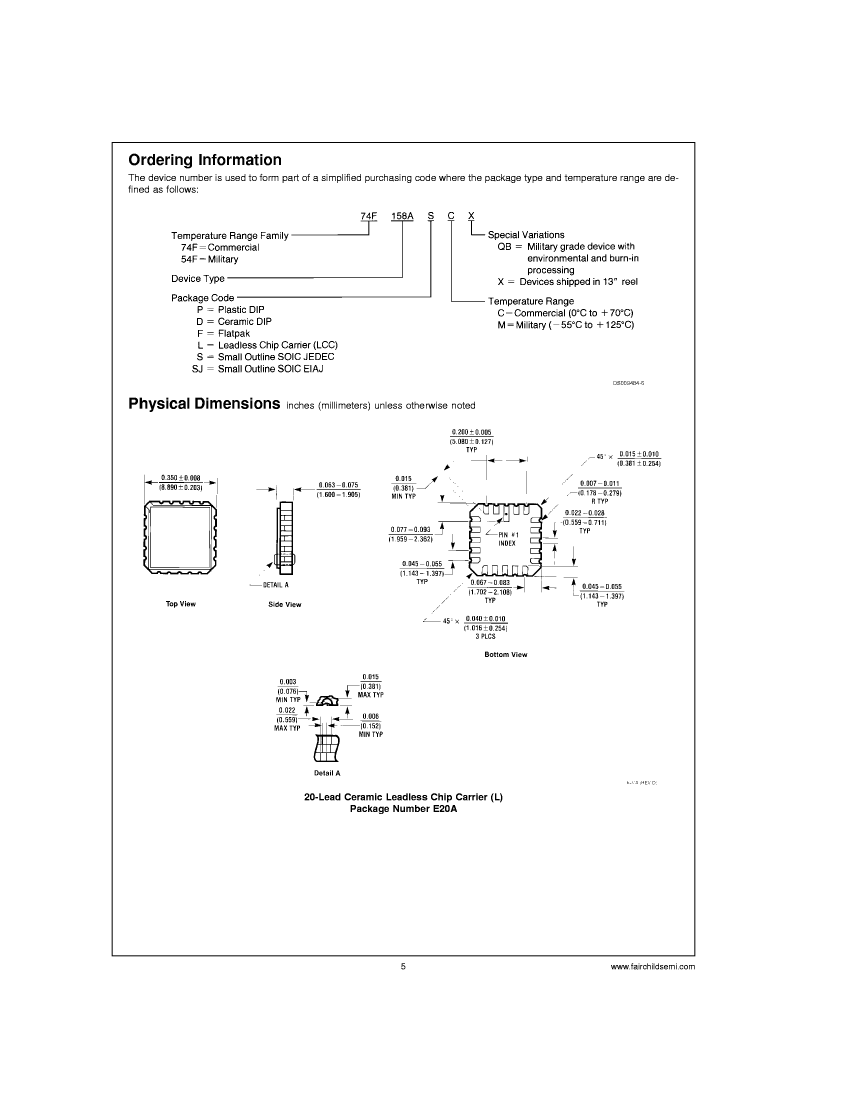

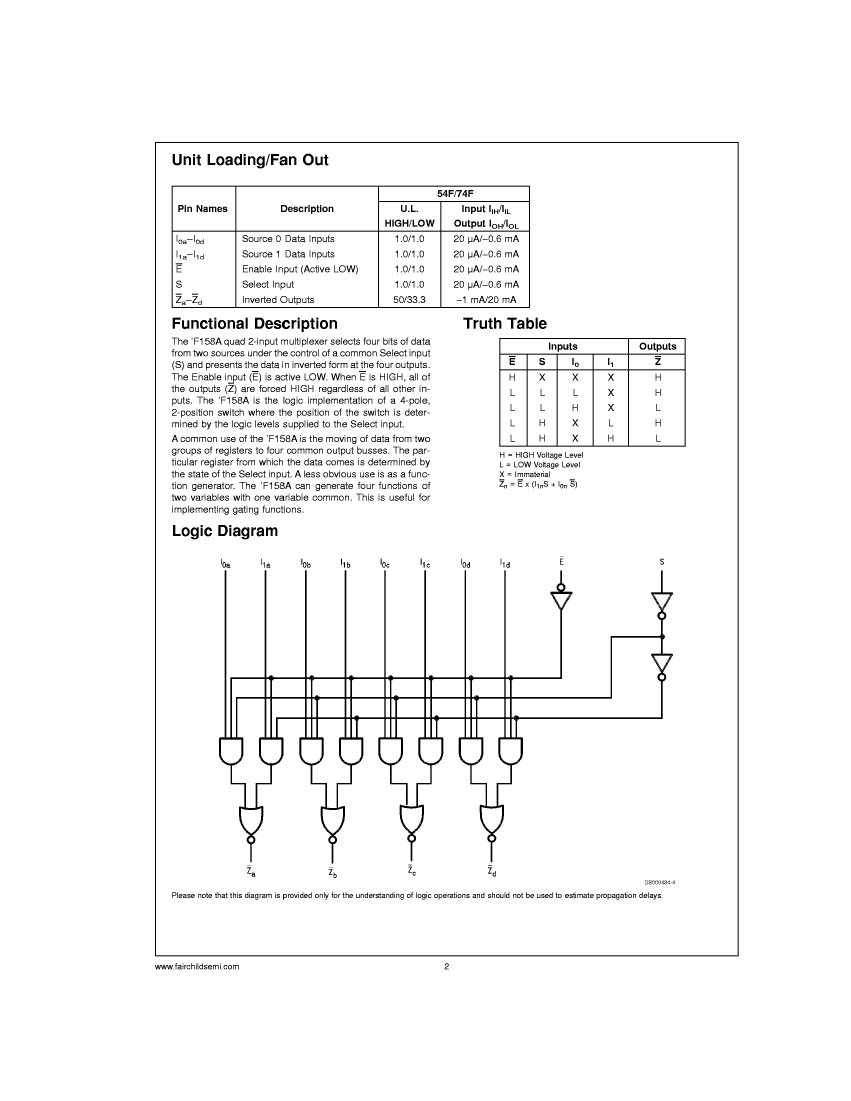

54F158ADM: DescriptionMultiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size182KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F158ADM Overview

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16

54F158ADM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	CERAMIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.43 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	10.5 ns
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F158ADM Related Products

	54F158ADM	54F158AFM	YTW-46-07-T-Q-120-050	54F158AFMQB	54F158ADMQB	54F158ALM
Description	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERPACK-16	Board Stacking Connector, 184 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERPACK-16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20
package instruction	CERAMIC, DIP-16	DFP,	ROHS COMPLIANT	DFP, FL16,.3	DIP, DIP16,.3	QCCN,
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	unknown
Terminal pitch	2.54 mm	1.27 mm	2 mm	1.27 mm	2.54 mm	1.27 mm
Is it lead-free?	Contains lead	-	Lead free	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	-	conform to	incompatible	incompatible	-
Parts packaging code	DIP	DFP	-	DFP	DIP	QLCC
Contacts	16	16	-	16	16	20
series	F/FAST	F/FAST	-	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T16	R-GDFP-F16	-	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20
JESD-609 code	e0	-	e3	e0	e0	-
length	19.43 mm	9.6645 mm	-	9.6645 mm	19.43 mm	8.89 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	-	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	-	4	4	4
Number of entries	2	2	-	2	2	2
Output times	1	1	-	1	1	1
Number of terminals	16	16	-	16	16	20
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	-	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	-	DFP	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	-	FLATPACK	IN-LINE	CHIP CARRIER
propagation delay (tpd)	8 ns	8 ns	-	8 ns	8 ns	8 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.032 mm	-	2.032 mm	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	YES	-	YES	NO	YES
technology	TTL	TTL	-	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	-	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	-	DUAL	DUAL	QUAD
width	7.62 mm	6.604 mm	-	6.604 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	-	1	1	-
