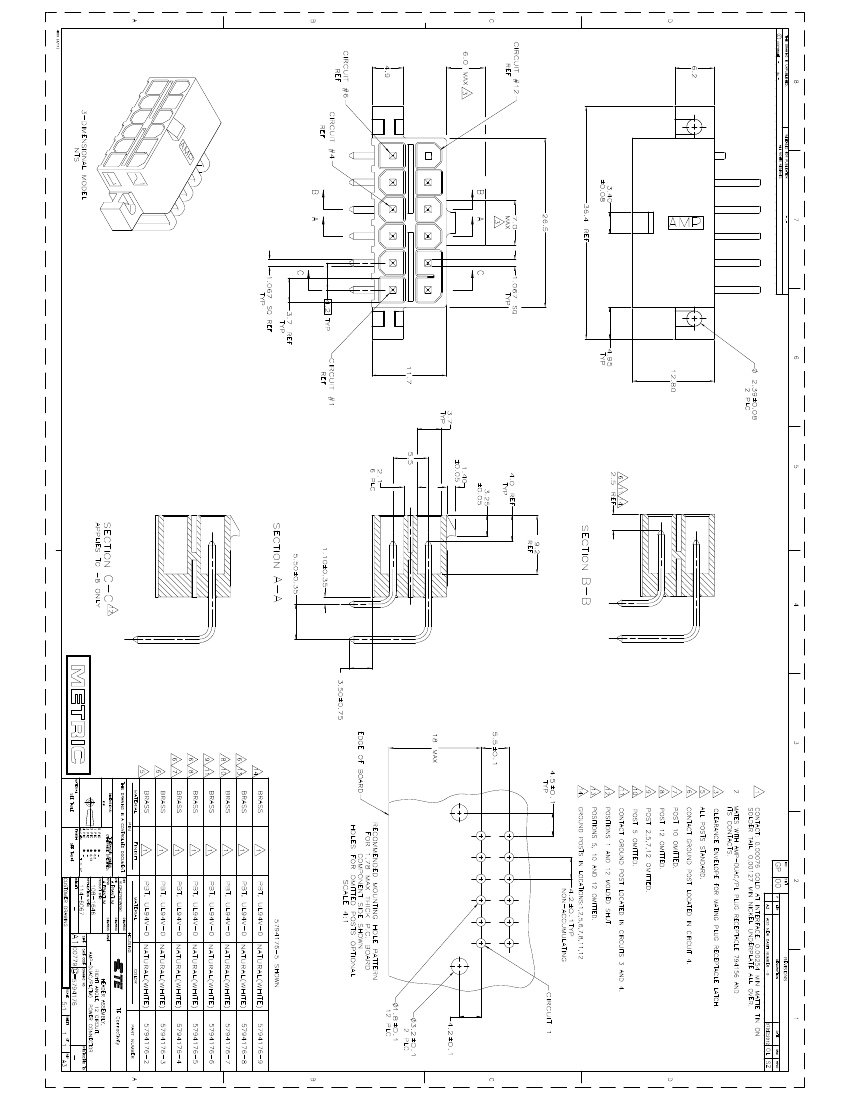

12 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| Board mount options | HOLE .086-.098 |
| body width | 0.516 inch |
| subject depth | 0.764 inch |
| body length | 1.433 inch |
| Body/casing type | PLUG |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VDC V |
| Durability | 25 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 3.2526 N |
| Insulation resistance | 1000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED PBT |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 5794176 |
| Plug contact pitch | 0.165 inch |
| Match contact row spacing | 0.217 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | FRICTION RAMP |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 9 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell material | POLYBUTYLENE TEREPHTHALATE |
| Terminal length | 0.138 inch |
| Terminal pitch | 4.191 mm |
| Termination type | SOLDER |
| Total number of contacts | 12 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .2224 N |
| Base Number Matches | 1 |
