MAX4323EUT+ amplifier basic information:
MAX4323EUT+ is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are LSSOP, TSOP6,.11,37
MAX4323EUT+ amplifier core information:
The MAX4323EUT+ has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 260. Its maximum bias current at 25°C is: 0.15 µA. Its maximum average bias current is 0.18 µA.
How to simply check the efficiency of an amplifier? Looking at its slew rate, the MAX4323EUT+ has a nominal slew rate of 2 V/us. The maximum slew rate of the MAX4323EUT+ given by the manufacturer is 1.2 mA. Its minimum voltage gain is 1990. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MAX4323EUT+ gain becomes 0.707 times the low-frequency gain is 5000 kHz. The power of the MAX4323EUT+ is NO. Its programmable power is NO.
The nominal supply voltage of the MAX4323EUT+ is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the MAX4323EUT+ is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)
Related dimensions of MAX4323EUT+:
The width of MAX4323EUT+ is: 1.625 mm and the length is 2.9 mm. MAX4323EUT+ has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6
MAX4323EUT+ amplifier additional information:
MAX4323EUT+ adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of MAX4323EUT+ is: YES. Its temperature grade is: INDUSTRIAL.
And its humidity sensitivity level is: 1. It is not a micropower amplifier. The MAX4323EUT+ is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G6.
The corresponding JESD-609 code is: e3. The packaging code of MAX4323EUT+ is: LSSOP. The materials of the MAX4323EUT+ package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The MAX4323EUT+ package pin forms are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH.
Its terminal forms are: GULL WING. The maximum seat height is 1.45 mm.
MAX4323EUT+ amplifier basic information:
MAX4323EUT+ is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are LSSOP, TSOP6,.11,37
MAX4323EUT+ amplifier core information:
The MAX4323EUT+ has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 260. Its maximum bias current at 25°C is: 0.15 µA. Its maximum average bias current is 0.18 µA.
How to simply check the efficiency of an amplifier? Looking at its slew rate, the MAX4323EUT+ has a nominal slew rate of 2 V/us. The maximum slew rate of the MAX4323EUT+ given by the manufacturer is 1.2 mA. Its minimum voltage gain is 1990. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MAX4323EUT+ gain becomes 0.707 times the low-frequency gain is 5000 kHz. The power of the MAX4323EUT+ is NO. Its programmable power is NO.
The nominal supply voltage of the MAX4323EUT+ is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the MAX4323EUT+ is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)
Related dimensions of MAX4323EUT+:
The width of MAX4323EUT+ is: 1.625 mm and the length is 2.9 mm. MAX4323EUT+ has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6
MAX4323EUT+ amplifier additional information:
MAX4323EUT+ adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of MAX4323EUT+ is: YES. Its temperature grade is: INDUSTRIAL.
And its humidity sensitivity level is: 1. It is not a micropower amplifier. The MAX4323EUT+ is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G6.
The corresponding JESD-609 code is: e3. The packaging code of MAX4323EUT+ is: LSSOP. The materials of the MAX4323EUT+ package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The MAX4323EUT+ package pin forms are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH.
Its terminal forms are: GULL WING. The maximum seat height is 1.45 mm.

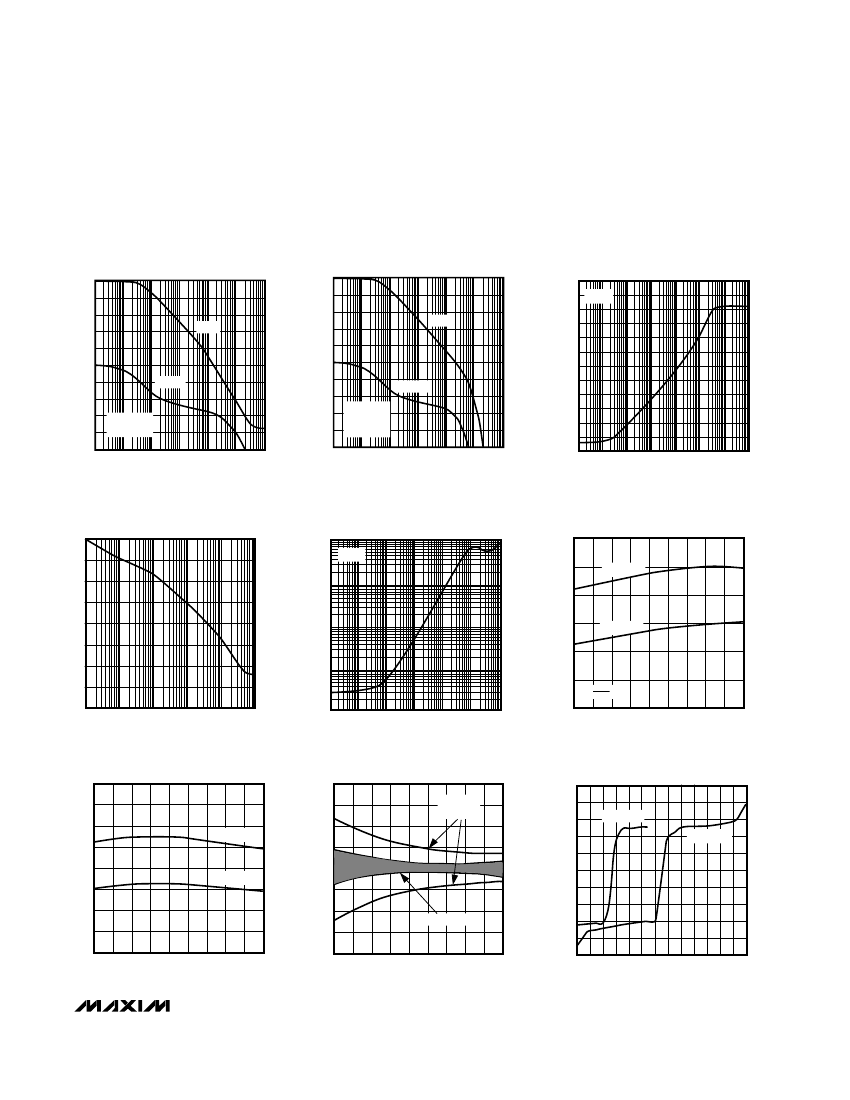

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | SOT-23 |
| package instruction | LSSOP, TSOP6,.11,37 |
| Contacts | 6 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.18 µA |
| Maximum bias current (IIB) at 25C | 0.15 µA |
| Nominal Common Mode Rejection Ratio | 91 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 6000 µV |
| JESD-30 code | R-PDSO-G6 |
| JESD-609 code | e3 |
| length | 2.9 mm |
| low-bias | NO |
| low-dissonance | NO |
| micropower | NO |
| Humidity sensitivity level | 1 |
| Negative supply voltage upper limit | |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of functions | 1 |
| Number of terminals | 6 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LSSOP |
| Encapsulate equivalent code | TSOP6,.11,37 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 |
| power | NO |
| power supply | +-1.2/+-3.25/2.4/6.5 V |
| Programmable power | NO |
| Certification status | Not Qualified |
| Maximum seat height | 1.45 mm |
| Nominal slew rate | 2 V/us |
| Maximum slew rate | 1.2 mA |
| Supply voltage upper limit | 7.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin (Sn) |
| Terminal form | GULL WING |
| Terminal pitch | 0.95 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Nominal Uniform Gain Bandwidth | 5000 kHz |
| Minimum voltage gain | 1990 |
| broadband | NO |
| width | 1.625 mm |
| Base Number Matches | 1 |
| MAX4323EUT+ | MAX4322EUK+ | |
|---|---|---|
| Description | Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, PDSO6, SOT-23, 6 PIN | Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, PDSO5, MO-178, SOT-23, 5 PIN |
| Is it Rohs certified? | conform to | conform to |
| package instruction | LSSOP, TSOP6,.11,37 | LSSOP, |
| Reach Compliance Code | compliant | compliant |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.18 µA | 0.18 µA |
| Nominal Common Mode Rejection Ratio | 91 dB | 91 dB |
| Maximum input offset voltage | 6000 µV | 6000 µV |
| JESD-30 code | R-PDSO-G6 | R-PDSO-G5 |
| JESD-609 code | e3 | e3 |
| length | 2.9 mm | 2.9 mm |
| Humidity sensitivity level | 1 | 1 |
| Number of functions | 1 | 1 |
| Number of terminals | 6 | 5 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | LSSOP | LSSOP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 | 260 |
| Maximum seat height | 1.45 mm | 1.45 mm |
| Nominal slew rate | 2 V/us | 2 V/us |
| Supply voltage upper limit | 7.5 V | 7.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | YES | YES |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin (Sn) | Matte Tin (Sn) |
| Terminal form | GULL WING | GULL WING |
| Terminal pitch | 0.95 mm | 0.95 mm |
| Terminal location | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 |
| Nominal Uniform Gain Bandwidth | 5000 kHz | 5000 kHz |
| width | 1.625 mm | 1.625 mm |
