54154DM datasheet, PDF - EEWORLD Datasheet

54154DM: DescriptionDecoder/Driver, TTL, CDIP24,; Categorylogic logic; File Size71KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

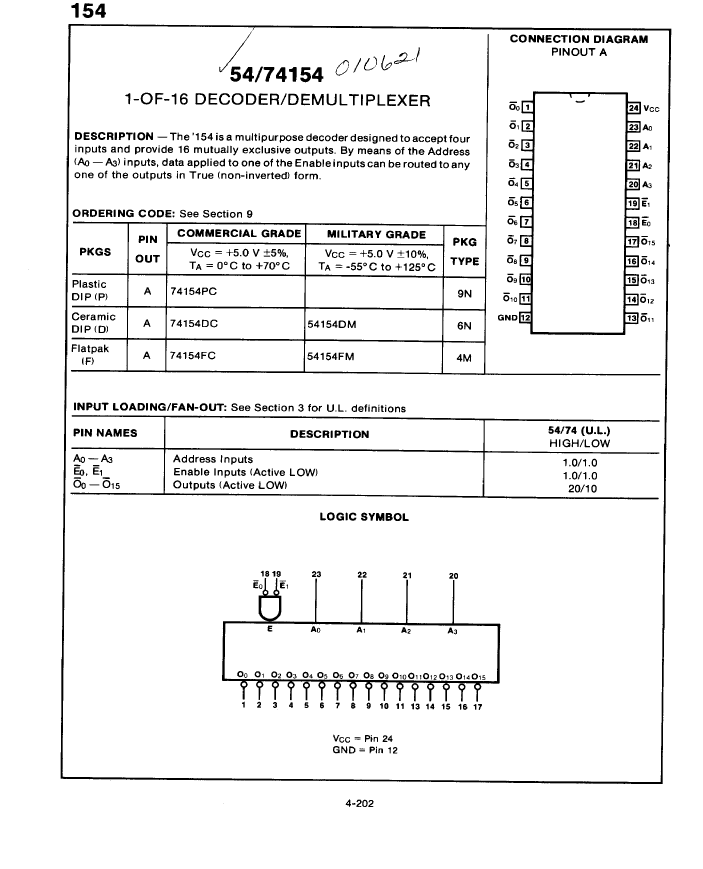

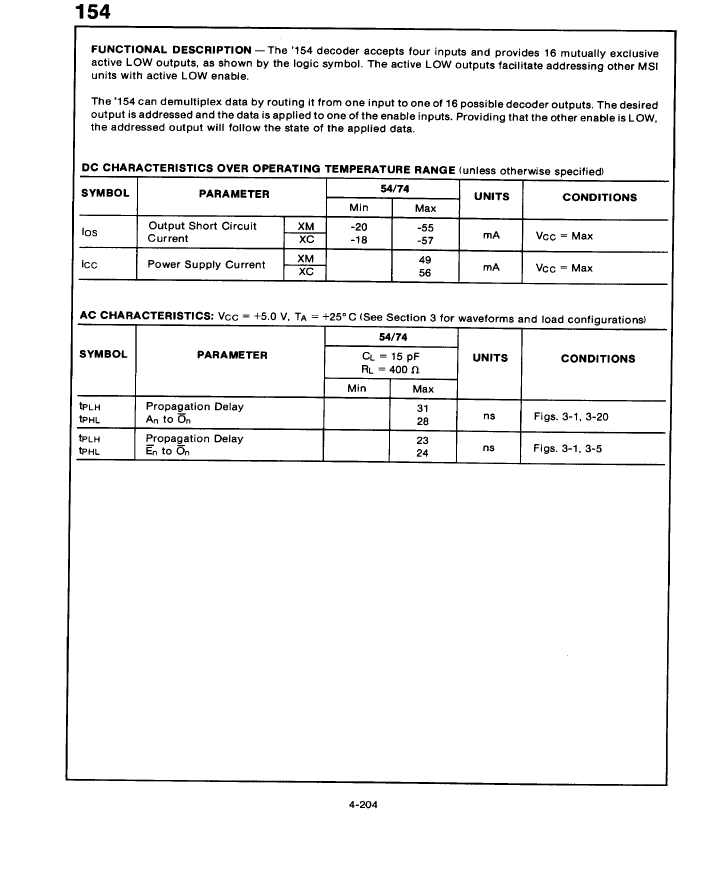

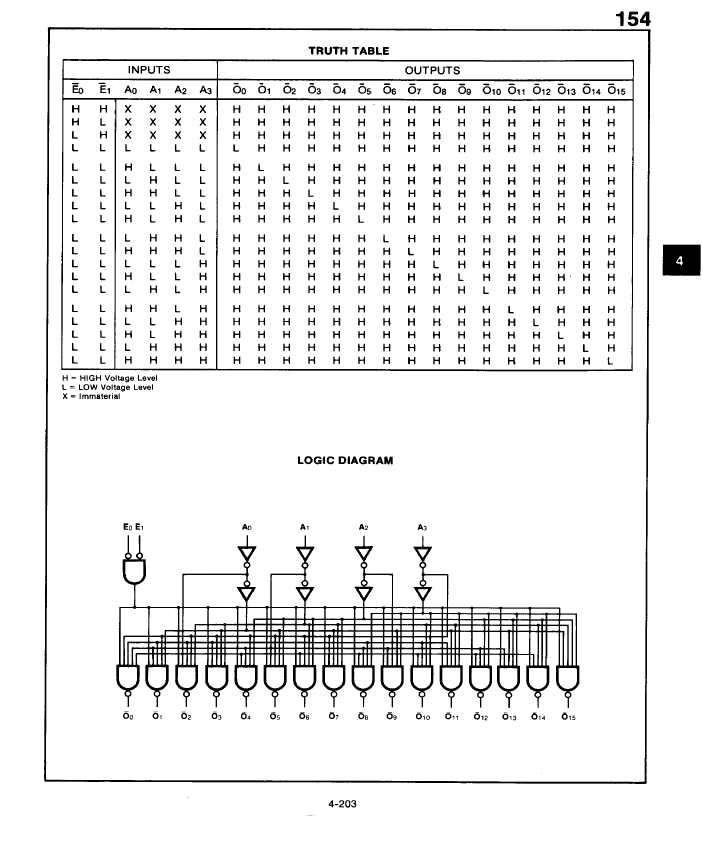

54154DM Overview

Decoder/Driver, TTL, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	2 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54154DM	74154PC	74154FC
Description	Decoder/Driver, TTL, CDIP24,	Decoder/Driver, TTL, PDIP24,	Decoder/Driver, TTL, CDFP24,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	unknown	compliant
JESD-30 code	R-XDIP-T24	R-PDIP-T24	R-XDFP-F24
JESD-609 code	e0	e0	e0
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	125 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DFP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	FL24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	2 mA	2 mA	2 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
