5962-01-341-7080 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-341-7080

5962-01-341-7080: DescriptionD Latch, 1-Func, 8-Bit, TTL, CQCC20,; Categorylogic logic; File Size259KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-341-7080 Overview

D Latch, 1-Func, 8-Bit, TTL, CQCC20,

5962-01-341-7080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	compliant
JESD-30 code	S-XQCC-N20
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.02 A
Humidity sensitivity level	2A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Maximum supply current (ICC)	55 mA
Prop。Delay @ Nom-Sup	8.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Base Number Matches	1

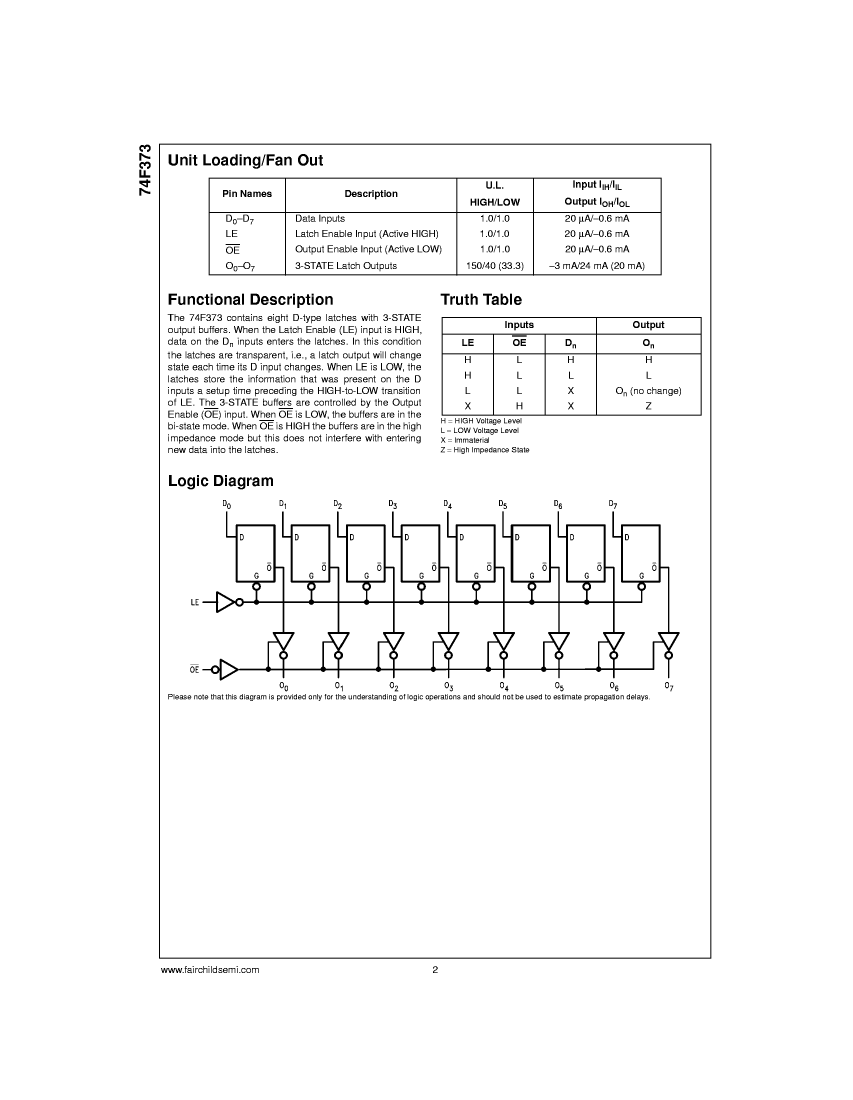

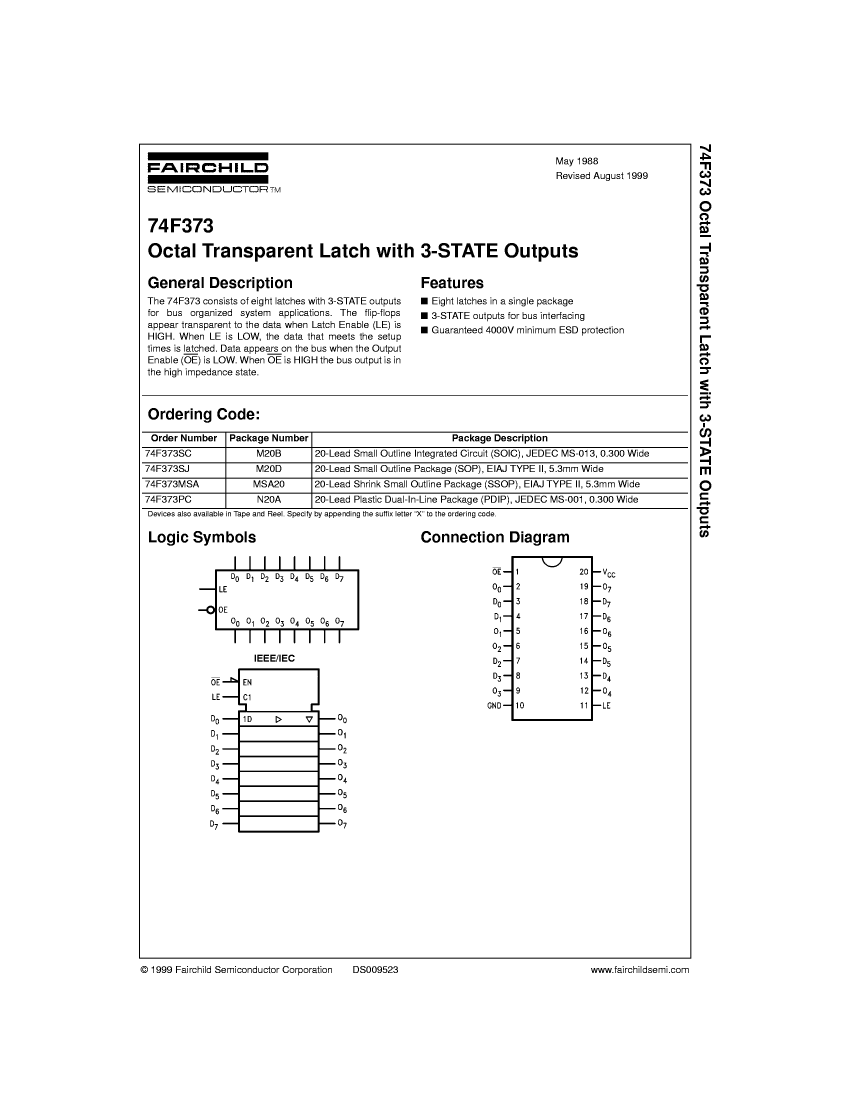

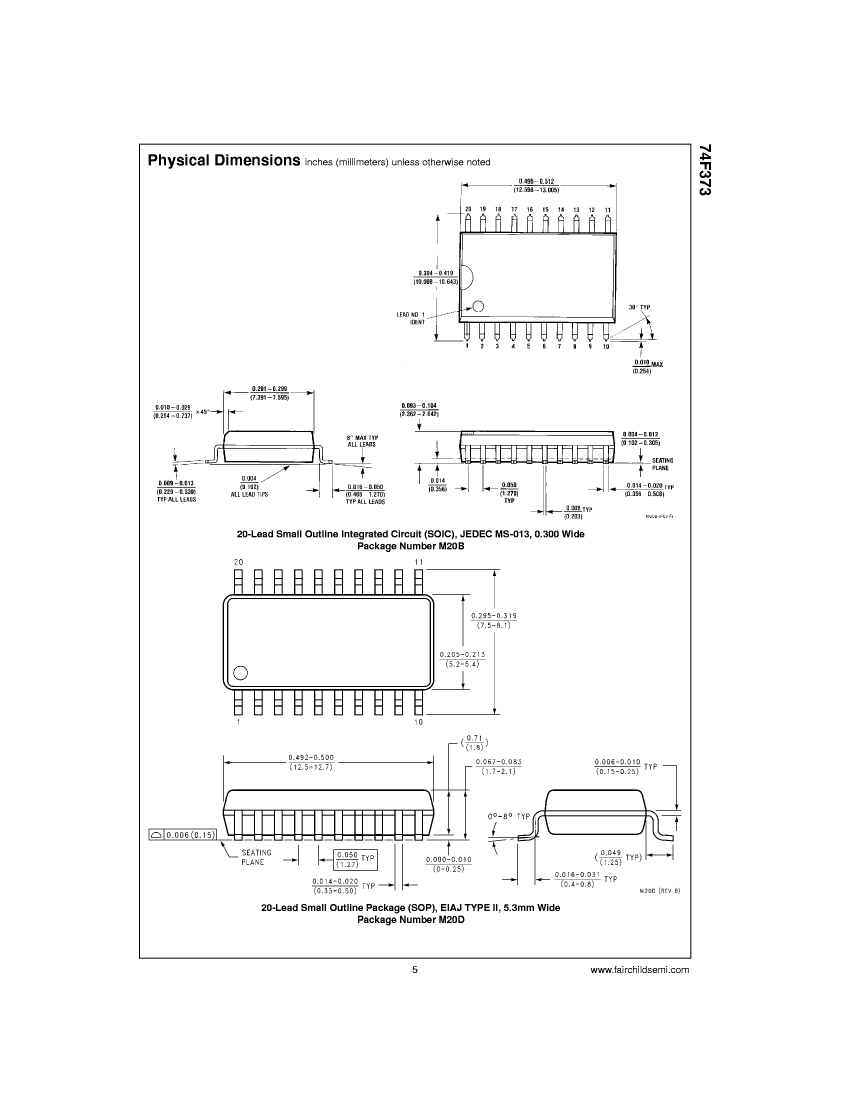

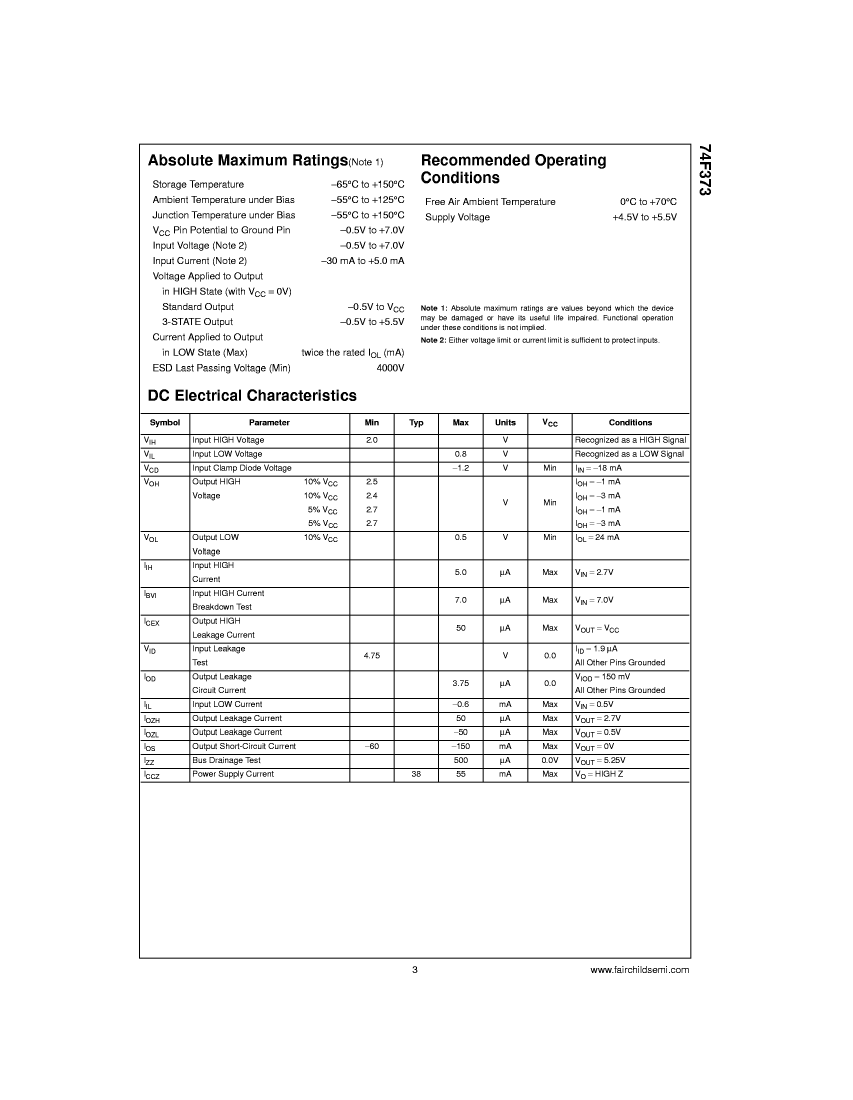

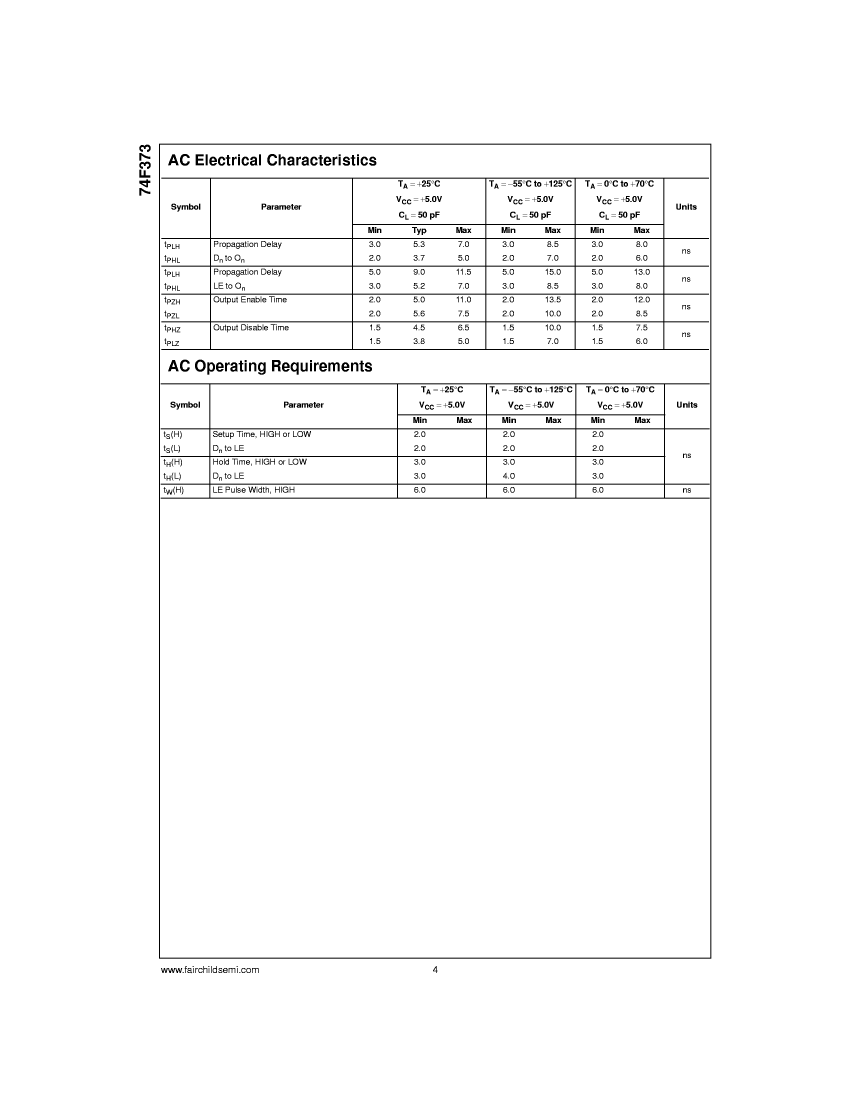

Preview

Download Datasheet

View All

5962-01-341-7080 Related Products

	5962-01-341-7080	54F373FMQBW	54F373DMW	74F373PCQM	74F373FCQR	74F373FCQM	74F373DCQM	54F373L1MQBW	5962-01-211-4665
Description	D Latch, 1-Func, 8-Bit, TTL, CQCC20,	D Latch, 1-Func, 8-Bit, TTL, CDFP20,	D Latch, 1-Func, 8-Bit, TTL, CDIP20,	D Latch, 1-Func, 8-Bit, TTL, PDIP20,	D Latch, 1-Func, 8-Bit, TTL, CDFP20,	D Latch, 1-Func, 8-Bit, TTL, CDFP20,	D Latch, 1-Func, 8-Bit, TTL, CDIP20,	D Latch, 1-Func, 8-Bit, TTL, CQCC20,	D Latch, 1-Func, 8-Bit, TTL, CDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DFP, FL20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DFP, FL20,.3	DFP, FL20,.3	DIP, DIP20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	S-XQCC-N20	R-XDFP-F20	R-XDIP-T20	R-PDIP-T20	R-XDFP-F20	R-XDFP-F20	R-XDIP-T20	S-XQCC-N20	R-XDIP-T20
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DFP	DIP	DIP	DFP	DFP	DIP	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	FL20,.3	DIP20,.3	DIP20,.3	FL20,.3	FL20,.3	DIP20,.3	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead
Humidity sensitivity level	2A	2A	2A	2A	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	250	250	250	250	-	250	250	250	250
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum time at peak reflow temperature	30	30	30	30	-	30	30	30	30
Base Number Matches	1	1	1	1	1	1	1	1	-
JESD-609 code	-	e0	e0	e0	e0	e0	e0	e0	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
