HCPL-4506#060 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HCPL-4506#060

HCPL-4506#060: DescriptionLogic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, 0.300 INCH, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size534KB，14 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric Compare View All

HCPL-4506#060 Overview

Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, 0.300 INCH, DIP-8

HCPL-4506#060 Parametric

Parameter Name	Attribute value
Maker	Hewlett Packard Co.
package instruction	0.300 INCH, DIP-8
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Configuration	COMPLEX
Nominal data rate	1 MBps
Maximum forward current	0.025 A
Maximum insulation voltage	2500 V
Number of components	1
Maximum on-state current	0.015 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Minimum supply voltage	4.5 V
Base Number Matches	1

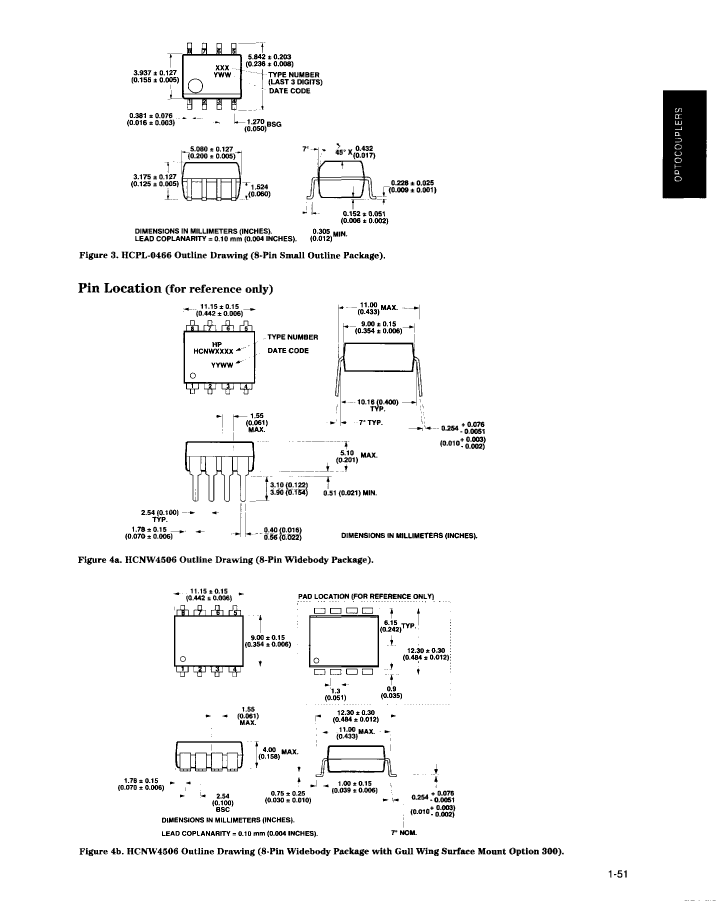

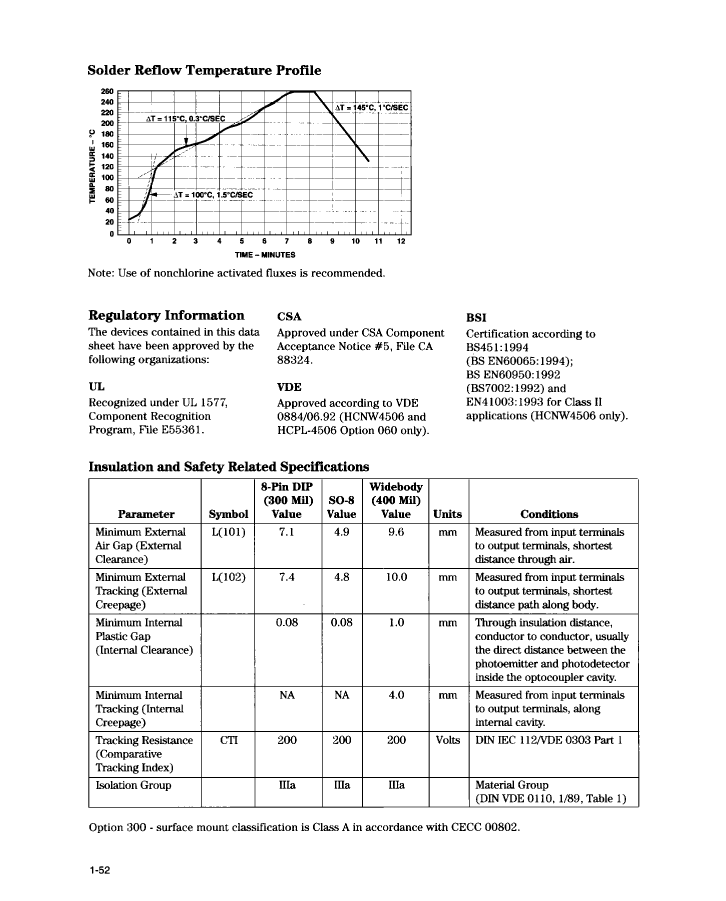

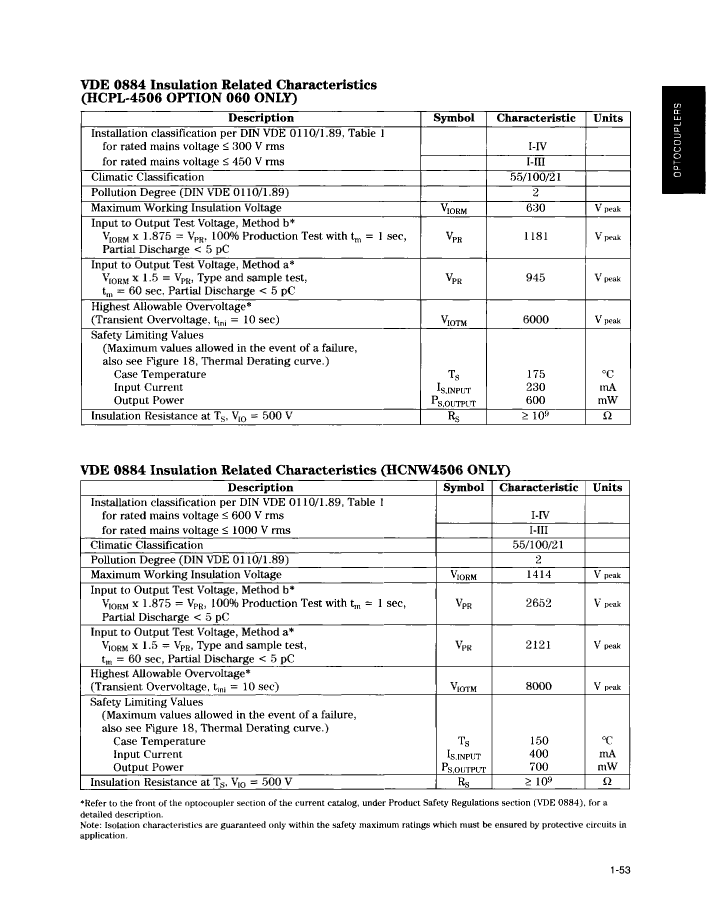

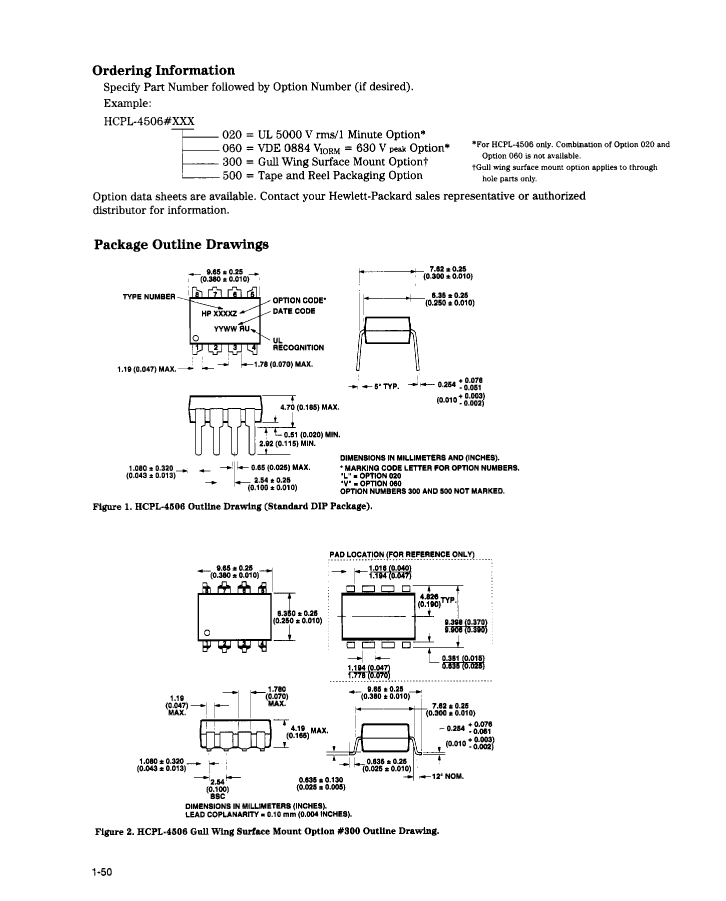

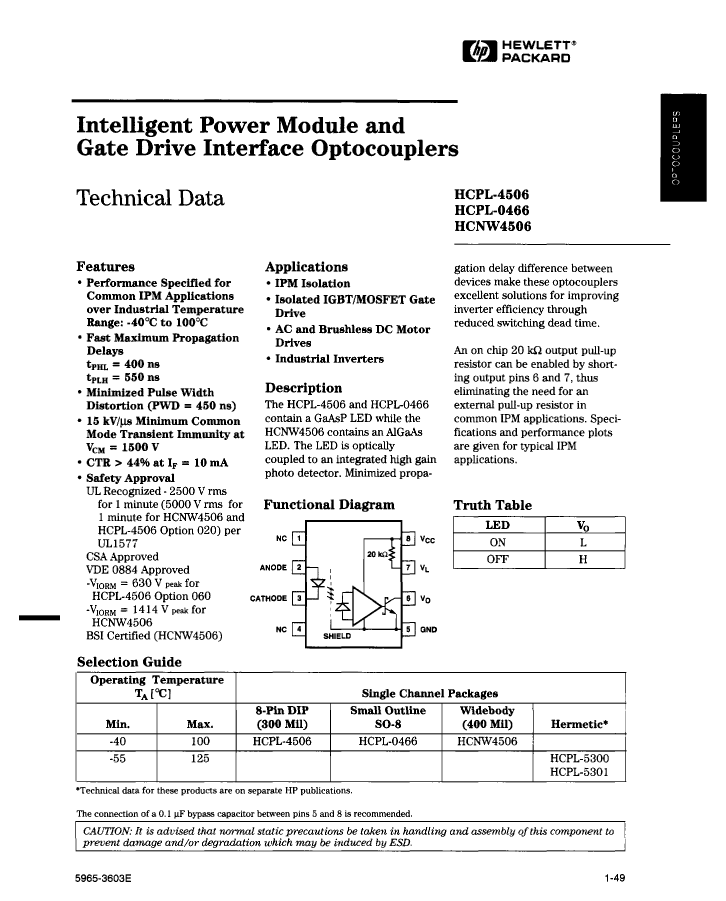

Preview

Download Datasheet

View All

HCPL-4506#060 Related Products

	HCPL-4506#060	HCPL-4506002	HCPL-4506#020	HCPL-4506001	HCPL-4506#320	HCPL-4506#520	HCPL-0466#500
Description	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, 0.300 INCH, DIP-8	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps	Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 1MBps, 0.300 INCH, DIP-8	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps	Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 1MBps, 0.300 INCH, DIP-8	Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 1MBps, 0.300 INCH, DIP-8	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SO-8
Maker	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Nominal data rate	1 MBps	1 MBps	1 MBps	1 MBps	1 MBps	1 MBps	1 MBps
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum insulation voltage	2500 V	2500 V	5000 V	2500 V	5000 V	5000 V	2500 V
Number of components	1	1	1	1	1	1	1
Maximum on-state current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Base Number Matches	1	1	1	1	1	1	1
package instruction	0.300 INCH, DIP-8	-	0.300 INCH, DIP-8	-	0.300 INCH, DIP-8	0.300 INCH, DIP-8	SO-8
