MIB3012M-220

Description
General Purpose Inductor, 22uH, 20%, 1 Element, SMD, CHIP, 1212
CategoryPassive components    inductor
File Size19KB,1 Pages
ManufacturerMaruwa
Download Datasheet Parametric View All

MIB3012M-220 Overview

General Purpose Inductor, 22uH, 20%, 1 Element, SMD, CHIP, 1212

MIB3012M-220 Parametric

Parameter NameAttribute value
MakerMaruwa
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.792 Ω
Nominal inductance(L)22 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-20 °C
Maximum rated current0.43 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

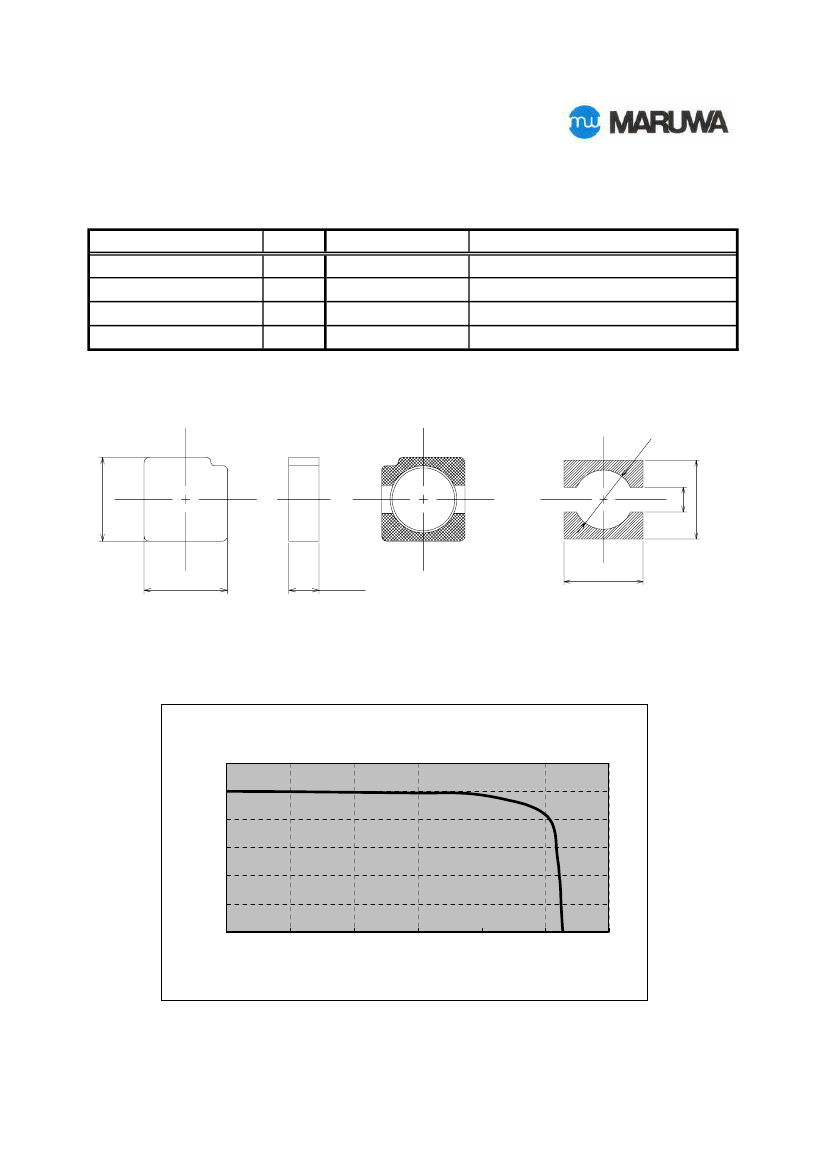

Technical data sheet (Provisional)
2012/01/30
Chip Inductor MIB3012M
220
Basic characteristics
Unit
Inductance
DC resistance
Rated current
Operating temperature
μH
Ω
A
MIB3012M−220
22.0 +/- 20%
0.792
0.43 / 0.43
-20 to +100
Conditions
100kHz / Ta=25℃, Idc=0A
Ta=25℃
ΔL / L≧-30% / ΔT≦40℃
Including temperature rise
(Typical)
DIMENSION (Unit : mm)
Recommended Land Pattern (Unit : mm)
φ
2.4
3.0
3.0
1.2 MAX.
3.2
△L/L
as a function of Idc(A)
10
0
ΔL
/ L [%]
-10
-20
-30
-40
-50
0.0
0.1
0.2
0.3
0.4
0.5
0.6
Superimposed DC current Idc [A]
MARUWA CO.,LTD.
1.0
3.2
