55376-1549 datasheet, PDF - EEWORLD Datasheet

55376-1549: DescriptionBoard Connector, 154 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

55376-1549 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55376-1549	-	-	View	Buy Now

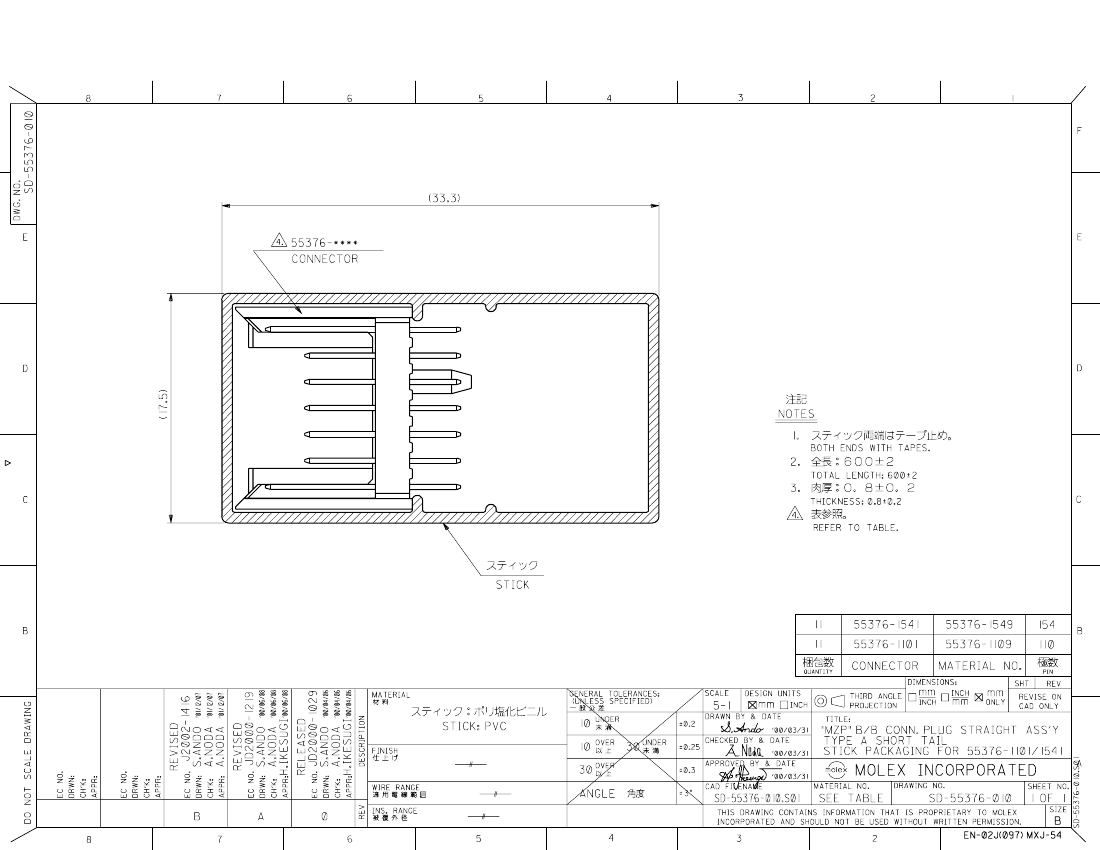

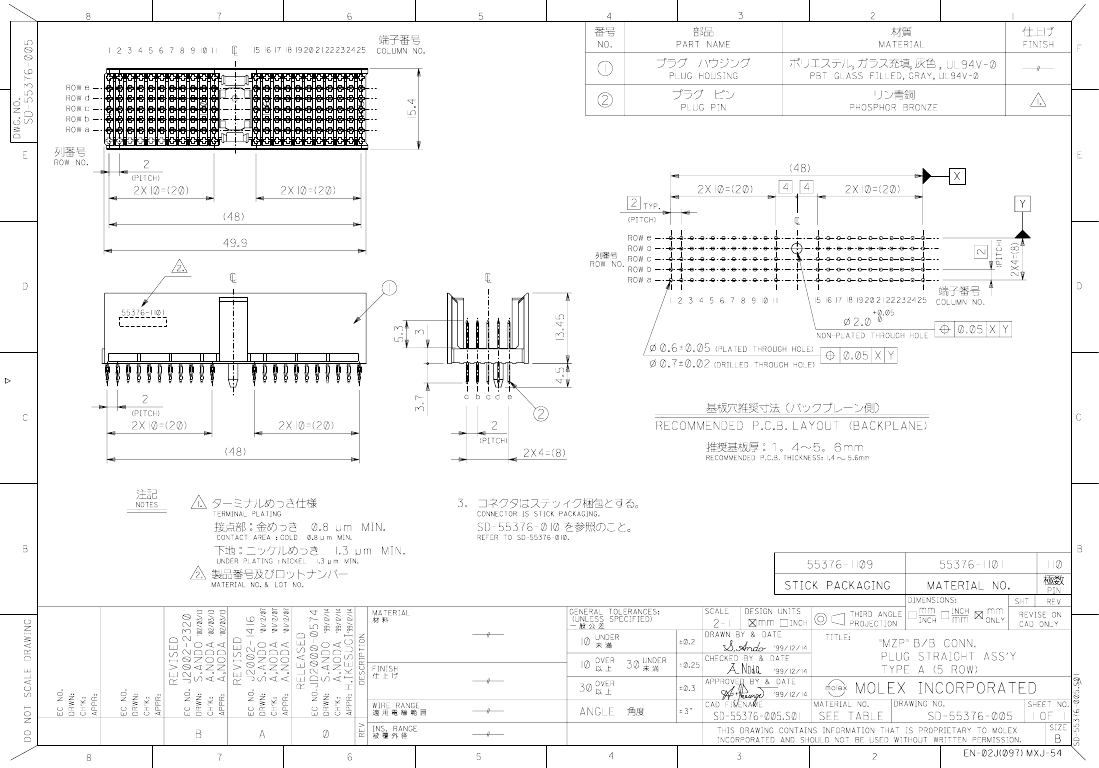

Board Connector, 154 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Samacsys Description	Hard Metric Connectors 154 Ckt Vert. Header 7 rows
Other features	MZP, COMPACTPCI
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	55376
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
UL Flammability Code	94V-0
Base Number Matches	1

	55376-1549	55376-1109	55376-1101	55376-1541
Description	Board Connector, 154 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug,	Board Connector, 154 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug,
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	unknown
Other features	MZP, COMPACTPCI	MZP, COMPACTPCI	MZP, SHIELDED	MZP, SHIELDED
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	154	110	110	154
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
