5962-9223302MFX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9223302MFX

5962-9223302MFX: DescriptionDecoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16; Categorylogic logic; File Size147KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9223302MFX Overview

Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16

5962-9223302MFX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	FCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
length	10.16 mm
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

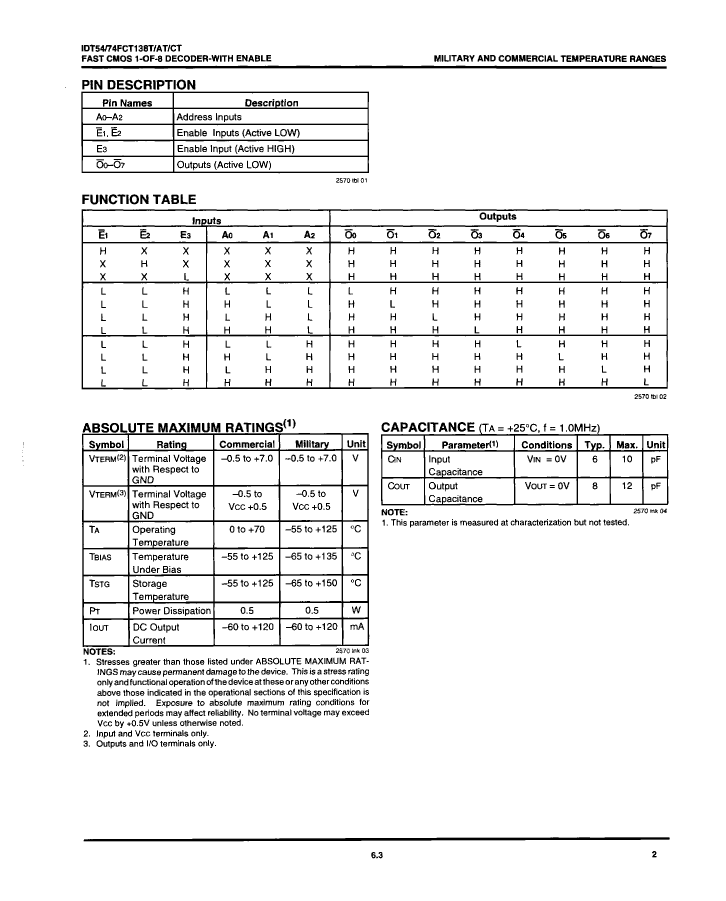

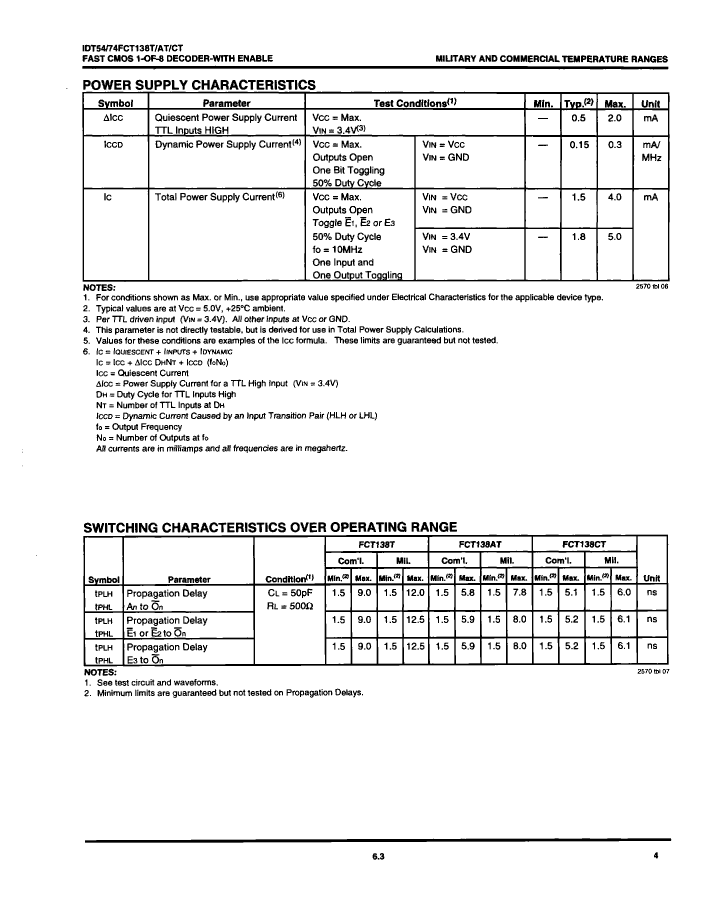

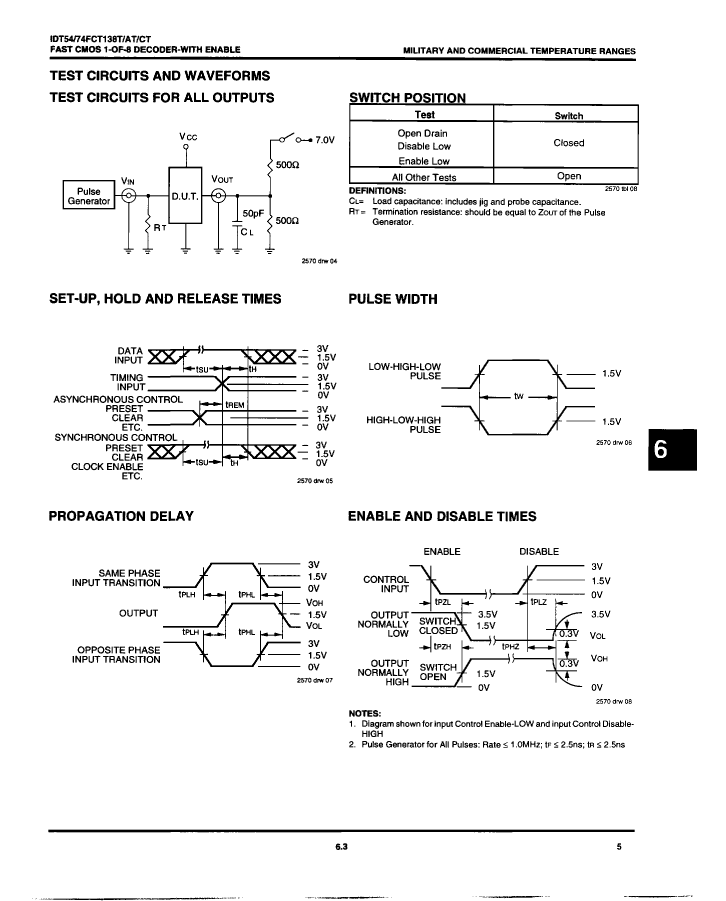

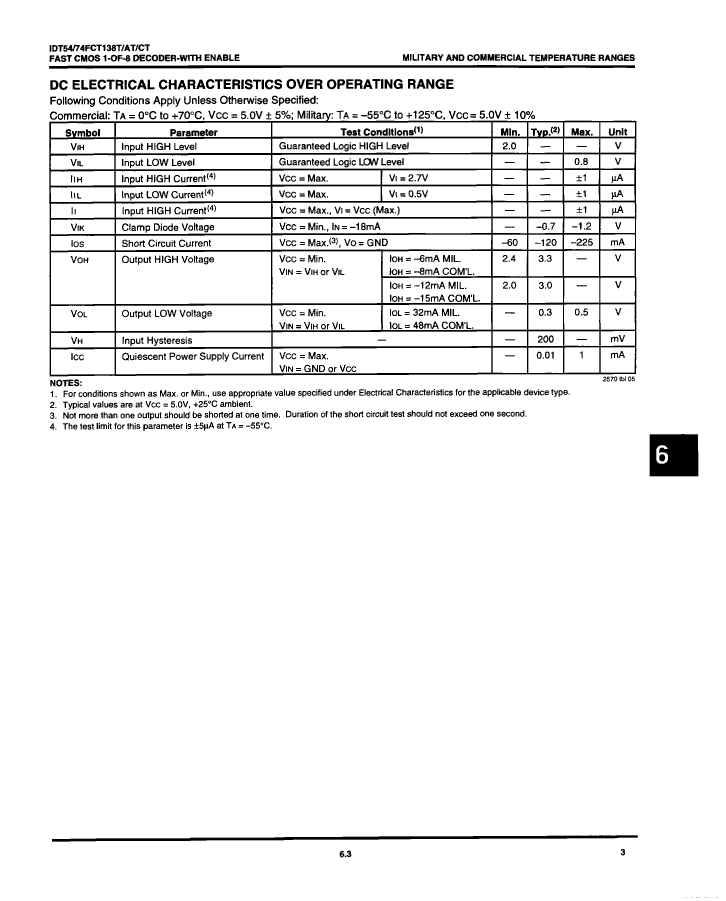

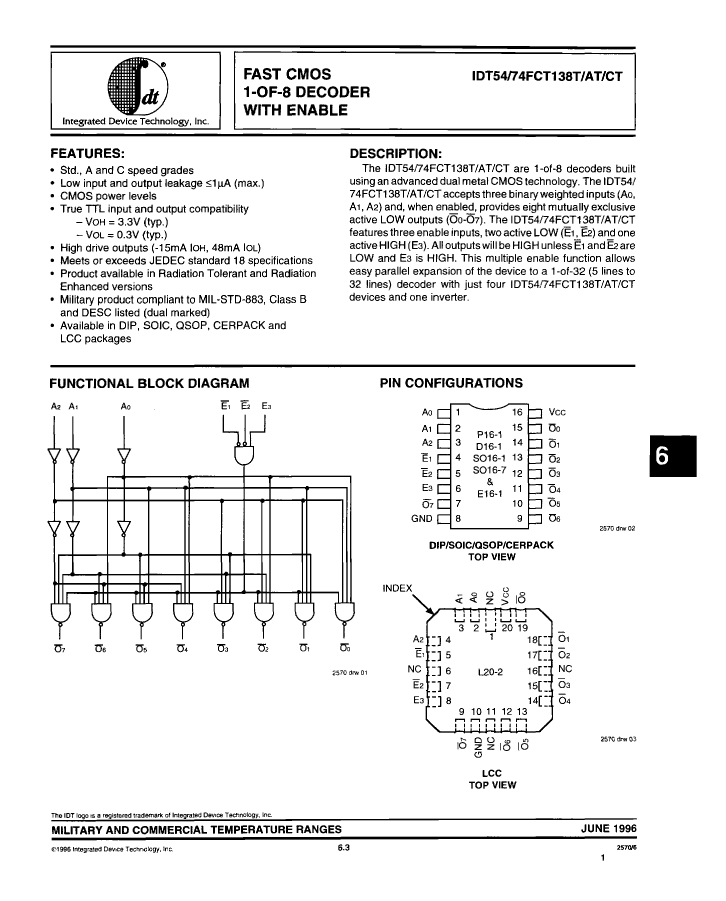

Preview

Download Datasheet

View All

5962-9223302MFX Related Products

	5962-9223302MFX	5962-9223306M2X	5962-9223306MFX	NMG1209SC	5962-9223302M2X	5962-9223304MEX	5962-9223304MFX	5962-9223302MEX	5962-9223306MEX
Description	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, LCC-20	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Isolated 2W Single Output DC/DC Converters	Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, LCC-20	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16
Parts packaging code	DFP	QLCC	DFP	-	QLCC	DIP	DFP	DIP	DIP
package instruction	DFP,	QCCN,	DFP,	-	QCCN,	DIP,	DFP,	DIP,	DIP,
Contacts	16	20	16	-	20	16	16	16	16
Reach Compliance Code	unknown	unknow	unknow	-	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	-	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS
series	FCT	FCT	FCT	-	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-CDFP-F16	S-CQCC-N20	R-CDFP-F16	-	S-CQCC-N20	R-GDIP-T16	R-CDFP-F16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	-	e0	-	e0	e0	e0	e0	e0
length	10.16 mm	8.89 mm	10.16 mm	-	8.89 mm	20.066 mm	10.16 mm	20.066 mm	20.066 mm
Logic integrated circuit type	OTHER DECODER/DRIVER	-	OTHER DECODER/DRIVER	-	-	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	-	OTHER DECODER/DRIVER
Number of functions	1	1	1	-	1	1	1	1	1
Number of terminals	16	20	16	-	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	-	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DFP	-	QCCN	DIP	DFP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	-	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	FLATPACK	-	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	IN-LINE
propagation delay (tpd)	12 ns	6 ns	6 ns	-	12 ns	7.8 ns	7.8 ns	12 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	-	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.159 mm	2.54 mm	2.159 mm	-	2.54 mm	5.08 mm	2.159 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	-	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	-	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	NO LEAD	FLAT	-	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	-	QUAD	DUAL	DUAL	DUAL	DUAL
width	6.731 mm	8.89 mm	6.731 mm	-	8.89 mm	7.62 mm	6.731 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	-	1	1	1	1	1
